Dual Display Mini PC I5 1235U I7 1255U

Dual Display Mini PC I5 1235U I7 1255U

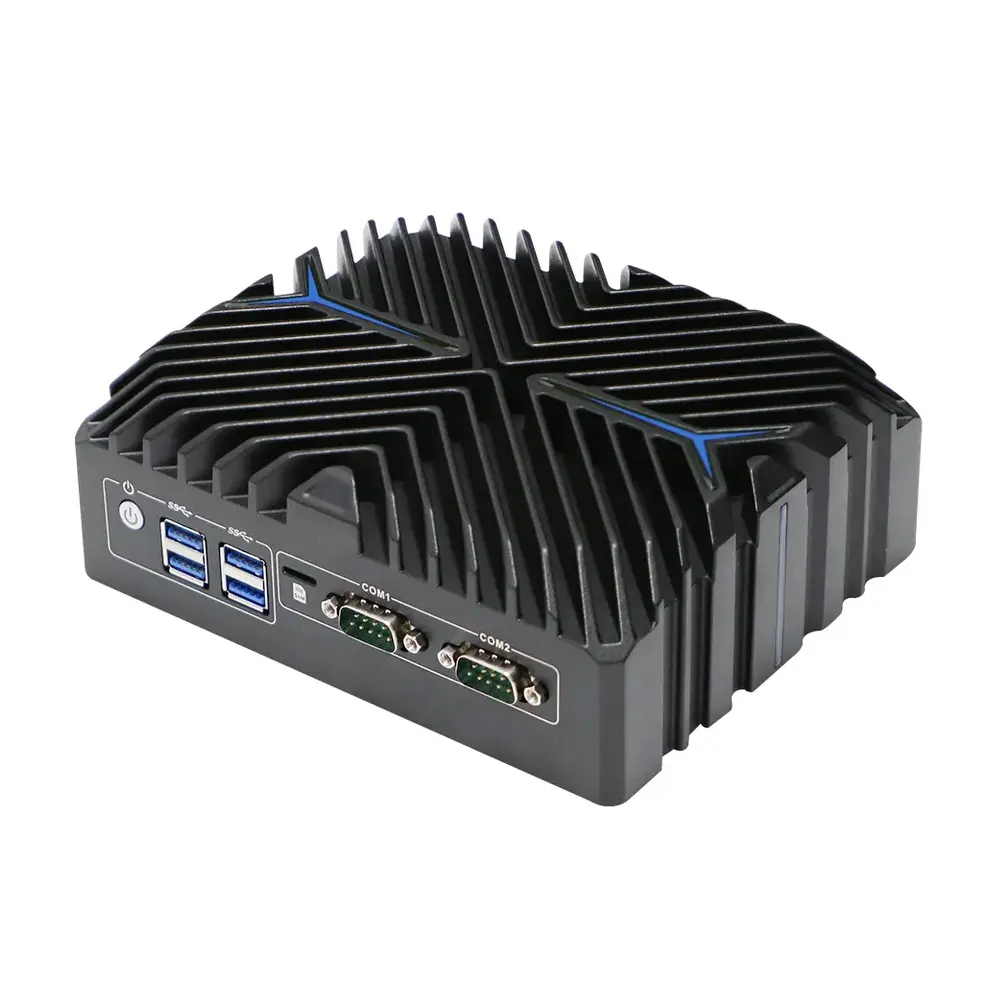

Model: Partaker N6

  • Mini PC with Intel Core processors for top performance.
  • DDR4 memory for fast data processing.
  • Diverse expansion slots for connectivity.
  • 4G/5G & WIFI/BT connectivity.
  • Gigabit Ethernet for high-speed networking.
  • CE, CCC, FCC, ROHS certified for reliability.
  • Ideal for industrial automation & robotics.
  • Robust for edge computing & machine vision.
  • TPM2.0 encryption for data security.
  • Compact design for space-limited use.

Share to:

Overview



The Mini PC offers exceptional performance with Intel Core processors from i3 to i7, supported by DDR4 memory. It incorporates diverse expansion slots for NVME, USB3.0, 4G/5G, and WIFI/BT capabilities. Packed with Gigabit Ethernet and security encryption, this device caters to a range of industrial needs, including control, automation, robotics, IoT gateway, edge computing, and machine vision. Boasting CE, CCC, FCC Class A, and ROHS certifications, it ensures reliable and secure operation in industrial environments.



Mechanical

Material High-quality all aluminum
Colour Metallic Black (color can be customized)

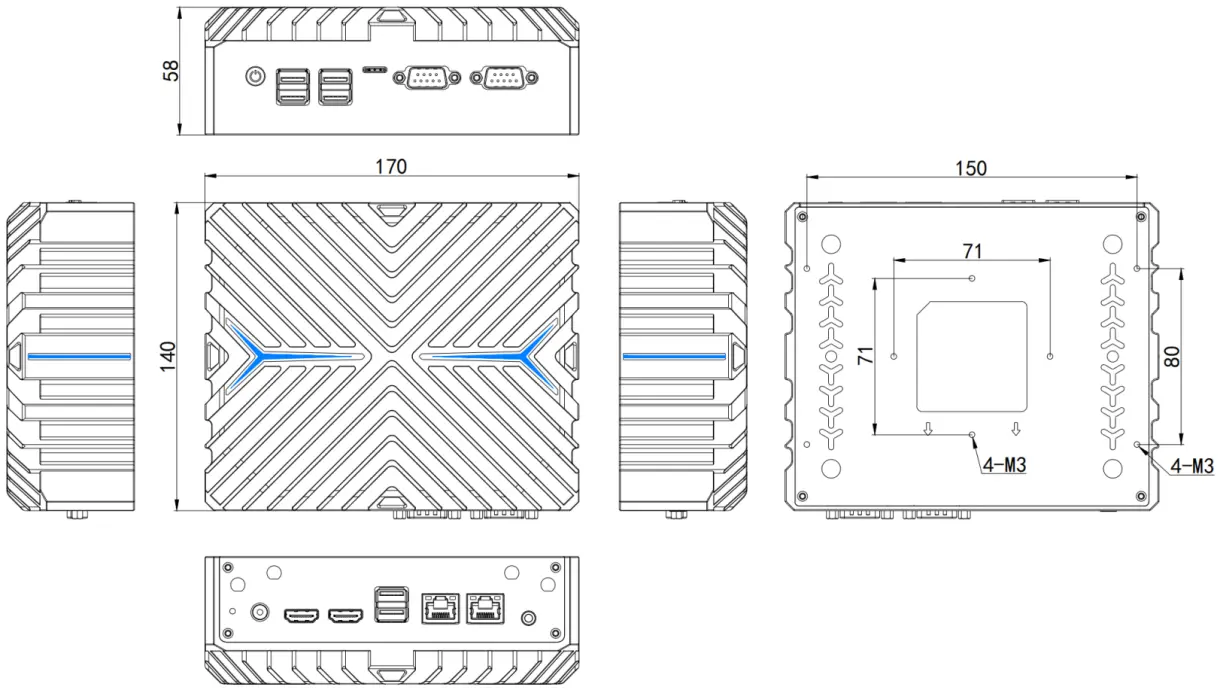

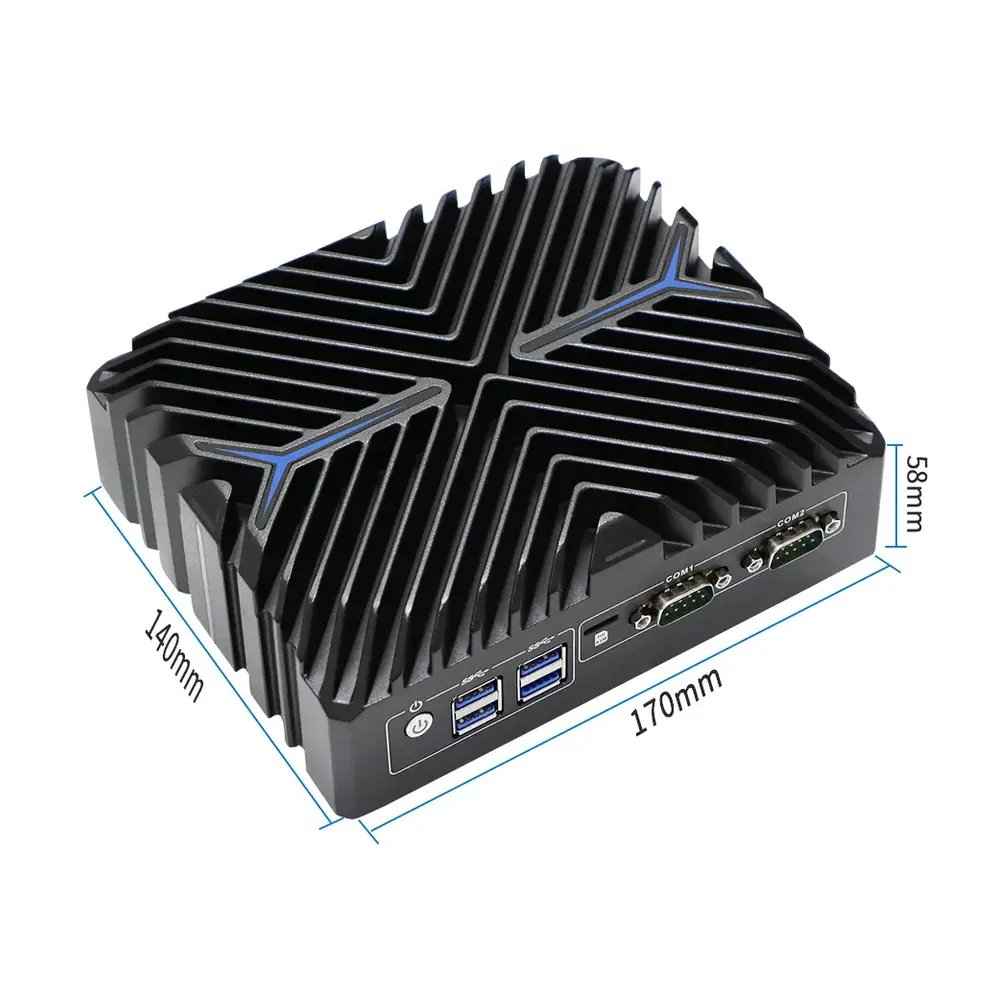

Size 170 * 140 * 58 mm
Weight 1.5Kgs
Insallation Method With VESA, Wall-mounted, embedded, desktop, Din Rail



Motherboard



CPU

Intel Core i3 1215U (Six core Eight threads, Turbo. 4.4 GHz)

Intel Core i5 1235U (Ten core Twelve threads, Turbo. 4.4 GHz)

Intel Core i7 1255U (Ten core Twelve threads, Turbo. 4.7 GHz)

Display Ports 2 x HDMI with 4K, Support Synchronous or asynchronous display, Max.4096×2160@Hz
Network Card 2 x RTL8111H Gigabit Ethernet
Memory 1 x DDR4 3200 SODIMM memory slot, Max. 32 GB
Storage Support 1 x M.2 2280 slot, 1 x 2.5inch SSD/HDD
Expansion Slot 1 x M.2 2280 M-key Slot(Support SATA Protocol)

1 x Mini PCIE Slot,WiFi or 4G


Expansion Port

Support 1 x M.2 2280 M-Key slot(NVME)

Support 1 x M.2 3052 B-key slot (USB3.0, support 4G/5G), External SIM card slot

Support 1 x MINI-PCIE slot (support WIFI,BT)

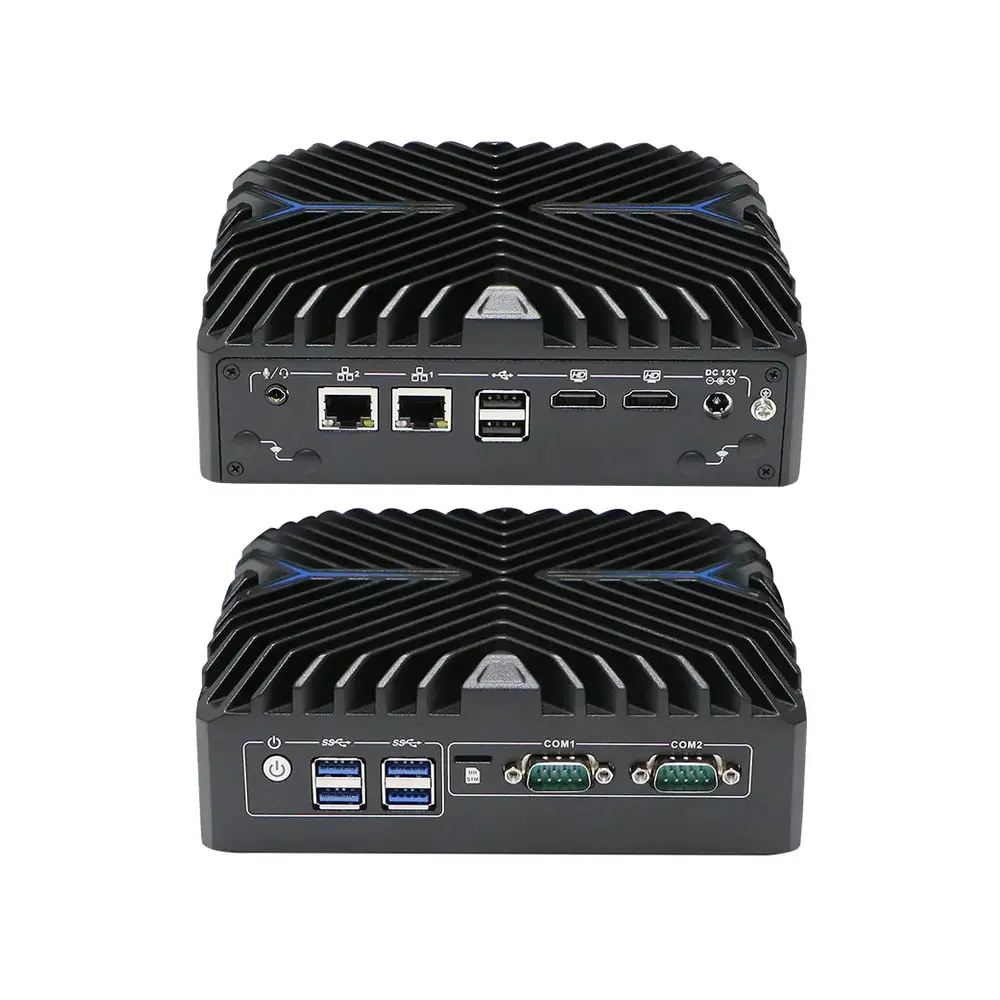

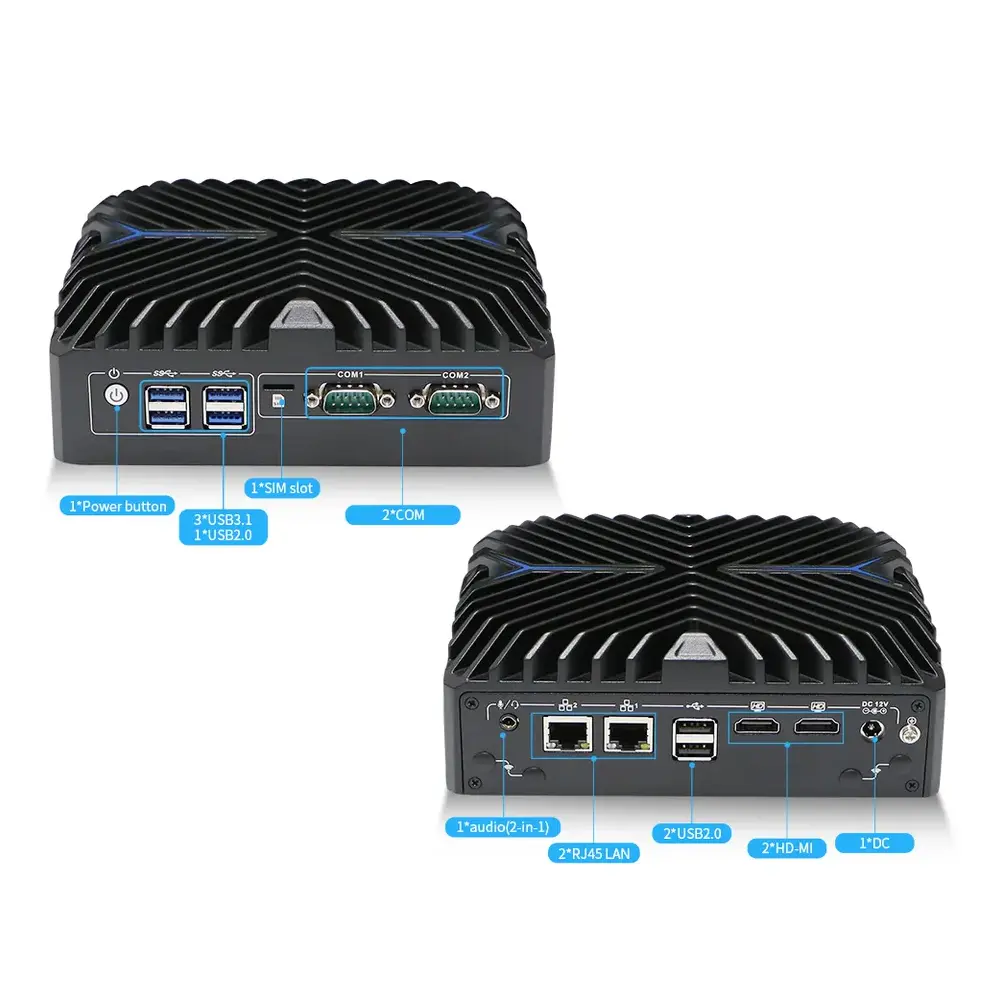

I/O Interfaces

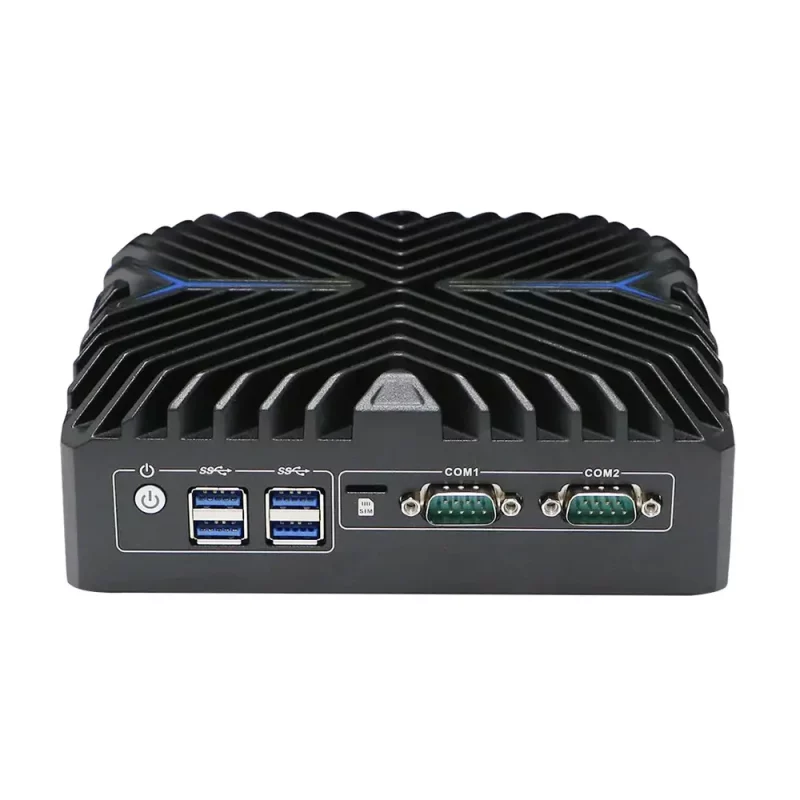

Front Panel

2 x COM port support RS232 mode
1 x SIM slot
1 x USB2.0
1 x Power button
3 x USB3.1

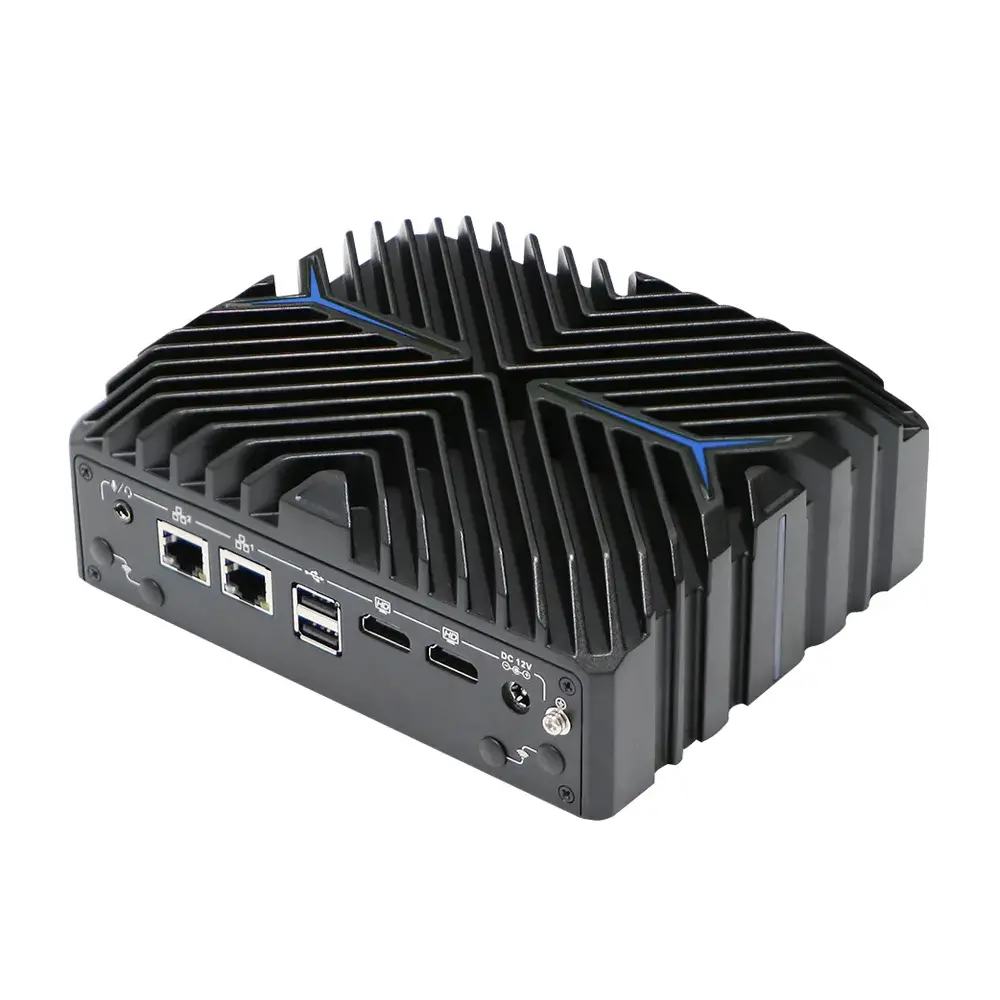

Rear Panel

1 x DC port
2 x HDMI
2 x USB2.0
1 x RJ45 LAN
1 x Audio interface(2-in-1)



Software Support

Bios AMI EFI BIOS
System Support Windows 10/11, Linux



General

Cooling Mode Fanless
Power Supply DC-IN 12V
Packing List 1 x Mini PC, 1 x Power Adapter, 1 x Power Cable



Environment

Work Temperature 0℃-+40℃ (business HDD), -20℃ – +50℃(industrial SSD), Surface air flow
Relative Humidity 5 % ~ 95% non-condensing
Certification CE FCC ROHS
Application Industrial Control, Industrial Automation, Robot, IoT gateway, Edge computing, Machine Vision, AGV/ARM, etc.
nano pc
Model Processor Graphic Frequency Display Memory Storage COM LAN USB Power
N6 I3 1215U Intel® UHD Graphics 3.3~4.4GHz 2 x HDMI 1 x DDR4, Max 32G 1 x M.2 2280 slot, 1 x 2.5inch SSD/HDD 2 2 6 DC 12V
N6 I5 1235U Intel® Iris® Xe Graphics eligible 3.3~4.4GHz 2 x HDMI 1 x DDR4, Max 32G 1 x M.2 2280 slot, 1 x 2.5inch SSD/HDD 2 2 6 DC 12V
N6 I7 1255U Intel® Iris® Xe Graphics eligible 3.5~4.7GHz 2 x HDMI 1 x DDR4, Max 32G 1 x M.2 2280 slot, 1 x 2.5inch SSD/HDD 2 2 6 DC 12V
