Custom Mini Gaming PCs with R7 350 graphics card

Custom Mini Gaming PCs with R7 350 graphics card

Model: Partaker B24

  • Aluminum alloy and magnesium alloy chassis for durability and style.
  • Up to an Intel Core i9-9900T processor for powerful gaming performance.
  • AMD Radeon R7 350 graphics card for smooth, high-resolution gaming.
  • Six HDMI 2.0 ports supporting 4K@60Hz displays for immersive visuals.
  • Gigabit Ethernet and dual-band WiFi for fast and reliable networking.
  • Up to 64GB DDR4 RAM for multitasking and resource-intensive games.
  • Combination of M.2 SSD and 2.5″ SATA storage for speed and capacity.
  • Full copper turbo cooler for effective heat dissipation during intense gaming.
  • Compatible with Windows 10/11 and various Linux distributions.
  • Includes a vertical stand for flexible desktop or wall mounting options.

Share to:

Overview



The Gaming Mini PC B24 is a compact yet powerful gaming machine crafted from aluminum alloy and magnesium alloy. Its black chassis houses an array of high-end components, including the latest Intel Core processors and an AMD Radeon R7 350 graphics card. With six HDMI 2.0 ports supporting 4K@60Hz displays, Gigabit Ethernet, and dual-band WiFi, this mini PC offers an immersive gaming experience without compromising on connectivity. A full copper turbo cooler ensures optimal cooling, while Windows 10/11 and Linux compatibility make it a versatile choice for gamers.



Mechanical

Material Aluminum alloy plus magnesium alloy
Colour Black

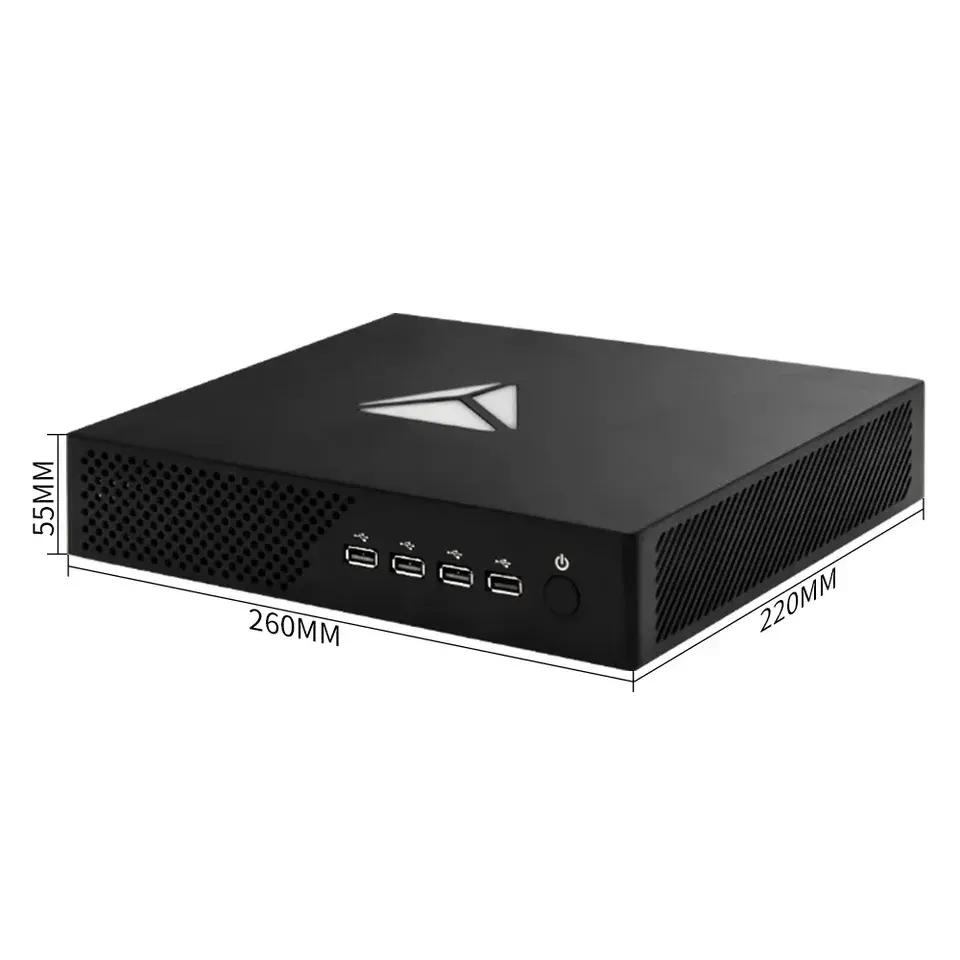

Size 260 x 220 x 55mm
Weight 4Kgs
Insallation Method Desktop type

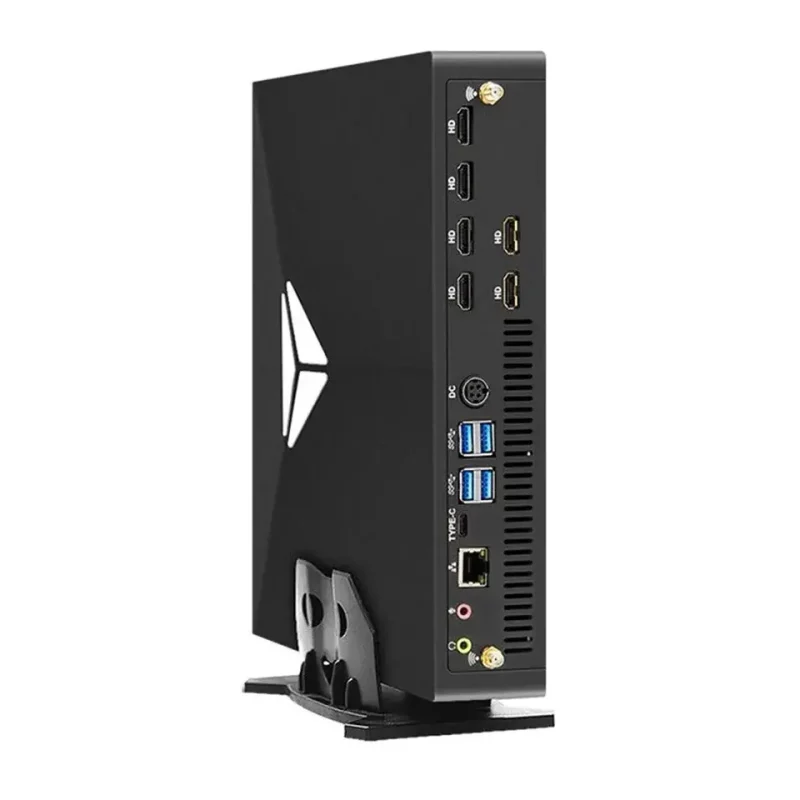

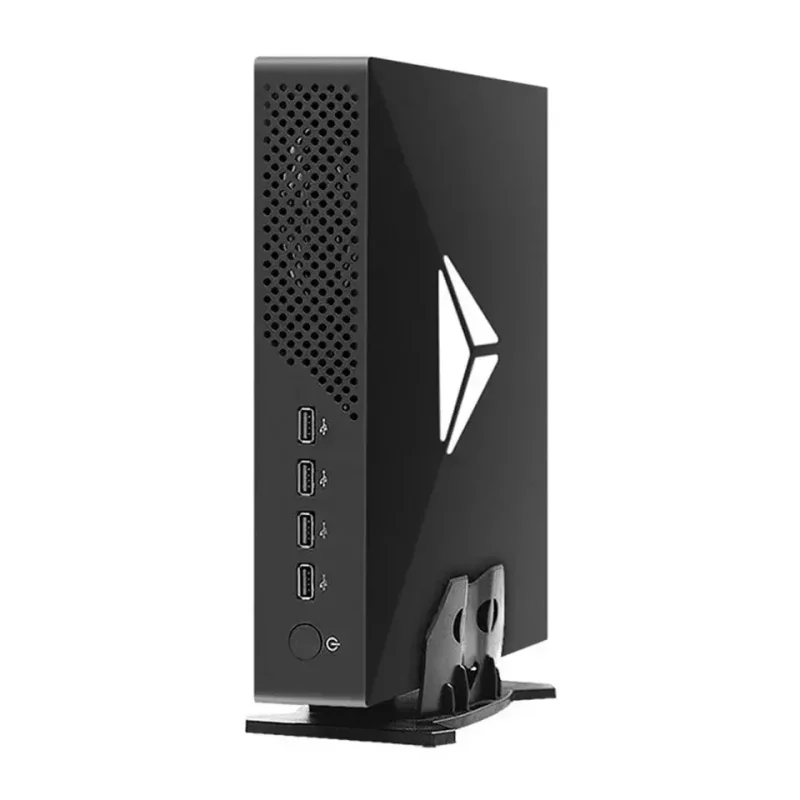

With holding vertical stand



Motherboard

CPU Intel® Core™ i3-9100F, 4 Core 4 threads, 3.6GHz up to 4.2GHz, 6MB Cache
Intel® Core™ i5-9400F, 6 Core 6 threads,  2.9GHz up to 4.1GHz, 9MB Cache
Intel® Core™ i7-9700F, 8 Core 8 threads,  3.0GHz up to 4.7GHz, 12MB Cache
Intel® Core™ i9-9900T, 8 Core 16 threads, 2.1GHz up to 4.4GHz, 16MB Cache
Display Ports 6*HDMI 2.0, support 4K@60Hz display
Color Black
Network Card RTL8XXX series Gigabit Ethernet
WiFi and Bluetooth 2.4G/5G dual band WiFi&Bluetooth4.x
Memory 2*DDR4 non-ecc SODIMM Ram slots, max 64GB
Storage 1*M.2 22×80 SATA/NVMe/PCIe3.0x4 SSD+1*2.5” SATA
Dedicated Graphics AMD Radeon R7 350 4G

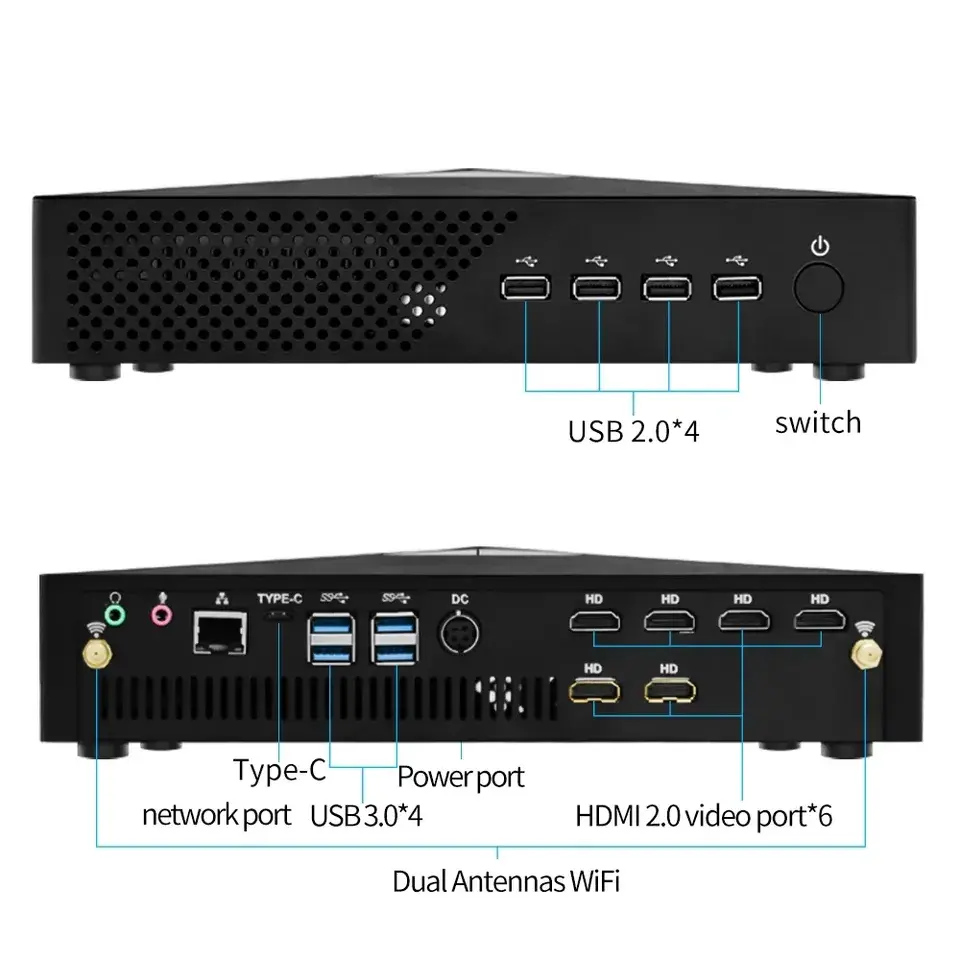

I/O Interfaces

Front Panel 4 x USB2.0
1 x Power SW
Rear Panel 1 x SPK
1 x MIC
4 x USB3.0
1 x Type-C
1 x LAN
1 x DC IN
2 x WIFi Antennas Holes
6 x HDMI2.0



Software Support

Bios AMI bios
System Support Windows 10/11/sever2012/2016/linux/centos/ubuntu



General

Cooling Mode Full cooper turbo cooler
Power Supply 19V
Packing List B24 mini pc, power supply, power cord, vertical stand, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B24 I3 9100F R7 350 4G 3.6~4.20 GHz 6 x HDMI 2.0 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 SSD/1 x 2.5 inch SATA 1 8 19V9.5A
B24 I5 9400F R7 350 4G 2.9~4.1 GHz 6 x HDMI 2.0 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 SSD/1 x 2.5 inch SATA 1 8 19V9.5A
B24 I7 9700F R7 350 4G 3.0~4.7 GHz 6 x HDMI 2.0 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 NVME SSD/1 x 2.5 inch SATA 1 8 19V9.5A
B24 I9 9900T R7 350 4G 2.1~4.4 GHz 6 x HDMI 2.0 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 NVME SSD/1 x 2.5 inch SATA 1 8 19V9.5A
