Best Gaming Mini PC RTX3050 8G

Best Gaming Mini PC RTX3050 8G

Model: Partaker B24

  • Aluminum and magnesium alloy chassis for durability.
  • Choice of Intel Core i3 to i9 processors.
  • GeForce RTX 3050 graphics for high-end gaming.
  • Supports up to 4 monitors via HDMI and DP.
  • Gigabit Ethernet and dual-band WiFi for fast networking.
  • Up to 64GB DDR4 RAM for multitasking.
  • NVMe SSD storage for fast loading times.

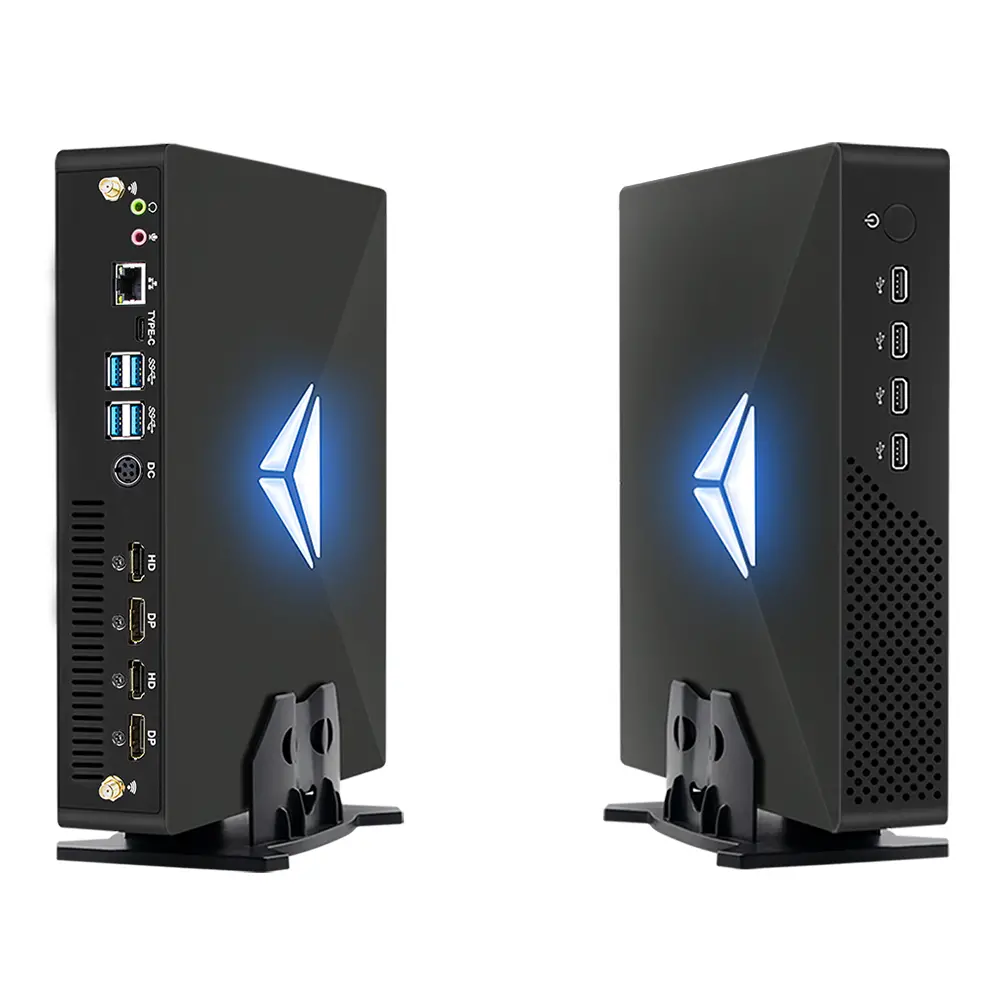

  • Includes a vertical stand for desktop or wall mounting.
  • Compatible with Windows 10/11 and Linux distros.
  • Full copper turbo cooler for optimal heat dissipation.

Share to:

Overview

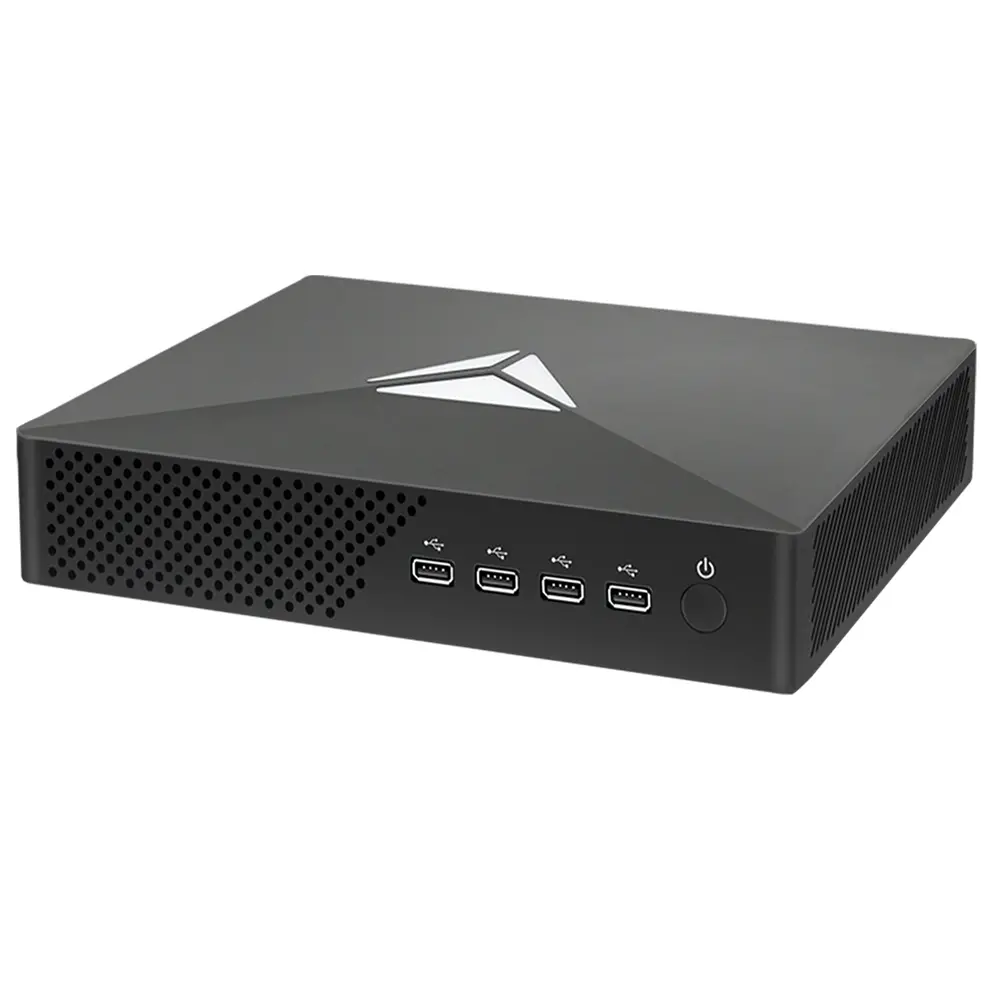

The Mini Gaming PC features a robust aluminum and magnesium alloy chassis in black. It offers a range of powerful Intel Core processors, including the i3-9100F to the i9-9900T, and is equipped with a GeForce RTX 3050 discrete graphics card for smooth gaming experiences. The PC boasts dual HDMI and DP ports for multi-monitor setups and includes Gigabit Ethernet, dual-band WiFi, and Bluetooth 4.x for connectivity. With up to 64GB DDR4 RAM and NVMe SSD storage, it’s perfect for demanding games and multitasking.



Mechanical

Material Aluminum alloy plus magnesium alloy
Colour Black
Size 260 x 220 x 55mm
Weight 4Kgs
Insallation Method Desktop type
With holding vertical stand



Motherboard

CPU Intel® Core™ i3-9100F, 4 Core 4 threads, 3.6GHz up to 4.2GHz, 6MB Cache
Intel® Core™ i5-9400F, 6 Core 6 threads,  2.9GHz up to 4.1GHz, 9MB Cache
Intel® Core™ i7-9700F, 8 Core 8 threads,  3.0GHz up to 4.7GHz, 12MB Cache
Intel® Core™ i9-9900T, 8 Core 16 threads, 2.1GHz up to 4.4GHz, 16MB Cache
Display Ports 2 x HDMI, 2 x DP
Motherboard B360 all solid-state motherboard
Color Black
Network Card RTL8XXX series Gigabit Ethernet
WiFi and Bluetooth 2.4G/5G dual band WiFi&Bluetooth4.x
Memory 2*DDR4 non-ecc SODIMM Ram slots, max 64GB
Storage M.2 NVME SSD – NGFF/PCIE X4 high speed SSD, max support 2TB
SATA –Support 1 x 2.5 inch sata 3.0 SSD/HDD, max support 2TB
Dedicated Graphics GeForce RTX 3050 8G Discrete Graphics, memory frequency: 14000MHz, 8GB GDDR6, 128bit, with ray tracing, 4 monitors capable

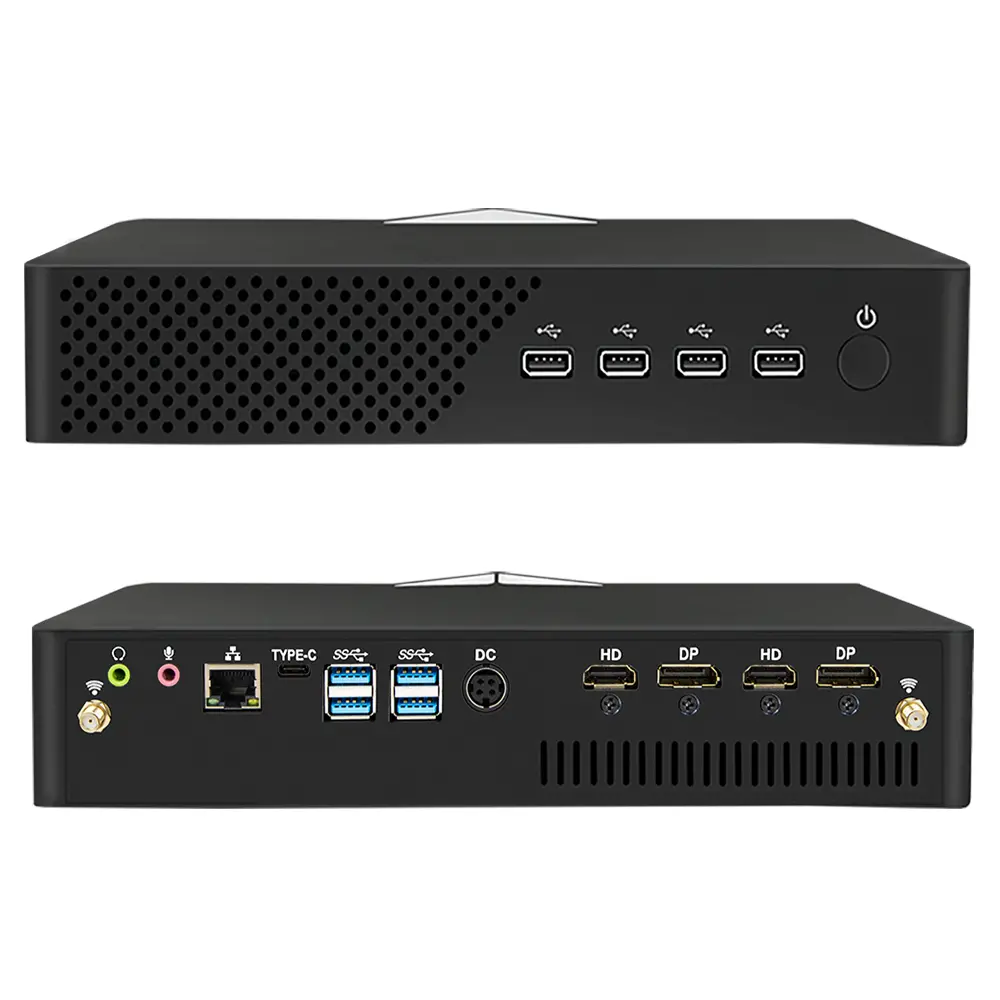

I/O Interfaces

Front Panel 4 x USB2.0
1 x Power SW

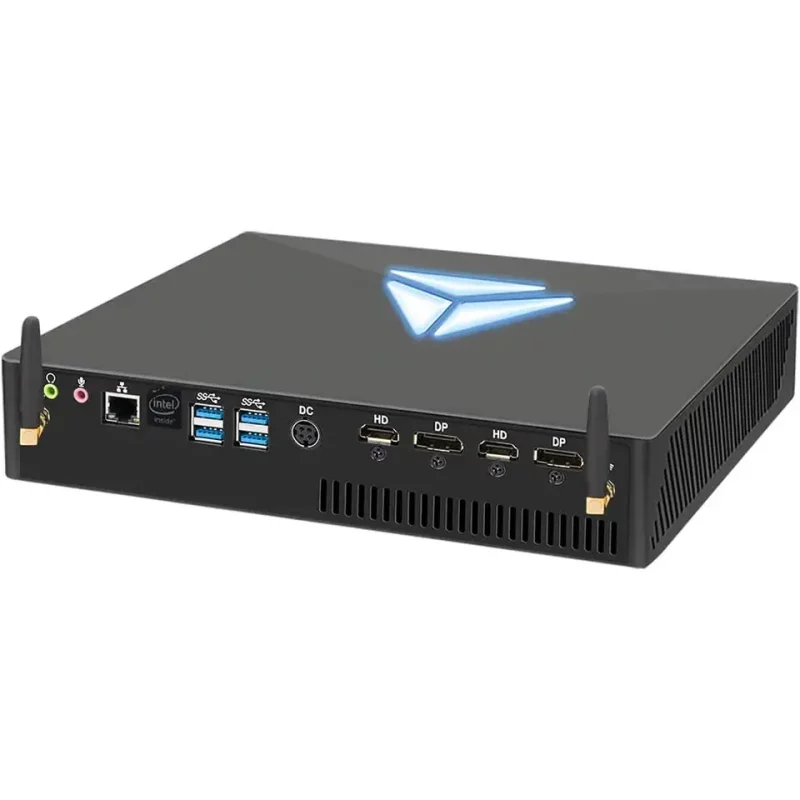

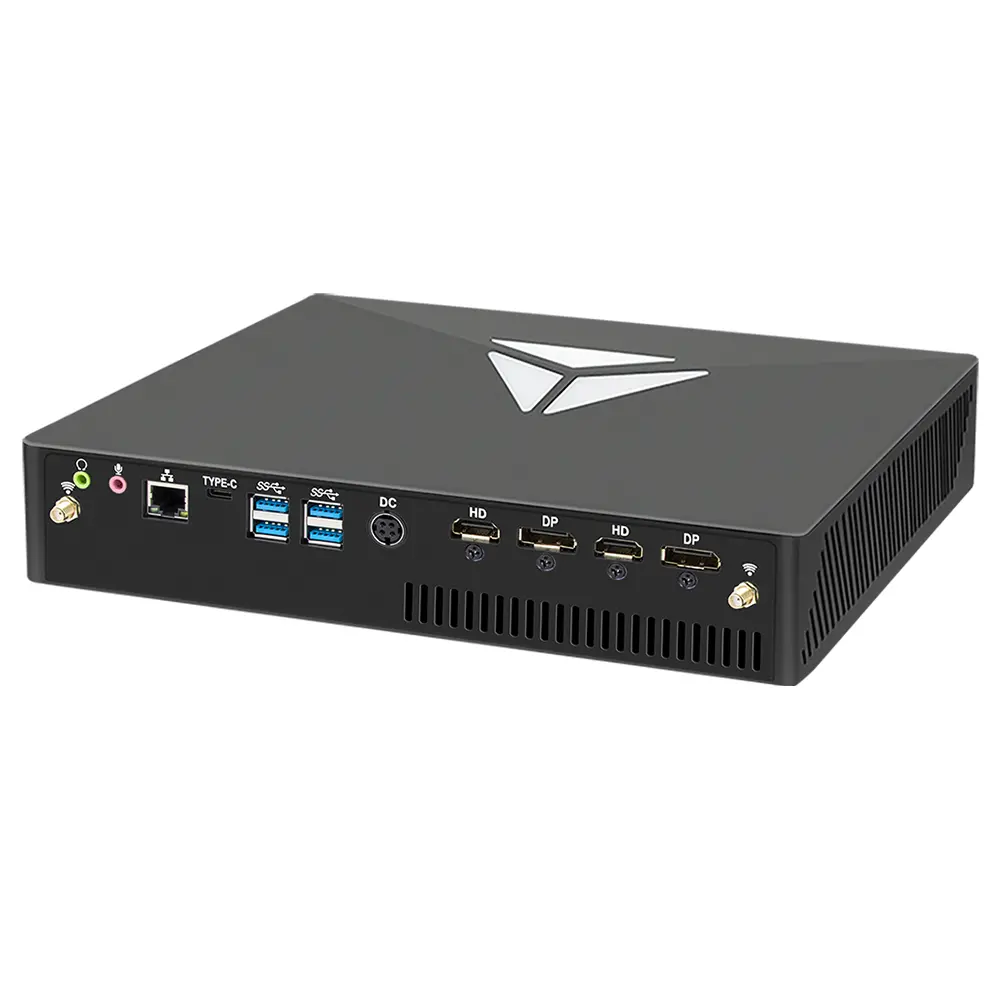

Rear Panel 1 x SPK
1 x MIC
4 x USB3.0
1 x Type-C
1 x LAN
1 x DC IN
2 x WIFi Antennas Holes
2 x DP
2 x HDMI



Software Support

Bios AMI bios
System Support Windows 10/11/sever2012/2016/linux/centos/ubuntu



General

Cooling Mode Full cooper turbo cooler
Power Supply 19V
Packing List B24 mini pc, power supply, power cord, vertical stand, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B24 I3 9100F RTX3050 8G 3.6~4.20 GHz 2 x DP/2 x HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 SSD/1 x 2.5 inch SATA 1 8 19V
B24 I5 9400F RTX3050 8G 2.9~4.1 GHz 2 x DP/2 x HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 SSD/1 x 2.5 inch SATA 1 8 19V
B24 I7 9700F RTX3050 8G 3.0~4.7 GHz 2 x DP/2 x HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 NVME SSD/1 x 2.5 inch SATA 1 8 19V
B24 I9 9900T RTX3050 8G 2.1~4.4 GHz 2 x DP/2 x HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 NVME SSD/1 x 2.5 inch SATA 1 8 19V
