B660 12th Gen 1U firewall appliance

B660 12th Gen 1U firewall appliance

Model: Partaker S16

  • The firewall supports 12th and 13th generation Intel Core i3, i5, i7, and i9 processors with the LGA1700 socket, delivering powerful performance and efficient processing capabilities for network security operations.
  • It provides two DDR4 SODIMM slots, allowing a maximum of 64GB of RAM. This substantial memory capacity enables the firewall to handle high volumes of network traffic and effectively manage security protocols.
  • The firewall is equipped with an Intel I226 2.5G adaptive network card interface, ensuring fast and reliable network connectivity. Additionally, it offers the option to include Power over Ethernet (PoE) functionality, simplifying the power supply for connected devices and enhancing deployment flexibility.
  • It supports various advanced features for efficient firewall management, including power-on by schedule, network wake-up, PXE boot, and a watchdog timer. These functionalities contribute to seamless operation, system stability, and enhanced security measures.
  • The firewall offers versatile expansion capabilities with one M.2 slot dedicated to 5G connectivity, one Mini PCIe slot for 4G connectivity, and another M.2 slot for a WiFi module. This allows for the integration of high-speed wireless and cellular connections, enhancing network capabilities and flexibility in diverse deployment scenarios.

Share to:

Overview



Partaker S16 12th/13th Gen Intel LGA1700 CPU-based firewall is a powerful network security solution. With support for Intel Core i3, i5, i7, and i9 processors and up to 64GB of RAM, it delivers efficient processing and ample memory capacity. Equipped with the Intel I226 2.5G adaptive network card interface, it provides fast and reliable connectivity. It also offers power management features and can be utilized as a software router, making it a versatile choice for robust network security and routing applications.



Software routers are widely used in home networks, small offices, virtualized environments, and IoT applications. They provide flexible and customizable network management and security features, including traffic control, VPN connectivity, and firewall capabilities. By replacing traditional hardware routers, software routers offer enhanced functionality and allow for easy scalability and configuration to meet specific networking needs.



Mechanical

Material Iron, Aluminum panel
Colour Gray
Size 440 x275 x 45(mm)(without mounting ear)
Weight 7.5Kgs
Insallation Method Rack Mounting/Wall Mounting/Desktop Mounting



Motherboard

CPU 12th/13th I3/I5/I7/I9 Intel® LGA1700 CPU

Intel Core I3 12100 Processor, 12M Cache, up to 4.30 GHz

Intel Core I5 12400 Processor, 18M Cache, up to 4.40 GHz

Intel Core I7 12700 Processor, 25M Cache, up to 4.90 GHz

Intel Core I9 12900 Processor, 30M Cache, up to 5.10 GHz

Network Card Intel 6 x I226 2.5G adaptive network card interface (optional with POE)
Graphic Depend on CPUs
Memory 2 x DDR4 SODIMM, up to 64G
Storage 1 x M.2 NVME,  4×2280, 4xSATA(For motherboard support)

1 x M.2 NVME, 1 x 2.5 inch SSD/HDD (For Chassis support)

Display 1 x VGA, 1 x HDMI (Optional)
Expand Support 1 PCIE16X+ 1 PCIE4X (FPC) channel expansion card slot, 1xM.2 for 5G, 1xMini Pcie for 4G, 1xM.2 for WIFI module
Others Support Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog



I/O Interfaces

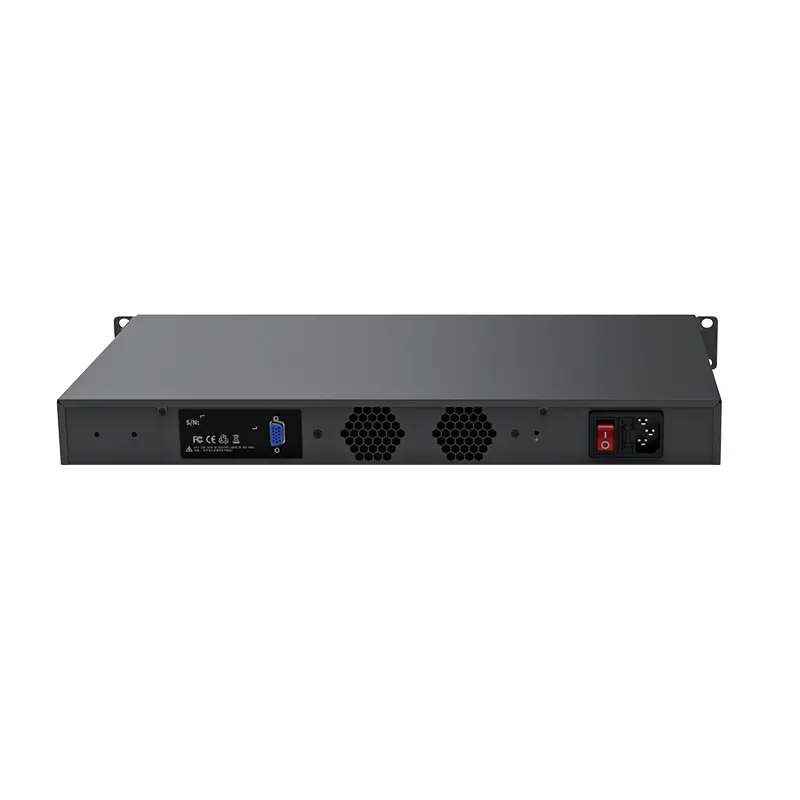

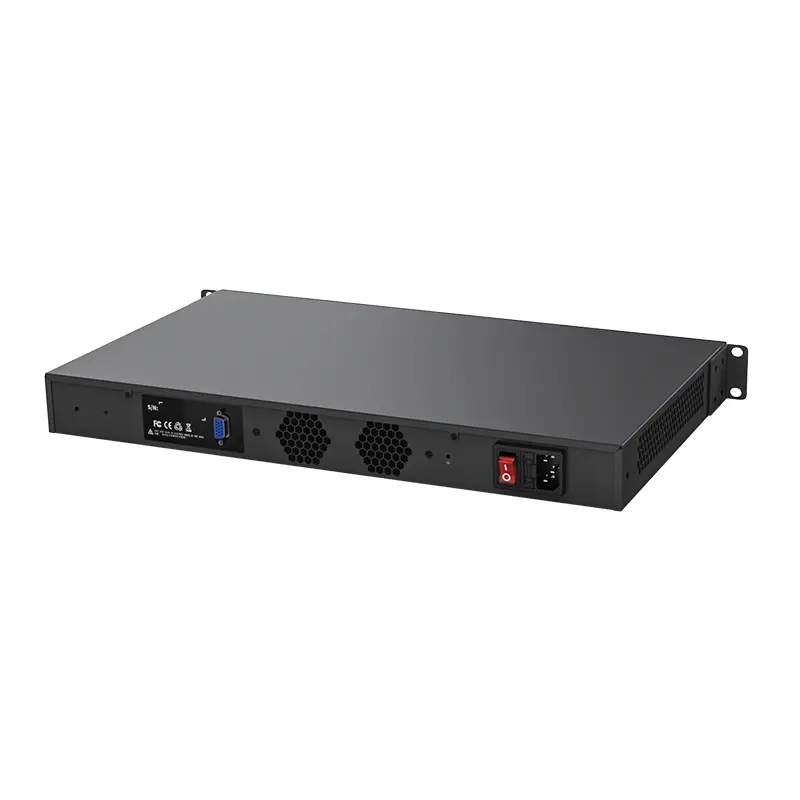

Front Panel 1 x VGA
2 x Cooling fan
1 x Switch
1 x AC socket

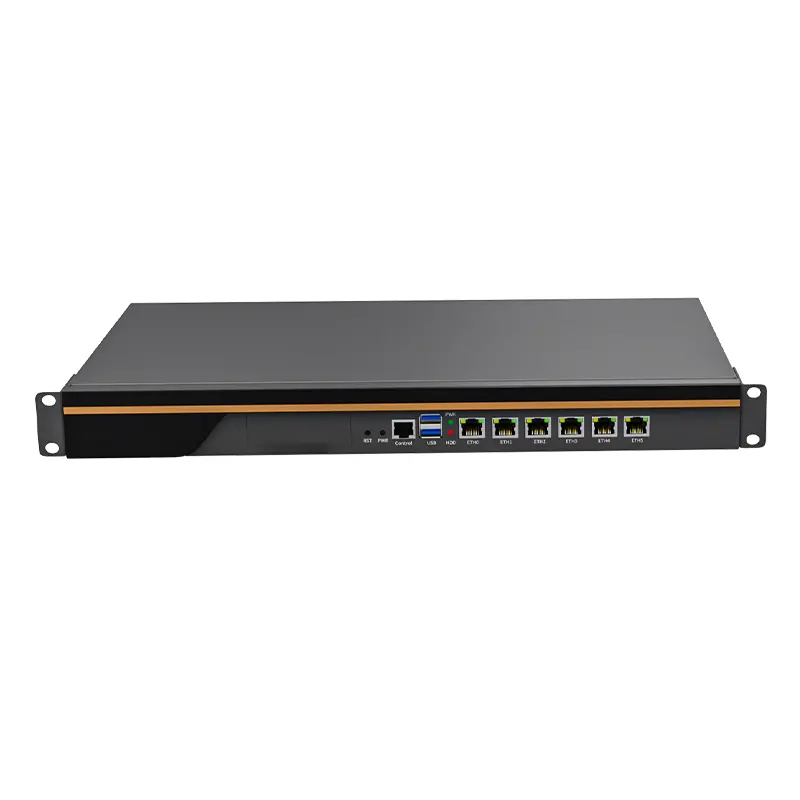

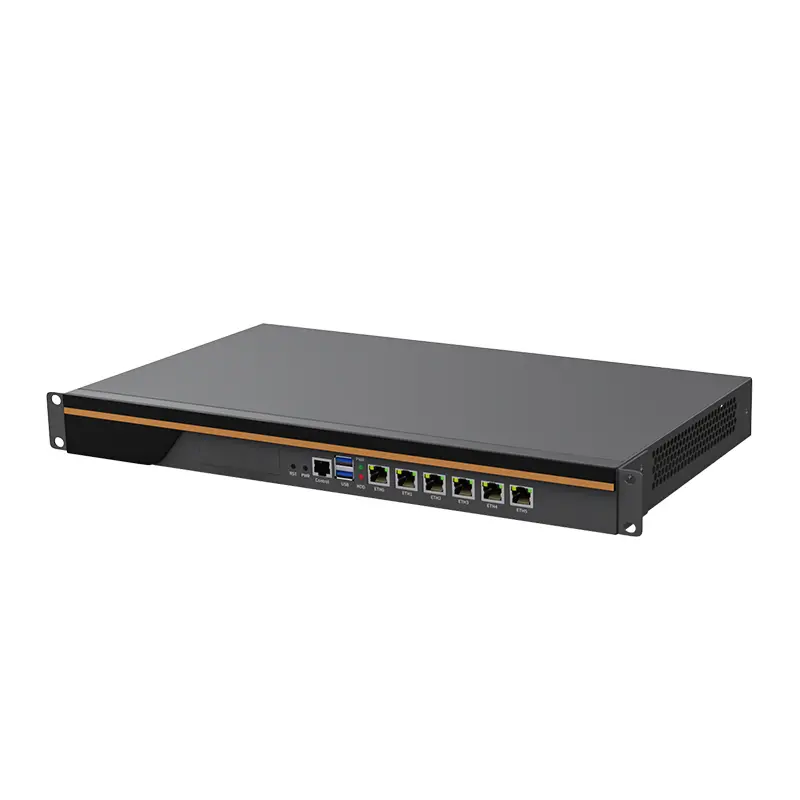

Rear Panel 1 x Console
2 x 3.0
6 x LAN



Software Support

System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
BIOS AMI 128M BIOS, ACPI supported



General

Cooling Mode With Fan
Power Supply Industrial grade power supply Taiwan MEAN WELL LRS-150-24 Input: 100-240V~1.0A Output: 24V6.25A
Packing List S16 firewall, power cord, warranty card



Environment

Operating temperature -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow
ambient temperature 5~90°C relative humidity, non-condensing
Certification CE, FCC, CCC, ROHS
Model Processor Graphics Frequency Display Memory Storage LAN USB Power
S16 I3 12100 Intel® UHD Graphics 730 3.3~4.30GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2 24V6.25A
S16 I5 12400 Intel® UHD Graphics 730 2.5~4.40GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2 24V6.25A
S16 I7 12700 Intel® UHD Graphics 770 1.6~4.90GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2 24V6.25A
S16 I9 12900 Intel® UHD Graphics 770 1.8~5.10GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2 24V6.25A
