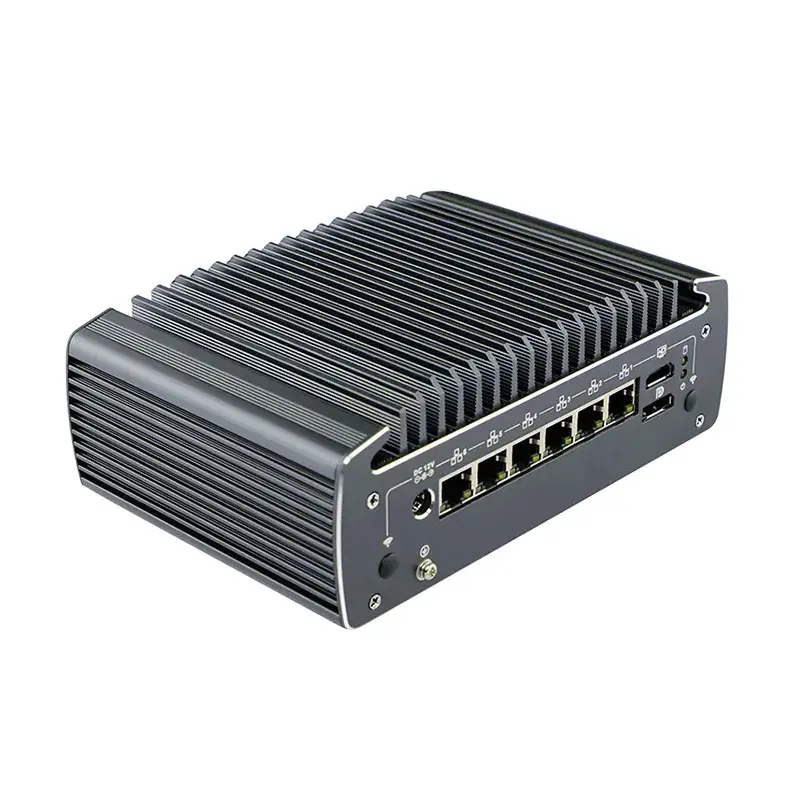

6 LAN Mini Firewall 10th Gen I5 I3

6 LAN Mini Firewall 10th Gen I5 I3

Model: Partaker C9

  • Firewall mini pc with powerful Intel Core processors.
  • Supports up to 64GB DDR4 RAM for smooth multitasking
  • Features Intel UHD Graphics for crisp visuals.
  • DP & HDMI ports for dual 4K displays.
  • Versatile storage with M.2 & 2.5″ SSD/HDD slots.
  • Multiple expansion slots for diverse connectivity.
  • Loaded with 6 Intel 2.5G Lans for networking.
  • Reliable DC 12V power supply.
  • Certified for safety & reliability.
  • Ideal for firewall & networking applications with advanced features.

Share to:

Overview



Partaker C9 10th Gen Firewall Mini PC with Intel Core i3 10110U/i5 10210U/i7 10810U CPU, 6 x Intel I225-V 2.5G(4 x POE) and 5G model is optional. This pc with fanless design, good heat dissipation function, small size but easy to install. You can install to the backside of monitor and takes almost no space of your desk, make your desk more clear the smart. It can used for security monitoring, network server, VPN,  network security, router and firewall.



Mechanical

Material High-quality all aluminum,Surface anodic oxidation
Colour Metal gray (Color can be customized)

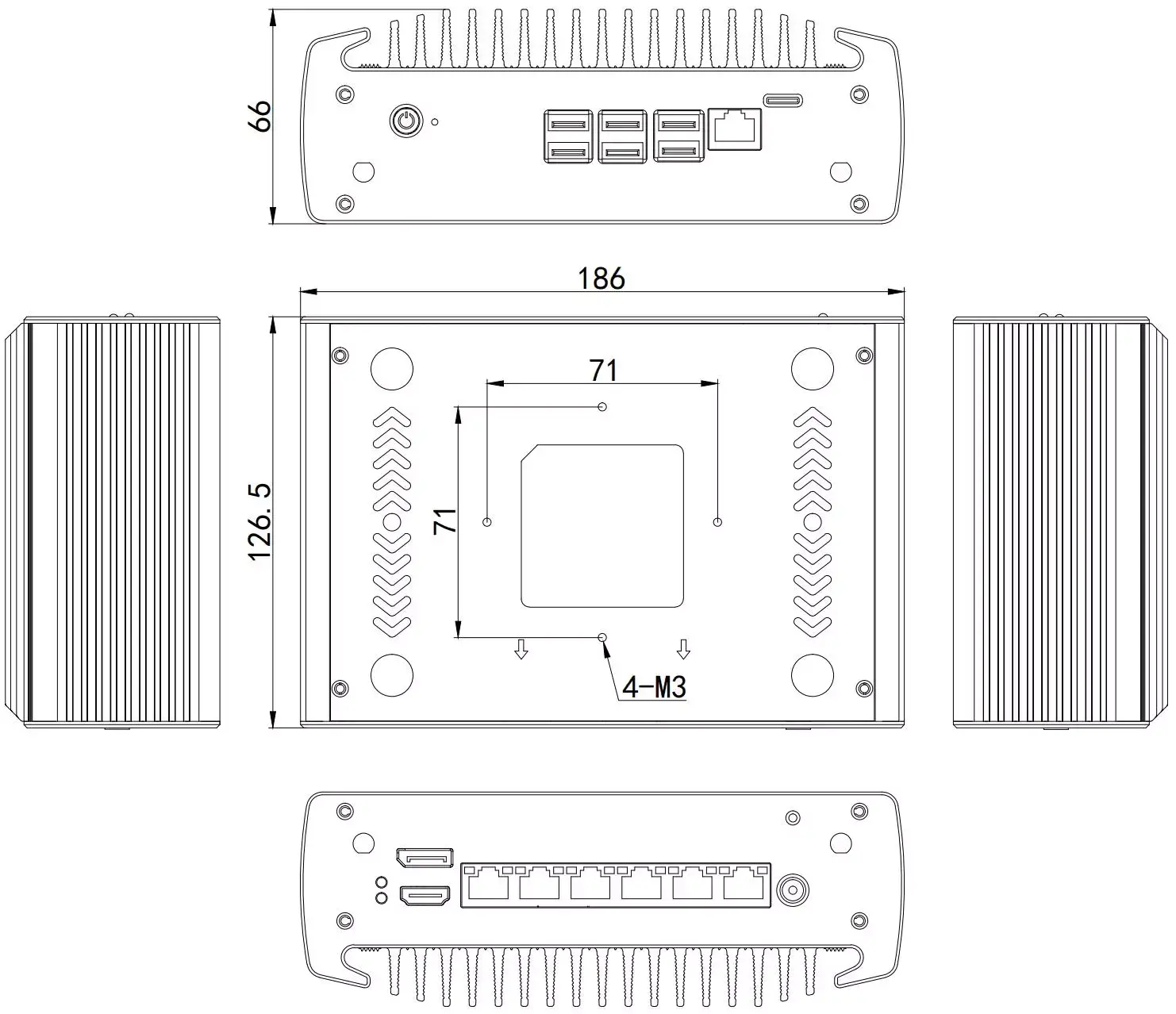

Size 186 x 126.5 x 66 mm
Weight 2.5Kgs
Insallation Method Desktop type/vesa mounting



Motherboard

CPU Intel Core i3 10110U(Dual core,4 threads,2.1GHz,Max.Turbo 4.1GHz)

Intel Core i5 10210U(Quad core,8 threads,1.6GHz,Max.Turbo 4.2GHz)

Intel Core i7 10810U(Six core,12 threads,1.1GHz,Max.Turbo 4.9GHz)

Graphics Intel UHD Graphics
Network Card 6 x intel i225-v 2.5G Lans, LAN3-6 can be 802.3af standard POE lan(option)
Dispaly Port 1 x HD,1 x DP (Support synchronous/asynchronous dual display, DP interface resolution up to 4096*2160@60Hz)
Memory 2 x DDR4 2666 MHz SODIMM RAM slot,Max. 64 GB
Storage 1 x M.2, 1 x 2.5 Inch SSD/HDD, support RAID 0/1
Expand

1*M.1 2280 M-Key slot(Support SATA protocol and NVME protocol)

1*M.2 3052 B-Key slot(Support USB3.0 protocol,support 4G/5G) ,1* Nano-SIM slot on the plate

1*M.2 2230 E-Key slot(Support WIFI/BT)

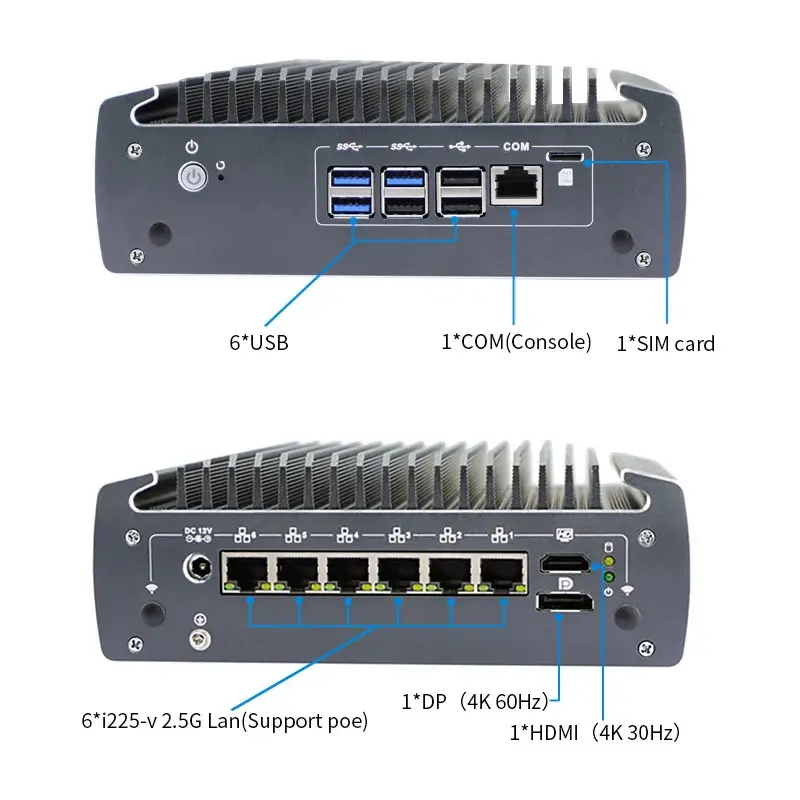

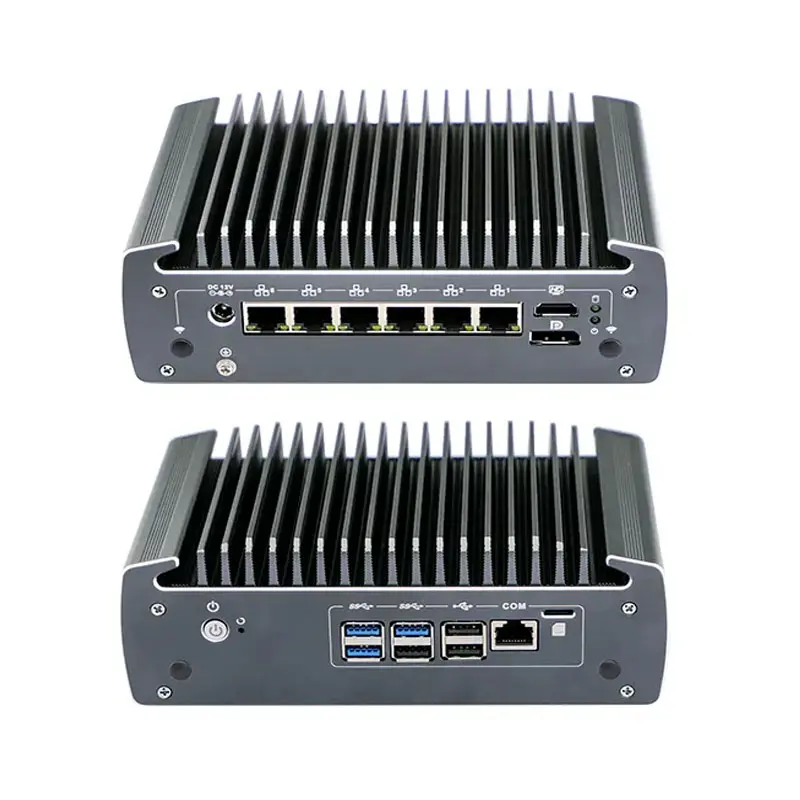

I/O Interfaces

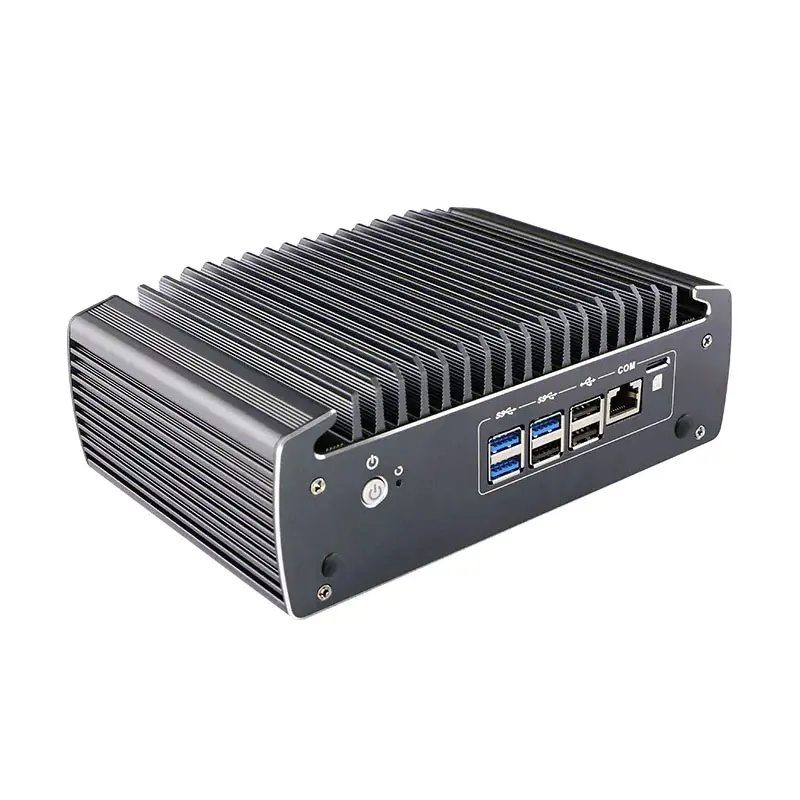

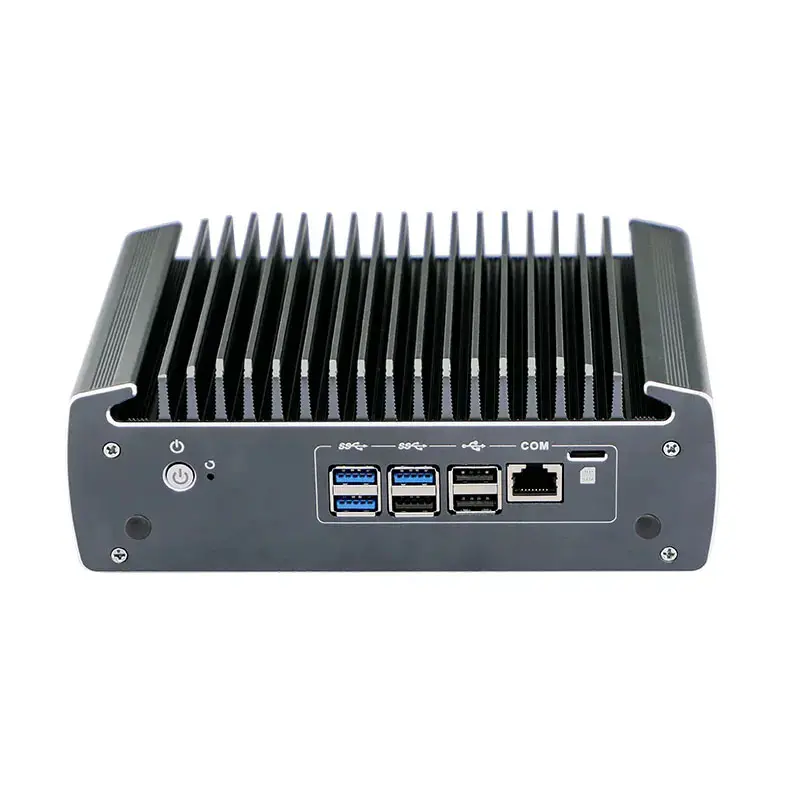

Front Panel 3 x USB3.0
3 x USB2.0
1 x Power Switch
1 x RJ45 COM(support Console)
1 x RJ45 COM(Support Console)
Rear Panel 6 x LAN
1 x DC
1 x HDMI
1 x DP



Software Support

Bios AMI UEFI BIOS
System Support Windows 10/11, Linux, pfSense etc



General

Cooling Mode Fanless
Power Supply DC 12V-IN power supply and AC power adapter
Packing List C9 mini pc, power supply, power cord, vesa, warranty card



Environment

Working Temperature 0℃ ~ +50℃(Commercial HDD), -20℃ ~ +50℃((Industrial SSD), Surface air flow
Working Humidity 0% – 95% relative humidity, Non-condensing
Other Function Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot,Watchdog(0~255 level)
Certification CE FCC ROHS
Application Firewall, VPN, Network server, Network security, Router etc.



10th Gen 6 Lan Mini Firewall PC

Model Processor Graphics Frequency Display Memory Storage LAN POE USB Power
C9 I3 10110U Intel® UHD Graphics 2.1~4.1 GHz DP/HDMI 2 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch SSD/HDD 6 x 2.5G Support 6 12V/5A
C9 I5 10210U Intel® UHD Graphics 1.6~4.2 GHz DP/HDMI 2 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch SSD/HDD 6 x 2.5G Support 6 12V/5A
C9 I7 10810U Intel® UHD Graphics 1.1~4.9 GHz DP/HDMI 2 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch SSD/HDD 6 x 2.5G Support 6 12V/7.5A
