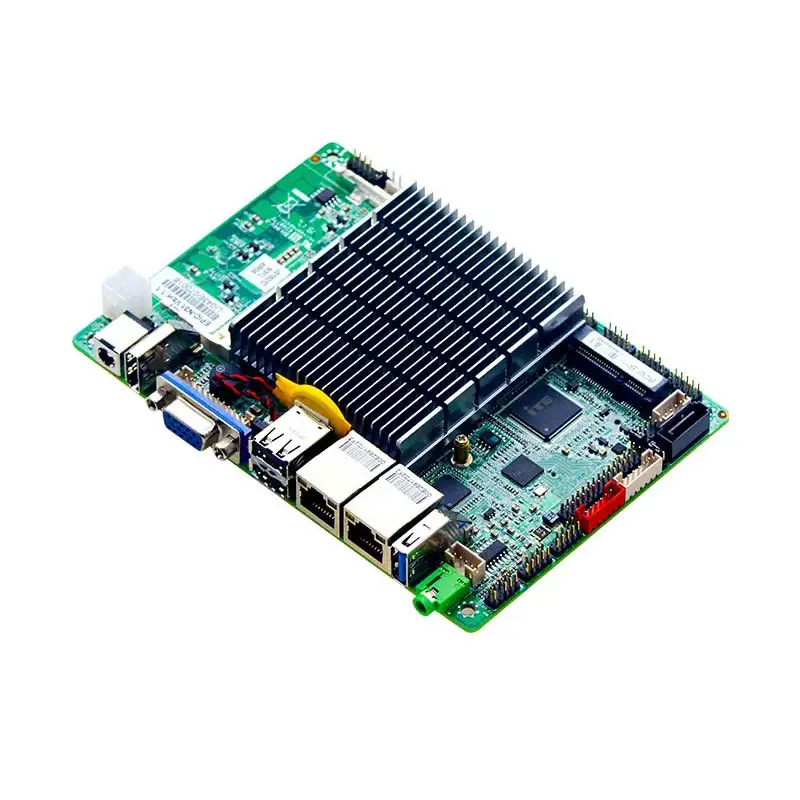

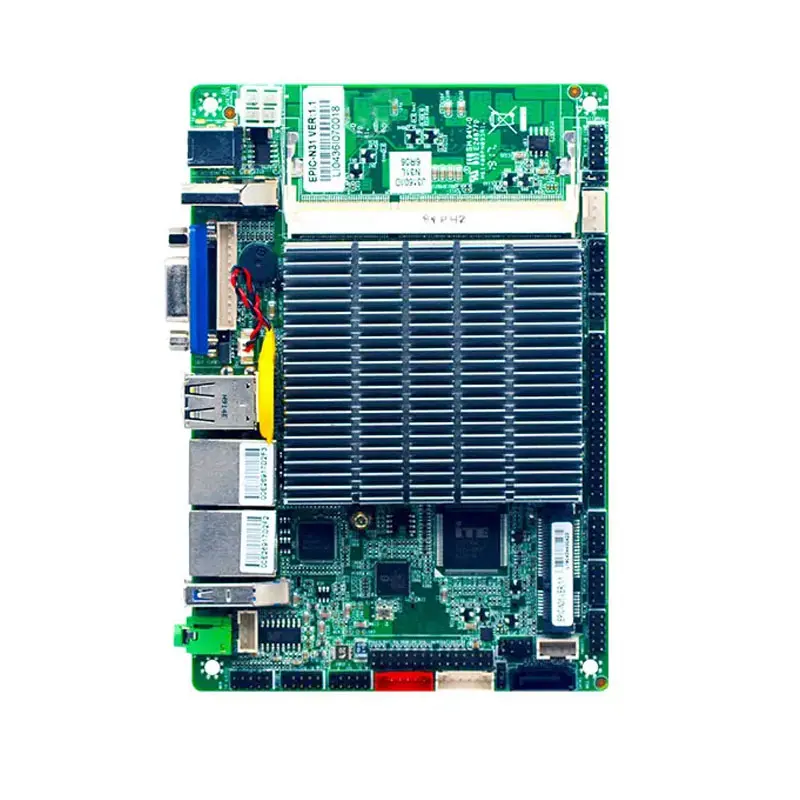

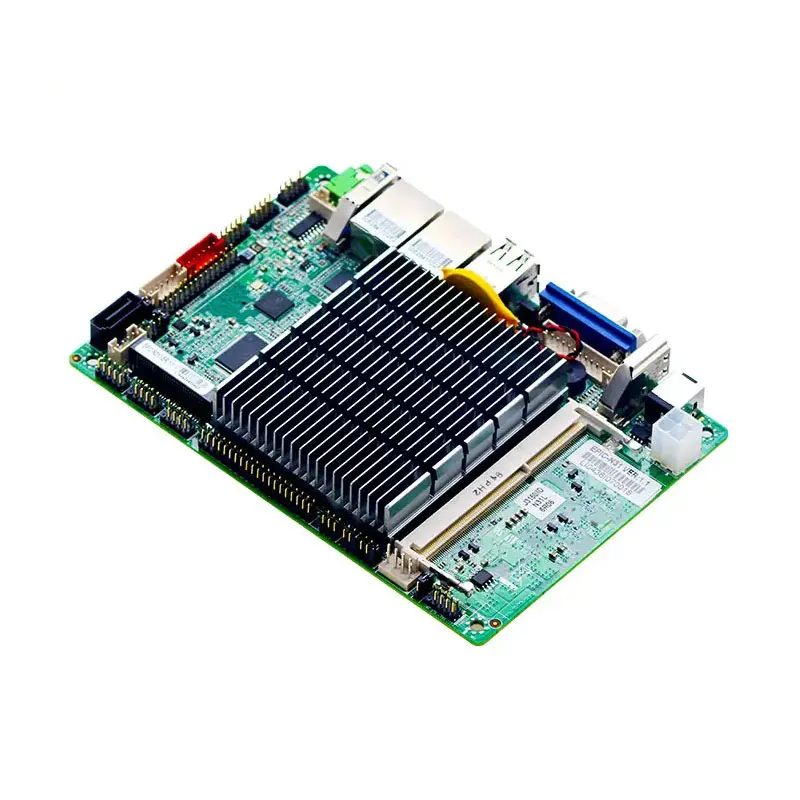

3.5 Inch SBC Motherboard J3710
Model: EPIC-N31 VER:1.2
- Intel J3710 quad-core processor, 1.6GHz, low 6.5W TDP.
- Supports up to 8GB DDR3L RAM, 1600/1333MHz.
- Triple display: VGA, HDMI, and LVDS support.
- Dual Intel I210AT Gigabit LAN with Wake-On-LAN.
- SATA3.0 and mSATA slots for storage expansion.
- Mini-PCIE for Wi-Fi/3G module flexibility.
- 6x RS232 COM ports, with RS485/RS422 support.
- Fanless cooling, wide operating temperature (-10°C~60°C).
- Compact size: 148mm x 102mm, DC 12V power input.
- Compatible with Windows 7/10 and Linux systems.
Share to:
Mechanical
|
Model No.
|
EPIC-N31 VER:1.2(J3710)
|
|
Processor
|
Intel®J3710/1.6GHz quad core quad thread processor, TDP 6.5W
|
|
Chipset
|
Intel® Braswelll SOC
|
|
Memory
|
1* DDR3L SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, max up to 8GB
|
|
Display
|
Intel®HD Graphics
|
|
1*VGA,1*HDMI,1*LVDS ( support dual channel 24BIT)
|
|
|
Supports VGA;HDMI;LVDS synchronous / asynchronous display
|
|
|
LAN
|
2*Intel I210AT Gigabit Ethernet, support Wake On LAN , PXE function
|
|
Storage
|
1*7pin SATA3.0 HDD port, transfer rate up to 6Gbps.
|
|
Audio
|
Onboard ALC662 6 channel high fidelity audio controller, support MIC/Line-out. amplifier
|
|
Power amplifier suggest use 2Ω5W speaker
|
|
|
Expansion slot
|
1*Mini-PCIE slot, support WIFI , 3G module
|
|
1*MSATA slot, SSD solid-state hard disk support , transfer rate up to 6Gbps
|
|
|

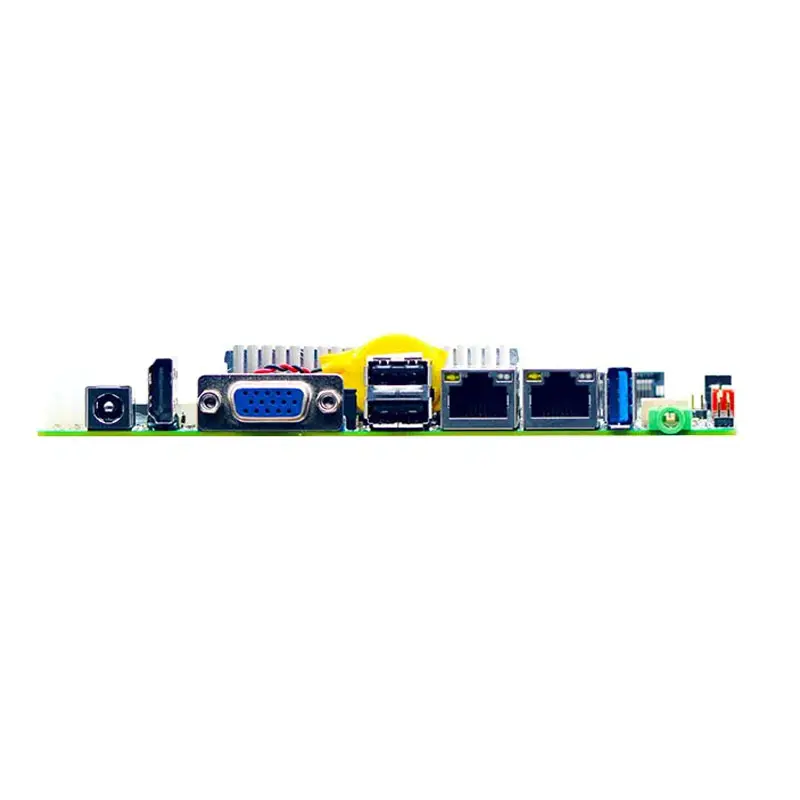

Rear I/O port
|
1* DC 12V power supply
|
|
1* HDMI
|
|
|
1* VGA
|
|
|
2* RJ-45 Gigabit Ethernet
|
|
|
2* USB2.0，1*USB3.0
|
|
|
1* Line out (green)
|
|
|
Internal I/O port
|
1* 4Pin power interface（12V Input and Output Power Interface ）
|
|
4* USB 2.0, 2*5Pin
|
|
|
1* JVGA, 1*12Pin
|
|
|
1* PS/2 Keyboard and mouse interface (red), 1*6Pin
|
|
|
6* RS232 COM port, COM2 support RS485/RS422 function
|
|
|
1* Pre-audio interface,2*5pin
|
|
|
1* Pre-amplifier,1*4Pin
|
|
|
1* LVDS, 2*15pin, support dual channel 24bit( dual 8)
|
|
|
1* LVDS backlight power supply interface, 1*6pin
|
|
|
1* Front panel switch button and indicator interface,2*5Pin
|
|
|
1* Hard Disk Power Supply Interface ,1*4pin
|
|
|
1* SIM
|
|
|
Fan Interface
|
Fanless cooling, reserved 1*4pin CPU fan connector
|
|
GPIO
|
Supports 4 input/output GPIO
|
|
BIOS
|
64Mb Flash ROM
|
|
watchdog
|
Support hardware reset function (256 levels, 0~255 seconds)
|
|
operating system
|
Windows 7/Windows 10/Linux
|
|
Power supply type
|
DC 12V power supply
|
|
operating temperature
|
-10℃～60℃
|
|
Storage temperature
|
-20℃～70℃
|
|
Operating humidity
|
5 to 95 per cent relative humidity, non-condensing
|
|
Size
|
148mm x 102mm
|
| Model | Processor | Frequency | Display | Memory | LVDS | LAN | USB | COM | RS485/422 | Power |
|
EPIC-N31 VER:1.2 |
J3710 | 1.6GHz | VGA/HDMI | 1 x SO-DIMM DDR3L | 2*24BIT | 2*210AT | 7 | 6 | COM2 | DC-12V |
