2U Rack Network Security Server

2U Rack Network Security Server

Model: Partaker 2U6L

  • Intel 12/13th Gen Core processors.
  • 6 Gigabit ports with Bypass.
  • Intel H610 Chipset.
  • Up to 128GB DDR4 RAM.
  • PCIE X8 expansion slot.
  • Ideal for firewalls and VPNs.
  • M.2 SATA SSD support.
  • Flexible HDD storage options.
  • LGA1700 socket.
  • Reliable network server.

Share to:

Overview



The 2U Rack Network Security Server is a robust security solution for modern networks. Equipped with a choice of Intel Core processors – I3-12100, I5-12400, or I7-12700 – it offers exceptional performance and scalability. With up to 128GB of DDR4 RAM and an Intel H610 chipset, it handles heavy workloads with ease. The server boasts 6 Gigabit Ethernet ports with Bypass functionality, along with expansion options like PCIE X8 slots and multiple M.2 interfaces for SSDs, WiFi/BT, and 4G connectivity. It also supports Watchdog, Diskless boot, Wake on LAN, and Auto power-on features. Operating in a wide temperature and humidity range, the server is CE, CCC, FCC Class A, and ROHS certified, ensuring reliability and compliance. Ideal for firewalls, VPNs, network servers, and routers, this 2U Rackmount server is a comprehensive network security platform.



Model
Partaker 2U6L
Color
Black
Material
Aluminum Alloy Front Panel, SGCC Cabinet
CPU
Intel Core I3-12100 (4 Core 8 Threads, 3.3 Ghz, Turbo Frequency 4.3 Ghz, 5MB)
Intel Core I5-12400 (6 Core 12 Threads, 2.5 Ghz, Turbo Frequency 4.4 Ghz, 7.5MB)
Intel Core I7-12700 (12 Core 20 Threads, 2.10 Ghz, Turbo Frequency 4.9 Ghz, 12MB )
Chipset
Intel H610
RAM
Support 2 DDR4 3200 U-DIMM Memory Slots, Max. 128GB
Storage
1 M.2 (M-Key 2280 supports SATA), optional 1*3.5-inchHDD fixing position or 2*2.5-inch HDD fixing positions.
Display Chip
Intel UHD Graphics 730/770
Display Port
1*HD

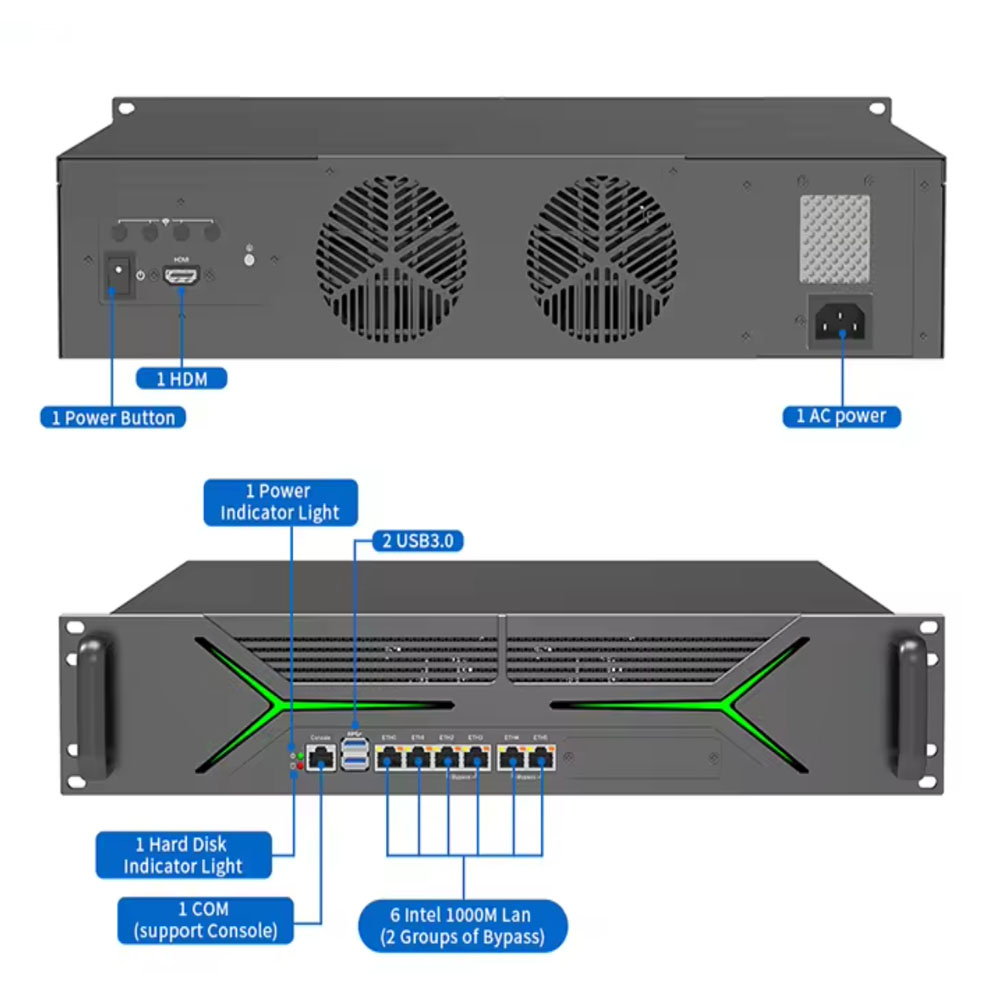

Front I/O
1 power indicator light, 1 hard disk indicator light, 1 COM (support Console), 2 USB3.0,
6 RJ45 Gigabit network ports (supports 2 groups of Bypass)

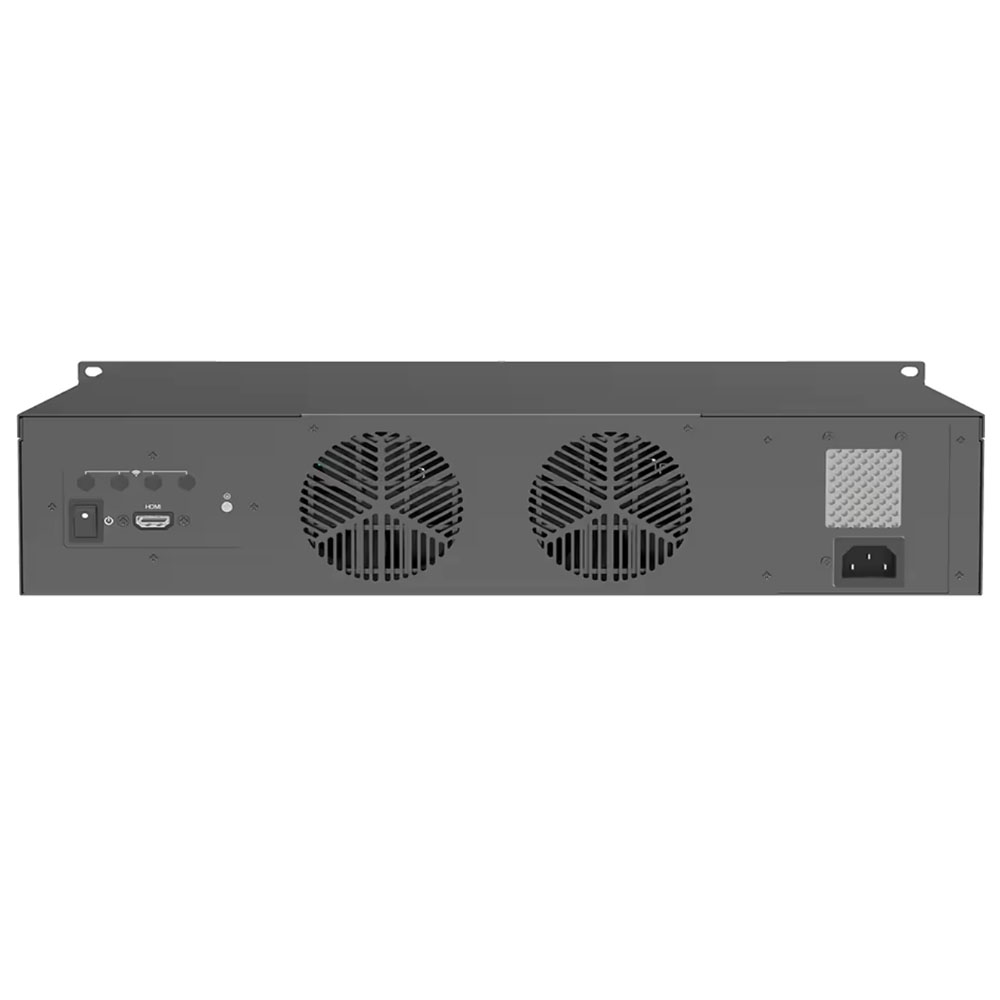

Rear I/O
1 Power Button, 1 HD , 1 AC power
Network Card
6 Intel i210-AT Gigabit Ethernet ports (supports 2 sets of Bypass)
Expansion
1 PCIE X8 (optional 4 Optical Ports or 4 Network Ports)
1 M.2 (M-Key 2280, supports SATA SSD)
1 M.2 (E-Key 2230, supports WiFi/BT)
1 M.2 (B-Key 3042, supports 4G)
Expansion Slot
Standard shipment doesn’t include this Port: 8 GPIO, 1 COM (RS232/485 optional), 4 USB2.0;
1 USB3.0 (built-in Type-A port)
Lan Port
6 Intel i210-AT 1000M LAN ports (supports 2 sets of Bypass)
Input Power
90~265 V (47Hz-63Hz) AC input (optional redundant power supply)
Other Function
Support Watchdog (level 0-255)Diskless boot, Wake on LAN, Auto power on, Timing boot
Work Temp
0℃~+50℃, surface air flow
Work Humidity
5% – 95% non-condensing
Cetificates
CE, CCC, FCC Class A, ROHS

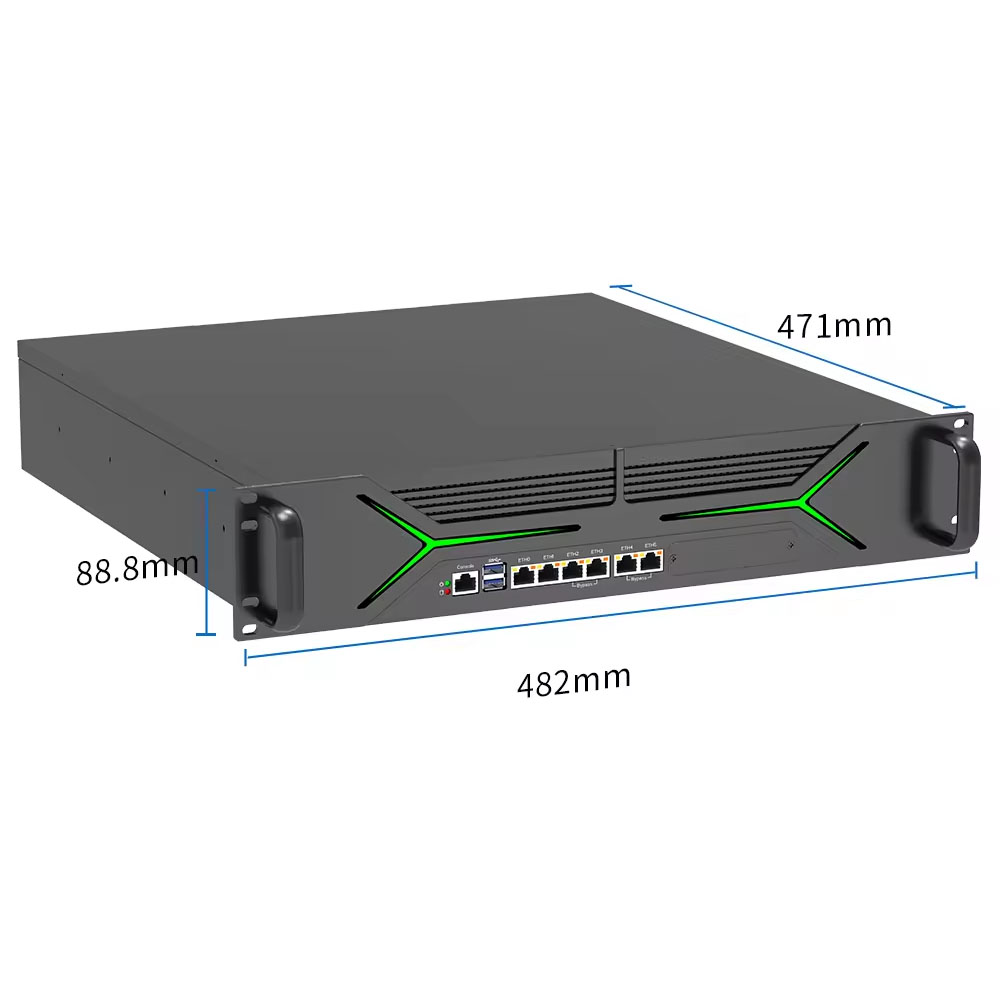

Dimension
482*471*88.8mm
Net Weight
7.19 kg (barebone)
Application
Firewall, VPN, network server, network security, router and etc,
Model Processor Graphics Frequency Display Memory Storage LAN SFP USB Power
2U6L I3 12100 Intel® UHD Graphics 730 3.3~4.30GHz 1 x HDMI 2 x SO-DIMM DDR4, Max 128GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2/4 2 24V6.25A
2U6L I5 12400 Intel® UHD Graphics 730 2.5~4.40GHz 1 x HDMI 2 x SO-DIMM DDR4, Max 128GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2/4 2 24V6.25A
2U6L I7 12700 Intel® UHD Graphics 770 1.6~4.90GHz 1 x HDMI 2 x SO-DIMM DDR4, Max 128GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2/4 2 24V6.25A
2U6L I9 12900 Intel® UHD Graphics 770 1.8~5.10GHz 1 x HDMI 2 x SO-DIMM DDR4, Max 128GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2/4 2 24V6.25A
