2U Firewall Appliance Pentium I3 I5 I7

2U Firewall Appliance Pentium I3 I5 I7

Model: Partaker S2U

  • Intel Pentium/ Core I3/ I5/ I7/Xeon Processor
  • 2 x SO-DIMM,DDR3 1600MHz,Max 16GB
  • 3 x SATAⅡ,1 x SATAⅢ,1 x mSATA
  • 6 x Intel 82583V/82574L(Optional) Gigabit Network Cards
  • 2U FLEX Power Supply
  • Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Lede/Liunx

Share to:

Overview



2U 19 Inch Network Appliance with Intel® Xeon ®Pentium® Core®Processors
for communications and computing infrastructure deployment





Mechanical

Chassis Standard 2u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad
Colour Black (any color can be customized)

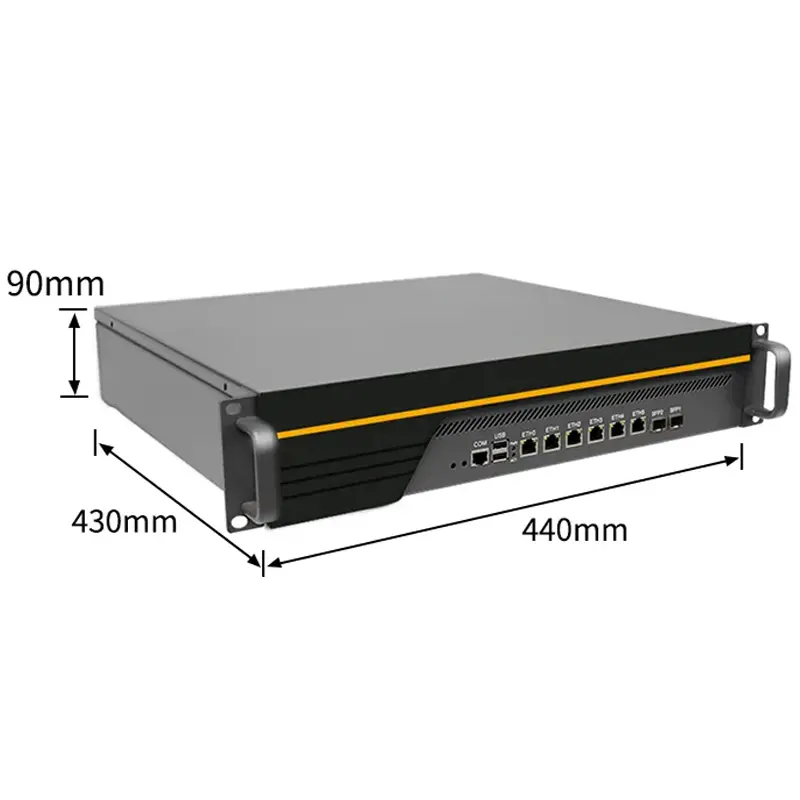

Size 435 x 400 x 89 mm L*W*H(Internal dust protector)
Weight 9Kgs
Insallation Method Desktop type/rack mounting



Motherboard

CPU Intel® Pentium® Processor G1610 or its similar replacement CPUs, ship any of them (2M Cache, 2.60 GHz)

Intel® Core™ i3-3220 Processor or its similar replacement CPUs, ship any of them (3M Cache, 3.30 GHz)

Intel® Core™ i5-3470 Processor or its similar replacement CPUs, ship any of them (6M Cache, up to 3.60 GHz)

Intel® Core™ i7-3770Processor or its similar replacement CPUs, ship any of them (8M Cache, up to 3.90 GHz)

Intel® Xeon™ E3-1225 V2 Processor or its similar replacement CPUs, ship any of them (8M Cache, up to 3.20 GHz)

Network Card 6 x Intel 82583V/82574L 10/100/1000M lan, 2 x SFP
Graphic Integrated Intel HD Graphics
Memory 2 x DDR3L 1600MHz SODIMM memory slot, up to 16GB
Storage 1 x mSATA SSD, 1*SATA3.0
Display 1 x VGA
Expand Support 1 MINI PCIE channel (can be WIFI/Bluetooth/4G)



I/O Interfaces

Front Panel 1 x COM
2 x USB2.0
6 x LAN
2 x SFP

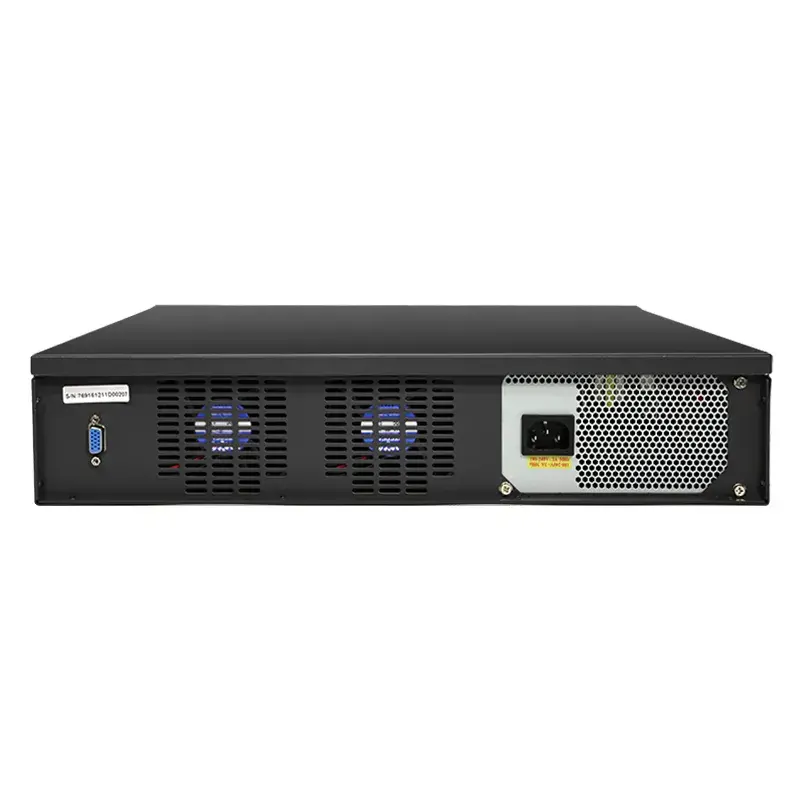

Rear Panel 1 x VGA
1 x Power cord interface



Software Support

System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Lede/Liunx



General

Cooling Mode With Fan
Power Supply 2U FLEX Power Supply
Packing List S2U-B75 Firewall Appliance, Power adapter, Power cord, Warranty card



Model Processor Chipset Frequency Display Memory Storage SFP LAN USB Power
S2U-B75 G1610 Intel B75 2.60 GHz 1 x VGA 2 x SO-DIMM DDR3L 1 x mSATA/1 x 2.5 inch SSD 2 6 2 2U FLEX Power Supply
S2U-B75 I3 3220 Intel B75 3.00GHz 1 x VGA 2 x SO-DIMM DDR3L 1 x mSATA/1 x 2.5 inch SSD 2 6 2 2U FLEX Power Supply
S2U-B75 I5 3470 Intel B7 3.2~3.6 GHz 1 x VGA 2 x SO-DIMM DDR3L 1 x mSATA/1 x 2.5 inch SSD 2 6 2 2U FLEX Power Supply
S2U-B75 I7 3770 Intel B75 3.4~3.9 GHz 1 x VGA 2 x SO-DIMM DDR3L 1 x mSATA/1 x 2.5 inch SSD 2 6 2 2U FLEX Power Supply
S2U-B75 E3-1225V2 Intel B75 3.2~3.6 GHz 1 x VGA 2 x SO-DIMM DDR3L 1 x mSATA/1 x 2.5 inch SSD 2 6 2 2U FLEX Power Supply
