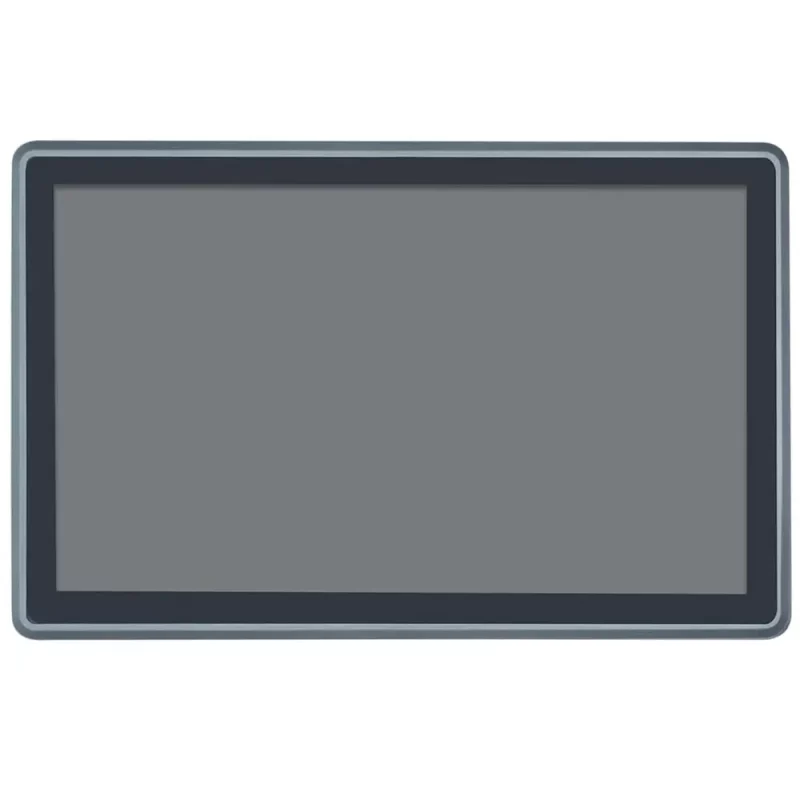

21.5″ Capacitive Capacitive Touch Monitor

21.5″ Capacitive Capacitive Touch Monitor

Model: Partaker A22

  • 21.5-inch Resistive/Capacitive Touch Panel PC with Intel Celeron processors for seamless touch operations.

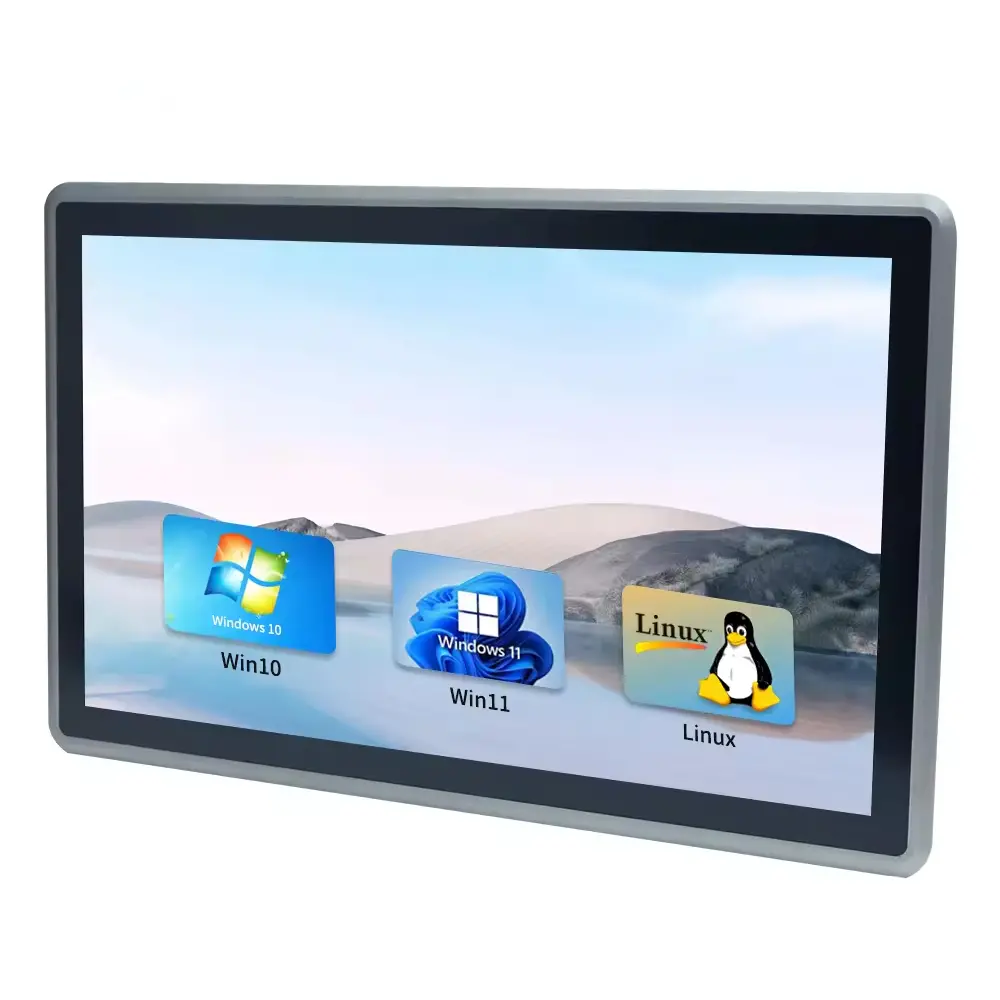

  • Featuring TPM2.0 support and Windows 11 OS, this Touch Panel PC offers robust security and user-friendly functionality.
  • Wide-voltage input range of 9~36V ensures flexibility and stability in various industrial applications.

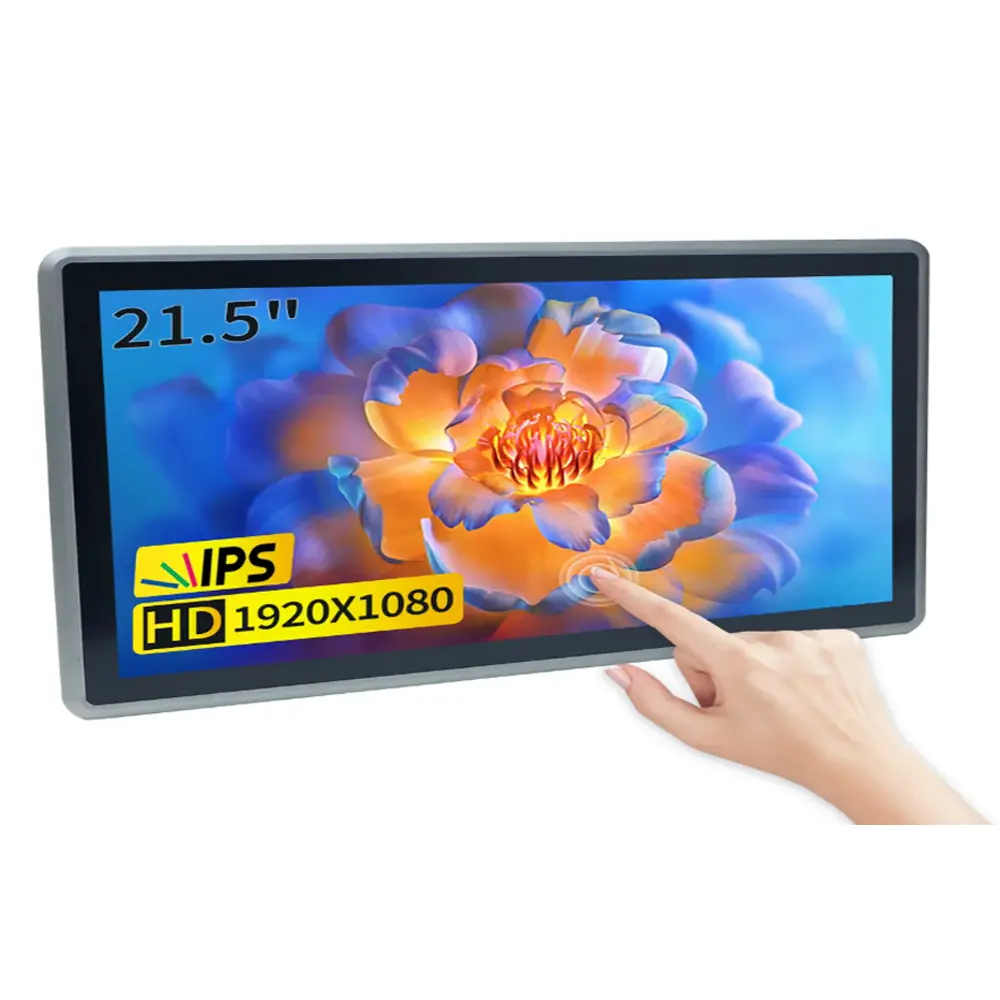

  • Boasting a 16:9 aspect ratio and 1920×1080 resolution, the display delivers crisp and vivid visuals.
  • With a brightness of 250 cd/㎡, the Touch Panel PC ensures clear visibility even in brightly lit environments.
  • Available with a range of Intel processors, including Celeron J6412, 4205U, i3, i5, and i7, to meet various performance requirements.
  • This Touch Panel PC is a versatile solution for a wide range of industrial and commercial applications.
  • With its advanced features and robust performance, this 21.5-inch Touch Panel PC is a reliable choice for businesses seeking a touch-enabled computing solution.

Share to:

Overview



The 21.5-inch Resistive/Capacitive Touch Panel PC offers a seamless touch experience powered by Intel Celeron processors, including J6412, 4205U, i3, i5, and i7 options. It supports TPM2.0 and runs on Windows 11 OS, providing robust security and user-friendly functionality. With a wide-voltage input range of 9~36V, it ensures flexibility and stability in various industrial applications. The display boasts a 16:9 aspect ratio and 1920×1080 resolution, delivering crisp and vivid visuals, while its 250 cd/㎡ brightness ensures clear visibility. This versatile and robust Touch Panel PC is a reliable choice for businesses seeking a touch-enabled computing solution.



Model
Partaker A22 Industrial Panel PC
Color
Gray (color can be customized)
Material
Aluminum alloy
Processor
Intel Celeron 4205U(Dual core dual threads, 1.8Ghz, 2MB Cache)
Intel Celeron J6412 ( Quad Core 4 threads, 2.0Ghz, Max Turbo 2.60Ghz, 1.5M Cache)
Intel Core i3-10110U (Dual core 4 threads, 2.1G, Max. Turbo 4.1G, 4MB Cache)
Intel Core i5-8260U(Quad core eight threads,1.6Ghz,Max turbo 3.9Ghz,6MB Cache)
Intel Core i7-10810U(6 Cores 12 threads, 1.1Ghz, Max turbo 4.9Ghz, 12MB Cache)
Memory
1 x DDR4 2400/2666 SODIMM memory slot, Max. 32GB
BIOS
AMI EFI BIOS
Chipset
Intel UHD Graphics
Display port
1 x HDMI,1 x LVDS(Synchronous,asynchronous display is supported)

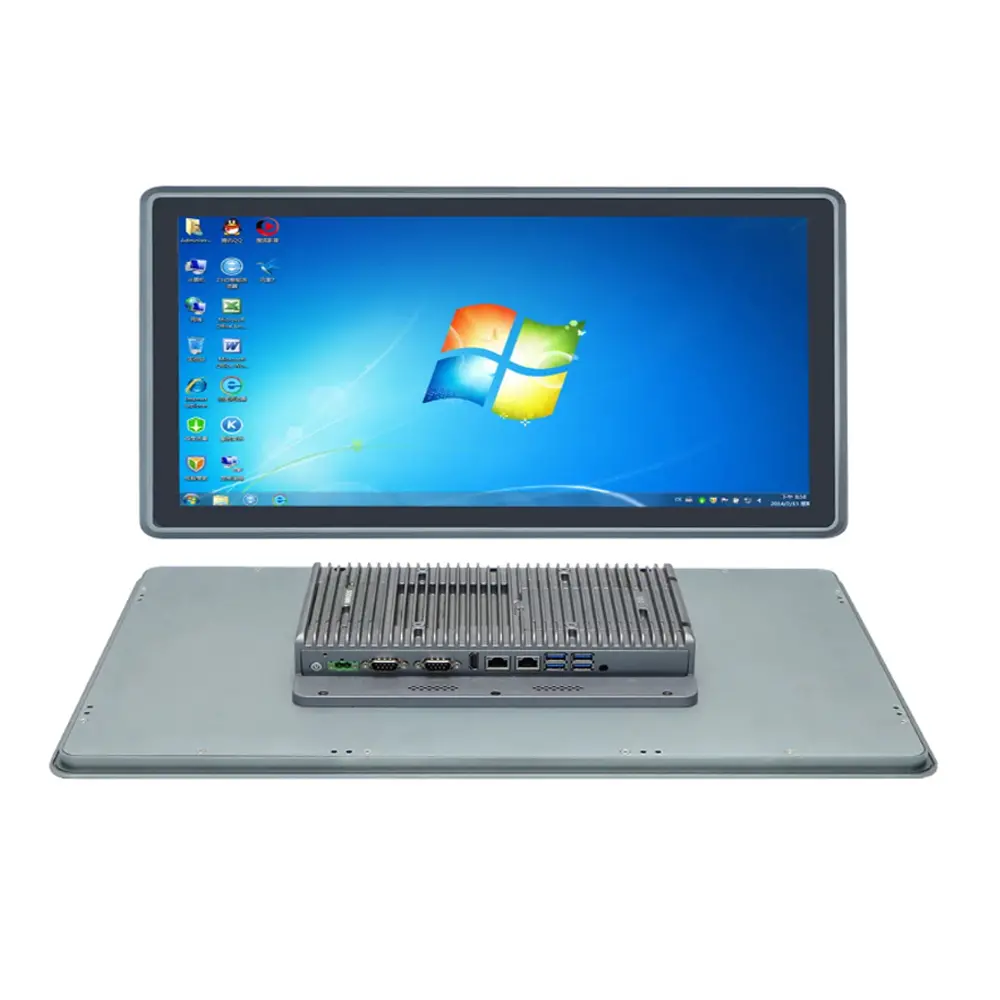

 I/O
1 x HDMI
2 x COM(COM1,2 support RS232/422/485, 6 x COM is optional)
1 x power button
1 x 2Pin Supply Phoenix terminal,
1 x Audio&Speaker,
4 x USB3.0,
2 x Intel 1000M Lan(4 x Lan optional)
Expansion Slot
1 x Mini PCIE slot(support WIFI/BT/3G/4G,with SIM card slot)
Expansion Port
Standard version doesn’t include these ports: GPIO(8 in & 8 out), 2 x Lan ports, 4 x COM, 2 x USB2.0
LCD
Screen size: 21.5inch TFT-LCD
screen brightness: 250 cd/m2
Visual Angle: full angle
Screen scale: 16:9
resolution: 1920 x 1080
Touch screen
Resistive high-sensitivity touch screen with a lifespan of more than 50 million times; (capacitive touch screen is optional)
Speaker
Two 8-ohm 2-watt speaker
Storage
1 x M.2 2280 slot(SATA signal), 1 x 2.5inch SSD/HDD
Power Supply
DC 9~36V wide-voltage,Support positive and negative electrode protection
Other Function
Power-on, Timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption
Work Temp
0℃ – +50℃ (Commercial HDD), -20℃ to – +60℃ (Industrial SSD), Surface air flow
Work Humidity
5 % ~ 95% non-condensing

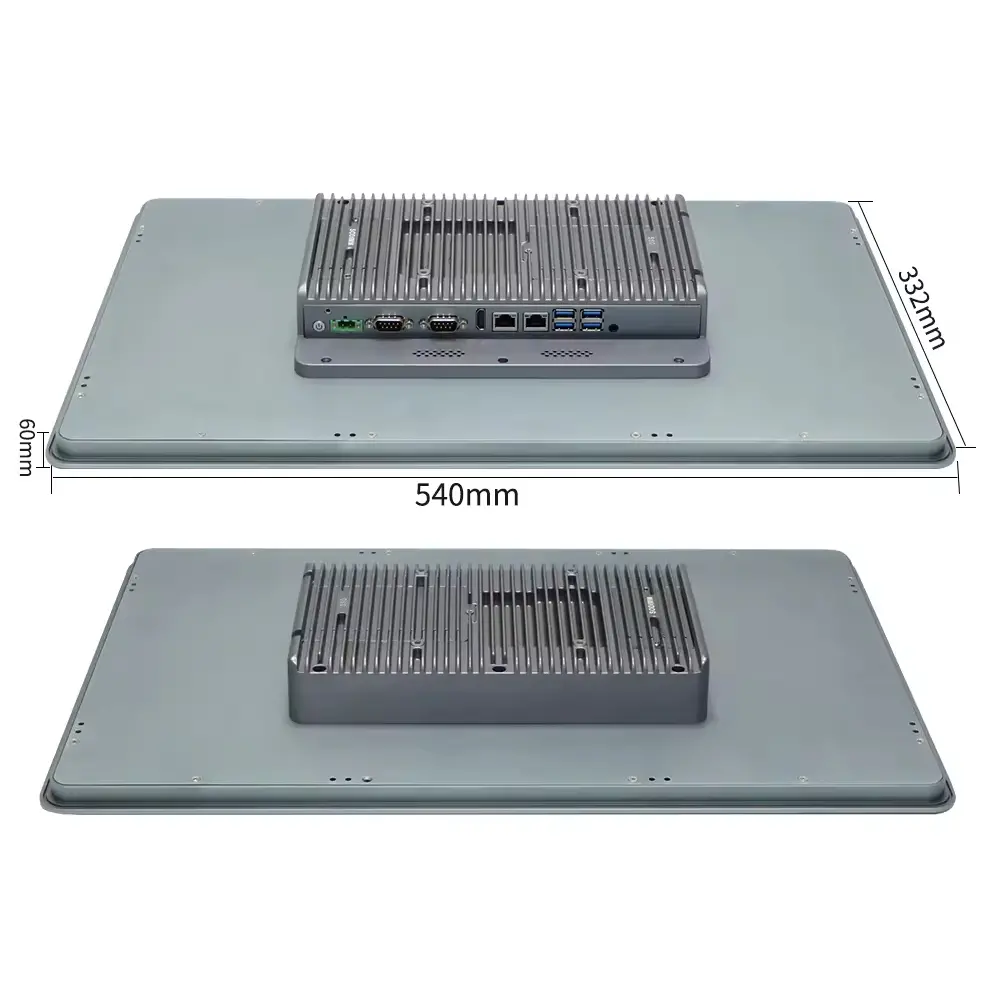

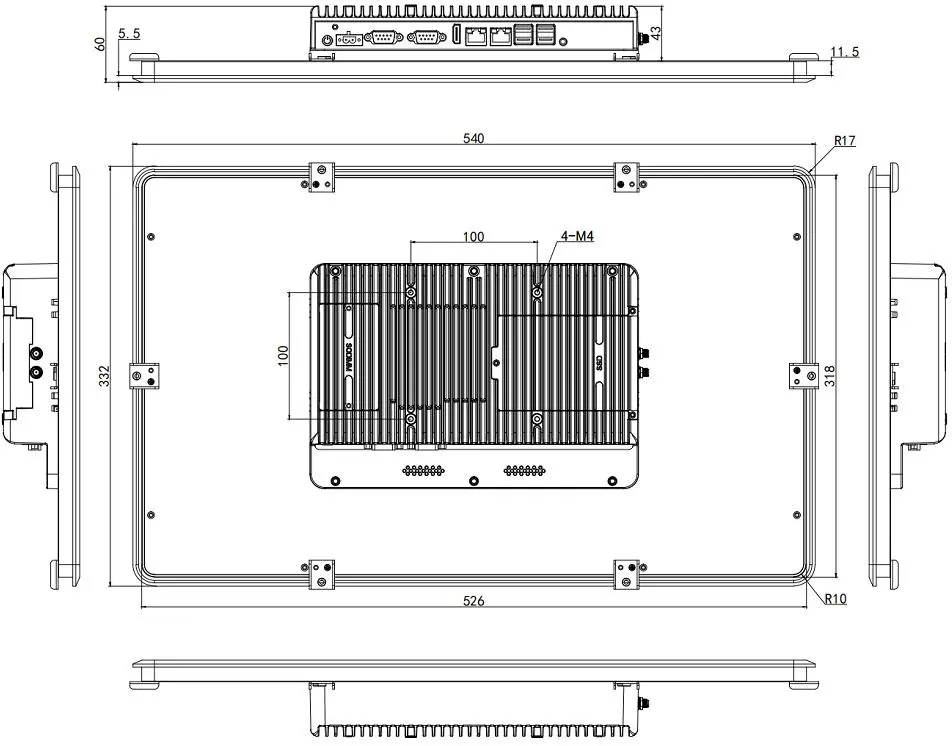

Dimension
540 * 332 * 60 mm
Embedded Dimension
528 * 320 mm
Weight
6.8 kg
Application
Industrial automation, medical, logistics, transportation, warehousing, machine vision etc.



Model Processor Cooling System Graphics Frequency Display Memory Storage LAN COM USB Power
A22 Intel Celeron 4205U Fanless Intel® UHD Graphics 1.80 GHz HDMI 1 x DDR4, Max 32GB 1 x M.2 2280/1 x 2.5 inch HDD 2 2 4 12V7A
A22 Intel Celeron J6412 Fanless Intel® UHD Graphics 2.00~2.60 GHz HDMI 1 x DDR4, Max 32GB 1 x M.2 2280/1 x 2.5 inch HDD 2 2 4 12V7A
A22 Intel Core i5-8265U Fanless Intel® UHD Graphics 1.60~3.90 GHz HDMI 1 x DDR4, Max 32GB 1 x M.2 2280/1 x 2.5 inch HDD 2 2 4 12V7A
A22 Intel Core i7-10810U Fanless Intel® UHD Graphics 1.10~4.90 GHz HDMI 1 x DDR4, Max 32GB 1 x M.2 2280/1 x 2.5 inch HDD 2 2 4 12V7A
A22 Intel Core i3 10110U Fanless Intel® UHD Graphics 2.10~4.10 GHz HDMI 1 x DDR4, Max 32GB 1 x M.2 2280/1 x 2.5 inch HDD 2 2 4 12V7A
