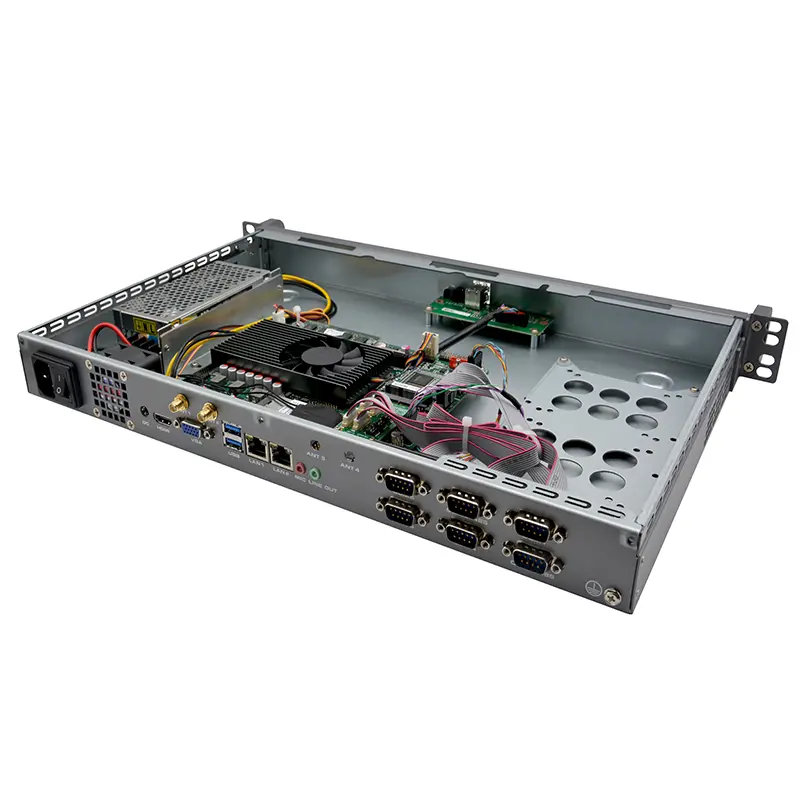

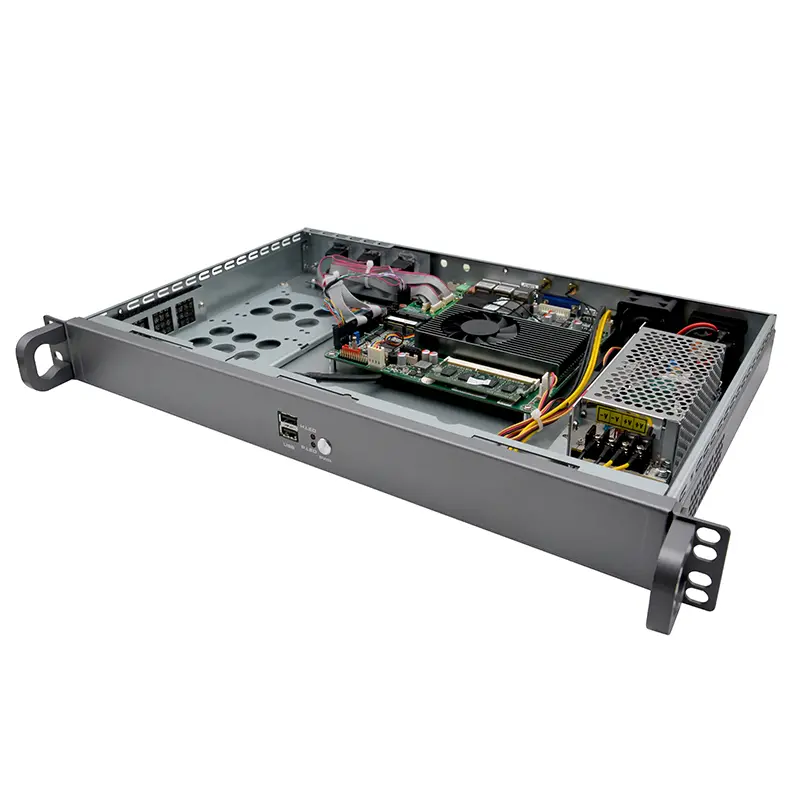

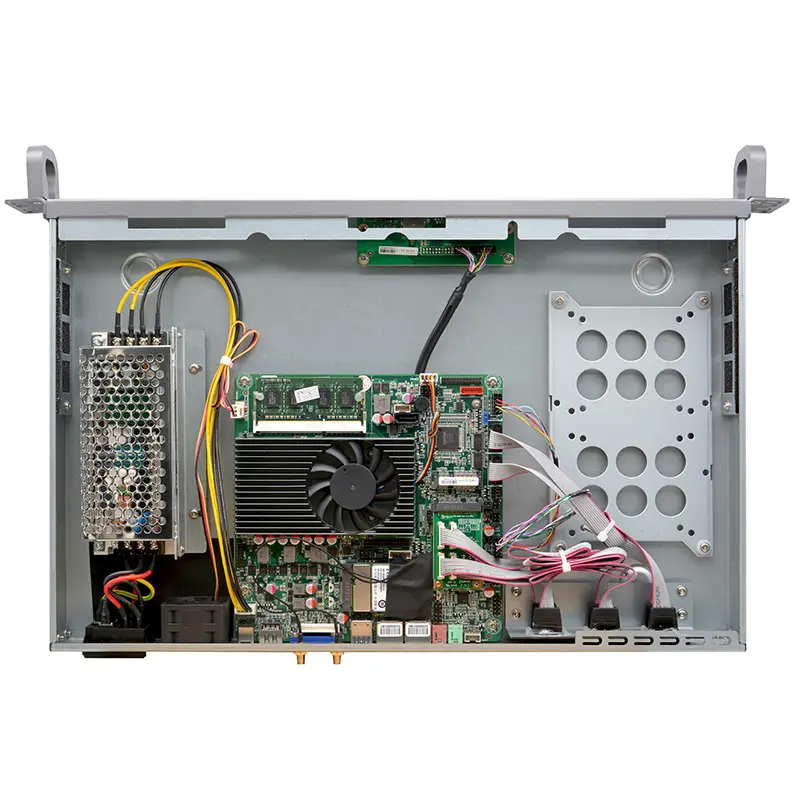

1U Rackmount Firewall PC I5 3210M
Model: Partaker F6
- Intel® i5-3210M/2.5GHz dual-core four-thread processor
- 1*SODDR3 1600 memory, maximum support 8GB
- 1*VGA+1*HDMI display output
- 6*RS232 DB9 serial ports, COM2/3 support RS232/422/485)
- 2*RTL8111H Gigabit network card, support wake-up on LAN, PXE function
- 2*USB2.0, 2*USB3.0
- 1U standard chassis, high-quality galvanized steel plate
Share to:
Overview
Partaker 1U Firewall Appliance F6 with Intel core 3th Gen i5 3210M processor, 2 x RTL811H Gigabit LAN 6 x RS232 COM. Support multiple operating systems like windows, linux, pfSense, openwrt, ros, ubuntu etc.
Mechanical
| Chassis | 1U standard chassis, high-quality galvanized steel |
| Colour | Light silver black |
| Size | 430MM*280MM*45MM |
| Weight | 8Kgs |
| Insallation Method | Desktop type/rack mounting |
Motherboard
| CPU | Integrated Intel®Core I5-3210M /2.5GHz dual core 4 thread processor,TDP 18W |
| Network Card | 2 x RTL8111H Gigabit Ethernet, support WOL / PXE function |
| Graphic | Integrated Intel® HD Graphics 4000 |
| Memory | 1 x SODDR3 RAM slot, support single channel, DDR3 1600/1333 , max up to 8GB |
| Storage | 1 x MSATA slot, support Intel protocol SSD, transfer rate up to 6Gbps 1 x SATA2.0 HDD ,transfer rate up to 3Gbps |
| Display | 1 x VGA, 1 x HDMI |
| Expand | 1 x Mini-PCIE slot, support WIFI, 3G/4G module |
I/O Interfaces
| Front Panel | 1 x Power switch |
| 1 x Power.LED, 1 x HDD.LED | |
| 2 x USB2.0 port | |

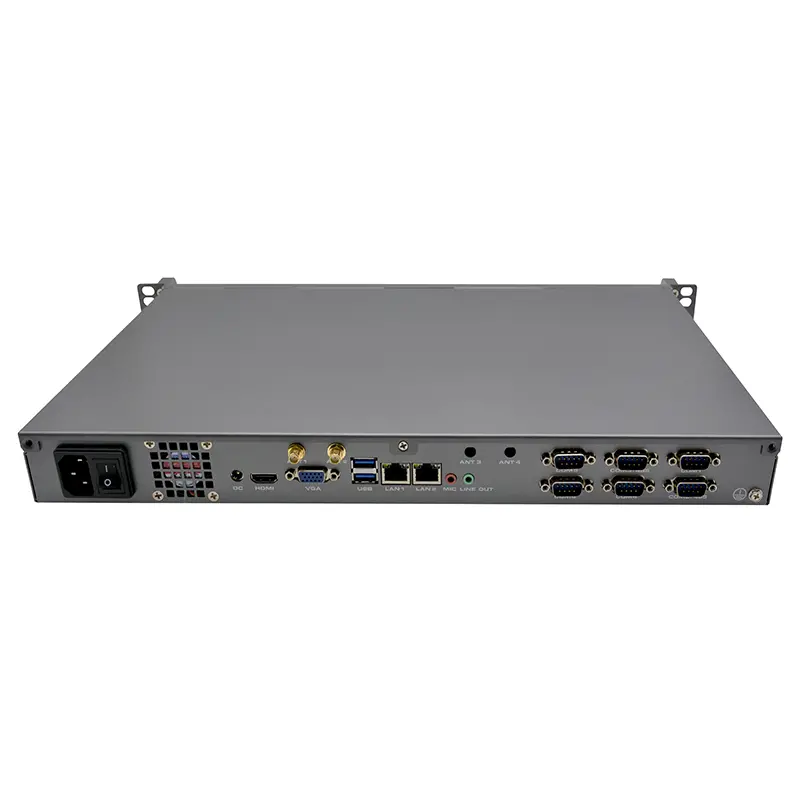

| Rear Panel | 1 x VGA |
| 1 x HDMI | |
| 2 x LAN | |
| 6 x RS232 COM port ( COM1/COM2 the 9th pin charged function，COM2/COM3 support RS422/485) | |
| 1 x Line out port, 1 x MIC port, onboard ALC892 7.1+2 channel high fidelity audio controller | |
| 1 x power supply connector | |
| 1 x USB3.0 |
Software Support
| System Support | Windows 7/10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Lede/Liunx |
| Watch Dog | Support hardware reset function (L256，0~255 seconds) |
General
| Cooling Mode | With Fan |
| Power Supply | DC power supply, 12V/5A, AC TO DC, 60W |
| Packing List | F6 Firewall Appliance, Power adapter, Power cord, Warranty card |
Enviroment
| Operating temperature | -10℃～60℃ |
| Storage temperature | -20℃～70℃ |
| Relative humidity | 5%-95% relative humidity, non-condensing |
| Work vibration | 0.5g rms/5-500HZ/random/operating |
| Model | Processor | Memory | MB | LAN | COM | HDMI | VGA | USB2.0 | USB3.0 | Power |
| F6 | 3210M /2.5GHz | 1*SODDR3 | B320 | 2 | 6 | 1 | 1 | 2 | 2 | DC 12V |
