1U RackMount Firewall I7 I5 I3 8 LAN 4 SFP

1U RackMount Firewall I7 I5 I3 8 LAN 4 SFP

Model: Partaker F12

  • Intel®LGA1151 6th/7th/8th/9th i3/i5/i7 Series CPU
  • Intel®Q270/Q250 Express Chipset
  • 2*DDR4 SODIMM 2400MHz , Max to 64GB
  • 8*Intel I210 Gigabit electrical port, expandable to 4 optical ports or 2 optical ports
  • 2*USB3.0,1*VGA
  • Expandable 4-port or 2-port fiber card
  • Support 2 groups of BYPASS (optional)
  • Standard 1U AC220V ATX power supply 250W
  • 1U standard chassis, high-quality galvanized steel plate

Share to:

Overview



Partaker 1U Firewall Appliance F12 with Intel LGA1151 LGA1200 I7 I5 I3 processor. Support firewall pc systems such as virtual machine PVE/iKuai/led/openwrt/nas etc.



Mechanical

Chassis 1U standard chassis, high-quality galvanized steel
Colour Iron gray
Size 430MM*320MM*44.5MM
Weight 9Kgs
Insallation Method Desktop type/rack mounting



Motherboard

CPU Supports Intel® LGA1151 6th/7th/8th/9th Celeron/Pentium/Core i3/i5/i7 series processors

Support Intel® Core i5 7300HQ Processor, 6M Cache, up to 3.50 GHz

Support Intel® Core i7 6920HQ Processor, 8M Cache, up to 3.80 GHz

Support Intel® LGA1200 10/11th I3 I5 I7 series processors

Network Card 8 x Intel I210 Gigabit electrical ports, support Wake-on-LAN/PXE function (LAN1-4 supports BYPASS, default does not upload files) Choose one of LAN8 and WiFi, the default is LAN8
Graphic

Integrated Intel HD Graphics core graphics card
Memory 2 x DDR4 SODIMM memory slots, support 2400MHz memory, maximum support 64GB
Storage 1 x MSATA, transmission speed up to 6Gbps
1 x 3.5 inch hard disk or 1*2.5 inch hard disk
Display 1 x VGA
Expand 1*PCIE X8 slot, expandable Gigabit/10 Gigabit fiber card
1*MINIPCIE slot, support WiFi/4G
1*USB2.0, can connect dongle

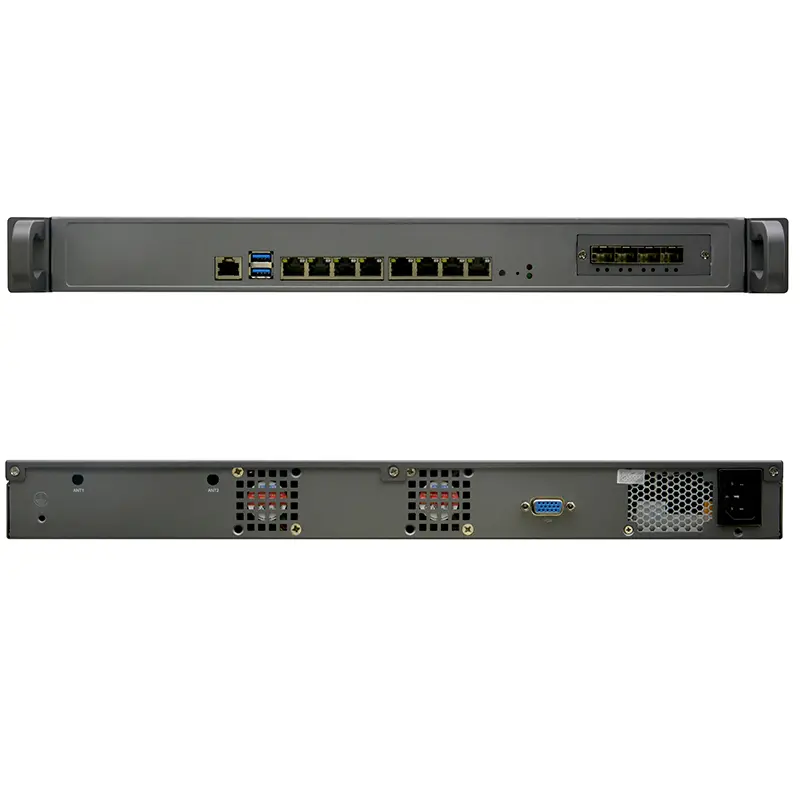

I/O Interfaces

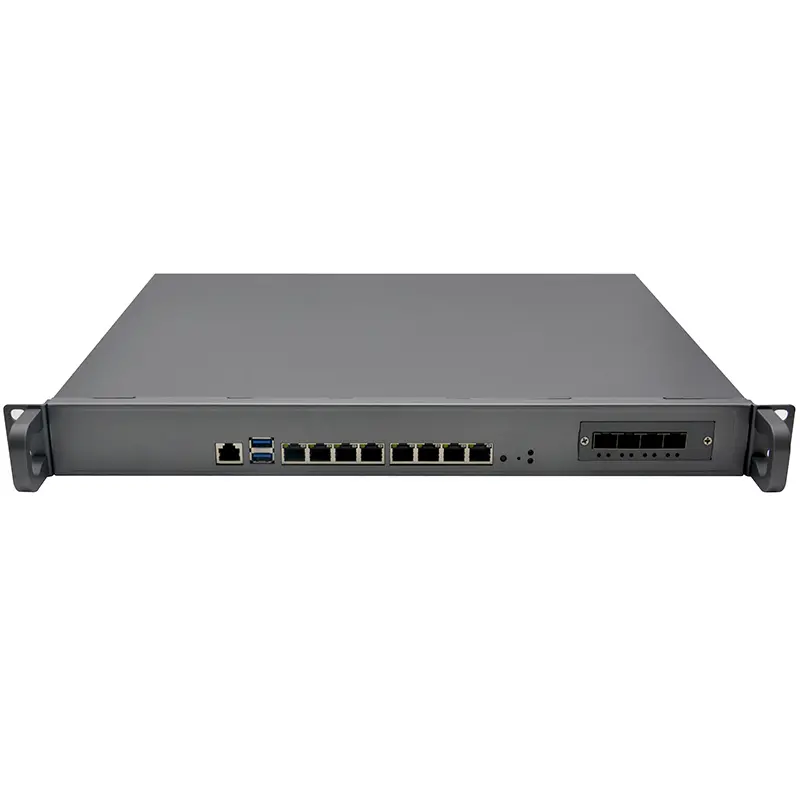

Front Panel 1 x Power switch, 1 x Restart switch
8 x Intel I210 Gigabit LAN
2/4 x Optical fiber
1 x RJ45 COM
1 x USB3.0

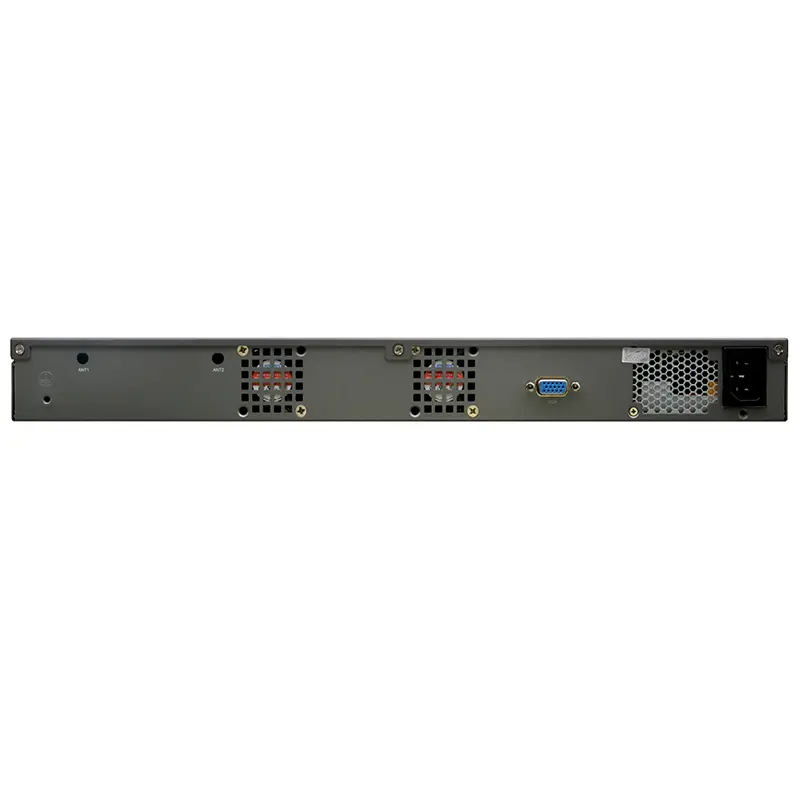

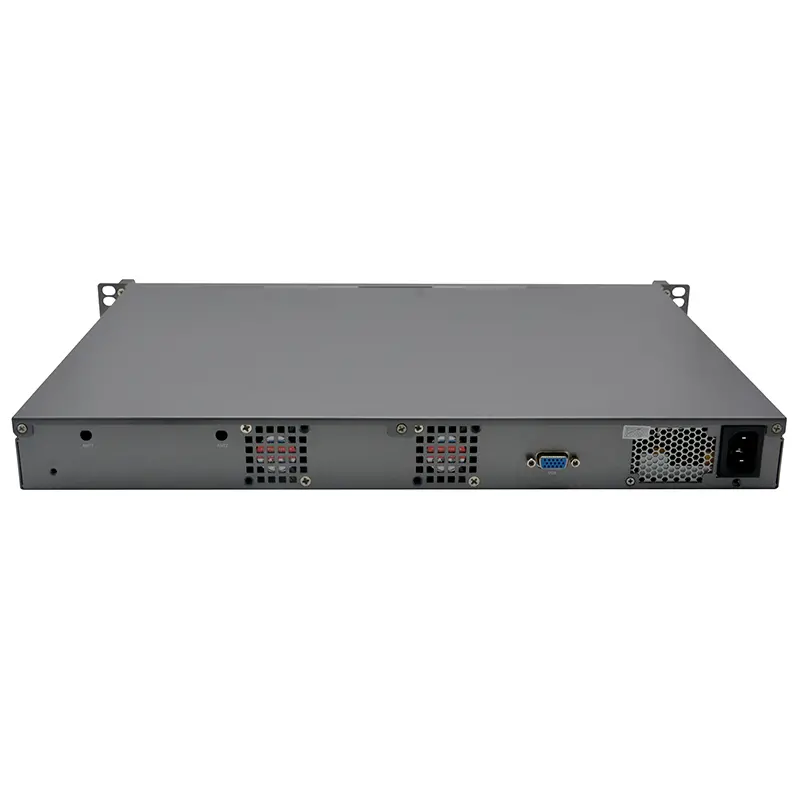

Rear Panel 1 x VGA
1 x Power cord interface



Software Support

System Support Windows 7/10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Lede/Liunx



General

Cooling Mode With Fan
Power Supply Built-in ATX/1U power supply, AC 110-220V Standard 250W
Packing List F12 Firewall Appliance, Power adapter, Power cord, Warranty card



Enviroment

Operating temperature -10℃~50℃
Storage temperature -20℃~70℃
Relative humidity 5%-95% relative humidity, non-condensing
Work vibration 0.5g rms/5-500HZ/random/operating
Model Processor Memory MB IO Board BYPASS LAN COM VGA SFP USB Power
F12 (R270) LGA1151 2*SODDR4 R270 M210-L8 2(Optional) 8 1 1 4/2(Optional) 2 AC 220V
F12(7300HQ) I5-7300HQ/2.50GHz 2*SODDR4 R370 M210-L8 2(Optional) 8 1 1 4/2(Optional) 2 AC 220V
F12(6920HQ) I7-6920HQ/2.90GHz 2*SODDR4 R730 M210-L8 2(Optional) 8 1 1 4/2(Optional) 2 AC 220V
F12(R570) LGA1200 2*SODDR4 R570 M210-L8 2(Optional) 8 1 1 4/2(Optional) 2 AC 220V



LGA1151/CPU/6th Gen G3900/G3930/G4400/I3 6100/I5 6500/I5 6500T/I7 6700
LGA1151/CPU/7th Gen G4900/G4930/G4560/I3 7100/I5 7500/I7 7700
LGA1151/CPU/8th Gen G5400/I3 8100/I5 8400/I5 8500/I7 8700
LGA1151/CPU/9th Gen I3 9100/I5 9400/I5 9500/I7 9700/I7 9700K
LGA1200/CPU/11th Gen I5 11400/I5 11500/I5 11600/I7 11700/I9 11900/I9 11900K
LGA1200/CPU/10th Gen I3 10100/I5 10400/I7 10700
