1U Network Firewall Appliance I3 I5 I7 8 x LAN 2 x SFP

1U Network Firewall Appliance I3 I5 I7 8 x LAN 2 x SFP

Model: Partaker R13

  • 1U firewall is based on the Intel Core i3/i5/i7 processor, which can deliver high performance and low power consumption.
  • It supports up to 8GB of DDR3/DDR3L memory and has two storage options: one mSATA SSD and one 2.5/3.5 inch SATA SSD/HDD.
  • Features eight Intel 82574L 10/100/1000M Ethernet controllers and two SFP+ optical ports with the Intel 82599ES 10 Gigabit Ethernet controller.
  • Run various operating systems, such as Windows, Linux, FreeBSD, pfSense, Sophos, OPNsense, etc.
  • 1U 19 inch cabinet design, which can be easily mounted on a rack, hung on a wall, or placed on a desk.

Share to:

Overview



Partaker R13 is a network appliance that can handle various network tasks, such as routing, firewall, VPN, etc. It is based on the Intel 2nd generation Core i3 processor, which can provide high performance and low power consumption. It supports multiple operating systems and firewall software.



It has a 19 inch 1U cabinet design, with a 100W power supply and a power cord. It has 8 x Intel Gigabit LAN ports, 2 x optical ports SFP+, VGA port, 2 x USB ports, and a console port. It has a size of 430 x 280 x 48mm.



Partaker R13 uses an industry network motherboard, which has low heat and low power consumption. It uses a silent cooling fan to ensure long-term operation and stability. It can withstand harsh industrial environments and provide reliable network security.



Mechanical

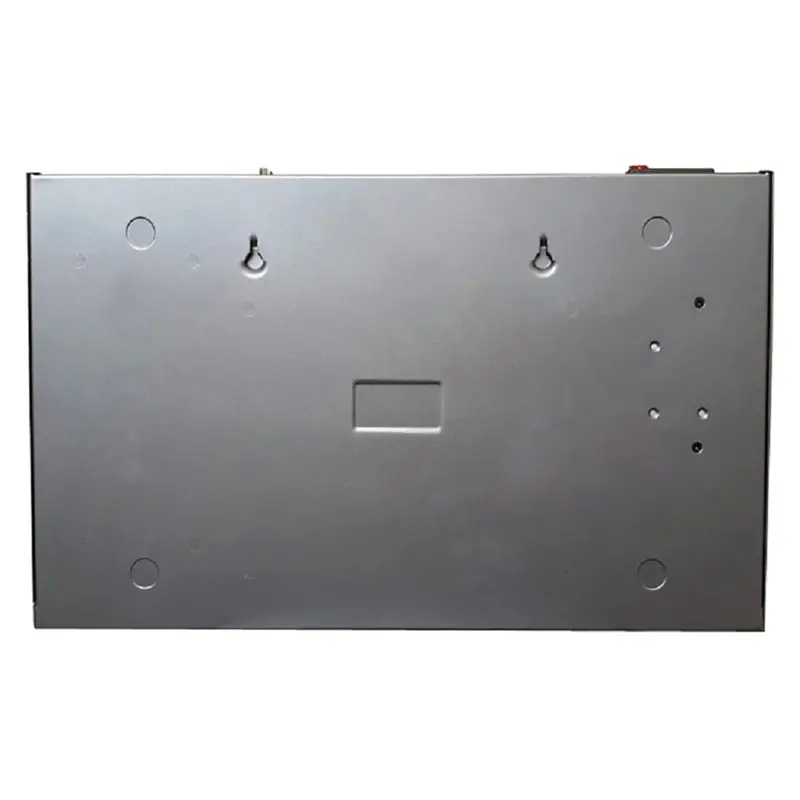

Chassis Standard 1u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad
Colour Black
Size 420 x280 x 48(mm)
Weight 6.5Kgs
Insallation Method Desktop type/rack mounting



Motherboard





CPU

2th Gen Intel Core I3 2328M / 2350M / 2370M, ship one of them

2th Gen Intel Core i5- 2430M / 2520M / 2540M Processor, ship one of them

2th Gen Intel Core i7-2620M / 2640M Processor, ship one of them

3th Gen Intel Core i3-3110M / 3120M Processor, ship one of them

3th Gen Intel Core i5-3320M / 3340M Processor, ship one of them

3th Gen Intel Core i7-3520M Processor (4M Cache, up to 3.60 GHz)

Network Card 8 x Intel 82574L 10/100/1000m ethernet controller, 2 x sfp+ optical ports (the sfp model is 10 gigabit 82599es)
Graphic Intel HD Graphics
Memory 1 x SODIMM DDR3/L 1333/1600, Max.8G Ram
Storage 1 x mSATA SSD, 1 x 2.5/3.5 inch SSD/HDD
Display 1 x VGA
Expand Mini PCIE for WiFi/4G (contact us to customize)
Intel® AES New Instructions According to CPU



I/O Interfaces

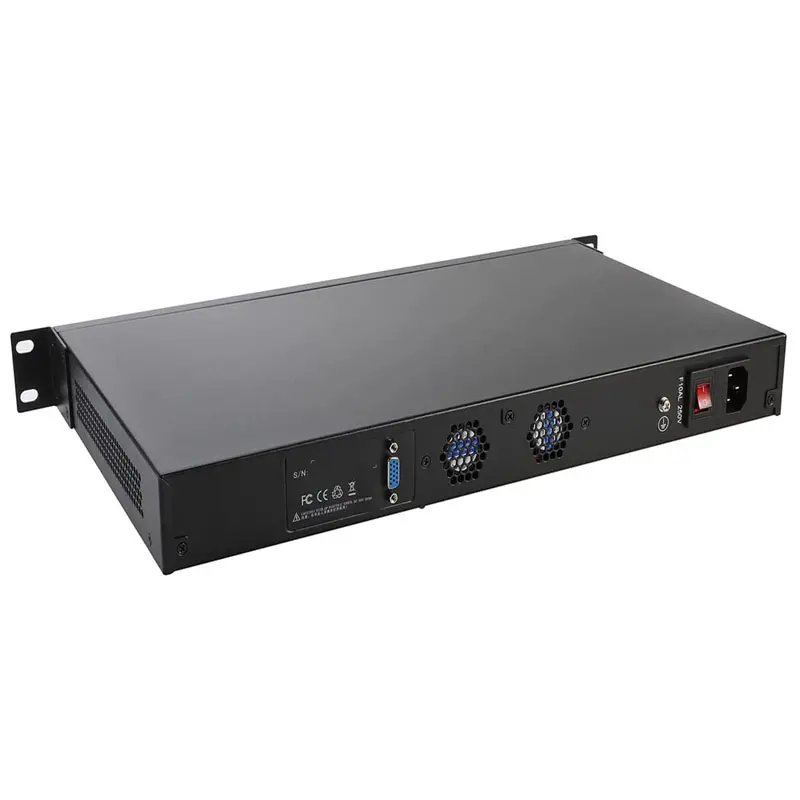

Front Panel

1 x VGA
1 x Power switch
1 x ATX power socket

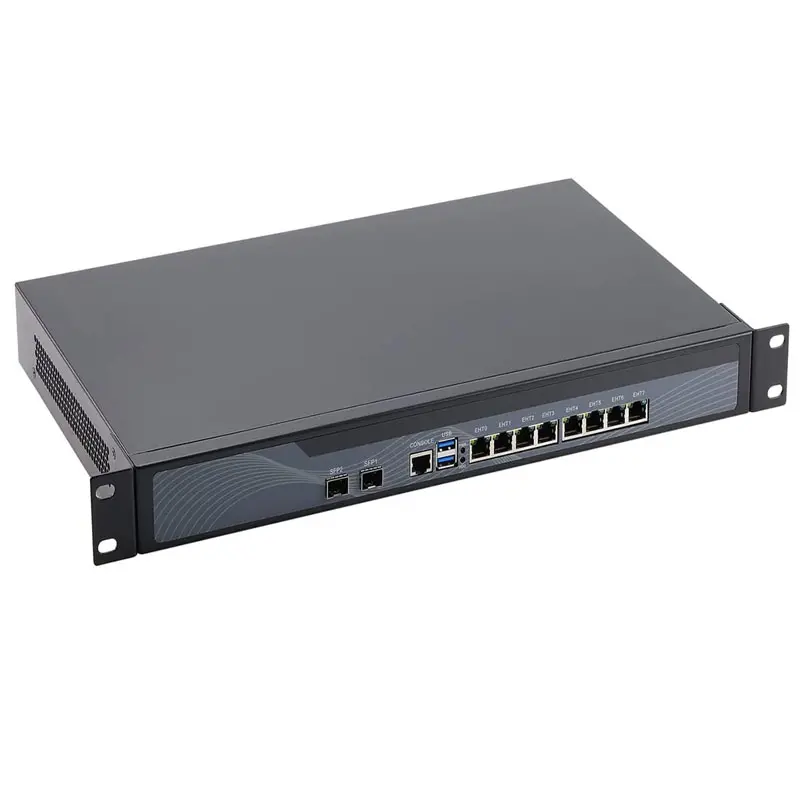

Rear Panel

1 x Console
2 x USB 3.0
8 x LAN
2 x SFP+ Optical



Software Support

System Support Any FreeBSD based router systems, Linux distros, or Win.OS etc
BIOS AMI EFI BIOS
Compatibility Firewalls tested with pfSense, untangle, OPNsense and other popular open-source software solutions



General

Cooling Mode Smart fan
Power Supply 100w 100v-240v 50hz/60hz
Packing List R13 firewall, rack ears, power cord, warranty card



Environment

Operating temperature -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow
ambient temperature 5~90°C relative humidity, non-condensing
Certification CE, FCC, CCC, ROHS
Model Processor Graphics Frequency Display Memory Storage LAN SFP USB Power
R13 I3 2350M Intel® HD Graphics 3000 2.30GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 8 2 x 82599ES 2 100W 100V-240V 50hz/60hz
R13 I5 2520M Intel® HD Graphics 3000 2.50~3.20GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 8 2 x 82599ES 2 100W 100V-240V 50hz/60hz
R13 I7 2620M Intel® HD Graphics 3000 2.70~3.40GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 8 2 x 82599ES 2 100W 100V-240V 50hz/60hz
R13 I3 3110M Intel® HD Graphics 4000 2.40GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 8 2 x 82599ES 2 100W 100V-240V 50hz/60hz
R13 I5 3320M Intel® HD Graphics 4000 2.60~3.30GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 8 2 x 82599ES 2 100W 100V-240V 50hz/60hz
R13 I7 3520M Intel® HD Graphics 4000 2.90~3.60GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 8 2 x 82599ES 2 100W 100V-240V 50hz/60hz
