1U Network Appliance with 12th/13th Gen Processor

1U Network Appliance with 12th/13th Gen Processor

Model: Partaker S12

  • The network appliance features a sheet metal structure for its chassis and incorporates a well-designed fan system to ensure effective cooling and thermal management.
  • The appliance supports 12th generation Intel processors with the LGA1700 socket, including I3 12100, I5 12400, I7 12700, and I9 12900 models.
  • It supports two DDR4 slots with a clock speed of 3200Hz, allowing a maximum capacity of 64GB.
  • The appliance provides one M.2 NVME slot and one SATA slot, offering flexibility for storage expansion.
  • It is equipped with six Intel I226 Ethernet ports, and there is an optional upgrade available for Power over Ethernet (PoE) support.
  • The appliance offers the ability to expand with two or four Gigabit/10 Gigabit SFP+ fiber ports or four ports for PoE power supply.

Share to:



Partaker S12 is a network appliance powered by the Intel B660/H610 chipset, offering support for 12th and 13th generation Intel Core processors (I3, I5, I7, I9) with the LGA1700 socket. It is equipped with six Intel I226 2.5G Ethernet ports and two Gigabit/10 Gigabit SFP+ fiber ports, providing high-speed and reliable network connectivity.


The appliance incorporates advanced features including power-on by alarm, scheduled power-on, network wake-up, PXE boot, and watchdog functionality. These features enhance convenience, automation, and system reliability.


1U firewall plays a crucial role in network security protection, access control, traffic management, VPN services, and compliance. It is a critical component for safeguarding enterprise networks against threats and attacks, providing security, reliability, and manageability to help organizations maintain the confidentiality, integrity, and availability of their networks.



Material Iron, Aluminum panel
Colour Gray
Size 440 x275 x 45(mm)(without mounting ear)
Weight 7.5Kgs
Insallation Method Rack Mounting/Wall Mounting/Desktop Mounting



CPU 12th/13th I3/I5/I7/I9 Intel® LGA1700 CPU

Intel Core I3 12100 Processor, 12M Cache, up to 4.30 GHz

Intel Core I5 12400 Processor, 18M Cache, up to 4.40 GHz

Intel Core I7 12700 Processor, 25M Cache, up to 4.90 GHz

Intel Core I9 12900 Processor, 30M Cache, up to 5.10 GHz

Network Card Intel 6 x I226 2.5G adaptive network card interface (optional with POE) , 2 x Gigabit/10G optical port
Graphic Depend on CPUs
Memory 2 x DDR4 SODIMM, up to 64G
Storage 1 x M.2 NVME,  4×2280, 4xSATA(For motherboard support)

1 x M.2 NVME, 1 x 2.5 inch SSD/HDD (For Chassis support)

Display 1 x VGA, 1 x HDMI (Optional)
Expand Support 1 PCIE16X+ 1 PCIE4X (FPC) channel expansion card slot, 1xM.2 for 5G, 1xMini Pcie for 4G, 1xM.2 for WIFI module
Others Support Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog


I/O Interfaces

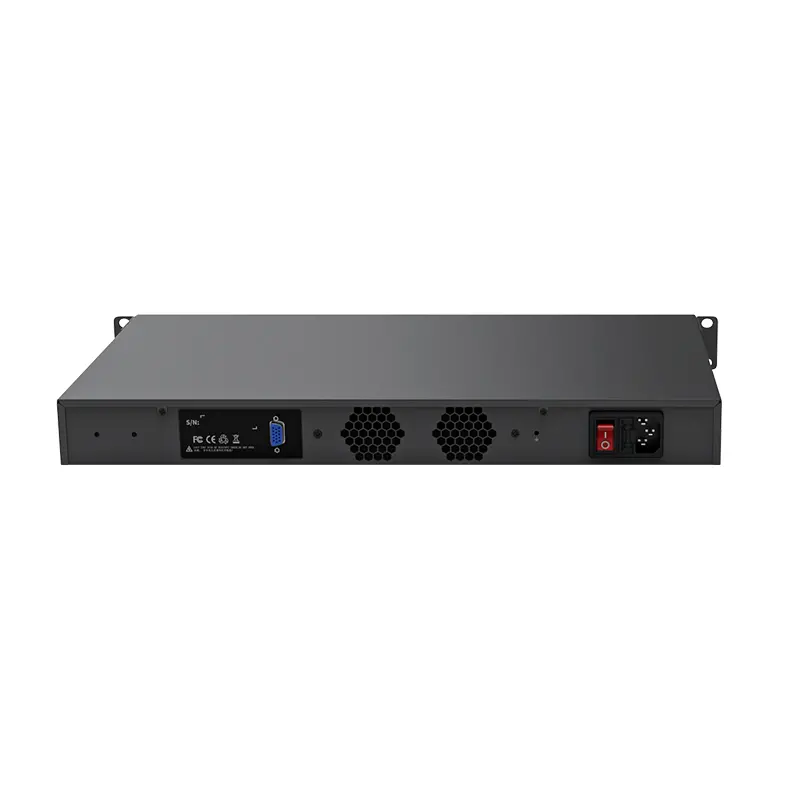

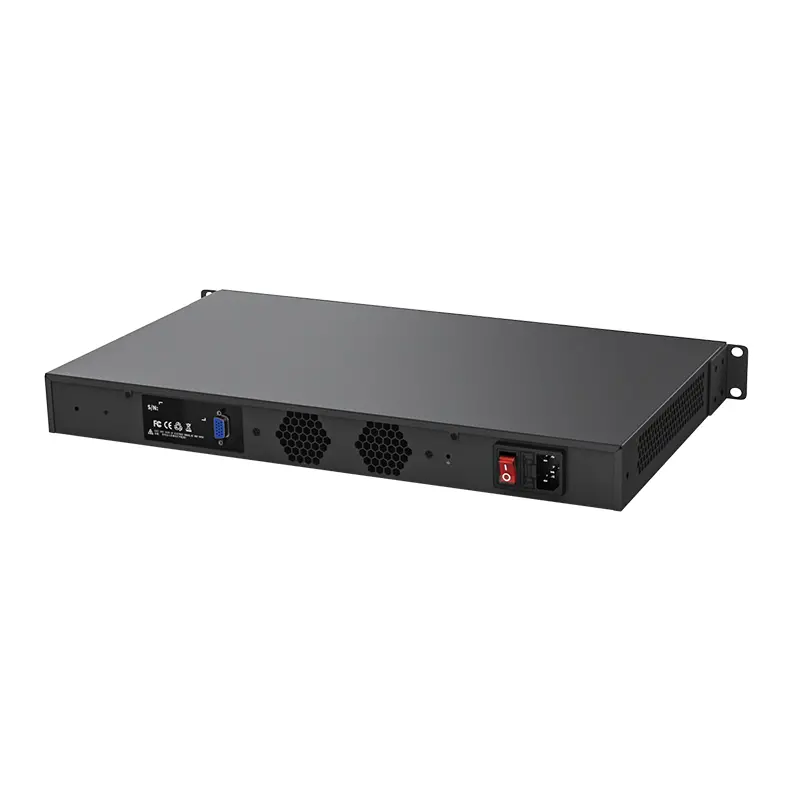

Front Panel 1 x VGA
2 x Cooling fan
1 x Switch
1 x AC socket

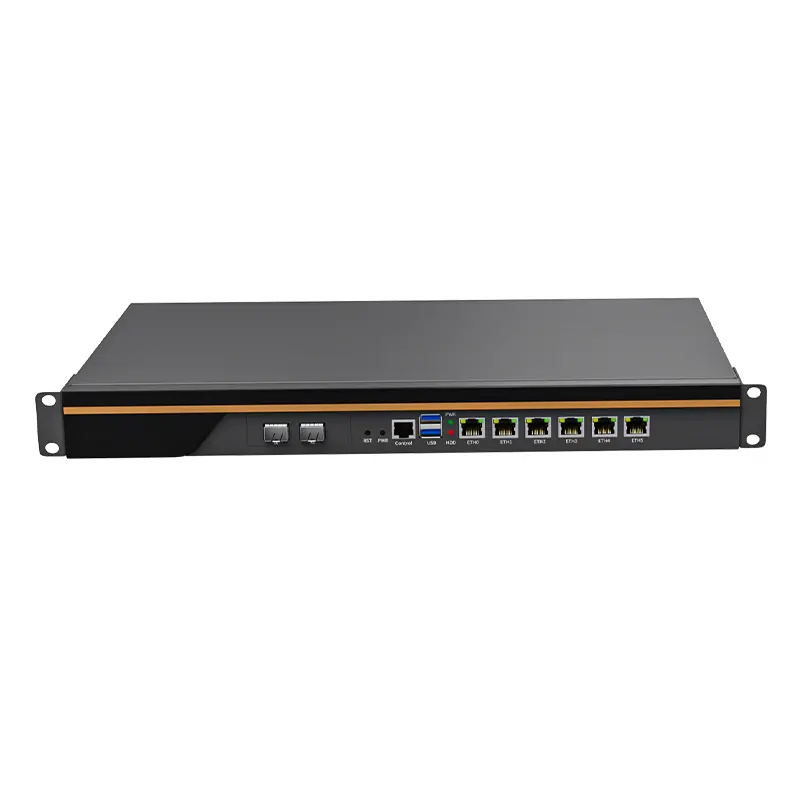

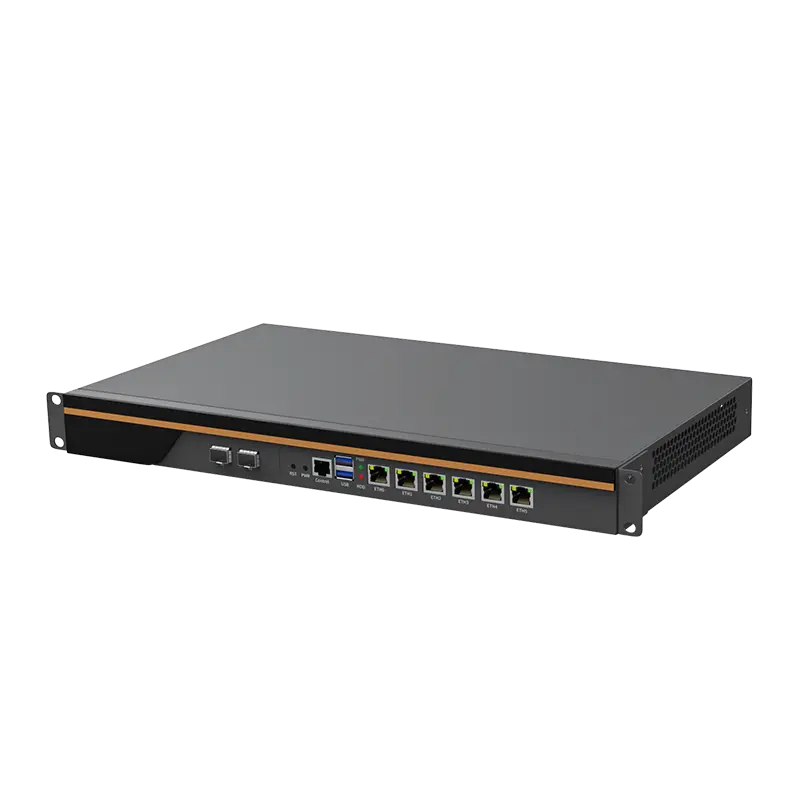

Rear Panel 1 x Console
2 x 3.0
2 x optical ports (expandable to 4/2 Gigabit or 10 Gigabit optical ports)
6 x LAN


Software Support

System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
BIOS AMI 128M BIOS, ACPI supported



Cooling Mode With Fan
Power Supply Industrial grade power supply Taiwan MEAN WELL LRS-150-24 Input: 100-240V~1.0A Output: 24V6.25A
Packing List S12 firewall, power cord, warranty card



Operating temperature -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow
ambient temperature 5~90°C relative humidity, non-condensing
Certification CE, FCC, CCC, ROHS
Model Processor Graphics Frequency Display Memory Storage LAN SFP USB Power
S12 I3 12100 Intel® UHD Graphics 730 3.3~4.30GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2/4 2 24V6.25A
S12 I5 12400 Intel® UHD Graphics 730 2.5~4.40GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2/4 2 24V6.25A
S12 I7 12700 Intel® UHD Graphics 770 1.6~4.90GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2/4 2 24V6.25A
S12 I9 12900 Intel® UHD Graphics 770 1.8~5.10GHz 1 x VGA 2 x SO-DIMM DDR4, Max 64GB 1 x M.2 NVMe/1 x 2.5 Inch SATA 6 2/4 2 24V6.25A
