1U Firewall 4 LAN Intel Celeron J1800 J1900 N2840

1U Firewall 4 LAN Intel Celeron J1800 J1900 N2840

Model: Partaker S07

  • Intel Celeron N2840/J1800/J1900 Processor
  • 1*DDR3L 1600 Mhz SODIMM RAM slot, max 8GB RAM
  • 1*MSATA, 1*2.5 Inch SATA HDD
  • 1*VGA+2*USB3.0+4*Intel LAN+1*Power Switch,1*AC power port
  • Support 1 x MINIPCIE channel (can be WIFI/Bluetooth/4G)
  • Applied in Firewall, Network Server, Network Security, VPN, Router etc.

Share to:

Overview



Introducing the Partaker 1U 19 Inch Rack Server S07, a powerful and versatile server that can handle computer-intensive and cloud applications with ease. It features an Intel celeron processor, DDR3L ram slot, 4 x Intel Lan, and supports windows, linux and pfsense operating systems. It also saves energy, lowers TCO, and simplifies management and maintenance with its 1u industrial power supply, reasonable air-duct design, and faster heat dissipation capability. Whether you need a firewall, VPN router, network server, or any other network security solution, the Partaker 1U 19 Inch Rack Server S07 can meet your needs. It also supports OEM/ODM customization for your specific requirements.



Mechanical

Chassis Standard 1u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad
Colour Black
Size 430 x250 x 45(mm)
Weight 6.5Kgs
Insallation Method Desktop type/rack mounting



Motherboard

CPU Intel Celeron N2840, 2 cores 2 threads, 1M Cache, up to 2.58 Ghz

Intel Celeron J1900, 4 cores 4 threads, 2M Cache, up to 2.42 Ghz

Intel Celeron J1800, 4 cores 4 threads, 1M Cache, up to 2.58 Ghz

Network Card 4 x Intel 82583V/82574L
Graphic Intel HD Graphics
Memory 1 x DDR3L 1600 MHz SODIMM memory slot, up to 8GB
Storage 1 x mSATA SSD, 1 x 2.5 inch SSD/HDD
Display 1 x VGA
Expand Support 1 MINIPCIE channel (WIFI/Bluetooth available)
Others Support Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog



I/O Interfaces

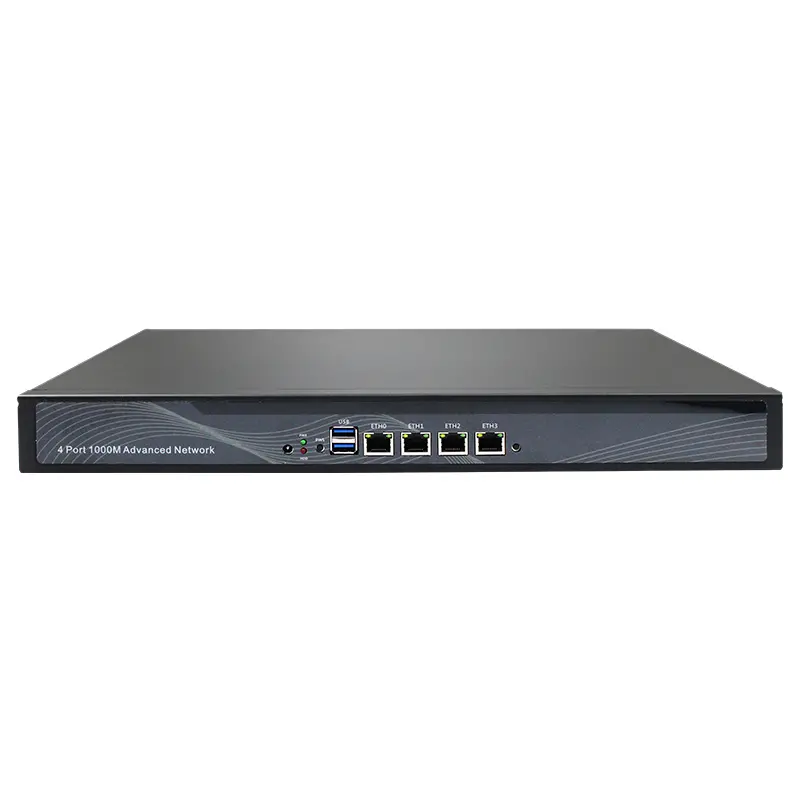

Front Panel 1 x VGA
1 x Power interface
1 x Switch

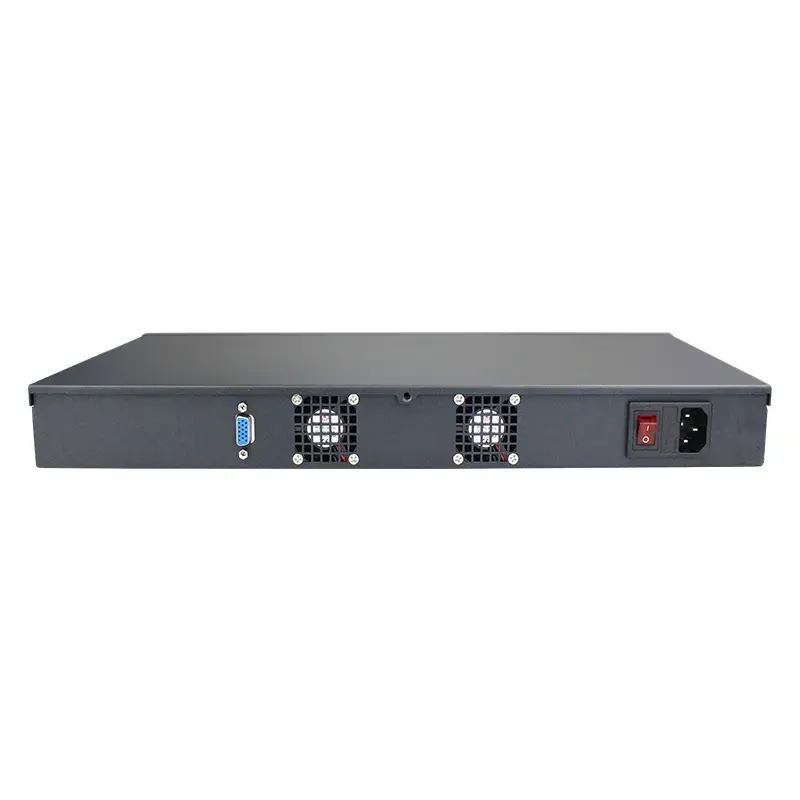

Rear Panel 2 x USB3.0
4 x LAN



Software Support

System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
BIOS AMI EFI BIOS



General

Cooling Mode With Fan
Power Supply Industrial grade power supply Taiwan MEAN WELL LRS-50-12 Input: 100-240V~1.0A Output: 12V4.2A
Packing List S07 firewall, rack ears, power cord, warranty card



Environment

Operating temperature -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow
ambient temperature 5~90°C relative humidity, non-condensing
Certification CE, FCC, CCC, ROHS
Model Processor Graphics Frequency Display Memory Storage LAN USB Power
S07 N2840 Intel® HD Graphics 2.16~2.58 GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 4 2 12V4.2A
S07 J1900 Intel® HD Graphics 2.0~2.42 GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 4 2 12V4.2A
S07 J1800 Intel® HD Graphics 2.41~2.58 GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 4 2 12V4.2A
