1U Firewall I7 I5 I3 2.5GbE I226-V

1U Firewall I7 I5 I3 2.5GbE I226-V

Model: Partaker F11A

  • Intel® LGA1151 6th/7th/8th/9th i3/i5/i7 series processorIntel®Q250/Q270 Express Chipset
  • 2*DDR4 DIMM 2400MHz, maximum support 64GB
  • 6*Intel I226 2.5G Gigabit electrical ports, expandable to 4 optical ports or 2 optical ports
  • 1*RJ45 serial port
  • 2*USB2.0, 1*VGA
  • Support 2 groups of BYPASS (optional)
  • Standard 1U AC220V ATX power supply 250W
  • 1U standard chassis, high-quality galvanized steel plate

Share to:

Overview



Partaker 1U Firewall Appliance F11A with Intel LGA1151 LGA1155 I5 7300HQ I7 6920HQ processor. Support firewall pc systems such as virtual machine PVE/iKuai/led/openwrt/nas etc. F11A with 6 x intel 2.5GbE I226-V LAN.



Mechanical

Chassis 1U standard chassis, high-quality galvanized steel
Colour Iron gray
Size 430MM*320MM*44.5MM
Weight 9Kgs
Insallation Method Desktop type/rack mounting

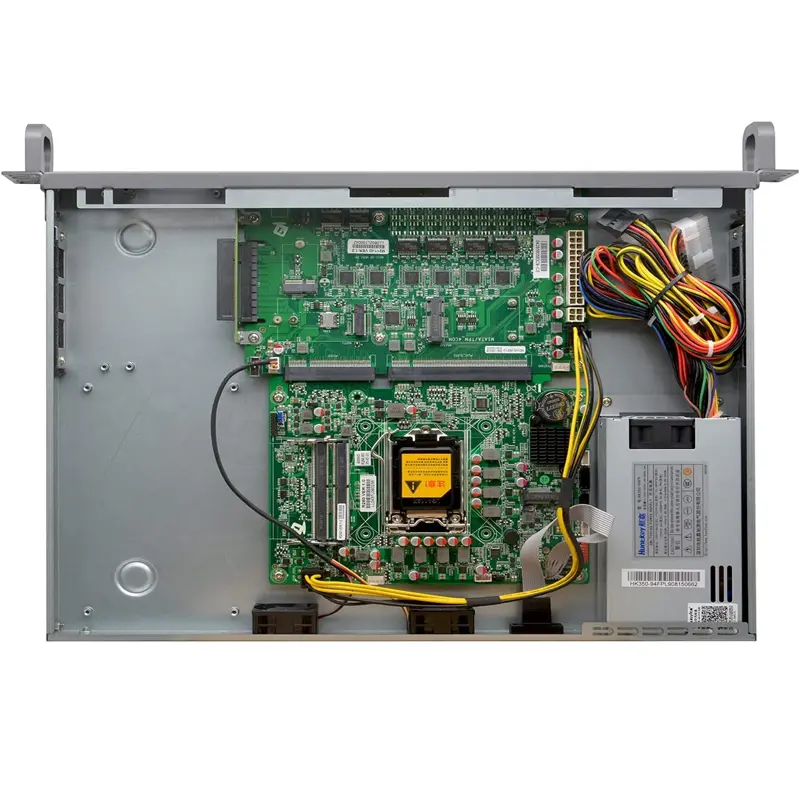

Motherboard

CPU Supports Intel® LGA1151 6th/7th/8th/9th Celeron/Pentium/Core i3/i5/i7 series processors

Support Intel® Core i5 7300HQ Processor, 6M Cache, up to 3.50 GHz

Support Intel® Core i7 6920HQ Processor, 8M Cache, up to 3.80 GHz

Support Intel® LGA1155 I3 I5 I7 Processor

Network Card 6 x Intel I226 2.5G Gigabit electrical port, support Wake-on-LAN/PXE function
Graphic

Integrated Intel HD Graphics core graphics card
Memory 2 x DDR4 SODIMM memory slots, support 2400MHz memory, maximum support 64GB
Storage 1 x MSATA, transmission speed up to 6Gbps
1 x 3.5 inch hard disk or 1*2.5 inch hard disk
Display 1 x VGA
Expand 1*PCIE X8 slot, expandable Gigabit/10 Gigabit fiber card
1*M.2 Key-E slot, support WiFi module
1*M.2/5G, Key-B, 2242/2252, support 5G (choose one with built-in USB2.0)
1*MINIPCIE slot, supports MSATA (TPM-4COM is optional, supports 4 strings, needs to flash
1*USB2.0, can be connected to dongle (choose one with M.2 5G)



I/O Interfaces

Front Panel 1 x Power switch, 1 x Restart switch
6 x Intel I226 2.5G Gigabit LAN
2/4 x Optical fiber
1 x RJ45 COM
1 x hard disk indicator light, 1 x power indicator light

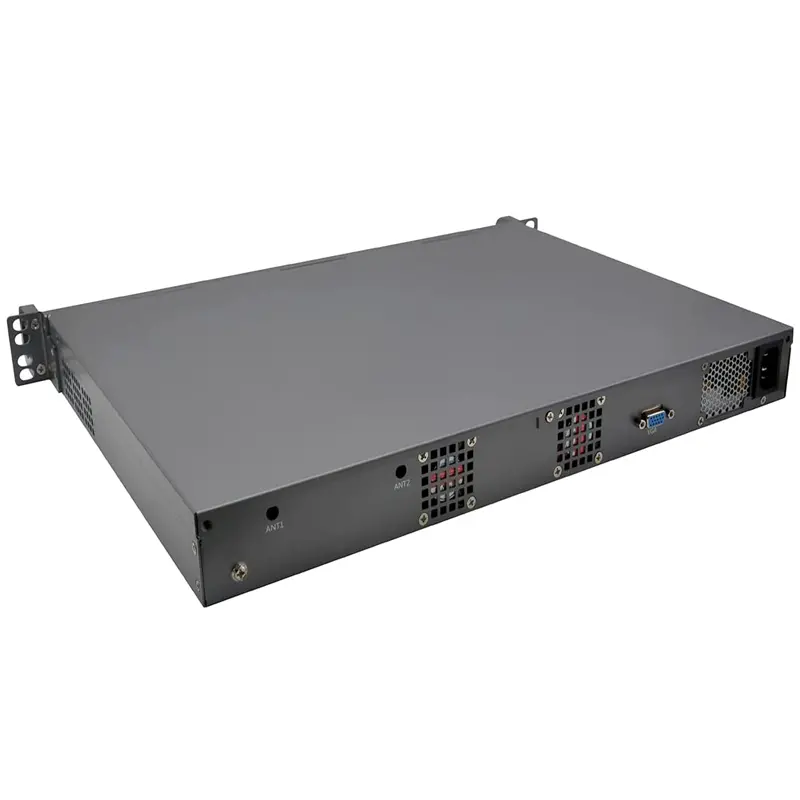

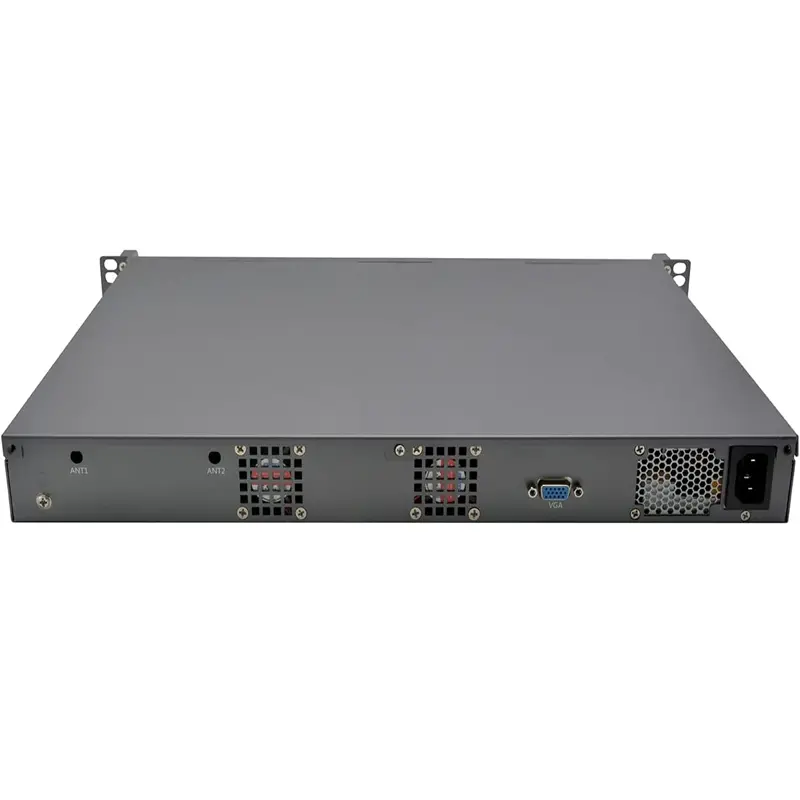

Rear Panel 1 x VGA
1 x Power cord interface



Software Support

System Support Windows 7/10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Lede/Liunx



General

Cooling Mode With Fan
Power Supply Built-in ATX/1U power supply, AC 110-220V Standard 250W
Packing List F11A Firewall Appliance, Power adapter, Power cord, Warranty card



Enviroment

Operating temperature -10℃~50℃
Storage temperature -20℃~70℃
Relative humidity 5%-95% relative humidity, non-condensing
Work vibration 0.5g rms/5-500HZ/random/operating
Model Processor Memory MB IO Board BYPASS LAN COM VGA SFP USB Power
F11A(B75) LGA1155 2*SODDR3 R67 M211-IO 2(Optional) 6 1 1 4/2(Optional) 2 AC 220V
F11A(R270) LGA1151 2*SODDR4 R270 M211I-O 2(Optional) 8 1 1 4/2(Optional) 2 AC 220V
F11A(7300HQ) i5-7300HQ/2.5GHz 2*SODDR4 R730 M211-IO 2(Optional) 8 1 1 4/2(Optional) 2 AC 220V
F11A(6920HQ) i7-6920HQ/2.9GHz 2*SODDR4 R730 M211-IO 2(Optional) 8 1 1 4/2(Optional) 2 AC 220V



F11 with 6 x I211 LAN

F11A with 6 x I226 LAN



LGA1151/CPU/6th Gen G3900/G3930/G4400/I3 6100/I5 6500/I5 6500T/I7 6700
LGA1151/CPU/7th Gen G4900/G4930/G4560/I3 7100/I5 7500/I7 7700
LGA1151/CPU/8th Gen G5400/I3 8100/I5 8400/I5 8500/I7 8700
LGA1151/CPU/9th Gen I3 9100/I5 9400/I5 9500/I7 9700/I7 9700K
LGA1155/CPU/2th Gen I3 2100/I5 2300/I5 2400/I7 2600/I7 2700K
LGA1155/CPU/3th Gen I3 3210/I3 3250/I5 3470/I5 3550/I7 3770/I7 3770K
