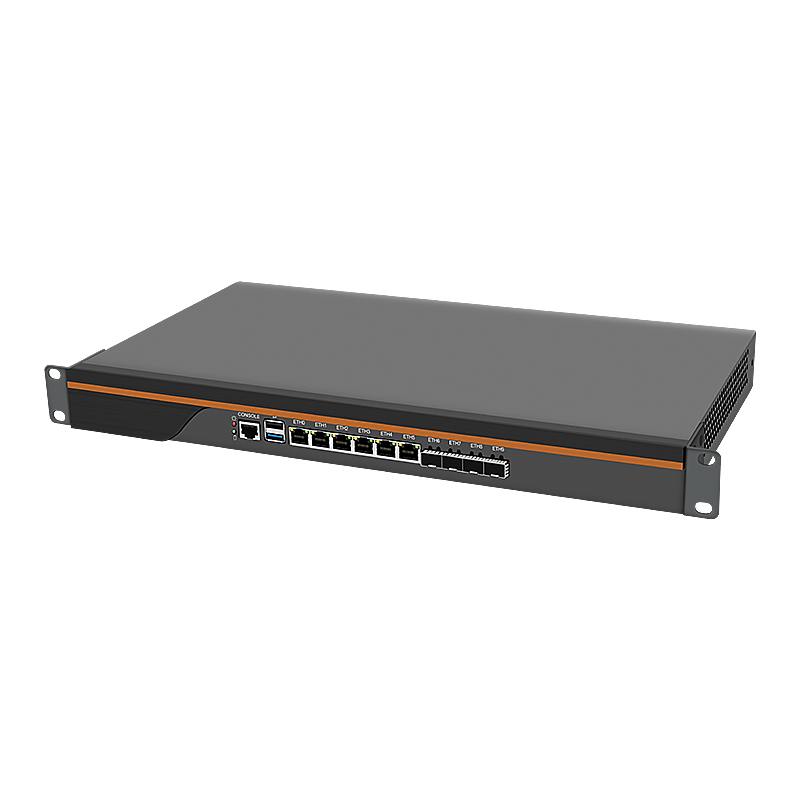

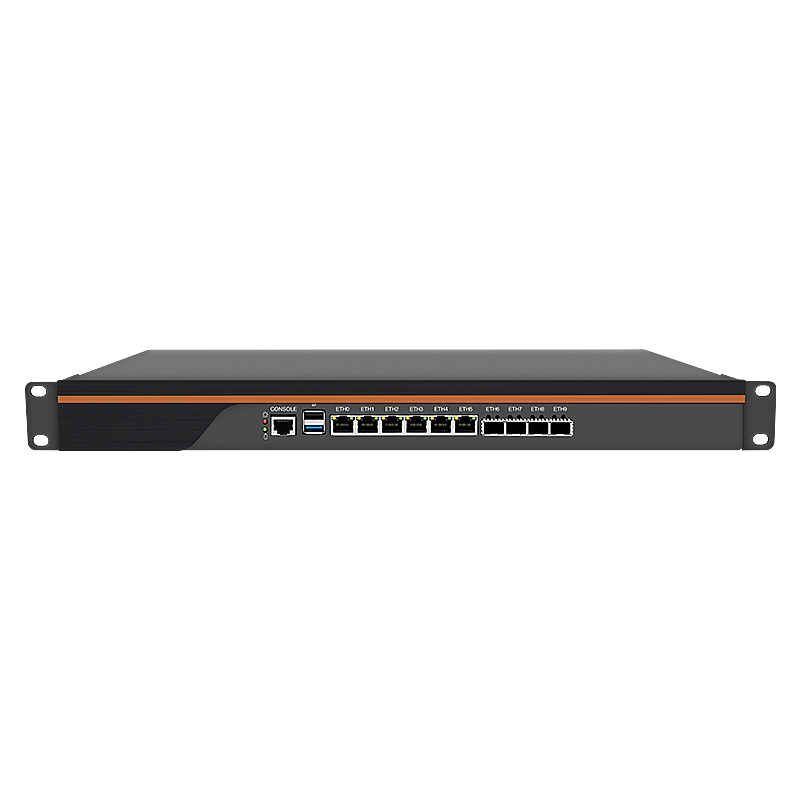

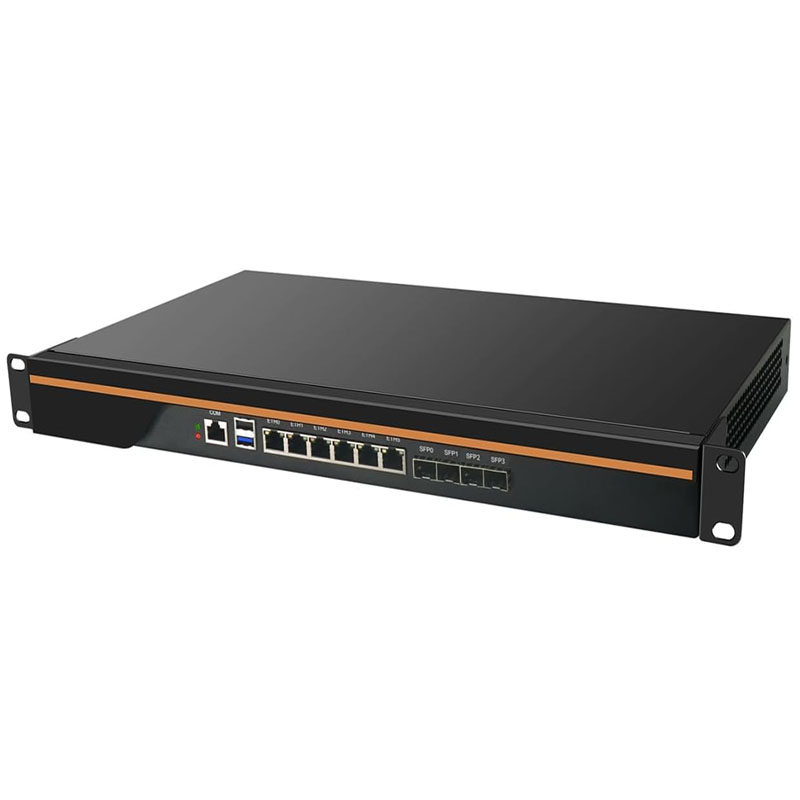

1U Firewall Appliance C3758 C3808 C3958

Model: Partaker R6

Intel Atom processors for robust network performance.
Multiple Gigabit Ethernet ports for reliable connectivity.
Expandable for high-throughput fiber applications.
Dual DDR4 slots for heavy-duty tasks.
NVMe M.2 + SATA ports for speed and capacity.
PCIe, M.2, and mPCIe slots for additional modules.
AMI UEFI/BIOS and industrial controllers for stability.
Designed for low heat and savings.
1U chassis for seamless integration.
Pre-configured with essential accessories.

Share to:

Overview

Designed for high-performance networking, our 1U Firewall Appliance features Intel Atom C3758/C3958/C3808 processors, delivering robust compatibility with FreeBSD, Linux, and Windows-based systems, including pfSense, OPNsense, and other open-source firewall solutions. Equipped with 6×GbE LAN ports, 4×SFP+ slots, AES-NI acceleration, and UEFI support, it ensures secure, high-speed routing with enterprise-grade reliability. Built with low-power architecture, turbo silent cooling, and premium components (branded memory/SSD), this rack-mounted appliance offers out-of-the-box readiness for 24/7 operation in compact 1U form (484×252×48mm), ideal for scalable network deployments.

Model Number	Partaker R6
CPU	Intel Atom C3758/C3808/C3958 Processor
BIOS	AMI BIOS (Legacy or UEFI)
AES-NI Supported	Yes
Memory	2 x SODIMM DDR4 2400 MT/s, MAX.64GB RAM
Storage	1 x M.2 2280 NVME PCIE3.0 x2 SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card	2 x Intel I211 1GbE LAN, 4 x I350 1GbE LAN, 4 x SFP+ Optical, the SFP+ model is X553
Display Port	1*VGA port (Aspeed BMC chip)

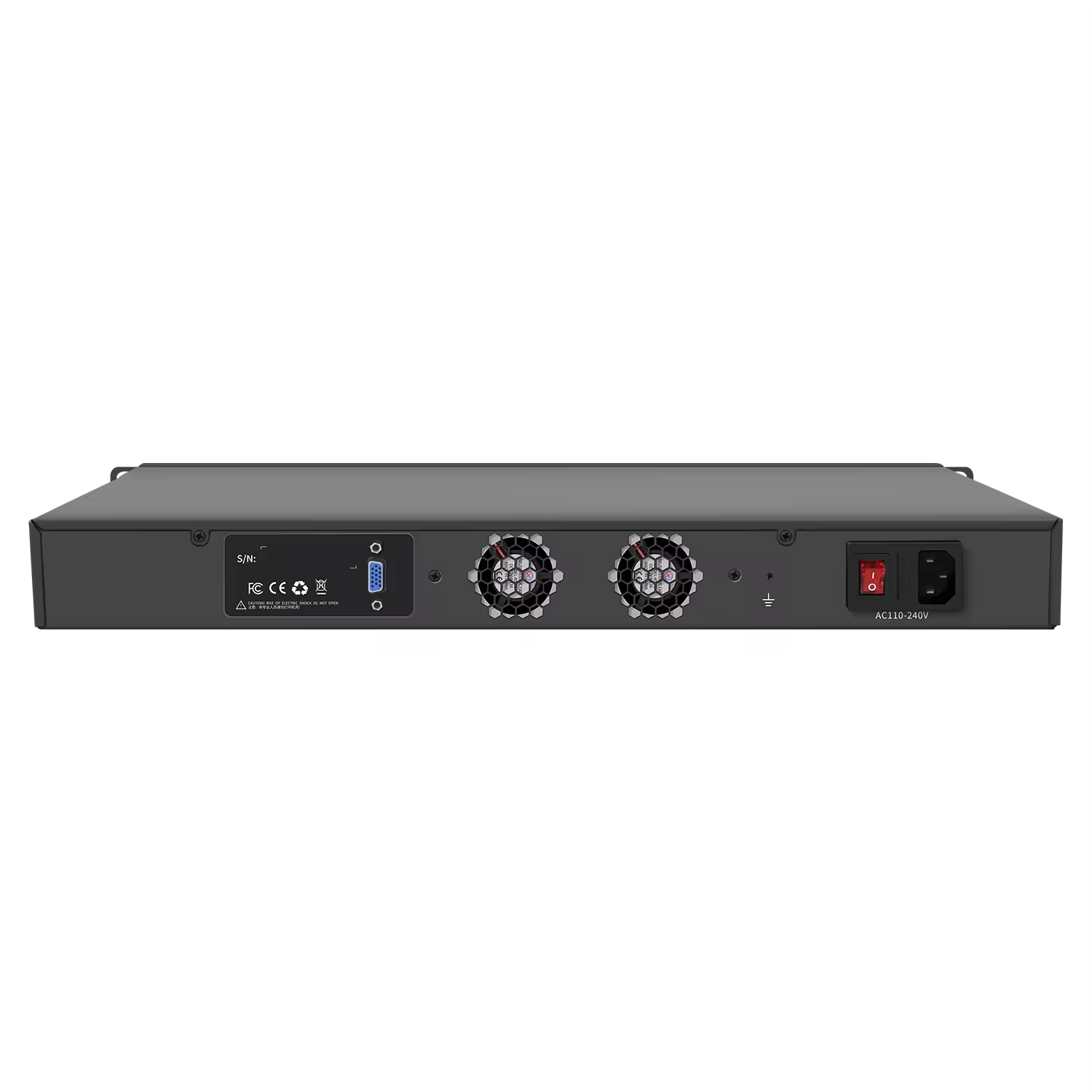

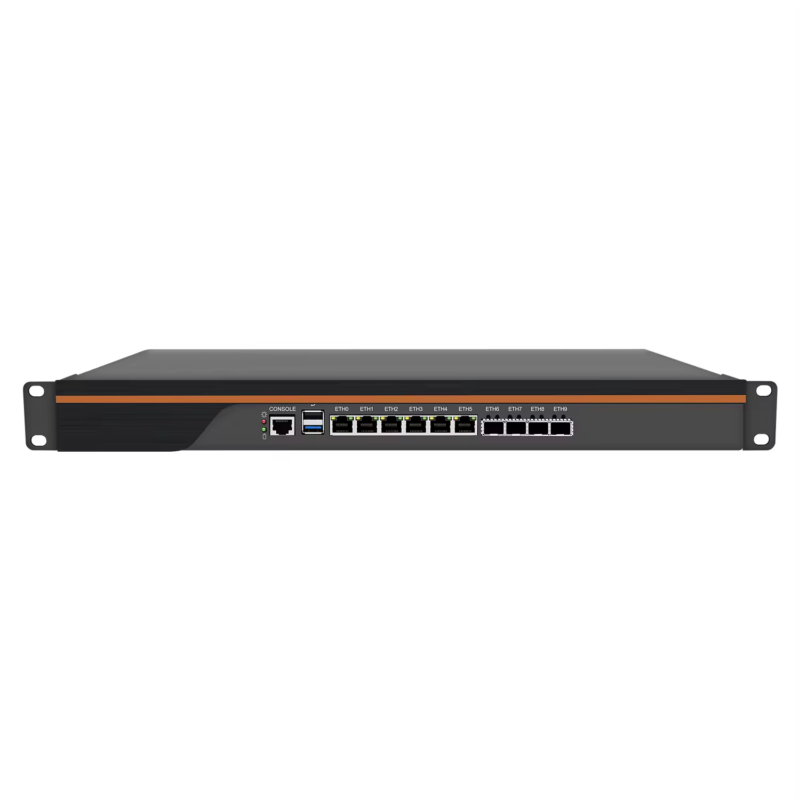

I/O	Console, USB2.0, USB3.0, 6 x LAN, 4 x SFP+ Optical, AST 2400 VGA, Power Switch, AC Socket
Expansion	1 x Mini PCIE slot for WiFi/4G, 1 x M.2 3052 USB3.0 x1 signal slot for WiFi/4G, with SIM slot, 1 x PCIe x8 slot
Chassis	1U 19 inch cabinet, rackable, with mounting bracket ears, wall hanging, foot pad
Power	100-240V1.0A, 12V6.25A
Cooling System	The processor uses the ball silent cooling fan to ensure the long time work and stable cooling
Size	484 x 252 x 48mm
Packing List	Firewall appliance, rackable ears, power cord, warranty card
Function	Supports hardware auto power on enabled default, Scheduled boot, Wake-up on LAN, PXE boot, Watchdog
System Compatibility	5.10.x and above core-based freebsd router systems, linux distros, or win.os supported
Compatibility	Firewalls for pfsense, opnsense and other popular open-source software solutions

Model	Processor	Cache	Memory	Storage	Display	Network Card	USB	Power
R6	C3758	16M Cache, up to 2.20 GHz	2 x SO-DIMM DDR4, Max 64GB	1 x M.2 2280 NVME PCIE3.0 x2 SSD, 1 x 2.5 Inch SATA SSD/HDD	1 x VGA	2 x Intel I211 1GbE LAN, 4 x I350 1GbE LAN, 4 x SFP+ Optical, the SFP+ model is X553	2	100-240V1.0A, 12V6.25A
R6	C3808	12M Cache, up to 2.0 GHz	2 x SO-DIMM DDR4, Max 64GB	1 x M.2 2280 NVME PCIE3.0 x2 SSD, 1 x 2.5 Inch SATA SSD/HDD	1 x VGA	2 x Intel I211 1GbE LAN, 4 x I350 1GbE LAN, 4 x SFP+ Optical, the SFP+ model is X553	2	100-240V1.0A, 12V6.25A
R6	C3958	16M Cache, up to 2.0 GHz	2 x SO-DIMM DDR4, Max 64GB	1 x M.2 2280 NVME PCIE3.0 x2 SSD, 1 x 2.5 Inch SATA SSD/HDD	1 x VGA	2 x Intel I211 1GbE LAN, 4 x I350 1GbE LAN, 4 x SFP+ Optical, the SFP+ model is X553	2	100-240V1.0A, 12V6.25A
