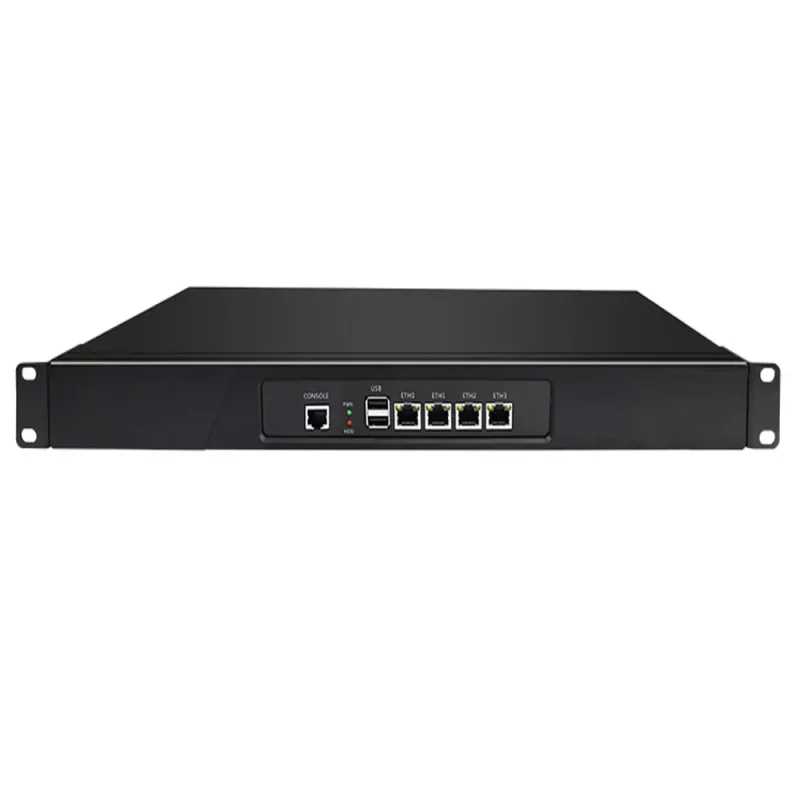

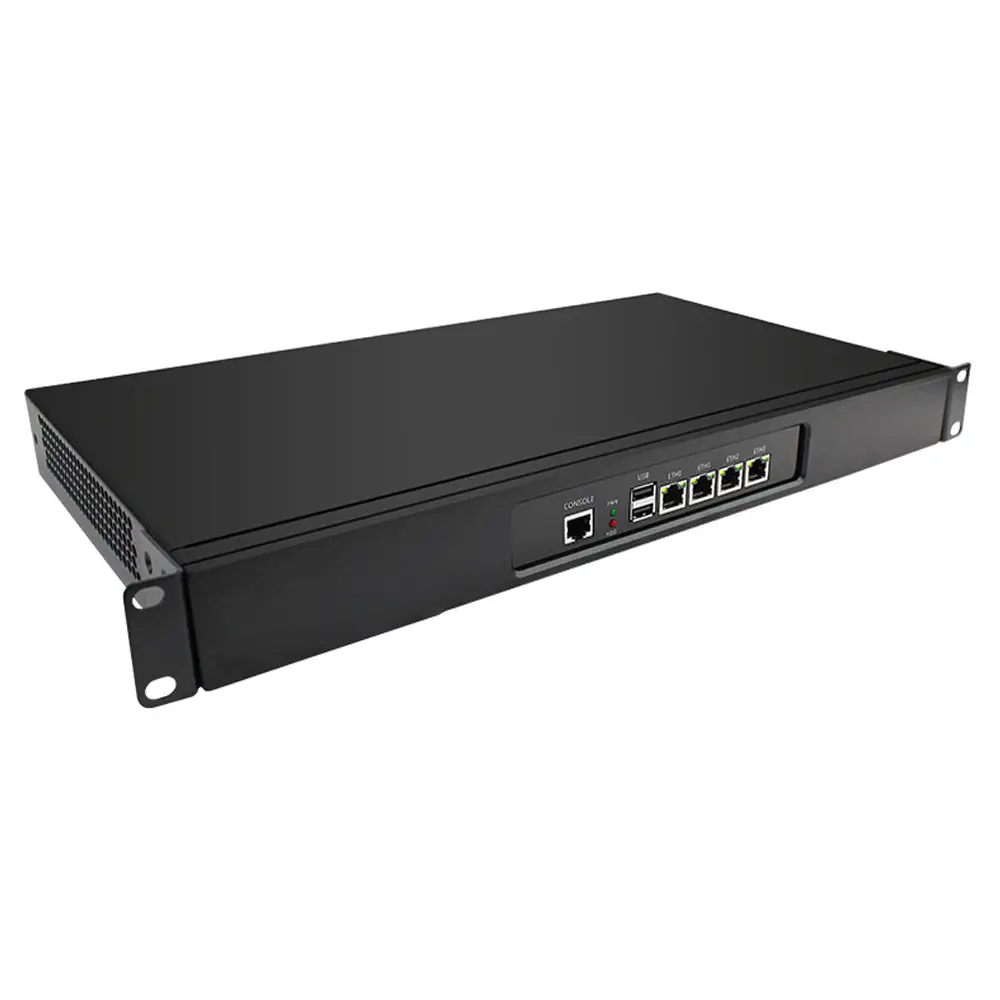

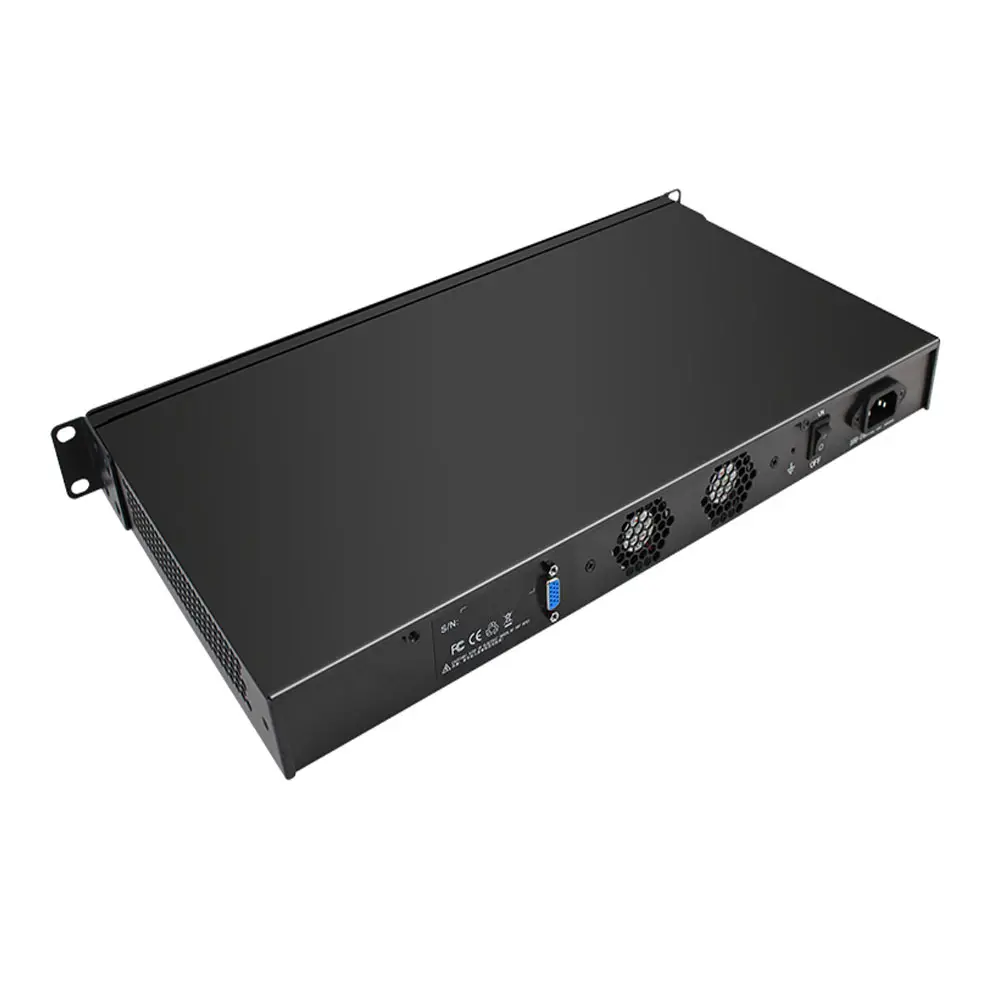

1u Firewall 4 Lan N2600 J4125

1u Firewall 4 Lan N2600 J4125

Model: Partaker R5

  • CPU: Intel Atom N2600/D2500/Celeron J1900/J4125
  • RAM: 1 x DDR3L/DDR4, up to 4G/8G
  • Size: 440x255x45(mm) (excluding ears)
  • Storage: 1 x SATA3.0 & 1 x mSATA SSD
  • Ports: Console, 2 x USB2.0, 4 x LAN, VGA, Power switch, Power interface

Share to:

Overview



Introducing the Partaker 1U 19 Inch Rack Server R5, a powerful and versatile server that can handle computer-intensive and cloud applications with ease. It features an Intel atom and celeron processor, DDR3L DDR4 ram slot, 4 x Intel Lan, and supports windows, linux and pfsense operating systems. It also saves energy, lowers TCO, and simplifies management and maintenance with its 1u industrial power supply, reasonable air-duct design, and faster heat dissipation capability. Whether you need a firewall, VPN router, network server, or any other network security solution, the Partaker 1U 19 Inch Rack Server R5 can meet your needs.



Mechanical

Chassis Standard 1u cabinet type, rackable, with mounting bracket ears, wall hanging, foot pad
Colour Black
Size 440 x255 x 45(mm)
Weight 6.5Kgs
Insallation Method Desktop type/rack mounting

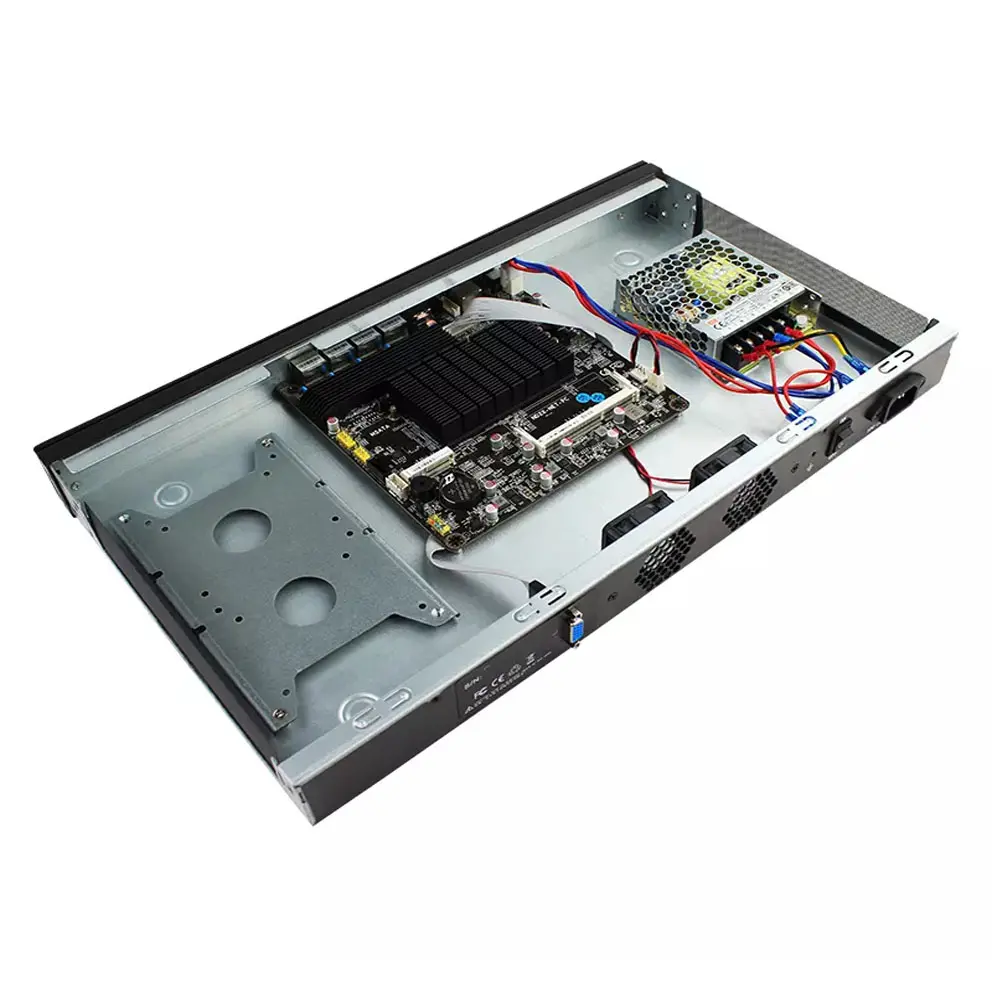

Motherboard

CPU Intel Atom N2600, 2 cores 4 threads, 1M Cache, 1.6 Ghz(Optional D2500)

Intel Celeron J1900, 4 cores 4 threads, 2M Cache, up to 2.42 Ghz

Intel Celeron J4125, 4 cores 4 threads, 4M Cache, up to 2.72 Ghz

Network Card 4 x Intel 82583V/I211/I225/I226 LAN
Graphic Intel HD Graphics
Memory 1 x DDR3 1333 MHz SODIMM memory slot, up to 4GB

1 x DDR3L 1600 MHz SODIMM memory slot, up to 8GB

1 x DDR4 2400 MHz SODIMM memory slot, up to 8GB

Storage 1 x mSATA SSD, 1 x 2.5 inch SSD/HDD
Display 1 x VGA
Expand Support 1 MINIPCIE channel (WIFI/Bluetooth available)
Others Support Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog

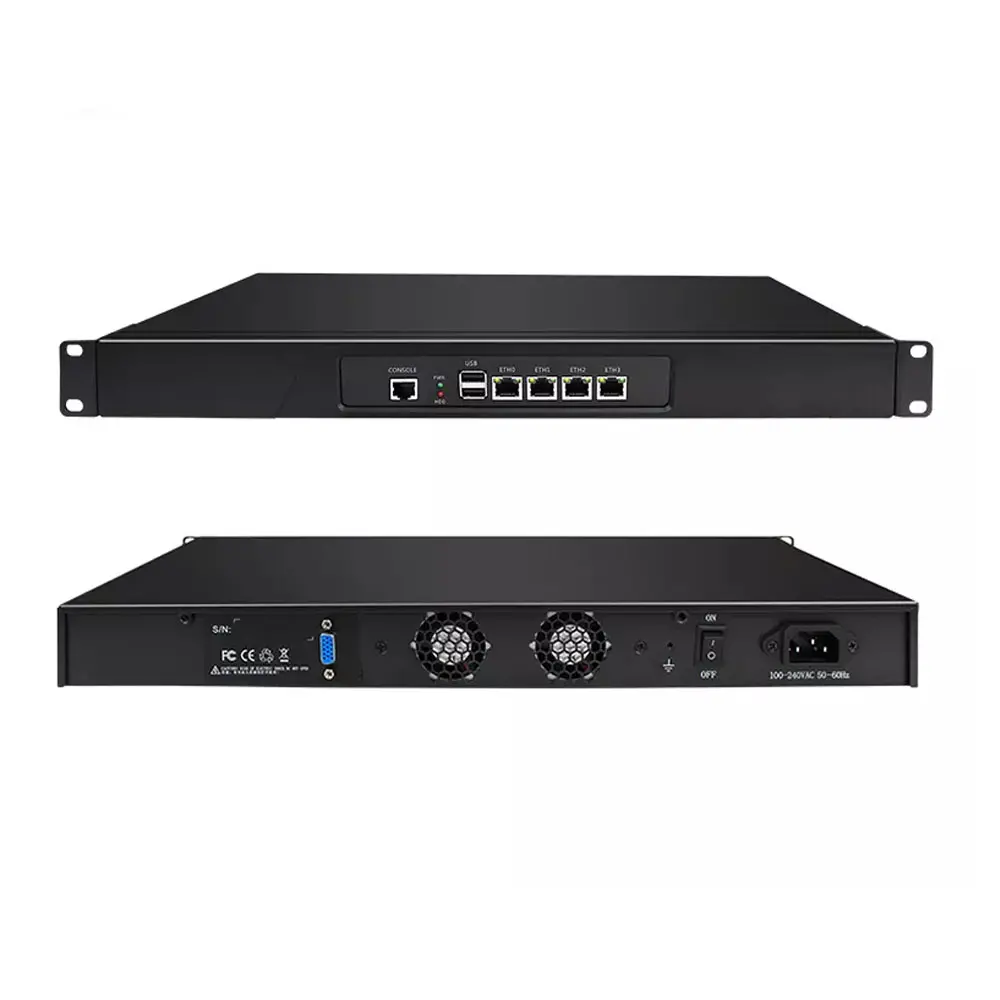

I/O Interfaces

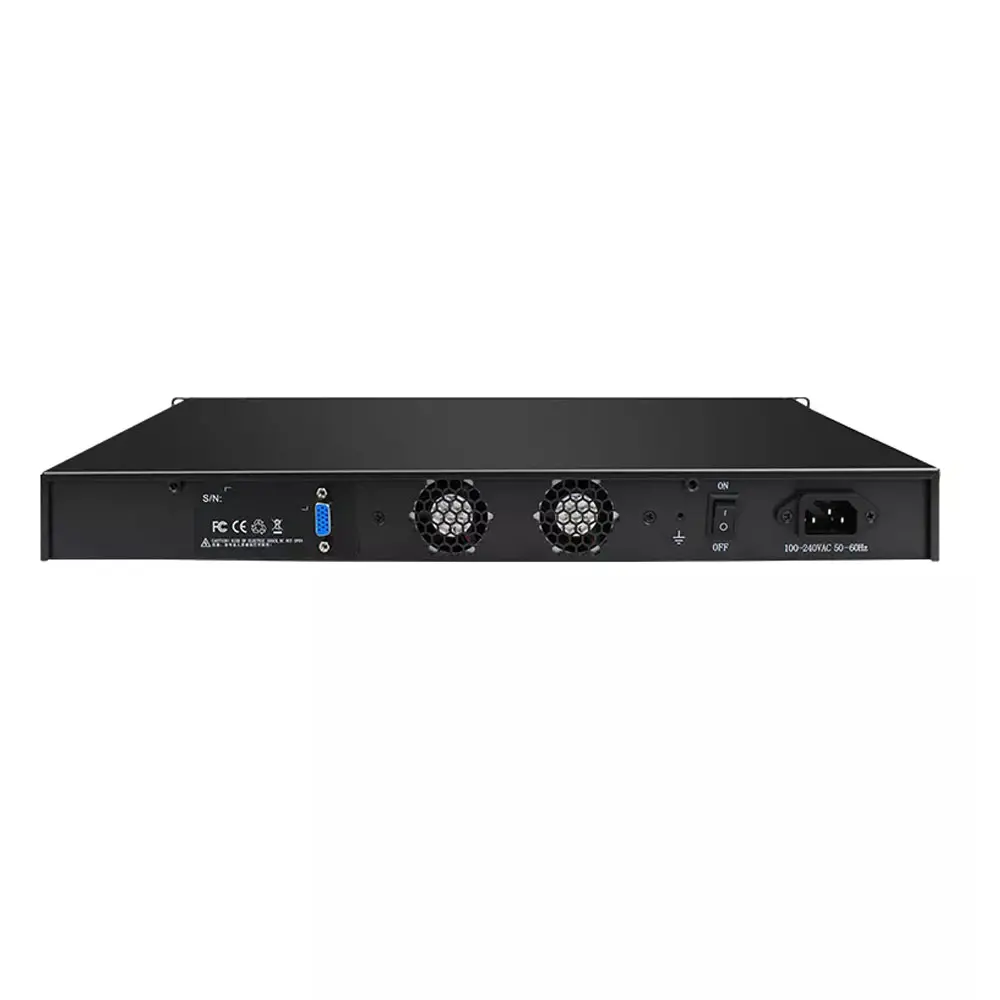

Front Panel 1 x VGA
1 x Power interface
1 x Switch
Rear Panel 1 x Console
2 x USB2.0/3.0
4 x LAN



Software Support

System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
BIOS AMI EFI BIOS



General

Cooling Mode With Fan
Power Supply Industrial grade power supply Taiwan MEAN WELL LRS-50-12 Input: 100-240V~1.0A Output: 12V4.2A
Packing List R5 firewall, rack ears, power cord, warranty card



Environment

Operating temperature -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow
ambient temperature 5~90°C relative humidity, non-condensing
Certification CE, FCC, CCC, ROHS
Model Processor Graphics Frequency Display Memory Storage LAN USB Power
R5 N2600 Intel® HD Graphics 1.60GHz 1 x VGA 1 x SO-DIMM DDR3, Max 4GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
R5 J1900 Intel® HD Graphics 2.0~2.42GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 12V4.2A
R5 J4125 Intel® UHD Graphics 600 2.0~2.70GHz 1 x VGA 1 x SO-DIMM DDR4, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 4 2 12V4.2A
