1U 8 Port Firewall Hardware with I350 Gigabit SFP

1U 8 Port Firewall Hardware with I350 Gigabit SFP

Model: Partaker S09

  • 1U firewall that supports 8 Intel Gigabit Ethernet ports and 2 Gigabit SFP+ ports
  • Compatible with 2nd and 3rd generation Core i3/i5/i7 processors
  • Features 1 mSATA slot and 1 2.5-inch hard drive bay
  • Supports 1 DDR3L 1600 memory slot with a maximum capacity of 8GB
  • Equipped with 1 PCI-E X8 slot for expansion capabilities

Share to:

Overview



Partaker S09 is a 1U rack-mounted soft router with 8 Gigabit Ethernet ports and 2 Gigabit SFP+ ports. It supports 2nd to 3rd generation CPUs and offers powerful network routing capabilities. This soft router is suitable for various network applications, providing high-speed data transmission and flexible network management. Whether it’s for home networks, office networks, or small business networks, this soft router delivers reliable performance and secure firewall functionality.



Mechanical

Material Iron, Aluminum panel
Colour Gray/Red
Size 440 x287 x 45(mm)(without mounting ear)
Weight 7.5Kgs
Insallation Method Rack Mounting/Wall Mounting/Desktop Mounting



Motherboard

CPU Supports 2th/3th Intel®celeron/Core™ i3/i5/i7 processors

(1005M/I3-2350M/3110M/I5-2520M/3320M/I7-3520M/3630QM) I5-3317U/I7-3517U

Network Card 8 Intel 82583V Gigabit network interfaces (82574L optional) , 2 Intel I350 Gigabit optical ports
Graphic Depend on CPUs
Memory Support 1 x DDR3L 1600 MHz SODIMM memory slot, maximum support 8GB
Storage 1 x mSATA SSD
1 2.5-inch hard drive
Display 1 x VGA, 1 x HDMI (Optional)
Expand 1 x Mini-PCIE slot (WIFI/Bluetooth with optional USB protocol), 1× Mini-PCIE slot (4G module)
Support 1 PCI-E X8 PCI-E expansion slot



I/O Interfaces

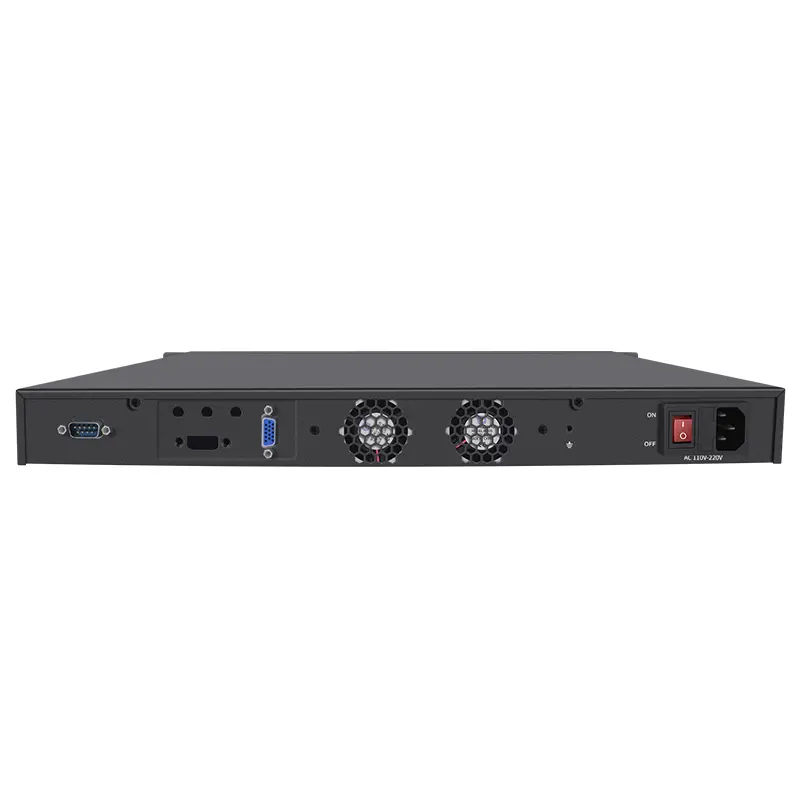

Front Panel 1 x VGA
2 x Cooling fan
1 x Switch
1 x AC socket
Rear Panel 1 x Console
2 x 3.0
2 x Intel I350 SFP
8 x LAN



Software Support

System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
BIOS AMI EFI BIOS



General

Cooling Mode With Fan
Power Supply Industrial grade power supply Taiwan MEAN WELL LRS-50-12 Input: 100-240V~1.0A Output: 12V4.2A
Packing List S09 firewall, power cord, warranty card



Environment

Operating temperature -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow
ambient temperature 5~90°C relative humidity, non-condensing
Certification CE, FCC, CCC, ROHS
Model Processor Graphics Frequency Display Memory Storage LAN USB SFP Power
S09 I3 2350M Intel® HD Graphics 3000 2.30GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 8 2 2 x I350 12V4.2A
S09 I5 2520M Intel® HD Graphics 3000 2.5~3.20GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 8 2 2 x I350 12V4.2A
S09 I3 3110M Intel® HD Graphics 4000 2.400GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 8 2 2 x I350 12V4.2A
S09 I5 3320M Intel® HD Graphics 4000 2.6~3.30GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 8 2 2 x I350 12V4.2A
S09 I7 3520M Intel® HD Graphics 4000 2.9~3.60GHz 1 x VGA 1 x SO-DIMM DDR3L, Max 8GB 1 x mSATA/1 x 2.5 Inch SATA 8 2 2 x I350 12V4.2A
