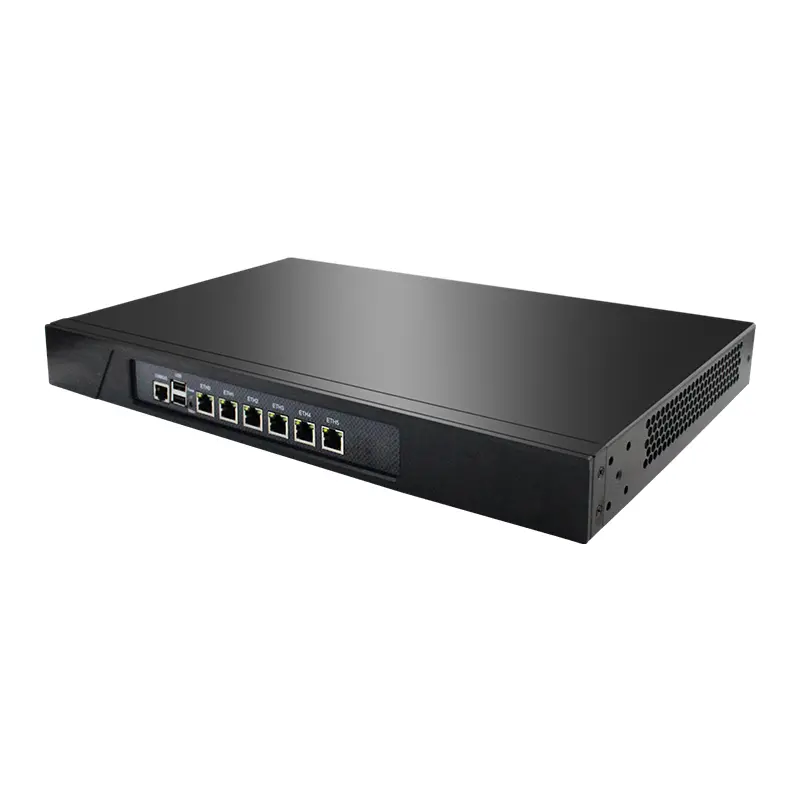

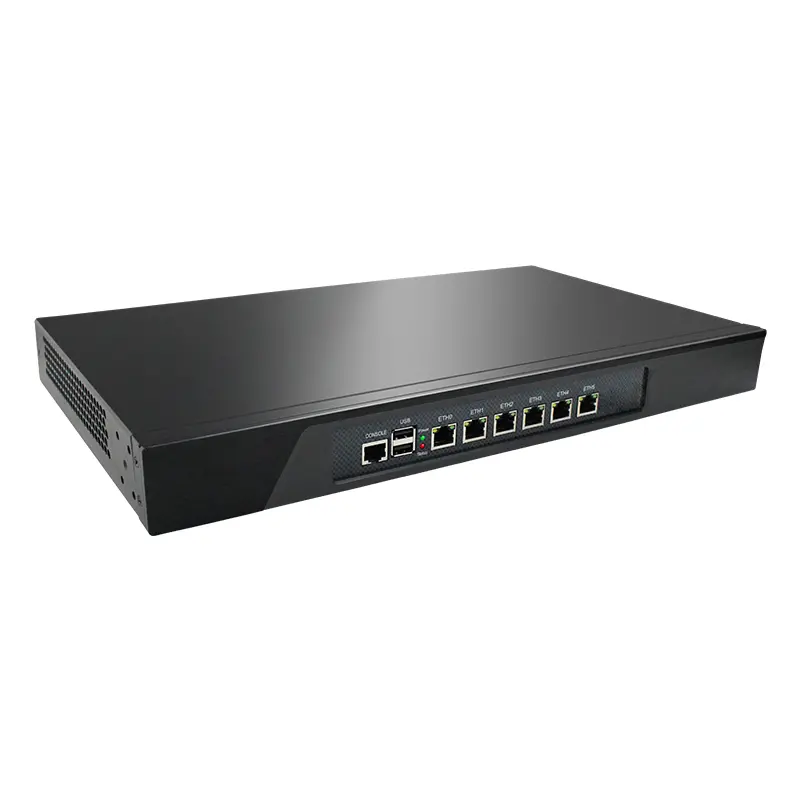

1U 6 LAN B75 LGA1155 Firewall

1U 6 LAN B75 LGA1155 Firewall

Model: Partaker S05

  • This firewall features a sturdy sheet metal structure with a thoughtful fan design, ensuring effective heat dissipation and reliable performance.
  • It is compatible with the powerful 3rd generation Core i3/i5/i7 processors, providing robust processing capabilities for demanding network security tasks.
  • The firewall supports two DDR3L 1600 memory slots, allowing for a maximum capacity of 16GB RAM. This enables efficient multitasking and smooth operation.
  • It includes one mSATA slot for high-speed storage devices and one 2.5-inch hard drive bay, providing flexibility in terms of storage expansion and configuration.
  • With support for six Intel Gigabit Ethernet ports, this firewall offers reliable and high-speed network connectivity, ensuring efficient data transfer and secure networking.

Share to:

Overview



The Partaker S05 1U-B75 is a compact and powerful 6-port network router supporting LGA1155 architecture and a range of Intel processors. With 2 DDR3L memory slots (up to 16GB), 6 Intel 82583V Gigabit Ethernet ports, and a compact form factor (440x255x45mm), it provides efficient and reliable network connectivity for various applications.



Mechanical

Material Iron, Aluminum panel
Colour Gray
Size 440 x255 x 45(mm)(without mounting ear)
Weight 6.5Kgs
Insallation Method Rack Mounting/Wall Mounting/Desktop Mounting



Motherboard

CPU B75 supports 3th Intel®celeron/Pentium Core™ i3/i5/i7 processor with LGA1155 architecture

Intel Core i3 3220, i5 3470, i7 3770, Xeon E3 1225V2 etc

Network Card 6 x Intel 82583V Gigabit network interfaces
Graphic Depend on CPUs
Memory Support 2 x DDR3L 1600 MHz SODIMM memory slots, up to 16GB
Storage 1 x mSATA SSD, 1 x 2.5/3.5 inch SSD/HDD
Display 1 x VGA
Expand 1× Mini-PCIE slot, (Optional WIFI/Bluetooth/4G )



I/O Interfaces

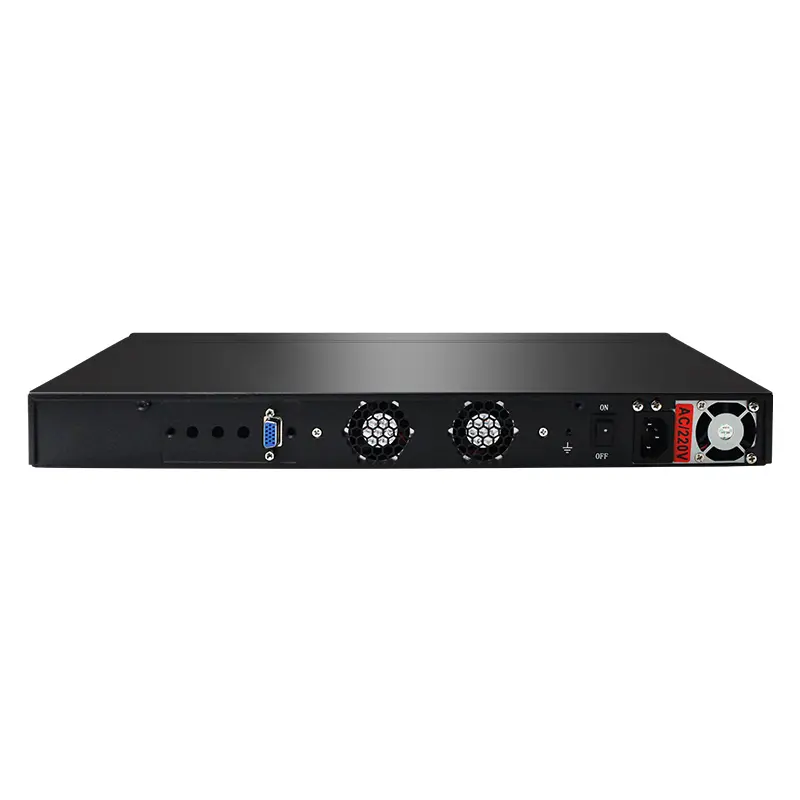

Front Panel 1 x VGA
2 x Cooling fan
1 x Switch
1 x AC socket

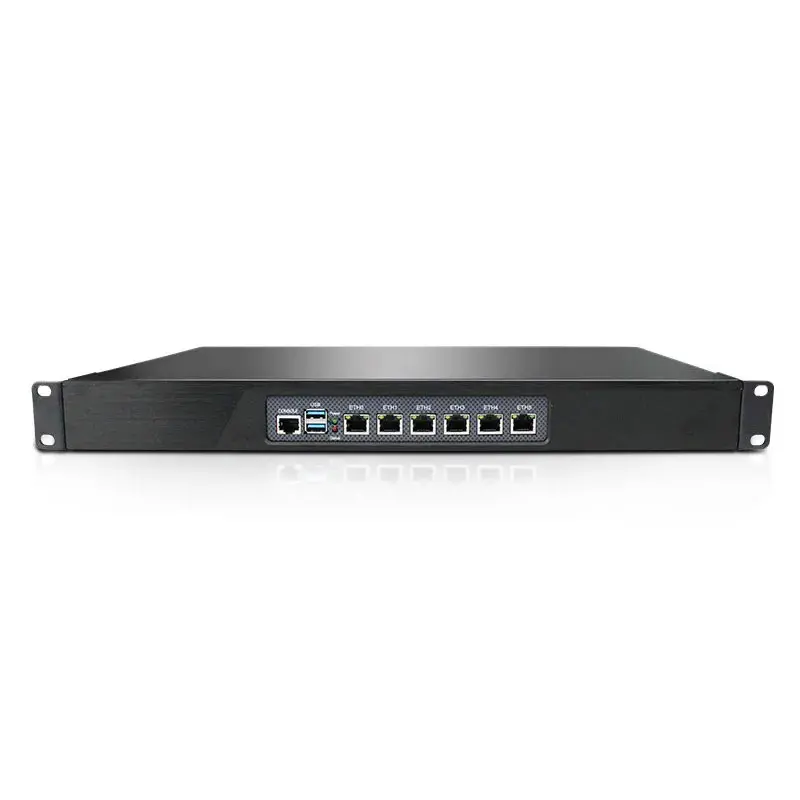

Rear Panel 1 x RJ45 serial port (supports Console function)
2 x USB2.0
6 x LAN



Software Support

System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
BIOS AMI EFI BIOS



General

Cooling Mode With Fan
Power Supply 110~240V/50~60Hz AC input 200W (optional Great Wall 550W redundant power supply)
Packing List S05 firewall, power cord, warranty card



Environment

Operating temperature -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow
ambient temperature 5~90°C relative humidity, non-condensing
Certification CE, FCC, CCC, ROHS
Model Processor Graphics Frequency Display Memory Storage LAN USB Power
S05 I3 3220 Intel® HD Graphics 2500 3.30GHz 1 x VGA 2 x SO-DIMM DDR3L, Max 16GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 200w 110-240v 50hz/60hz
S05 I5 3470 Intel® HD Graphics 2500 3.2~3.60GHz 1 x VGA 2 x SO-DIMM DDR3L, Max 16GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 200w 110-240v 50hz/60hz
S05 I7 3770 Intel® HD Graphics 4000 3.4~3.90GHz 1 x VGA 2 x SO-DIMM DDR3L, Max 16GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 200w 110-240v 50hz/60hz
S05 E3 1255V2 / 3.2~3.60GHz 1 x VGA 2 x SO-DIMM DDR3L, Max 16GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 200w 110-240v 50hz/60hz
