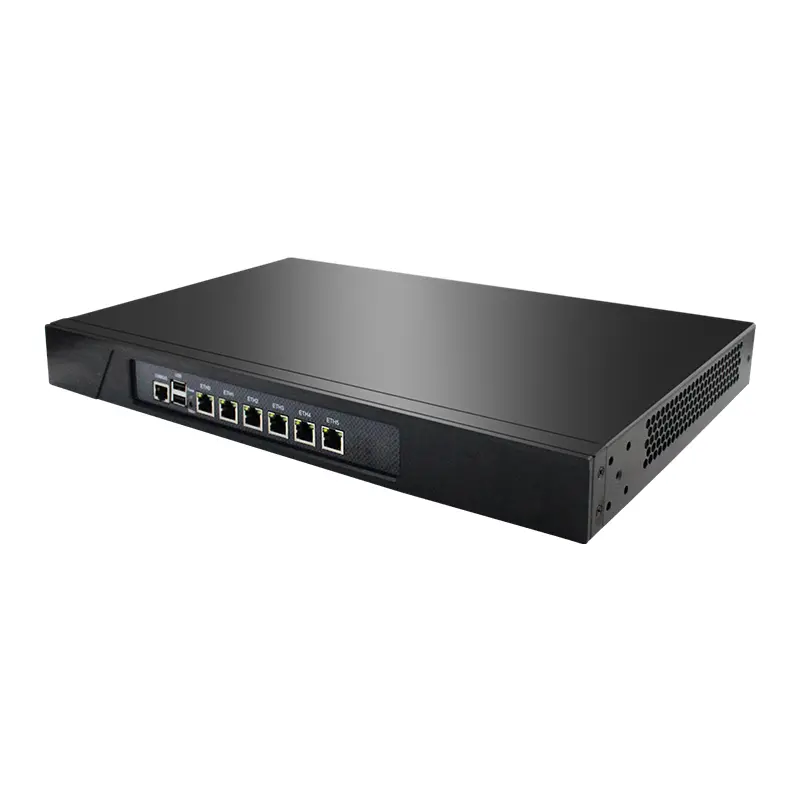

19 Inch 1U Rackmount B85/Z87 Network Appliance

19 Inch 1U Rackmount B85/Z87 Network Appliance

Model: Partaker S14

  • B85 motherboard supports LGA1155 socket, compatible with 4th generation Intel Celeron, Pentium, Core i3, i5, and i7 processors.
  • It supports up to 16GB of DDR3L 1600MHz RAM, allowing for efficient multitasking and smooth performance.
  • The motherboard features one mSATA slot and one 2.5-inch hard drive bay, providing options for both high-speed solid-state drives and traditional hard drives.
  • It offers six Intel Gigabit Ethernet ports, enabling fast and reliable wired network connections for various applications.
  • The B85 motherboard is built with a sturdy sheet metal structure and incorporates a fan design to ensure effective cooling and maintain optimal system temperatures.

Share to:

Overview



The S14 B85/Z87 motherboard supports 4th generation Intel Celeron, Pentium, Core i3, i5, and i7 processors with its LGA1155 socket. It can accommodate up to 16GB of DDR3L 1600MHz RAM across two slots, allowing for efficient multitasking. The motherboard provides storage options with one mSATA slot and one 2.5-inch hard drive bay. It also features six Intel Gigabit Ethernet ports for fast and reliable wired network connections. With a sturdy sheet metal structure and a fan design, the motherboard ensures proper cooling and temperature management.



In summary, the B85/Z87 motherboard offers compatibility, expandability, and reliability for systems utilizing 4th generation Intel processors. It provides sufficient RAM capacity, versatile storage options, multiple Gigabit Ethernet ports, and effective cooling, making it suitable for various applications.





Mechanical

Material Iron, Aluminum panel
Colour Gray
Size 440 x255 x 45(mm)(without mounting ear)
Weight 6.5Kgs
Insallation Method Rack Mounting/Wall Mounting/Desktop Mounting



Motherboard

CPU B85/Z87 supports 4th Intel®celeron/Pentium Core™ i3/i5/i7 processor with LGA1155 architecture

Intel Core i3 4160, i5 4460, i7 4770 etc

Network Card 6 x Intel 82583V/82574L Gigabit network interfaces
Graphic Depend on CPUs
Memory Support 2 x DDR3L 1600 MHz SODIMM memory slots, up to 16GB
Storage 1 x mSATA SSD, 1 x 2.5/3.5 inch SSD/HDD
Display 1 x VGA
Expand 1× Mini-PCIE slot, (Optional WIFI/Bluetooth/4G )



I/O Interfaces

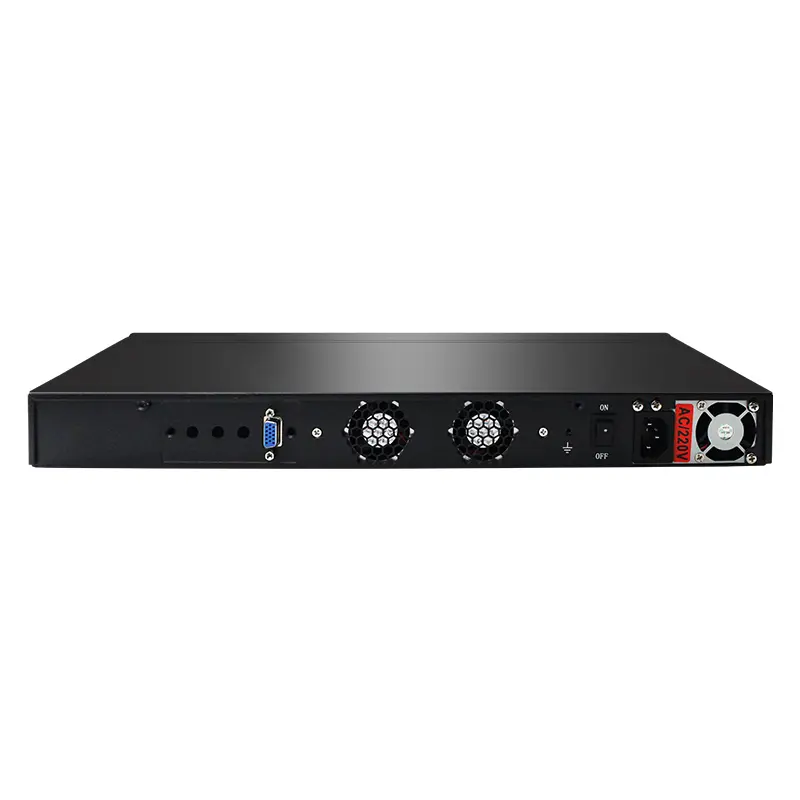

Front Panel 1 x VGA
2 x Cooling fan
1 x Switch
1 x AC socket

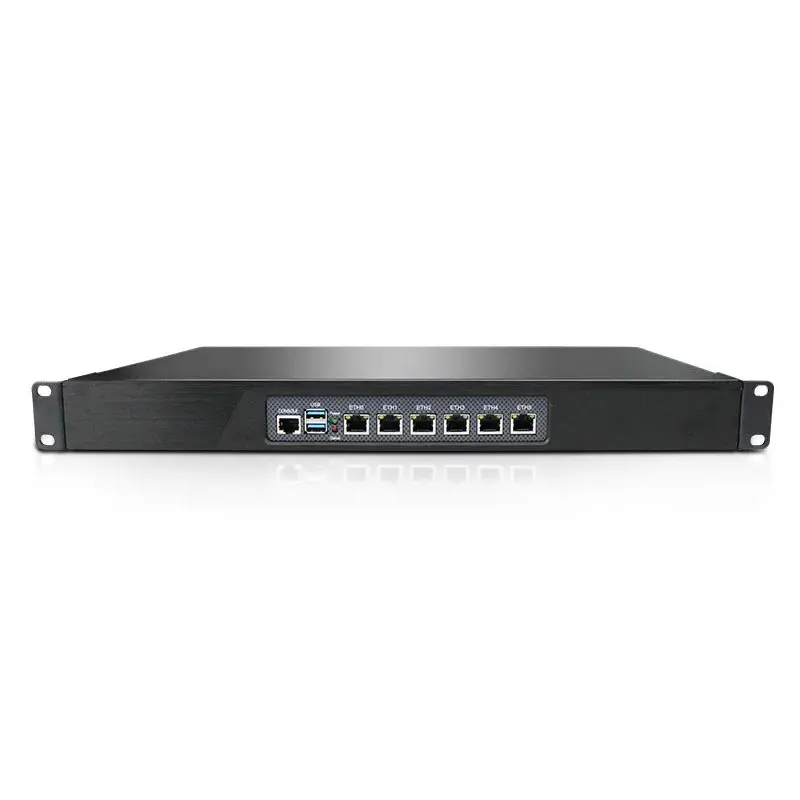

Rear Panel 1 x RJ45 serial port (supports Console function)
2 x USB2.0
6 x LAN



Software Support

System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux
BIOS AMI EFI BIOS



General

Cooling Mode With Fan
Power Supply 110~240V/50~60Hz AC input 200W (optional Great Wall 550W redundant power supply)
Packing List S14 firewall, power cord, warranty card



Environment

Operating temperature -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow
ambient temperature 5~90°C relative humidity, non-condensing
Certification CE, FCC, CCC, ROHS
Model Processor Graphics Frequency Display Memory Storage LAN USB Power
S14 I3 4160 Intel® HD Graphics 4400 3.60GHz 1 x VGA 2 x SO-DIMM DDR3L, Max 16GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 200w 110-240v 50hz/60hz
S14 I5 4460 Intel® HD Graphics 4600 3.2~3.40GHz 1 x VGA 2 x SO-DIMM DDR3L, Max 16GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 200w 110-240v 50hz/60hz
S14 I7 4770 Intel® HD Graphics 4600 3.4~3.90GHz 1 x VGA 2 x SO-DIMM DDR3L, Max 16GB 1 x mSATA/1 x 2.5 Inch SATA 6 2 200w 110-240v 50hz/60hz
