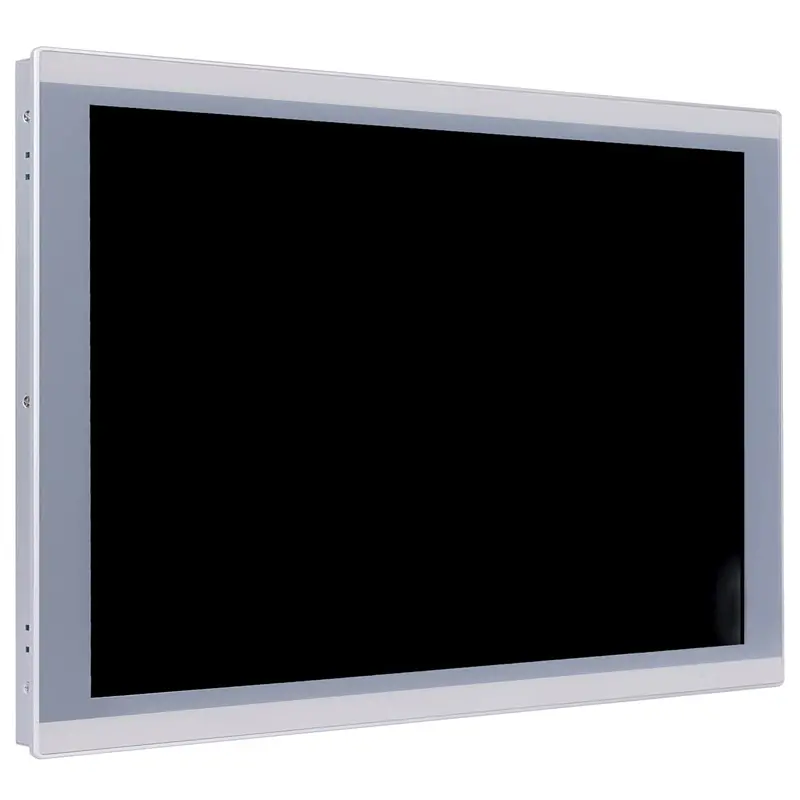

17 Inch IP65 Industrial Panel PC Resistive

17 Inch IP65 Industrial Panel PC Resistive

Model: Partaker A9

  • 17″ TFT LED panel
  • High temperature five-wire resistive touch screen
  • Optional Intel® Celeron® or Core processor
  • Aluminum alloy casing, compact fanless design
  • Front panel protection grade IP65
  • Support full size Mini PCIe expansion
  • Support USB 3.0
  • Support Windows Embedded and LINUX

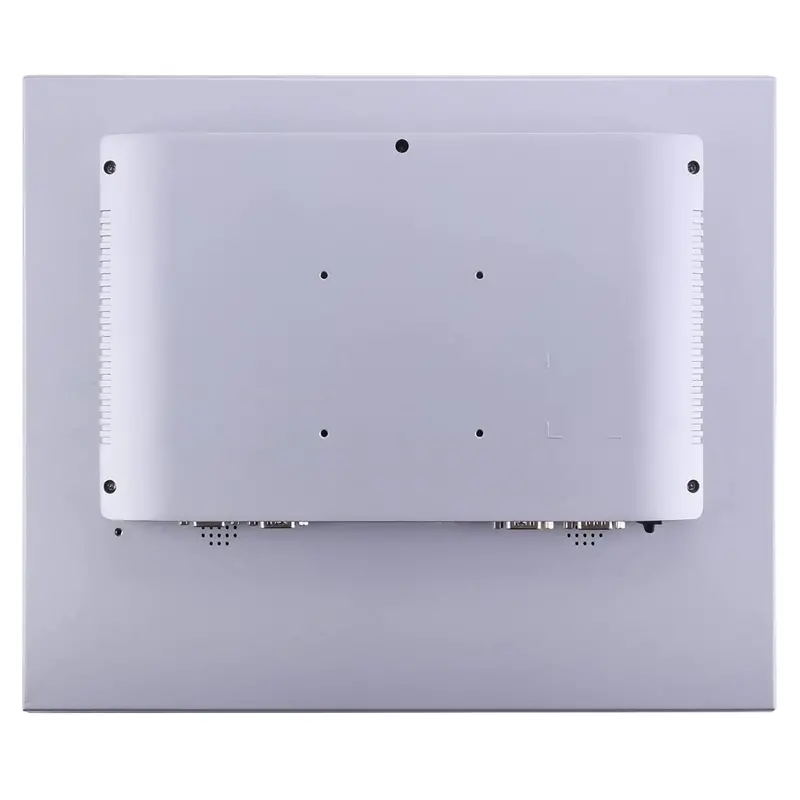

  • Support VESA 75

Share to:

Overview



This product is a cost-effective LCD industrial panel computer, which can choose Intel® Celeron® or Core processor, and the compact embedded system can provide high-performance computing. High durability design, front panel protection level IP65, high temperature five-wire resistive touch screen, supports multiple interfaces to meet various industrial applications.



Mechanical

Material Aluminum alloy
Model A9 PA-170TPC-CE5A
Opening Hole 380 x 315mm
Size 386.3 x 321.3 x 54mm
Weight 7Kgs
Insallation Method Embedded recommended/Wallmounted/Desktop/Cantilevered etc



Motherboard

CPU Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz)

Intel Core I5 Gen. 3th CPU, ship one of them

Intel Core I3 Gen. 4th CPU, ship one of them

Intel Core I5 Gen. 4th CPU, ship one of them

Intel Core I5 Gen. 6th CPU, ship one of them

Intel Core I5 Gen. 11th CPU, ship one of them

Intel Core I7 Gen. 6th CPU, ship one of them

Intel Core I5 Gen. 8th CPU, ship one of them

Intel Core I7 Gen. 8th CPU, ship one of them

Intel Core I7 Gen. 11th CPU, ship one of them

Intel Celeron Processor J6412 (1.5M Cache, up to 2.60 GHz)

Chipset Intel SOC
Watchdog Timer 255 levels
Network Card 1 x 10/100/1000 Mbps Ethernet
WiFi and Bluetooth N/A, optional to add
Memory 1 x SODIMM DDR3L 1333/1600, max. to 8GB RAM

1 x SODIMM DDR4 3200MT/s, max. to 32GB RAM(J6412)

Storage 1 x mSATA SSD, 1 x 2.5″ SATA SSD/HDD

1 x M.2 2280 SATA SSD, 1 x 2.5″ SATA SSD/HDD(J6412)

Expand
1 x Mini PCIE slot for WiFi/4G, with sim slot



Touch Screen

Touch Type High temperature five-wire resistive touch screen
Durability (Number of Touches) ≧35 million times
Transmittance 80±5% at 550 nm wavelength
Controller USB interface



LCD Display

Display Type 17″ TFT LED panel
Resolution 1280 x 1024
Perspective 80(L), 80(R), 60(T), 60(B)
Brightness 250cd/m2
Contrast 1000
Backlight Life 30,000 hours (min.)



I/O Interfaces

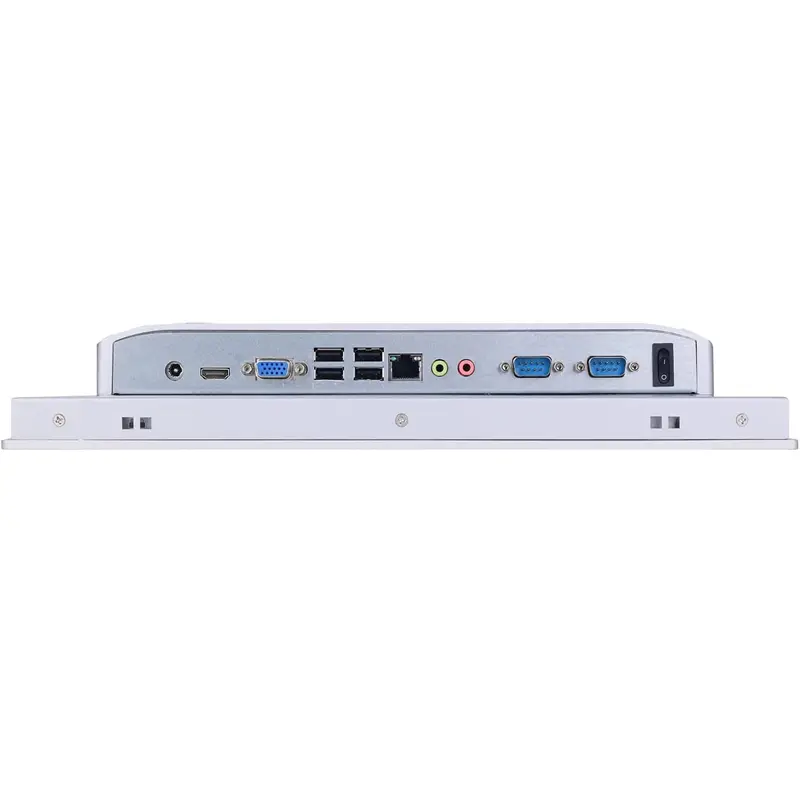

J1900/3th I5/4th I3/4th I5/6th I5 1 x 12V DC
1 x HDMI
1 x VGA
2 x USB3.0
2 x USB2.0
1 x LAN
1 x AUDIO-IN&OUT
2 x COM
1 x POWER_SW

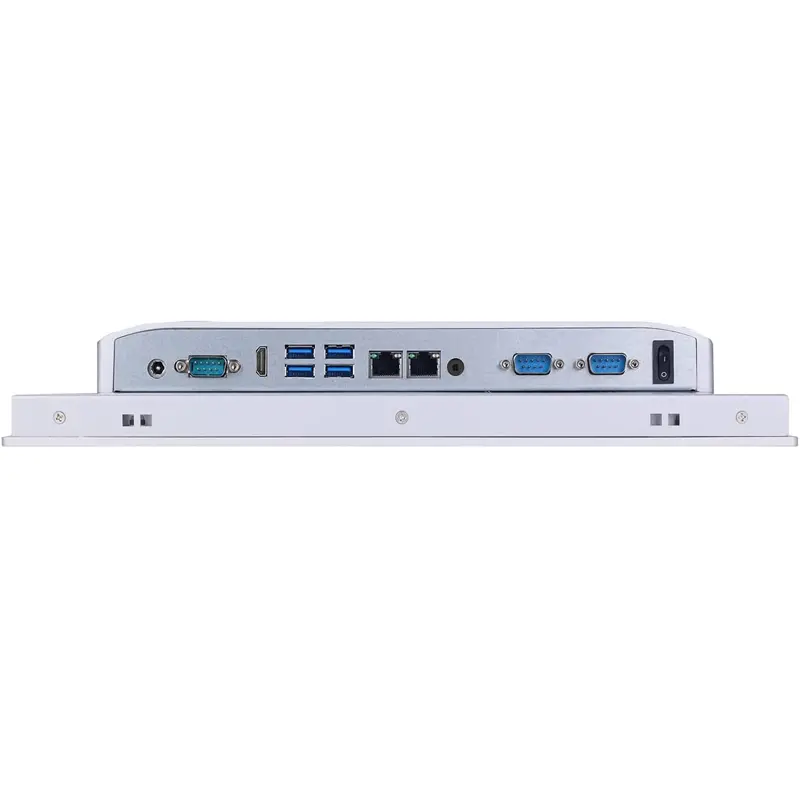

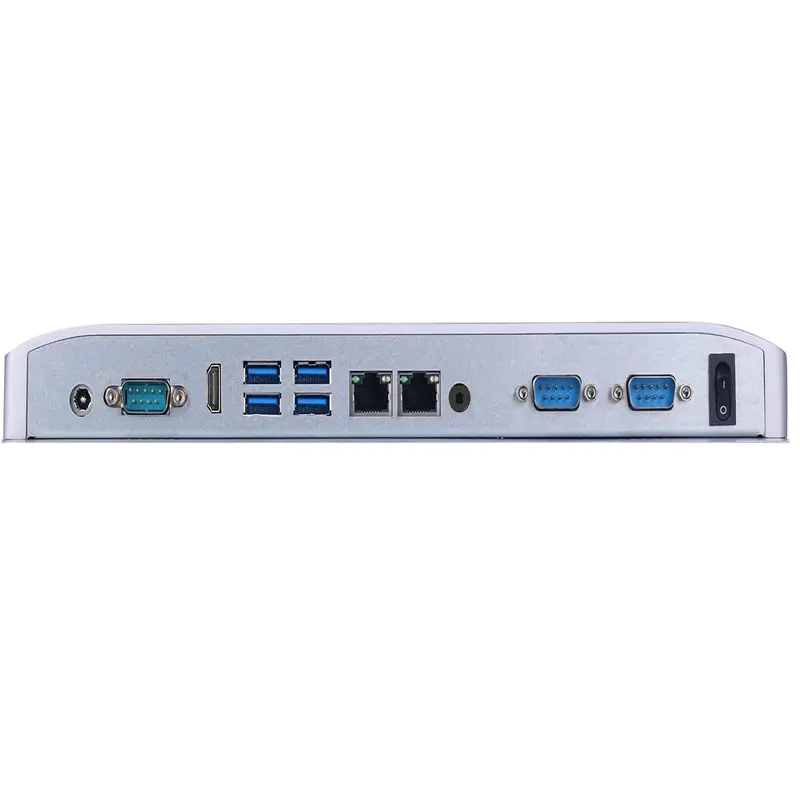

J6412 1 x 12V DC
3 x COM
1 x HDMI
4 x USB3.0
2 x LAN
1 x AUDIO
1 x POWER_SW



Software Support

Bios AMI BIOS
System Support Windows 7 32bit&64bit / Windows 8.1 32bit&64bit

Windows 10 32bit&64bit/WES7/Linux



General

Cooling Mode Fanless/Smart fan
Power Supply DC100-240V AC/50-60Hz, 12V
Packing List A9 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card



Environment

Operating Temperature 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature -20 ℃ ~ 60 ℃
Operating Humidity 10% ~ 95% @ 40 ℃ without condensation
Certification CE FCC ROHS
Front panel protection IP65 standard



Model Processor Cooling System Graphics Frequency Display Memory Storage LAN COM USB Power
A9 J1900 Fanless Intel® HD Graphics 2.00~2.42 GHz VGA 1 x SO-DIMM DDR3L 1 x mSATA/1 x 2.5 inch SSD/HDD 1 3 4 12V/4A
A9 J6412 Fanless Intel® UHD Graphics 2.00~2.60 GHz HDMI 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch SSD/HDD 2 3 4 12V5A
A9 3th Gen I5 Smart fan Intel® HD Graphics 4000 1.70~2.60 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x mSATA/1 x 2.5 inch SSD/HDD 1 2 4 12V/5A
A9 4th Gen I3 Smart fan Intel® HD Graphics 4000 1.70 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x mSATA/1 x 2.5 inch SSD/HDD 1 2 4 12V/5A
A9 4th Gen I5 Smart fan Intel® HD Graphics 4000 1.60~2.60 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x mSATA/1 x 2.5 inch SSD/HDD 1 2 4 12V/5A
A9 6th Gen I5 Smart fan Intel® HD Graphics 520 2.40~3.00 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x mSATA/1 x 2.5 inch SSD/HDD 1 2 4 12V/5A



J1900:  DC12V*1/VGA*1/LAN*1/USB2.0*3/USB3.0*1/AUDIO*2/COM*3

J6412:  DC12V*1/HDMI*1/LAN*2/USB3.0*4/AUDIO*1/COM*3

3th I5:  DC12V*1/HDMI*1/VGA*1/LAN*1/USB2.0*4/AUDIO*2/COM*2

4th I3:  DC12V*1/HDMI*1/VGA*1/LAN*1/USB2.0*2/USB3.0*2/AUDIO*2/COM*2

4th I5:  DC12V*1/HDMI*1/VGA*1/LAN*1/USB2.0*2/USB3.0*2/AUDIO*2/COM*2

6th I5:  DC12V*1/HDMI*1/VGA*1/LAN*2/USB2.0*2/USB3.0*2/AUDIO*2/COM*2

11th I5: DC12V*1/HDMI*1/VGA*1/LAN*2/USB2.0*2/USB3.0*2/AUDIO*2/COM*2

6th I7: DC12V*1/HDMI*1/VGA*1/LAN*2/USB2.0*2/USB3.0*2/AUDIO*2/COM*2

8th I5: DC12V*1/HDMI*1/VGA*1/LAN*2/USB2.0*2/USB3.0*2/AUDIO*2/COM*2

8th I7: DC12V*1/HDMI*1/VGA*1/LAN*2/USB2.0*2/USB3.0*2/AUDIO*2/COM*2

11th I7: DC12V*1/HDMI*1/VGA*1/LAN*2/USB2.0*2/USB3.0*2/AUDIO*2/COM*2



A8 with 10 point capacitive touch,

A9 Imported high temperature five-wire resistance, If need A8, Click here.
