15 inch IP65 Stainless Panel PC

15 inch IP65 Stainless Panel PC

Model: Partaker WA01

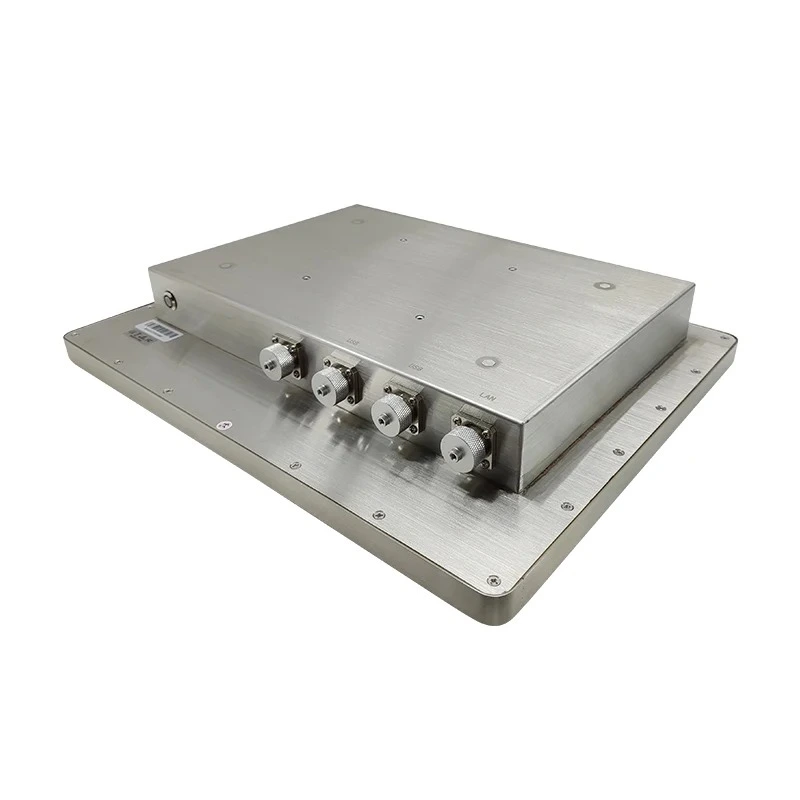

  • SS304 stainless steel, fully IP67 waterproof with M16 metal connector.

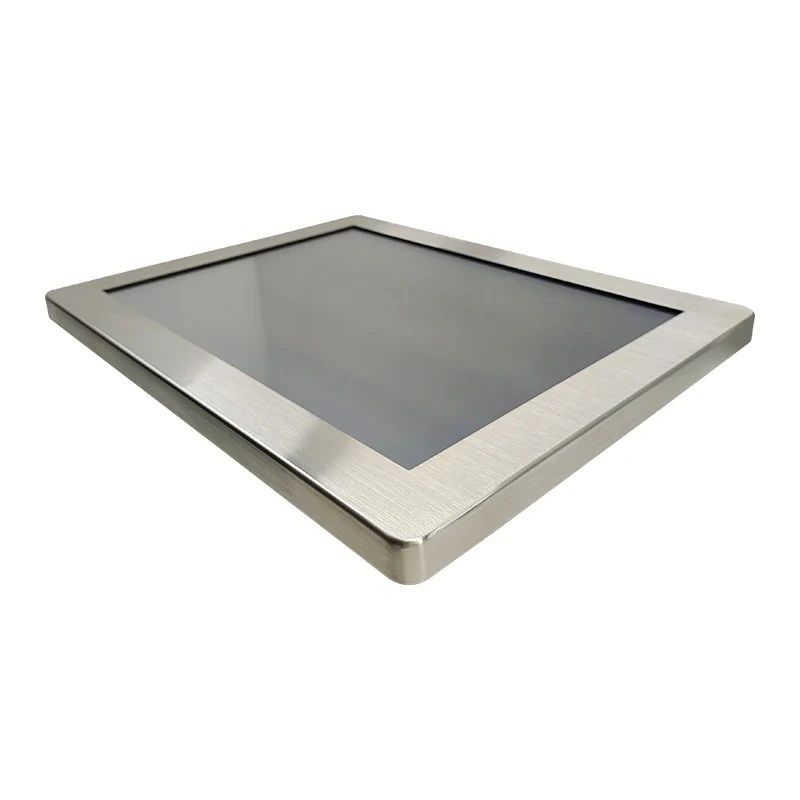

  • 15” industrial LCD, wide angle, 350 nits bright.
  • Durable 5-wire resistive touchscreen, precise, glove and water-compatible.
  • Resistant to acids, alkalis, corrosion. Anti-glare with optical bonding.
  • Sealed with waterproof rubber for easy maintenance without compromising waterproofing.
  • High-performance, continuously operating motherboard.

Share to:

Overview

This industrial device boasts a robust SS304 stainless steel construction and full IP67 waterproof rating, ensuring durability and longevity even in harsh environments. It features a 15” LCD panel with a wide viewing angle and a brightness of 350 nits, providing clear visibility in various lighting conditions. The device incorporates a high-precision, 5-wire resistive touchscreen that supports glove and wet touch, offering excellent usability and durability. Additionally, it is resistant to acids, alkalis, and corrosion, making it suitable for a wide range of applications. The front frame and rear shell are sealed with waterproof rubber strips, allowing for easy disassembly for inspection and maintenance without compromising its waterproof capabilities. Powered by a high-performance motherboard, this device can operate continuously, 24/7, meeting the demands of demanding industrial settings.



Model: Partaker WA01
PC
CPU
Intel® Core,i5-4288U,Quad core , Base 2.6 GHz, Turbo 3.1 GHz, Fanless
Memory
8GB DDR3 ( 4G, 16GB optional, )
Hard Drive Capacity
128G SSD
Hard Drive Optional
SSD: 256GB, 512GB
HDD: 500GB,1TB
Graphics
Intel HD4400
Audio
Realtek ALC662HD
Network
1×Realtek 8111E,10/100/1000M
Wireless Network
Intel®Wi-Fi Link 5300 AGN
Operation System
Support Windows 7/8/10, Linux, Ubuntu, Debian etc.

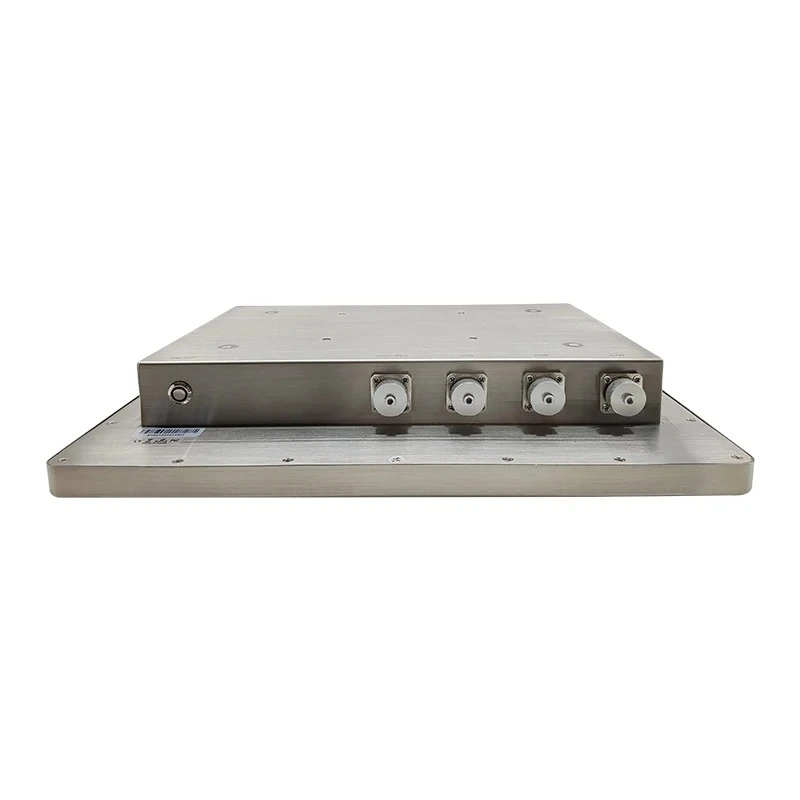

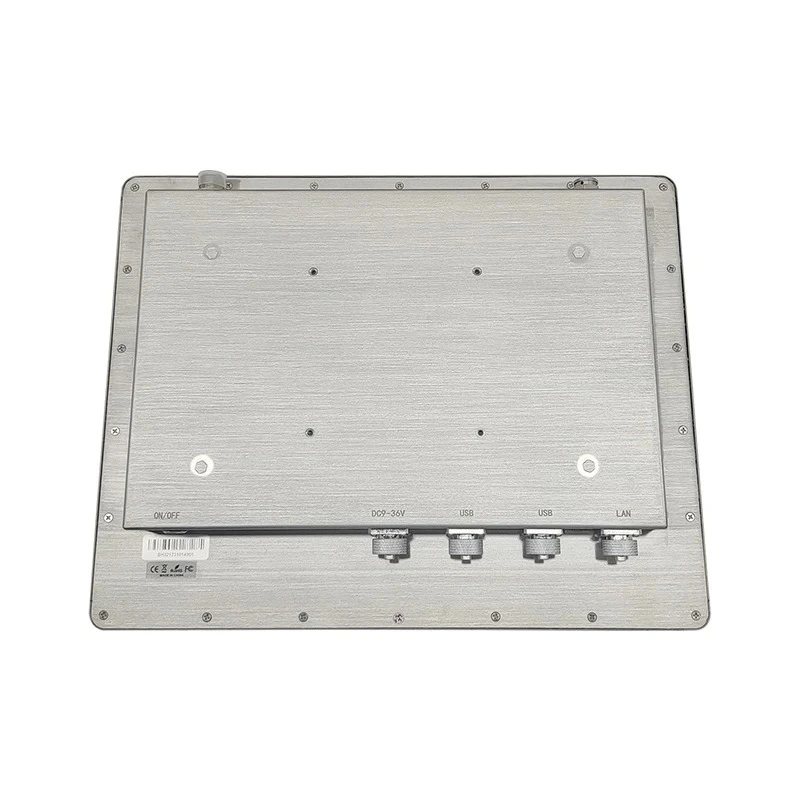

External I/O Ports
USB
2x IP67 USB2.0
LAN
1x IP67 RJ45
Power input
1×IP67 9-36V DC
Other
1×IP67 Power on/off button,WIFI
LCD panel
Panel size
15″
Display active area
304(W)×228(H) mm /11.968×8.976 in
Resolution
1024*768
Aspect ratio
4:3
Brightness (cd/m²)
350 nits
Brightness control
PWM software to adjust brightness
Contrast ratio
700:1
View angle
80°/80°/70°/70° (R/L/U/D)
Support color
16.2M
Backlight
WLED, 50K hours
Touch panel
Touchscreen Type
5 wire resistive touch
Surface Hardness
3H
Surface treatment
Anti glare
Luminousness
≥90%
Touch controller IC
EETI ETR400
Available touch drivers
Windows, Linux, Android, Mac
Touch bonding
Optical bonding
Power Supply
Working voltage
DC 9-36V
Power consumption
26W
Power adapter
AC 100 ~ 240V input and DC +12V@7.5A MAX output, 90W
Enclosure
Material
SS 304
Finish
Wire drawing
Color
Silver
Mounting
VESA mount 75/100mm
IP rating
Full panel IP67 waterproof
Cooling system
Passive – Fanless
Operating Environment
Temperature Range
Operating: -20 to 70°C, storage :-30 to 80°C
Relative humidity
Up to 100% at all relevant temperatures, non-condensing
Vibration
GB/T 2423.10-2019
Shock
GB2423.5
EMC
Class B
Packing Details
Product weight
Net weight 6kg / 13.227 lb Gross weight 8.5kg / 18.739 lb
Product dimension
368.7×293×58mm / 14.515×11.535×2.283 in
Packing info
1pcs/ctn 53×16×40cm / 20.866×6.299×15.748 in 8.5kg / 18.739 lb
2pcs/ctn 53×30×40cm / 20.866×11.811×15.748 in 17kg / 37.478 lb
Accessories
Power adapter, Power plug, Waterproof antenna, Waterproof LAN cable, Waterproof USB cable*2
Other
Warranty
1 year warranty
Certificates
CE, FCC, RoHS
Model Processor Cooling System Graphics Frequency Memory Storage LAN USB SIZE RESOLUTION Power
WA01 I5-4288U Fanless Intel® Iris® Graphics 5100 2.6~3.10 GHz 4GB/8G/16G 128G/256G/512G/1TB 1 2x IP67 USB2.0 15 Inch 1024*768 DC 9-36V
