13 Inch Firewall Appliance 4 LAN J4125 N2600

13 Inch Firewall Appliance 4 LAN J4125 N2600

Model: Partaker S20

  • Intel Celeron J4125/N2600 Processor
  • Support 1 x DDR3L/DDR4 memory
  • Support 1 x mSATA SSD
  • 4 x 82583V/Intel I225V3 2.5G 2500M LAN
  • Size at 265 x 205 x 44mm
  • Windows/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense

Share to:

Overview



Partaker 13 inch firewall appliance S20 4 LAN soft routing with sheet metal structure, fuel injection process, support multi system. It can work on company, internet cafe, hotel, rental room, apartment etc. The host is equipped with high performance celeron J4125/N2600 processor which can better meet your needs.





Mechanical

Material Iron
Colour Silver (any color can be customized)
Size 265 x 205 x 44(mm)
Weight 4Kgs
Insallation Method Desktop type/Wall type/Embedded



Motherboard

CPU Intel Atom N2600 Processor, 1M Cache, 1.6 GHz

Intel Celeron J4125 Processor, 4M Cache, up to 2.70 GHz

Network Card 4 x Intel 82583V 10/100/1000M Lan (N2600)

4 x Intel I225V3/I226 2.5G 2500M Lan (J4125)

Graphic Intel® UHD Graphics 600
Memory 1 x DDR4 2400Mhz SODIMM RAM Slot, Max 8G (J4125)

1 x DDR3L 1333MHz SO-DIMM (Up to 4GB) (N2600)

Storage 1 x mSATA SSD
Display 1 x VGA
Expand 2 × MINI PCI-E interface supports 4G/5G/WIFI



I/O Interfaces

Front Panel 1 x DC-IN 12V
1 x Console
1 x Power supply/hard disk light
1 x PWR
2 x USB3.0
4 x LAN
1 x RST
Rear Panel 1 x VGA
3 x Wifi Holes
1 x Power Interface
1 x Switch



Software Support

BIOS AMI EFI BIOS
System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux



General

Cooling Mode With Fan
Power Supply Industrial grade power supply Taiwan MEAN WELL LRS-50-12 Input: 100-240V~1.0A Output: 12V4.2A
Packing List S20 firewall, power adapter, power cord, warranty card



Featured Products

2u Firewall
2U Rack Network Security Server
Model: Partaker 2U6L
1U Rack Firewall Router Server
1U Rack Firewall Router Server
Model: Partaker S10
Partaker S12 Firewall Appliance (3)

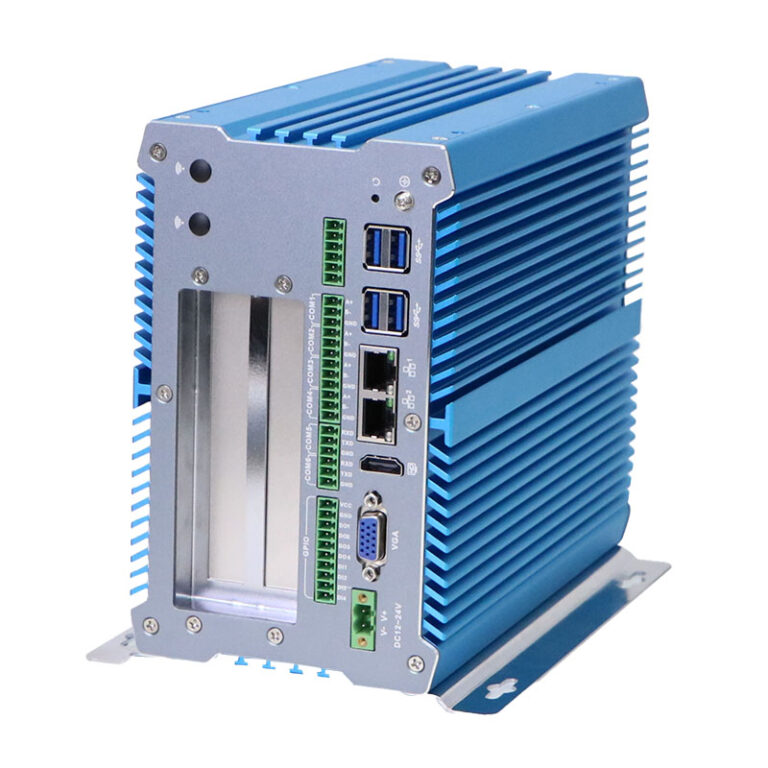

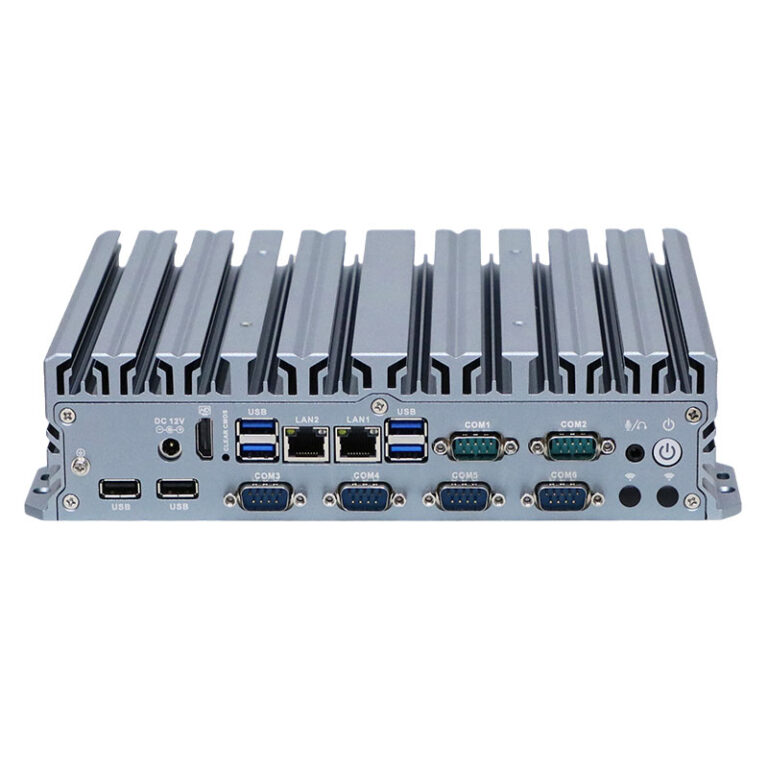

Embedded Fanless PC
