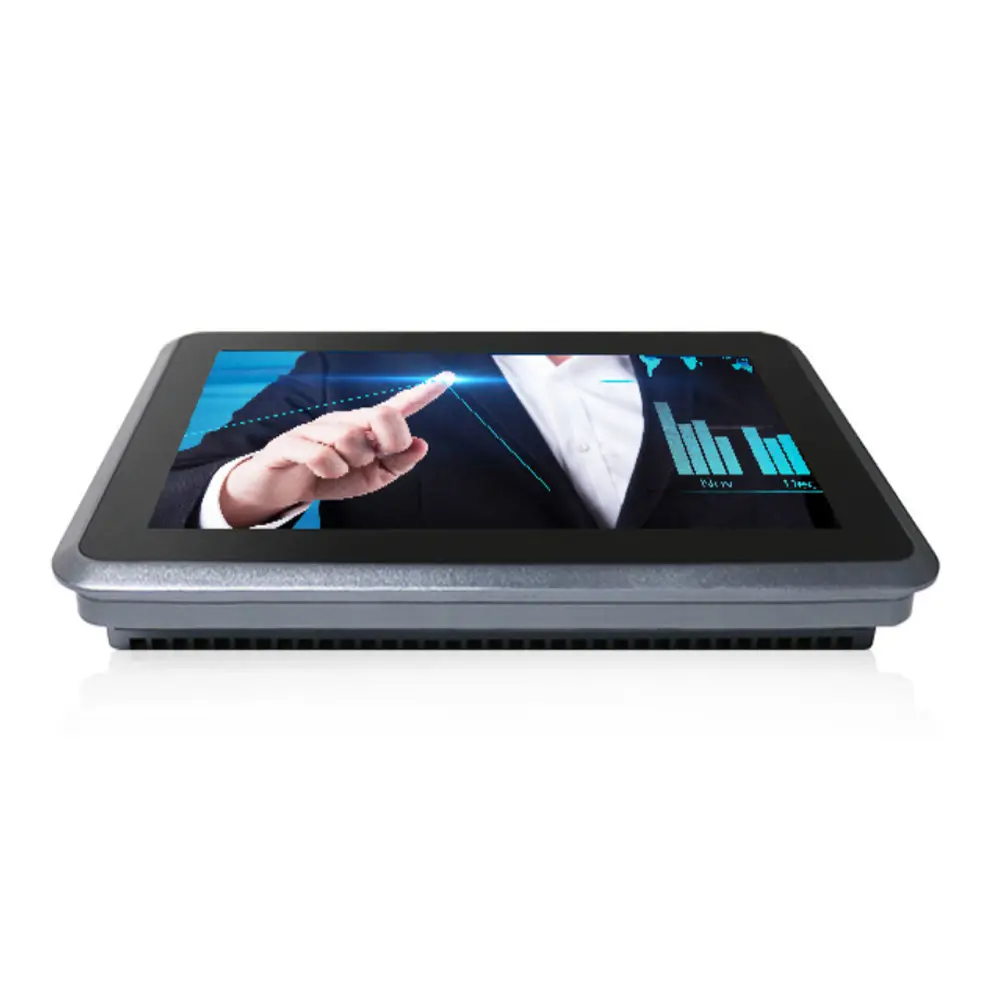

12.1 Inch Resistance Industrial Panel PC

12.1 Inch Resistance Industrial Panel PC

Model: Partaker A19

  • 12.1 inch Fanless Touch Panel PC, Aluminum Alloy Chassis
  • Intel 4205U, 8th i5 8260U i7 8565U, 10th i3 10110U Processor
  • Support 9V~36V DC input and reverse polarity protection
  • TPM2.0 and Win11 Pro supported
  • Optional 6 COM, 2 configurable as RS232/422/485
  • Waterproof flat front panel, OS: Win10/11, Linux

Share to:

Overview

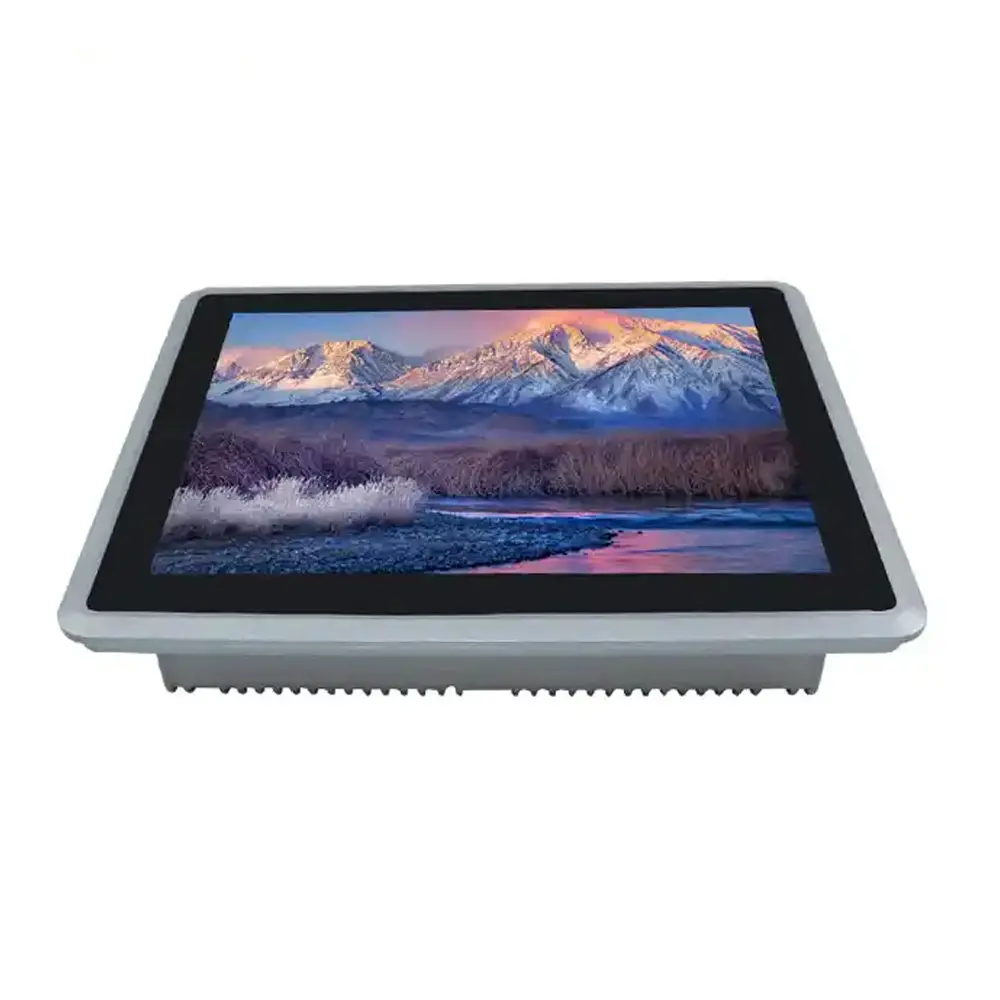

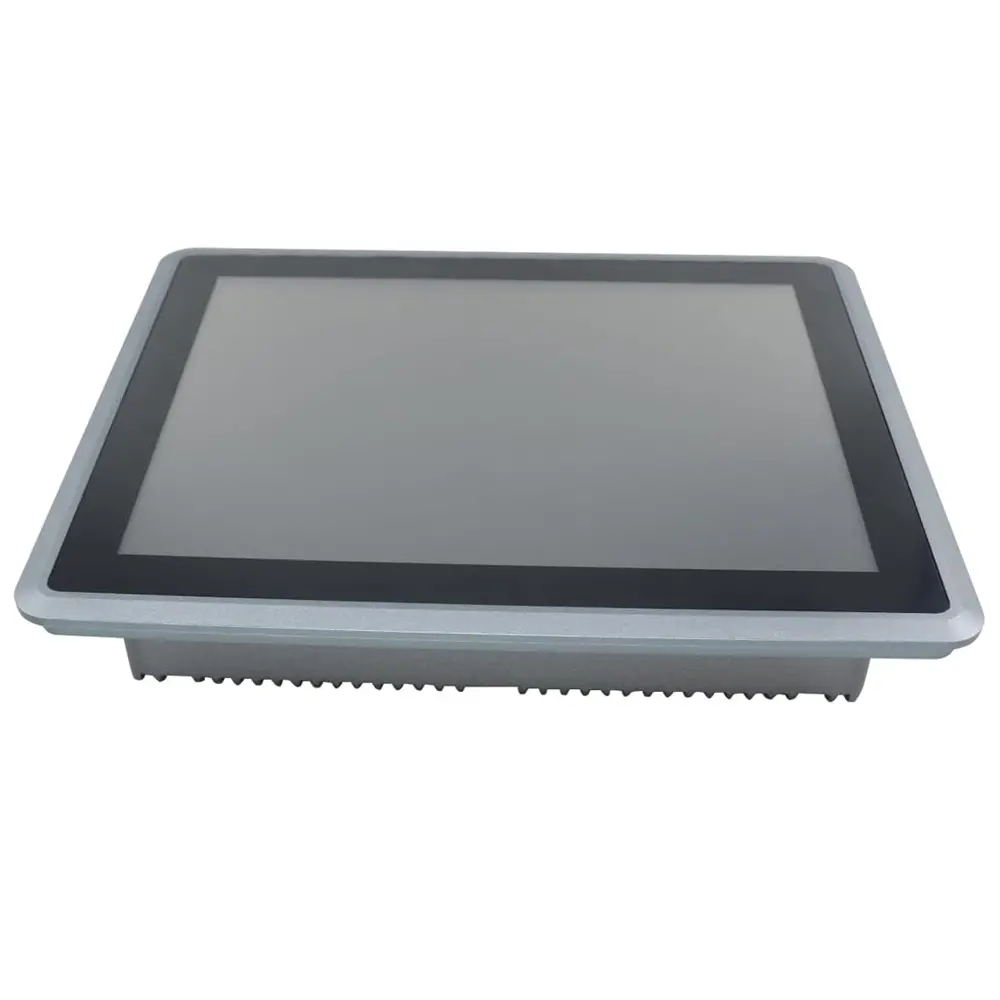

This product is a 12.1 inch resistance touch panel PC that features a fanless design and an aluminum alloy chassis. It is powered by an Intel 8th i5/i7 quad core processor that delivers high performance and low power consumption. It supports a wide range of input voltages from 9V to 36V, as well as TPM2.0 and Windows 11. It also has 6 COM ports, 2 of which can be configured as RS232/422/485. It has an IP65 full flat front panel that is waterproof and dustproof. This product is suitable for various industrial applications, such as industrial automation, medical, logistics transportation, warehousing, machine vision, and more.



Mechanical

Material Aluminum alloy chassis
Color Titanium gray (Color can be customized)
Model A19 Touch Screen Panel PC

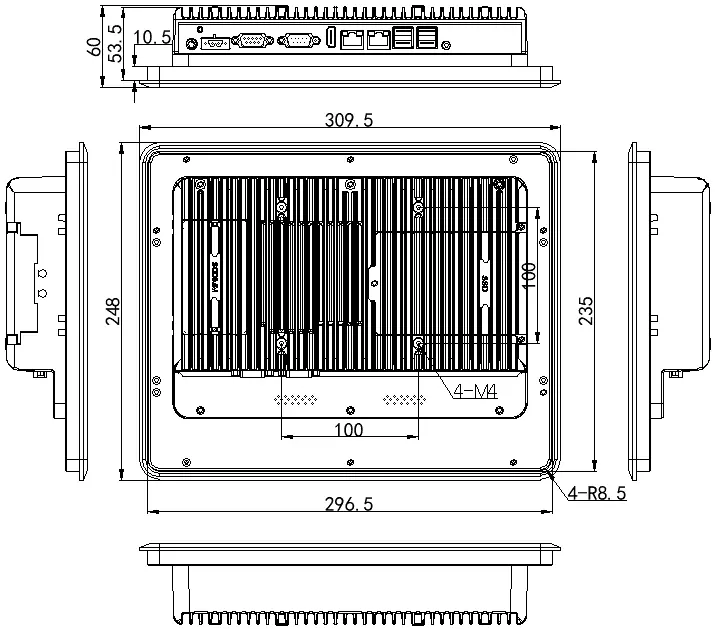

Size 309.5 x 248 x 60 mm
Weight 4Kgs
Insallation Method Embedded recommended/Wallmounted/Desktop/Cantilevered etc



Motherboard

CPU Intel Celeron 4205U (Dual core dual threads, 1.8Ghz, 2MB Cache)

Intel Celeron J6412 ( Quad Core 4 threads, 2.0Ghz, Max Turbo 2.60Ghz, 1.5M Cache)

Intel Core i5-8265U (Quad core eight threads, 1.6Ghz, Max turbo 3.9Ghz, 6MB Cache)

Intel Core i7-10810U(6 Cores 12 threads, 1.1Ghz, Max turbo 4.9Ghz, 12MB Cache)

Intel Core i3-10110U( Dual core four threads, 2.10Ghz, Max turbo 4.10Ghz, 4MB Cache)

Network Card 2 x Intel 1000M LAN
Memory Support 1 x DDR4 2133/2400 SODIMM Memory Slot, Max. Support 32GB
Storage Onboard 1 x M.2 2280 slot(SATA Protocol),1 x 2.5 Inch HDD, Support RAID 0/1
Display Port
1 x HDMI, 1 x LVDS (Support synchronous or asynchronous dual display)
Other Function
TPM2.0 security encryption, Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0~255 level)(Standard version doesn’t set these function)
Expansion
1 x Mini PCIE slot(Support WIFI/Bluetooth/3G/4G Optional,embedded SIM slot)
Expansion Function
GPIO(8 Input 8 Output), 2 x LAN, 4 x COM, 2  x USB2.0 (Standard version doesn’t include these ports)



Touch Screen

Touch Type Industrial grade multi-touch resistance touch screen, Life Time: more than 50000 Thousand Times
Speaker Two 8-ohm 2-watt speaker



LCD Display

Display Type 12.1 inch TFT-LCD
Resolution 1026 x 768
Brightness 350 cd/m2
Ratio 4 : 3
Viewing Angle Full Viewing Angle

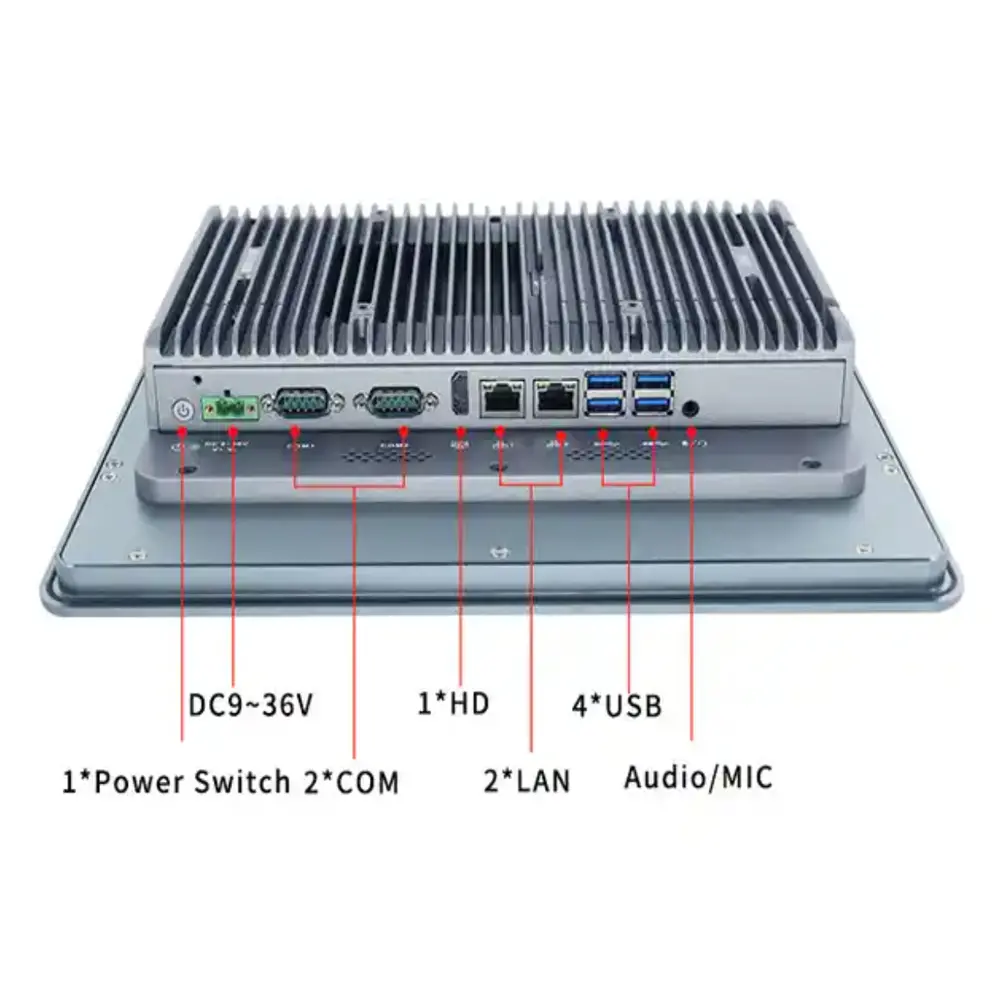

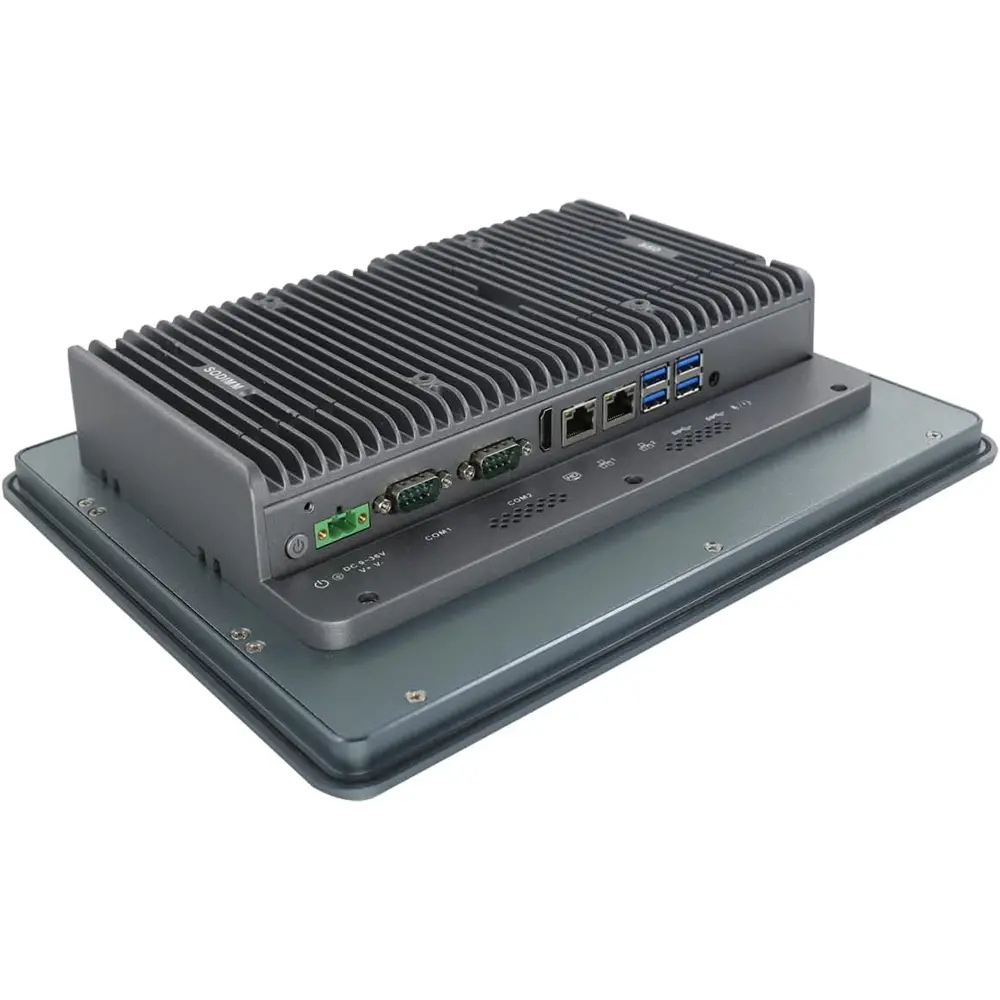

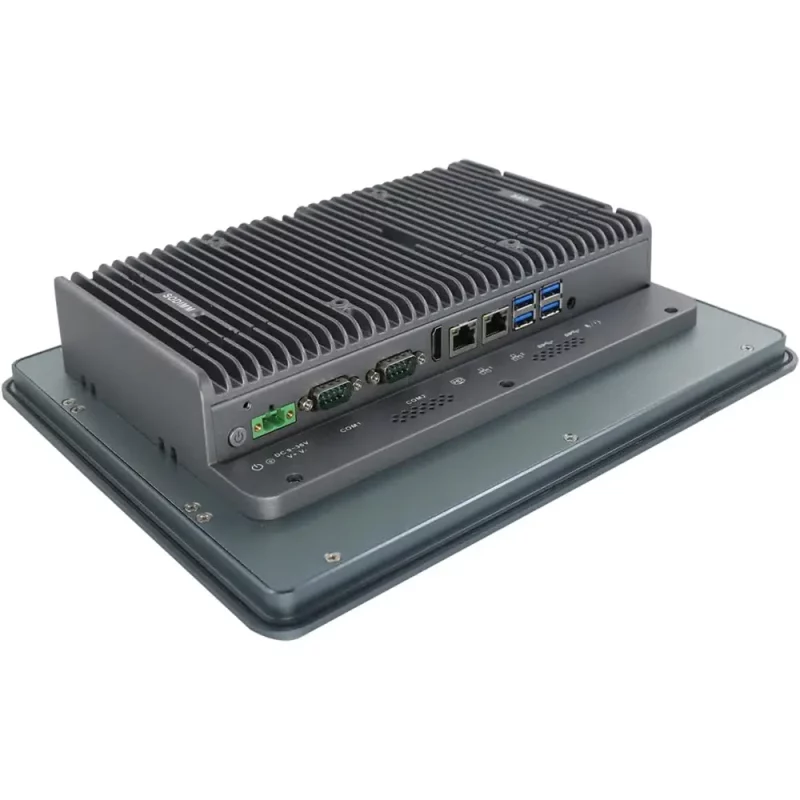

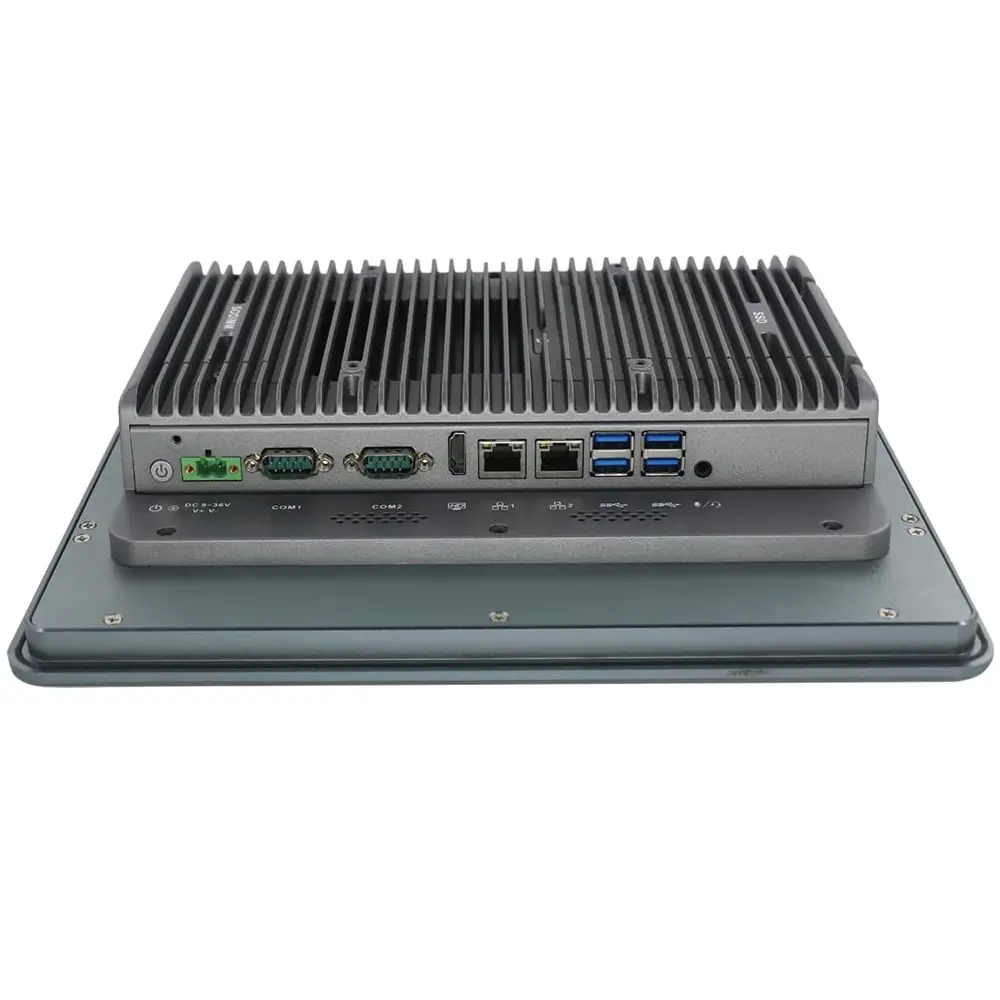

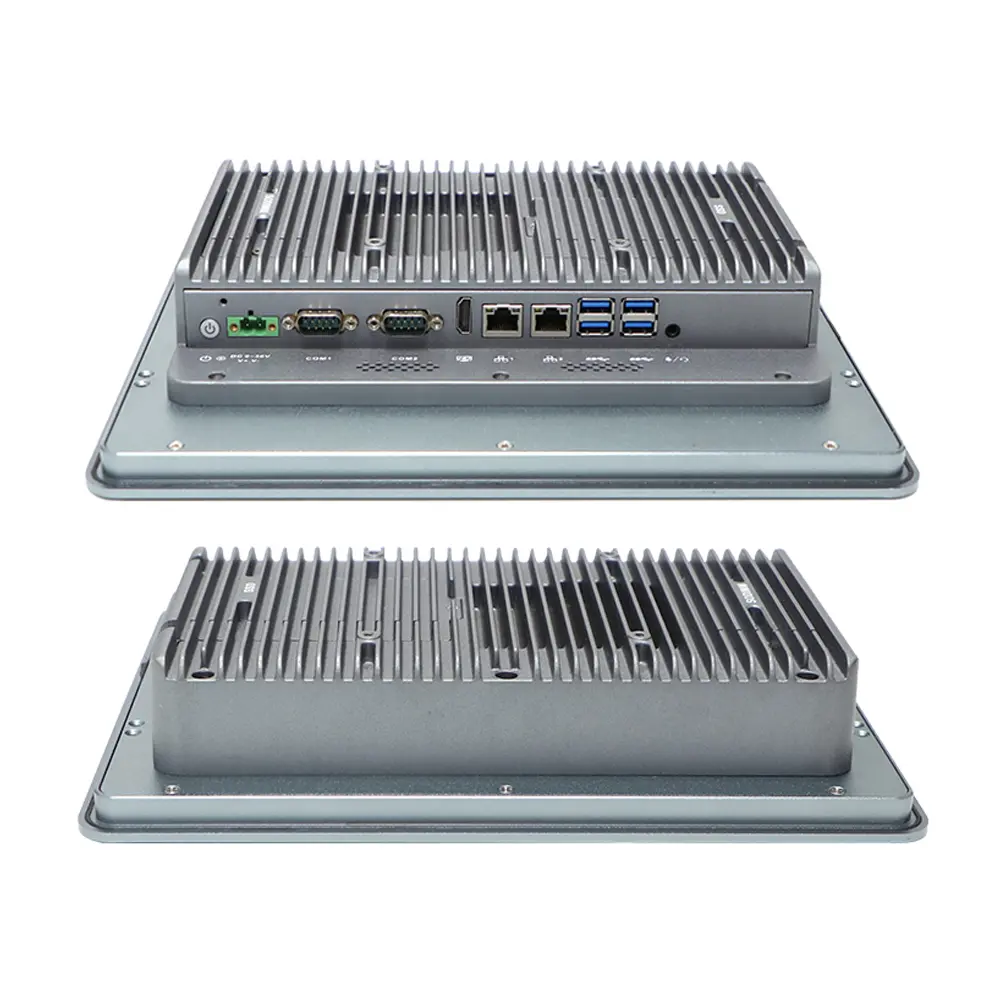

I/O Interfaces









I/O

1 x HDMI
2 x COM (COM1, COM2 RS232/RS422/RS485 Optional, 6*COM Optional)
1 x Power Switch
1 x 2Pin power supply phoenix connector
1 x Audio (Support Mic and Speaker at the same time)
4 x USB3.0
2 x Intel 1000M LAN(4*LAN Optional)



Software Support

Bios AMI EFI BIOS
System Support Window 10/11/Linux



General

Cooling Mode Fanless design
Power Supply DC 9V~36V wide voltage Input, support positive pole and negative electrode connect reversely protection
Packing List A19 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
Application Industrial Automation, Medical, Logistics Transportation, Warehousing, Machine Vision etc



Environment

Work Temperature 0℃ ~ +50℃(Commercial), -20℃ ~ +60℃(Industrial SSD), Surface air flow
Work Humidity 5% ~ 95%  Non-condensing
Certification CE FCC ROHS
Front panel protection IP65 standard



Model Processor Cooling System Graphics Frequency Display Memory Storage LAN COM USB Power
A19 Intel Celeron 4205U Fanless Intel® UHD Graphics 1.80 GHz HDMI 1 x DDR4, Max 32GB 1 x M.2 2280/1 x 2.5 inch HDD 2 2 4 12V5A
A19 Intel Celeron J6412 Fanless Intel® UHD Graphics 2.00~2.60 GHz HDMI 1 x DDR4, Max 32GB 1 x M.2 2280/1 x 2.5 inch HDD 2 2 4 12V5A
A19 Intel Core i5-8265U Fanless Intel® UHD Graphics 1.60~3.90 GHz HDMI 1 x DDR4, Max 32GB 1 x M.2 2280/1 x 2.5 inch HDD 2 2 4 12V5A
A19 Intel Core i7-10810U Fanless Intel® UHD Graphics 1.10~4.90 GHz HDMI 1 x DDR4, Max 32GB 1 x M.2 2280/1 x 2.5 inch HDD 2 2 4 12V5A
A19 Intel Core i3 10110U Fanless Intel® UHD Graphics 2.10~4.10 GHz HDMI 1 x DDR4, Max 32GB 1 x M.2 2280/1 x 2.5 inch HDD 2 2 4 12V5A
