11th Gen I7 I5 I3 Firewall PC

11th Gen I7 I5 I3 Firewall PC

Model: Partaker H12

  • Aluminum alloy structure, fanless design
  • Onboard Intel Celeron I3-1115G4 quad-core processor (can select I5-1135G7, I7-1165G7, 7505)
  • Support 2 x DDR4 memory, up to 64GB
  • 1 x m.2 2280 NVME slot, 1 x mSATA SSD, 1 x 2.5 inch SATA

Share to:

Overview



Partaker H12 Pfsense Firewall PC with Tiger Lake Intel Core i7 i5 i3 Processor, supported AES-NI, support HDMI+DP Dual Display. This pfsense firewall router with 4*Intel I226 network card support 2.5GbE which can bring you faster network usage. This firewall mini pc is fanless and slient router pc and preinstall with pfSense, also it support OPNsense/OpenWrt/Unbutun/windows and other popular open-source software solutions.





Mechanical

Material Aluminum alloy
Colour Black
Size 178 x 126 x 56(mm)
Weight 2.5Kgs
Insallation Method Desktop type
Vesa mounted installtion



Motherboard

CPU

Intel Core i3 1115G4 Processor, 2 cores, 4 threads, 6M Cache, 1.70 GHz, up to 4.10 GHz
Intel Core I5-1135G7 Processor, 4 cores, 8 threads, 8M Cache, 2.40 GHz, up to 4.20 GHz
Intel Core i7-1165G7 Processor, 4 cores, 8 threads, 12M Cache, 2.80 GHz, up to 4.70 GHz
Network Card 6 x INTEL I226 LAN
Memory 2 x DDR4 3200 MHz SODIMM memory slots, up to 64GB
Storage 1 x M.2 2280 nvme, 1 x 2.5-inch hard drive, 1 x MSATA
Graphic Intel UHD Graphiacs/Intel Iris Xe Graphics
Function Support AES-NI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc
Display 1 x HDMI, 1 x DP
Expand Support 1 MINIPCIE channel (can be WIFI/Bluetooth/4G)



I/O Interfaces

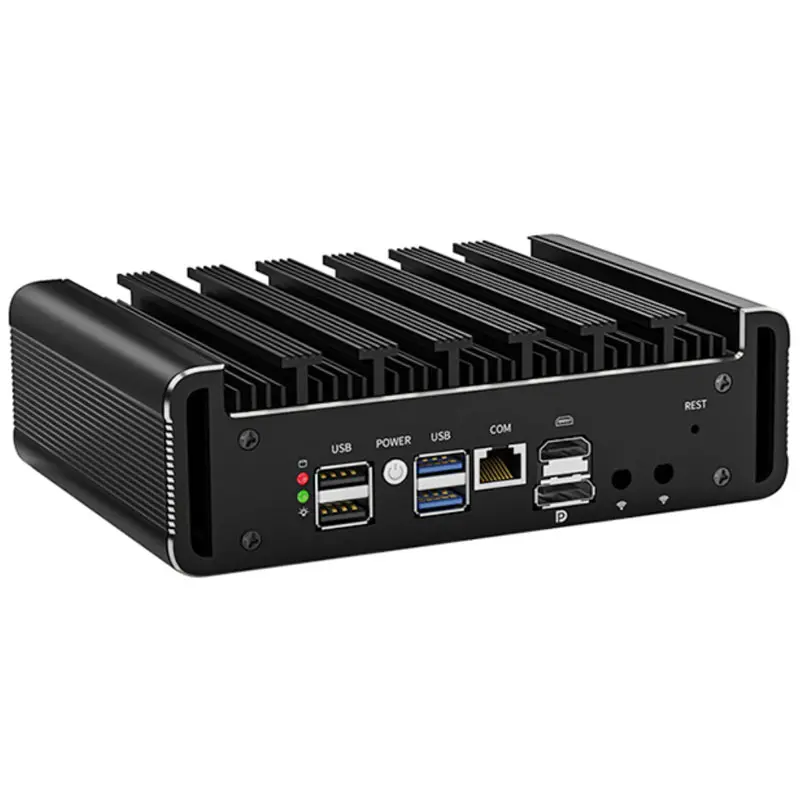

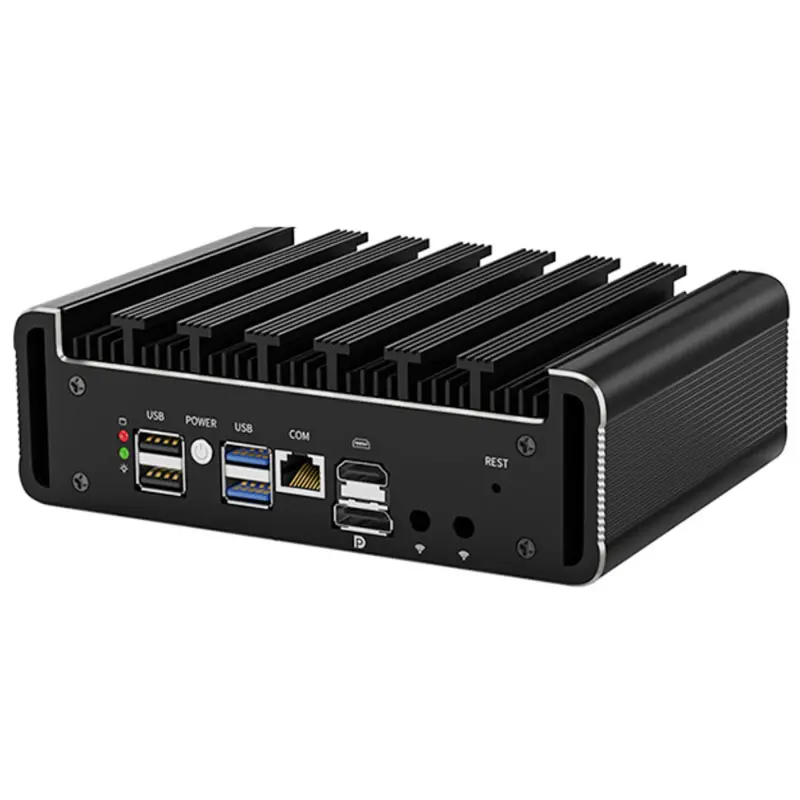

Front Panel 2 x indicator light
2 x USB2.0
1 x Power On/Off
2 x USB3.0
1 x DP
1 x HDMI
1 x Reset
2 x WiFi Holes

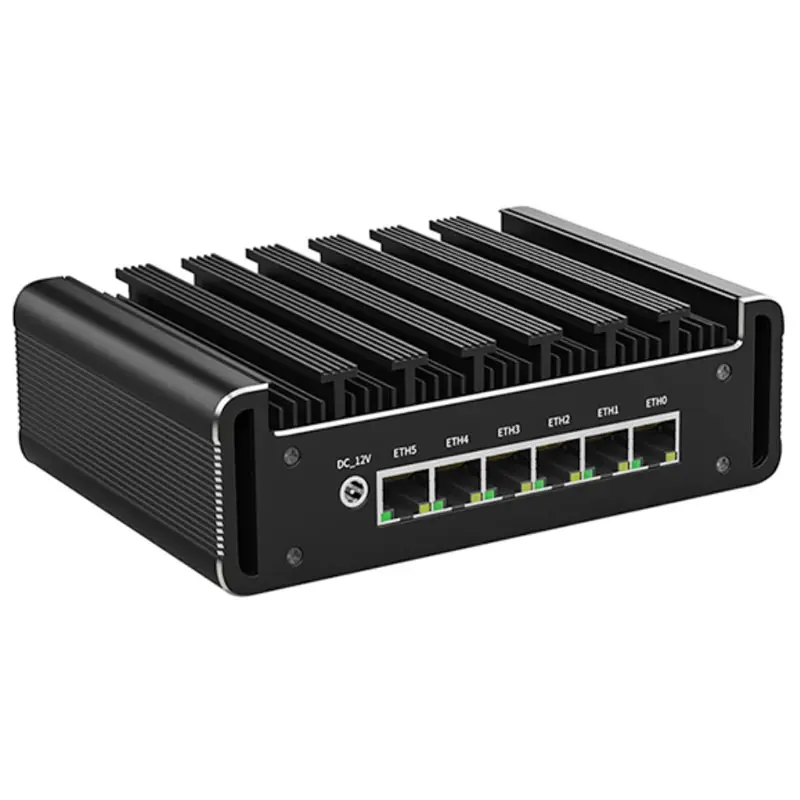

Rear Panel 6 x Intel LAN
1 x DC-IN



Software Support

Bios AMI EFI BIOS
System Support Windows 10/11/linux/centos/ubuntu/pfSense/OPNsense etc



General

Cooling Mode Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7×24 hours
Power Supply DC12V-7A 5.A*A
Packing List H12 mini pc, power supply, power cord, vesa bracket, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
H12 I3 1115G4 Intel UHD Graphics 1.7~4.1 GHz DP/HDMI 2 x SO-DIMM DDR4, Max 64G 1 x M.2 NVMe 2280/1 x mSATA/2.5 inch SATA3.0 6 x i226 4 12V/7A
H12 I5 1135G7 Intel Iris Xe Graphics 2.4~4.2 GHz DP/HDMI 2 x SO-DIMM DDR4, Max 64G 1 x M.2 NVMe 2280/1 x mSATA/2.5 inch SATA3.0 6 x i226 4 12V/7A
H12 I7 1165G7 Intel Iris Xe Graphics 2.8~4.7 GHz DP/HDMI 2 x SO-DIMM DDR4, Max 64G 1 x M.2 NVMe 2280/1 x mSATA/2.5 inch SATA3.0 6 x i226 4 12V/7A
