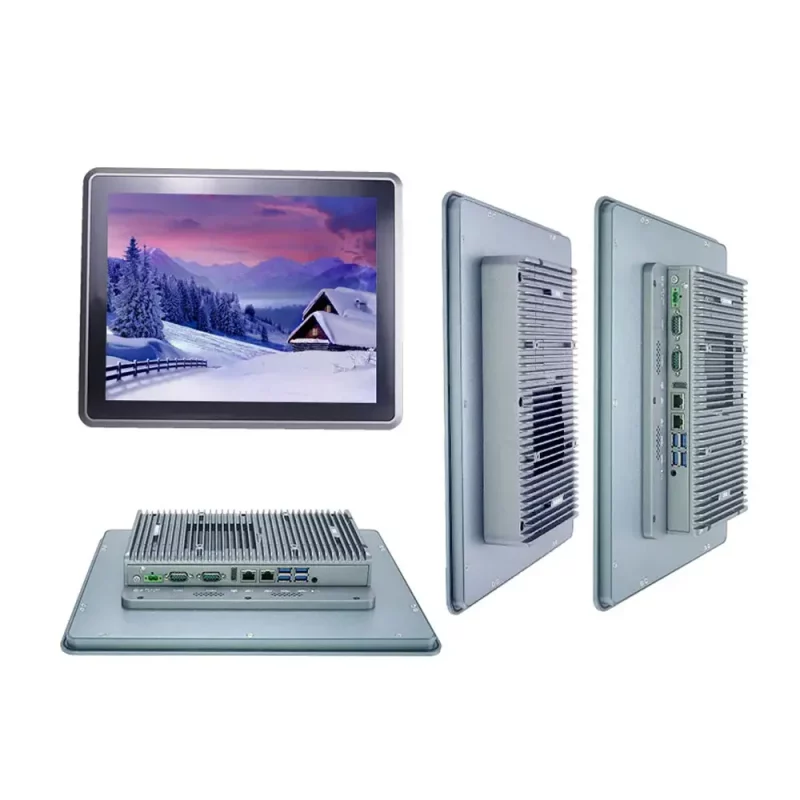

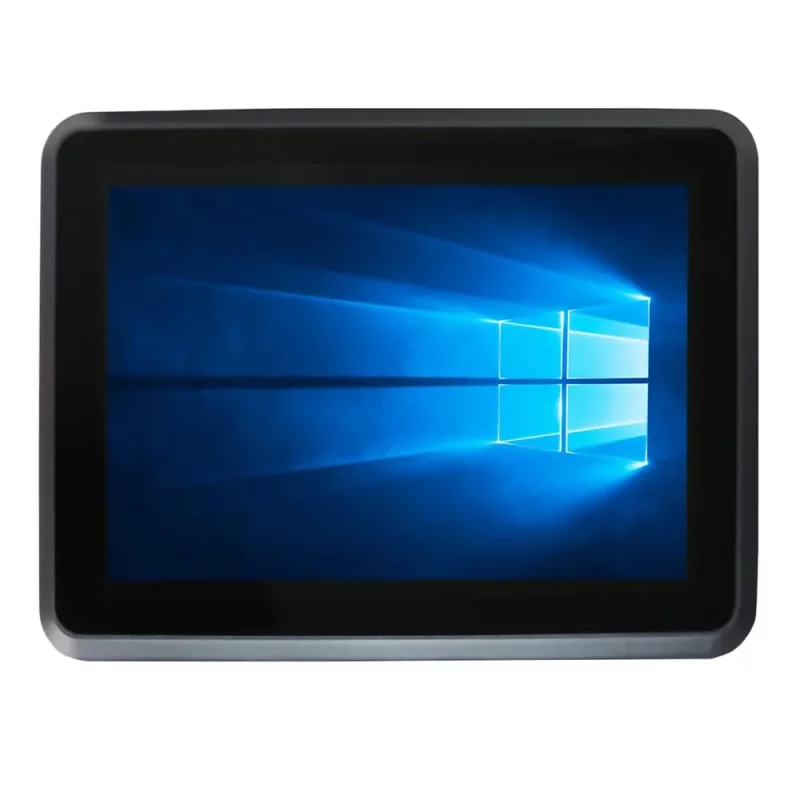

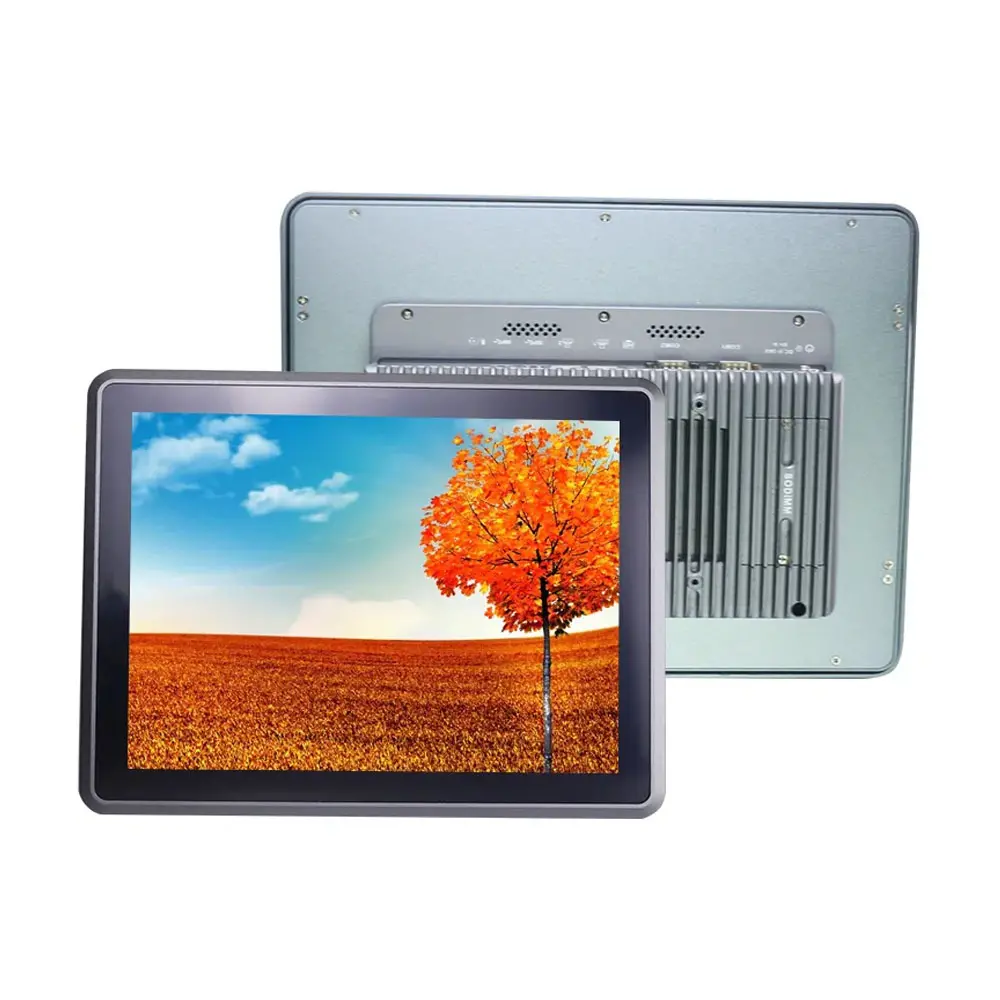

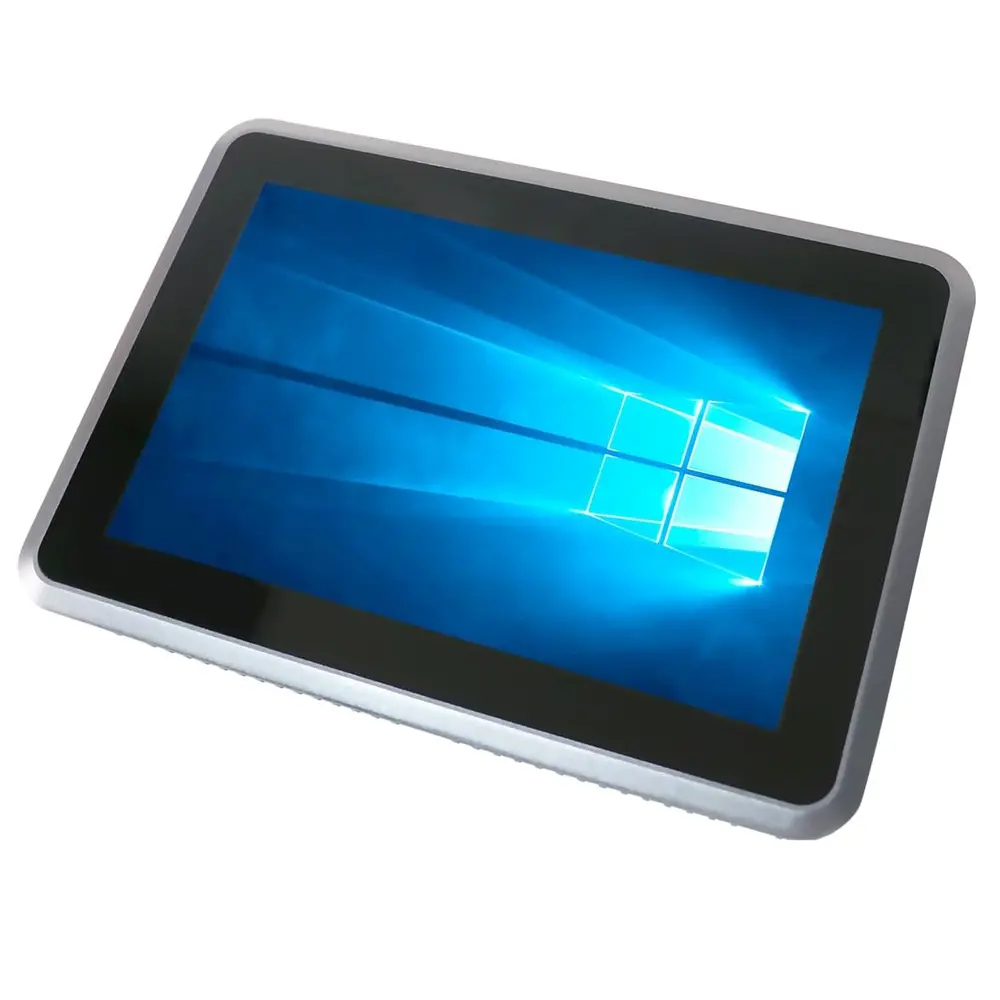

10.1 inch Touch Screen Panel PC

10.1 inch Touch Screen Panel PC

Model: Partaker A18

  • A 10.1 inch capacitive touch screen panel PC with a fanless design
  • Powered by Intel Celeron 4205U/i5 8265U/i7 8565U/i3 10110U Processor for high performance and low power consumption
  • Compatible with 9V~36V wide voltage input and TPM2.0 security encryption for enhanced stability and security
  • Equipped with 2RS232/RS422/RS485 COM optional, 6COM optional for flexible communication and control
  • Supports desktop and wall mount installation for various scenarios

Share to:

Overview



The Industrial Panel PC A18 is a powerful and versatile panel PC that can meet your various industrial needs. It features:



•  An onboard Intel Celeron 4205U, Intel Core i5 8265U, i7 8565U, i3 10110U processor, which offers high performance and low power consumption

•  A support for 1 x DDR4, up to 32GB RAM, which provides fast and smooth operation

•  An IP65-rated front panel, which protects the panel PC from water and dust ingress

•  A TPM2.0 security encryption, which enhances the security and integrity of the panel PC

•  An onboard 1 x M.2 2280 slot (SATA protocol), and a 1 x 2.5 inch HDD, which support RAID 0/1 for data backup and storage



The Industrial Panel PC A18 is a great solution for applications such as factory automation, human-machine interface, industrial IoT, and more. It has a sleek and sturdy design, and supports various installation methods.



Mechanical

Material Aluminum alloy chassis
Color Titanium gray (Color can be customized)
Model A18 Touch Screen Panel PC

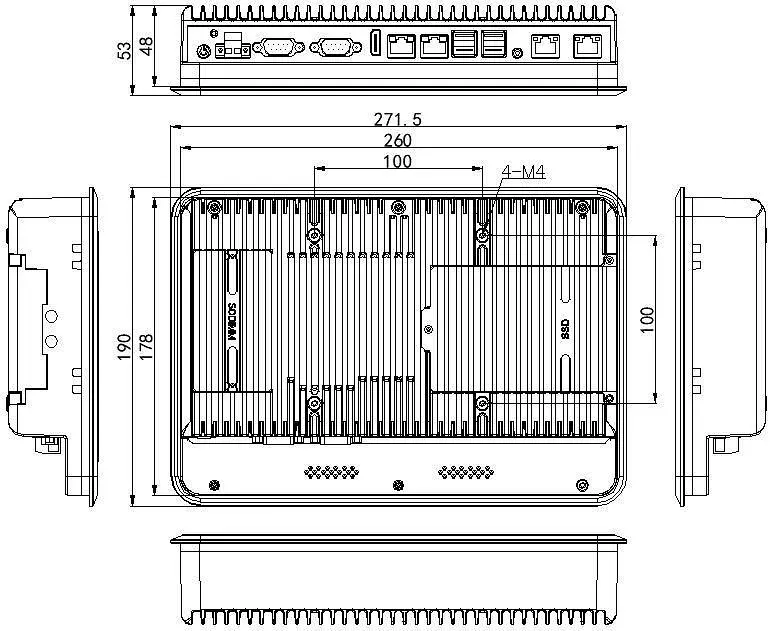

Size 271.5 x 190 x 53mm
Weight 3Kgs
Insallation Method Embedded recommended/Wallmounted/Desktop/Cantilevered etc



Motherboard

CPU Intel Celeron 4205U (Dual core dual threads, 1.8Ghz, 2MB Cache)

Intel Core i5-8265U (Quad core eight threads, 1.6Ghz, Max turbo 3.9Ghz, 6MB Cache)

Intel Core i7-8565U (Quad core eight threads, 1.8Ghz, Max turbo 4.6Ghz, 8MB Cache)

Intel Core i3-10110U( Dual core four threads, 2.10Ghz, Max turbo 4.10Ghz, 4MB Cache)

Network Card 2 x Intel 1000M LAN(4*LAN Optional)
Memory Support 1 x DDR4 2133/2400 SODIMM Memory Slot,Max. Support 32GB
Storage Onboard 1 x M.2 2280 slot(SATA Protocol),1 x 2.5 Inch HDD, Support RAID 0/1
Display Port
1 x HDMI, 1 x LVDS (Support synchronous or asynchronous dual display)
Other Function
TPM2.0 security encryption, Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0~255 level)(Standard version doesn’t set these function)



Touch Screen

Touch Type Industrial grade multi-touch capacitive touch screen,Life Time: more than 50000 Thousand Times;
Speaker Two 8-ohm 2-watt speaker



LCD Display

Display Type 10.1 inch TFT-LCD
Resolution 1280 x 800
Brightness 350 cd/m2
Ratio 16:9
Viewing Angle Full Viewing Angle

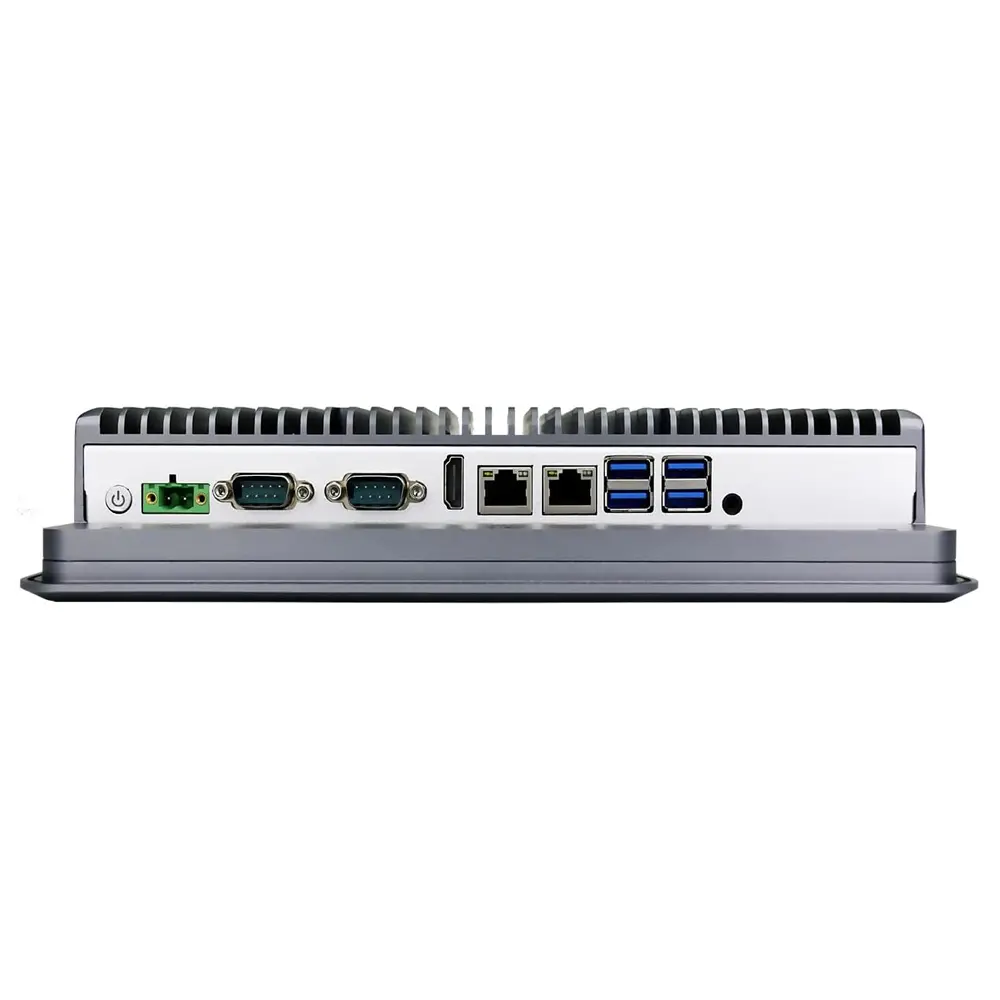

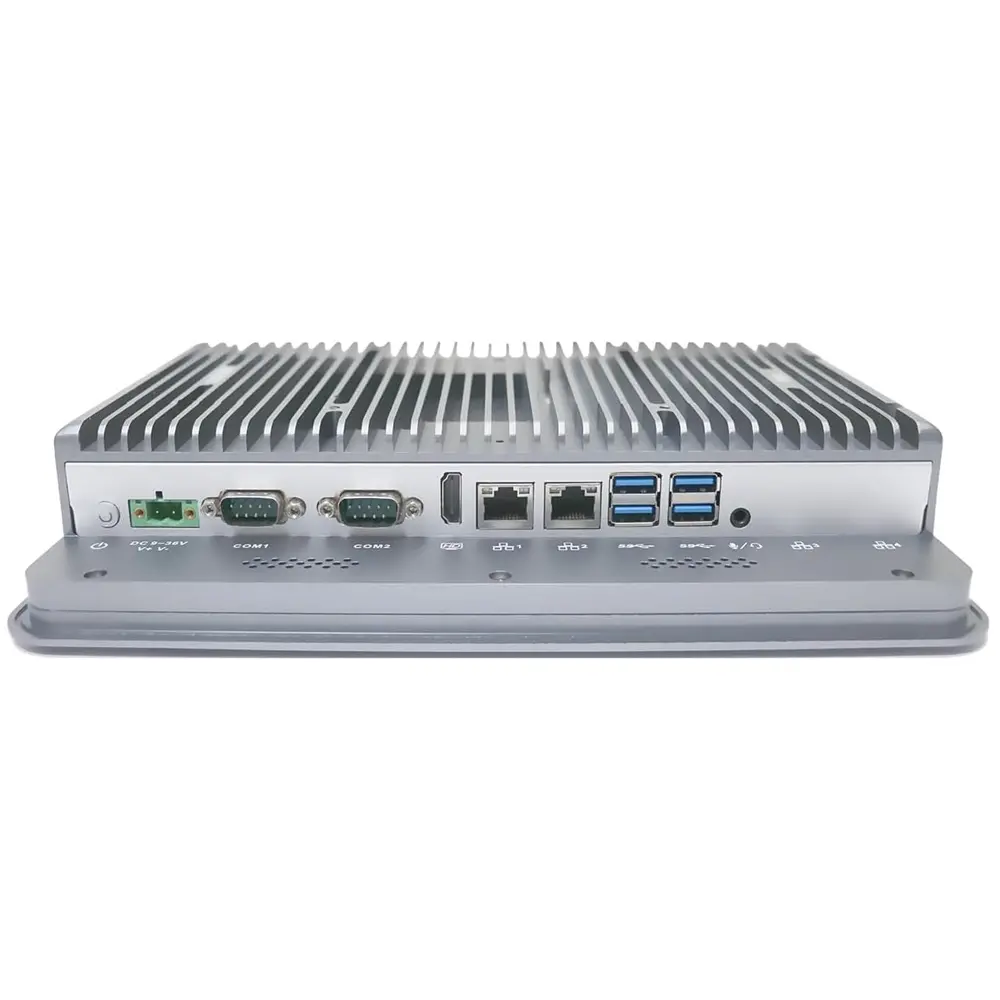

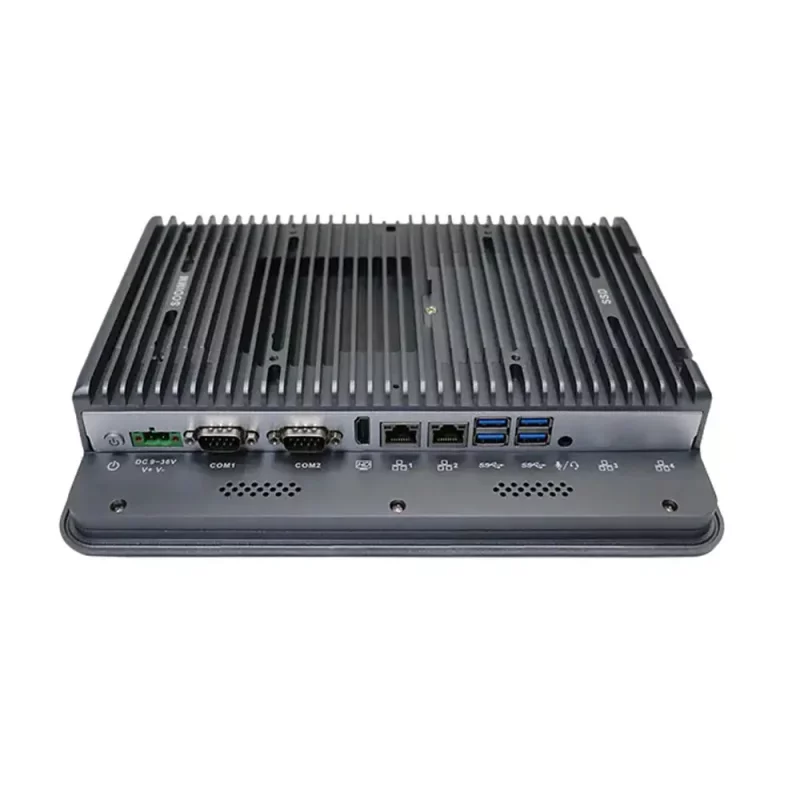

I/O Interfaces

I/O 1 x HDMI
2 x COM (COM1, COM2 RS232/RS422/RS485 Optional, 6*COM Optional)
1 x Power Switch
1 x 2Pin power supply phoenix connector
1 x Audio (Support Mic and Speaker at the same time)
4 x USB3.0
2 x Intel 1000M LAN(4*LAN Optional)



Software Support

Bios AMI EFI BIOS
System Support Window 10/11/Linux



General

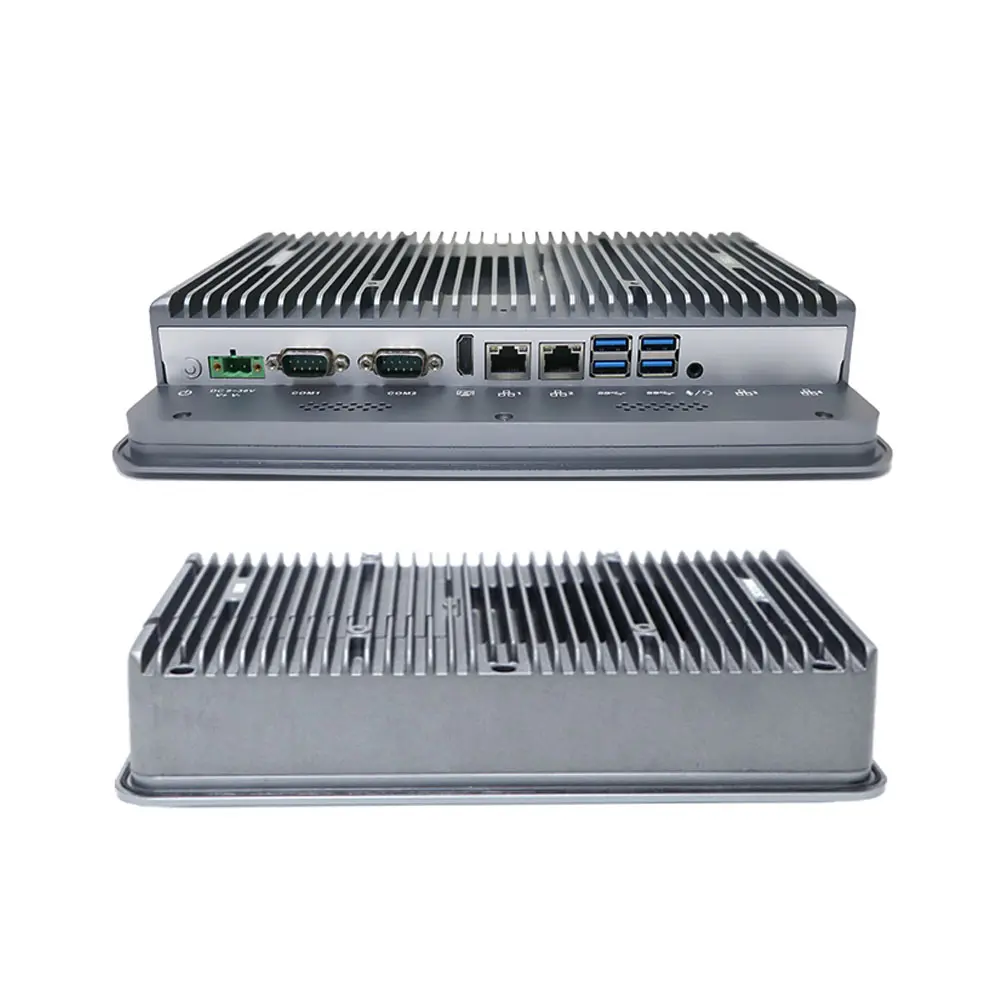

Cooling Mode Fanless design
Power Supply DC 9V~36V wide voltage Input, support positive pole and negative electrode connect reversely protection
Packing List A18 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
Application Industrial Automation, Medical, Logistics Transportation, Warehousing, Machine Vision, etc.



Environment

Work Temperature 0℃ ~ +50℃(Commercial), -20℃ ~ +60℃(Industrial SSD), Surface air flow
Work Humidity 5% ~ 95%  Non-condensing
Certification CE FCC ROHS
Front panel protection IP65 standard



Touch Screen Kiosk Display

Model Processor Cooling System Graphics Frequency Display Memory Storage LAN COM USB Power
A18 Intel Celeron 4205U Fanless Intel® UHD Graphics 1.80 GHz HDMI 1 x DDR4, Max 32GB 1 x M.2 2280/1 x 2.5 inch HDD 2 2 4 12V5A
A18 Intel Core i5-8265U Fanless Intel® UHD Graphics 1.60~3.90 GHz HDMI 1 x DDR4, Max 32GB 1 x M.2 2280/1 x 2.5 inch HDD 2 2 4 12V5A
A18 Intel Core i7-8565U Fanless Intel® UHD Graphics 1.80~4.60 GHz HDMI 1 x DDR4, Max 32GB 1 x M.2 2280/1 x 2.5 inch HDD 2 2 4 12V5A
A18 Intel Core i3 10110U Fanless Intel® UHD Graphics 2.10~4.10 GHz HDMI 1 x DDR4, Max 32GB 1 x M.2 2280/1 x 2.5 inch HDD 2 2 4 12V5A
