10.1 Inch Industrial Panel PC

10.1 Inch Industrial Panel PC

Model: Partaker Z6

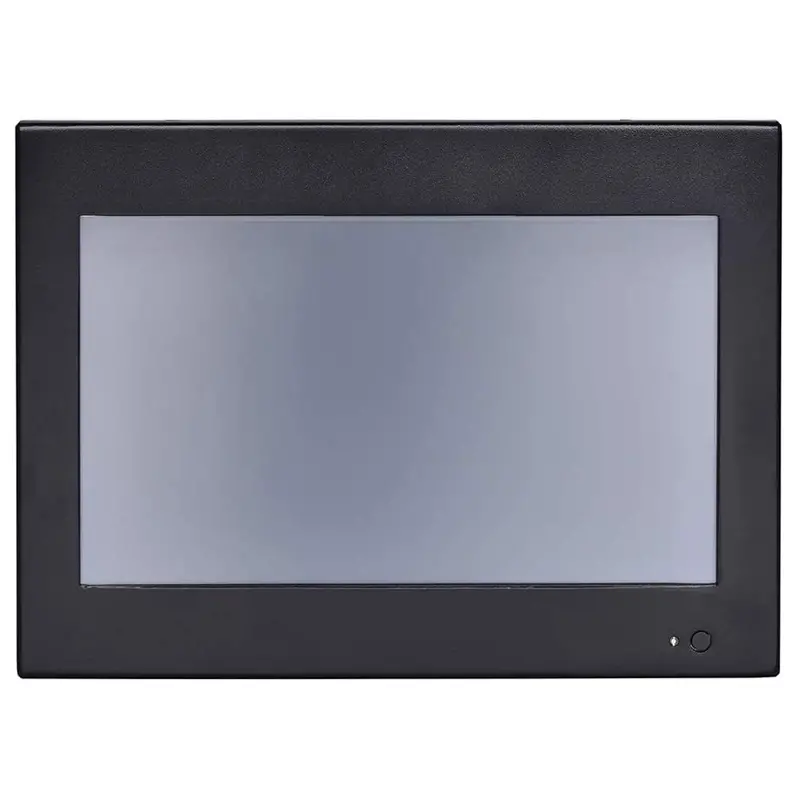

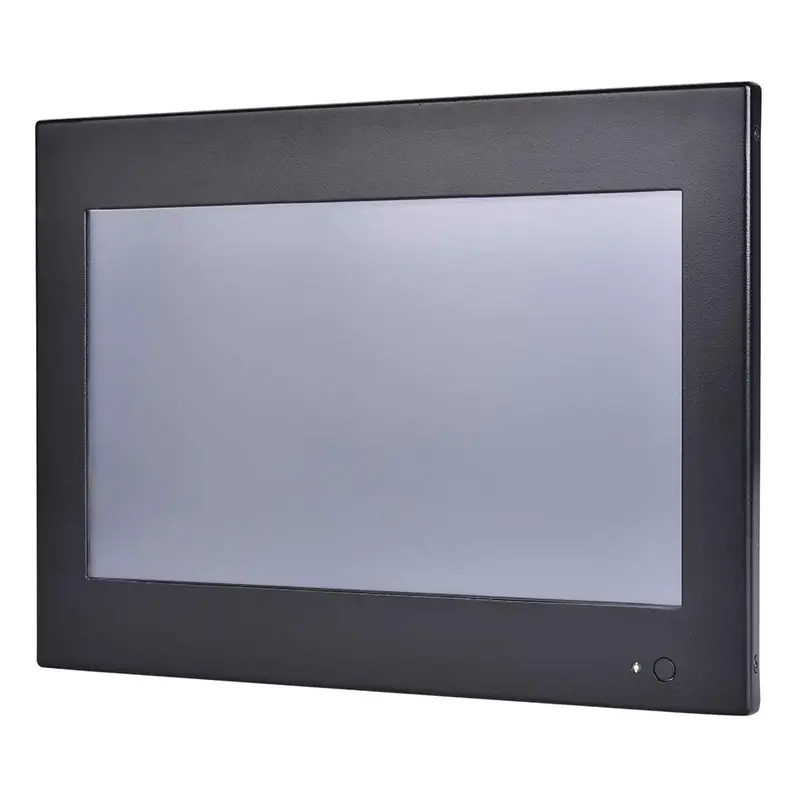

  • Adopt 10.1″ TFT LED panel
  • High quality resistive touch screen
  • Intel® Celeron® or Core processor
  • The system memory supports up to 8 GB DDR3L SDRAM
  • Full metal shell, anti-electromagnetic interference
  • Support full size Mini PCIe expansion
  • Support USB 3.0
  • Support Windows Embedded and Linux
  • Support VESA 75

Share to:

Overview



This is a cost-effective 10.1-inch LCD industrial panel computer. You can choose Intel® Celeron® or Core processor. The compact embedded system can provide high-performance computing. High durability design, full metal casing, high durability design, supports 2 to 3 serial ports, 4 USB ports and 1 Gigabit Ethernet port to meet various industrial applications.



Mechanical

Material Aluminum alloy
Model Z6 PA-101TPC-B3
Opening Hole 227 x 183mm (L x W)
Size 270 x 192 x 47mm
Weight 3Kgs
Insallation Method Embedded recommended/Wallmounted/Desktop/Cantilevered etc



Motherboard

CPU Intel® Celeron® Processor J1800 (1M Cache, up to 2.58 GHz)
Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Intel® Celeron® Processor 3855U (2M Cache, 1.60 GHz)
Intel® Core™ i5-3317U Processor (3M Cache, up to 2.60 GHz)
Intel® Core™ i7-3537U Processor (4M Cache, up to 3.10 GHz)
4th/6th Gen I5/I7 optional
Chipset Intel SOC
Watchdog Timer 255 levels
Network Card 1 x 10/100/1000 Mbps Ethernet
WiFi and Bluetooth N/A, optional to add
Memory 1 x SODIMM DDR3L 1333/1600, max. to 8GB RAM
Storage 1 x mSATA SSD, 1 x 2.5″ SATA SSD/HDD
Expand
1 x Mini PCIE slot for WiFi/4G, with sim slot



Touch Screen

Touch Type 10 Points Capacitive Touch Screen
Durability (Number of Touches) > 50 million times
Transmittance 86±5% at 550 nm wavelength
Controller USB interface



LCD Display

Display Type Industrial grade 10.1 inch LED
Resolution 1024 x 600
Lumens (cd/m2) 200
Contrast 400
Backlight Life 10,000 hours (Min.)



I/O Interfaces

Front Panel 1 x Power switch
J1800/J1900/3855U

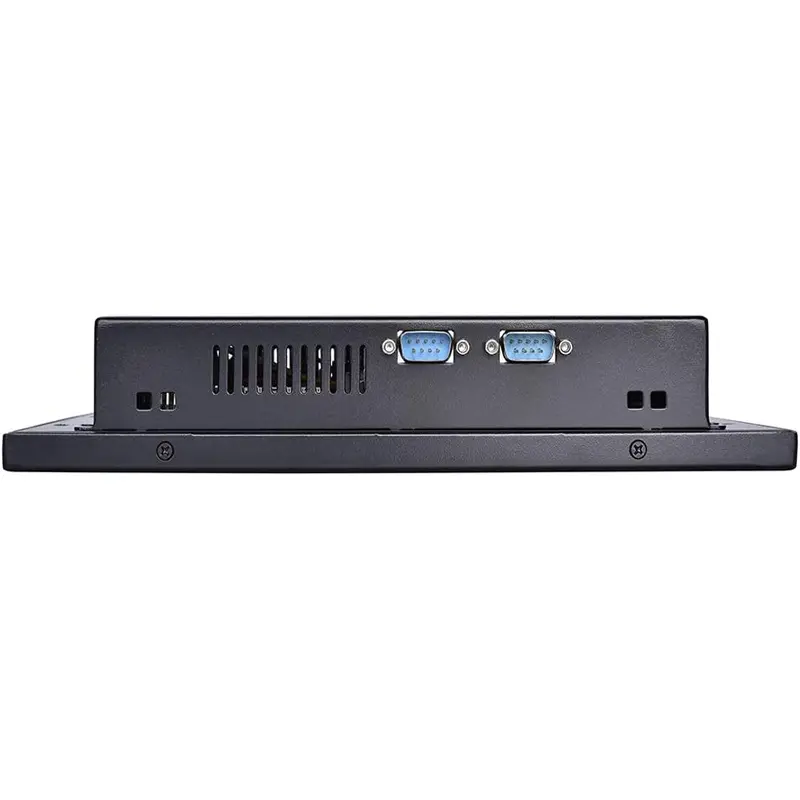

Rear Panel
1 x DC_in
1 x VGA
3 x COM
4 x USB2.0
1 x Lan
1 x Audio
I3/I5/I7
Rear Panel
1 x DC_in
1 x HDMI
1 x VGA
4 x USB2.0
1 x Lan
1 x Audio
2 x COM



Software Support

Bios AMI BIOS
System Support Windows 7 32bit&64bit / Windows 8.1 32bit&64bit

Windows 10 32bit&64bit/WES7/Linux



General

Cooling Mode Fanless/Smart fan
Power Supply DC100-240V AC/50-60Hz, 12V
Packing List Z6 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card



Environment

Operating Temperature 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature -20 ℃ ~ 60 ℃
Operating Humidity 10% ~ 95% @ 40 ℃ without condensation
Certification CE FCC ROHS
Front panel protection IP65 standard



Model Processor Cooling System Graphics Frequency Display Memory Storage LAN COM USB Power
Z6 J1800 Fanless Intel® HD Graphics 2.58~2.41 GHz VGA 1 x SO-DIMM DDR3L 1 x M-SATA 1 3 4 12V/4A
Z6 J1900 Fanless Intel® HD Graphics 2.00~2.42 GHz VGA 1 x SO-DIMM DDR3L 1 x M-SATA 1 3 4 12V/4A
Z6 3855U Smart fan Intel® HD Graphics 510 1.60 GHz VGA 1 x SO-DIMM DDR3L 1 x M-SATA 1 3 4 12V/4A
Z6 I5 3317U Smart fan Intel® HD Graphics 4000 1.70~2.60 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x M-SATA 1 2 4 12V/5A
Z6 I7 3537U Smart fan Intel® HD Graphics 4000 2.00~3.10 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x M-SATA 1 2 4 12V/5A



J1800:  3*USB2.0, 1*USB3.0, 3*COM

J1900:  3*USB2.0, 1*USB3.0, 3*COM

3855U:  2*USB2.0,2*USB3.0,3*COM

I5 3317U:  4*USB2.0/2*COM

I7 3537U:  4*USB2.0/2*COM
