As 5G, the Industrial Internet, and Zero-Trust security architectures continue to reshape enterprise infrastructure, network devices at the edge must deliver unprecedented performance, scalability, and reliability. The Partaker H6 high-performance mini industrial PC rises to this challenge – powered by 12th Gen Intel® Core™ processors, equipped with 4 x 2.5G Ethernet ports + 2 x 10GbE SFP+ fiber ports, supporting triple independent 4K displays and extensive modular expansion. Purpose-built for network security, edge routing, industrial gateways, and other demanding scenarios.
The dual 10GbE SFP+ fiber ports deliver ultra-high throughput with long-distance transmission support (up to 80km) and exceptional electromagnetic interference immunity – making the H1 ideal for factory floors, power substations, rail transportation, and other complex electromagnetic environments. It is the critical hardware foundation for building highly reliable industrial backbone edge nodes.
Partaker H6 Key Features

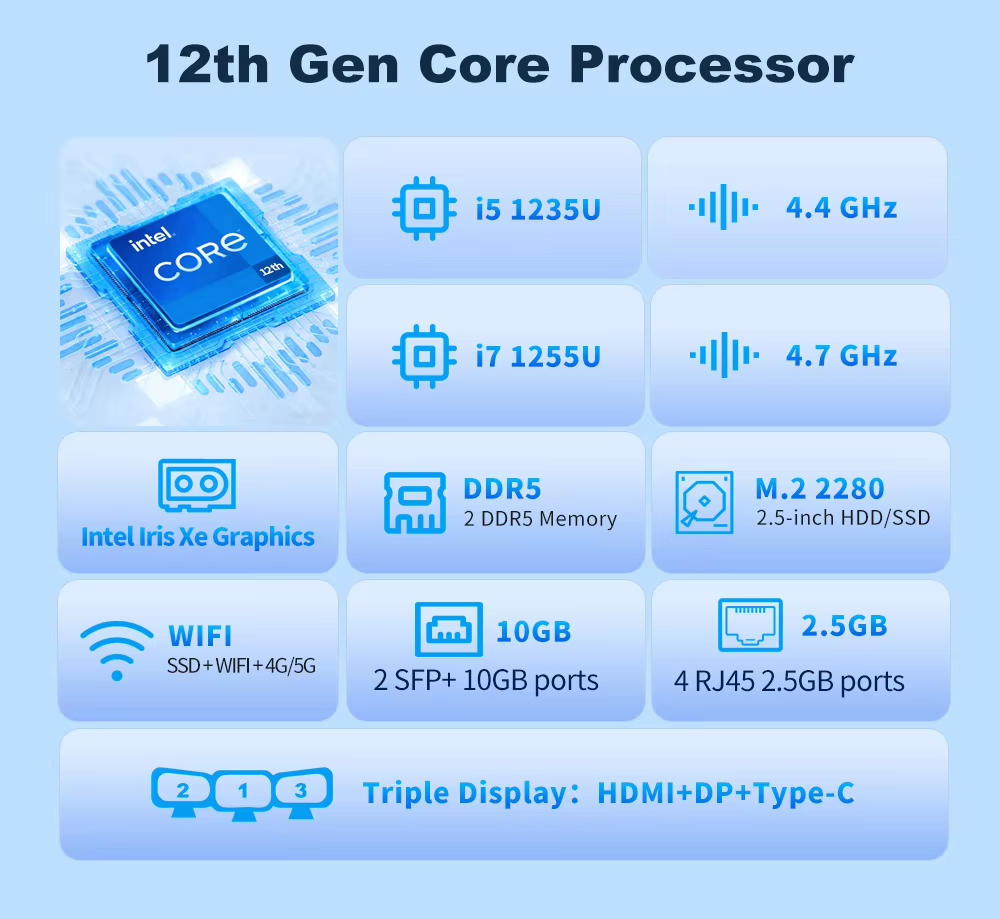

High-Performance Computing
-
Onboard Intel Core i5-1235U / i7-1255U (10 cores, 12 threads, turbo boost up to 4.7GHz)
-
Hailo-8 AI accelerator card compatible – enables real-time execution of complex neural networks with outstanding inference efficiency, supporting multiple neural network models simultaneously at high frame rates
6 High-Speed Network Ports
-
4 x Intel i226 2.5G Ethernet ports (LAN1 supports Intel vPro®)
-
2 x 10GbE SFP+ fiber ports – ideal for long-distance, high-bandwidth, low-latency scenarios where fiber significantly outperforms standard copper interfaces

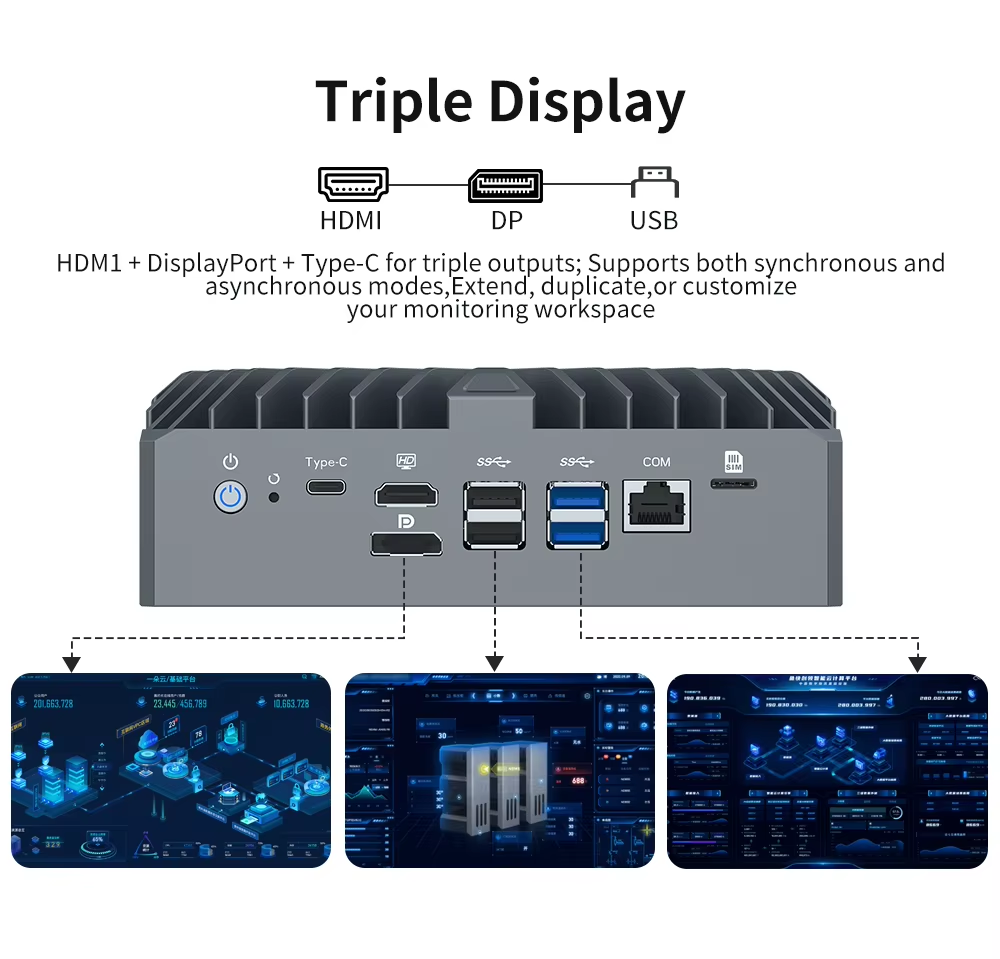

Triple Independent 4K Display Output
-
HDMI + DP + Type-C – all ports support 4K@60Hz
Flexible Expansion
-

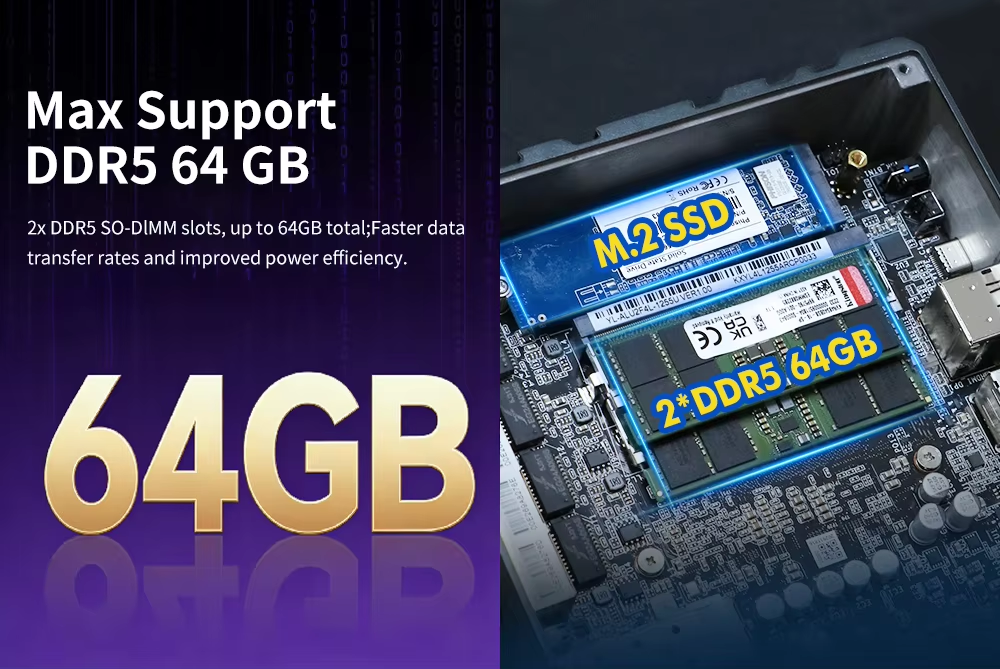

3 x M.2 slots – supports NVMe SSD, Wi-Fi 6, and 4G/5G cellular modules
Industrial-Grade Reliability
-
Full aluminum alloy chassis with fan-assisted cooling
-
Wide-temperature operation (-20°C to +50°C with industrial SSD)
Enhanced Security & Management
-
TPM 2.0, hardware watchdog timer, PXE boot, Wake-on-LAN (WoL)
Real-World Deployment: AI Video Analytics at Rail Transit Stations
Customer Background
A metro transit company needed to deploy an intelligent security system across multiple stations, using AI-powered cameras for passenger flow monitoring and abnormal behavior detection. Each station required real-time upload of 8 channels of 4K video streams to the central control room. However, the distance from platform to communication room exceeded 500 meters, and the tunnel environment presented severe RF interference challenges.
The Challenges
-
Total video bandwidth > 6Gbps – Gigabit links were severely bottlenecked
-
Unreliable wireless – Wi-Fi/4G signals were weak inside tunnels
-
Copper cable susceptibility – prone to interference from train traction currents
The Solution
The Partaker H6 (i5-1235U + 32GB RAM) was deployed in the station equipment cabinet as an AI edge analytics + 10G uplink gateway:
-
Local AI inference: Running a lightweight YOLOv5 model for initial object detection – only structured data and critical video clips are uploaded
-
10GbE SFP+ fiber uplink: Using a 10G LR optical module, processed data is transmitted back to the control room 500 meters away over a single optical fiber
-
Future-ready expansion: The second SFP+ port is reserved for future ring-network connectivity with other stations
-
Industrial-grade durability: Full metal chassis with fan-assisted cooling handles the station’s high-temperature, high-humidity environment
Results
-
70% reduction in uplink bandwidth utilization
-
60% reduction in central server load
-
Event response time reduced to under 1 second
-
Zero fiber link failures throughout the year – establishing a benchmark for smart rail transit edge deployments
Conclusion
The Partaker H6’s dual 10GbE SFP+ fiber ports are more than just “high-speed interfaces” – they are the key to solving the three major industrial challenges of long distance, high interference, and massive bandwidth. Combined with the raw computing power of the 12th Gen Intel Core processor, the H1 truly delivers “edge intelligence + fiber backbone” in a single, integrated deployment.
Empower your edge with Partaker H6.
