In the age of high‑resolution video analytics and edge AI inference, industrial automation, low‑speed autonomous vehicles, and medical imaging are all facing the same dilemma: how do you pack robust AI compute, multi‑channel video capture, 4K multi‑screen output, rich I/O, and industrial‑grade reliability into a compact, fanless embedded platform?
Inctel Technology’s new I36 series delivers a complete answer.
Designed around Intel’s 12th/13th/14th Gen desktop‑class T‑series processors (Core i3/i5/i7), the I35 family is built on the Q670/W680 chipset and supports DDR5 4800MHz memory (up to 64GB). To meet diverse deployment needs, it comes in three distinct form factors:
|
Model
|
I36-A
|
I36-B
|
I36-C
|
|
Expansion Slot
|
1× PCIe X16 (X16 signal)
2× PCIe X8 (X4 signal)
|
1× PCIe X16 (X16 signal)
2× PCIe X8 (X4 signal)
|
1× PCIe X16 (X16 signal)
|
|
Max card size (L×W×H)
|
312×21×112 mm
|
215×21×112 mm
|
215×21×112 mm
|
|
Size (mm)
|
175 × 363 × 230
|
175 × 253 × 230
|
230 × 253 × 96
|
|
Weight (kg)
|
8.05
|
5.45
|
4.45
|
AI Compute & Expansion

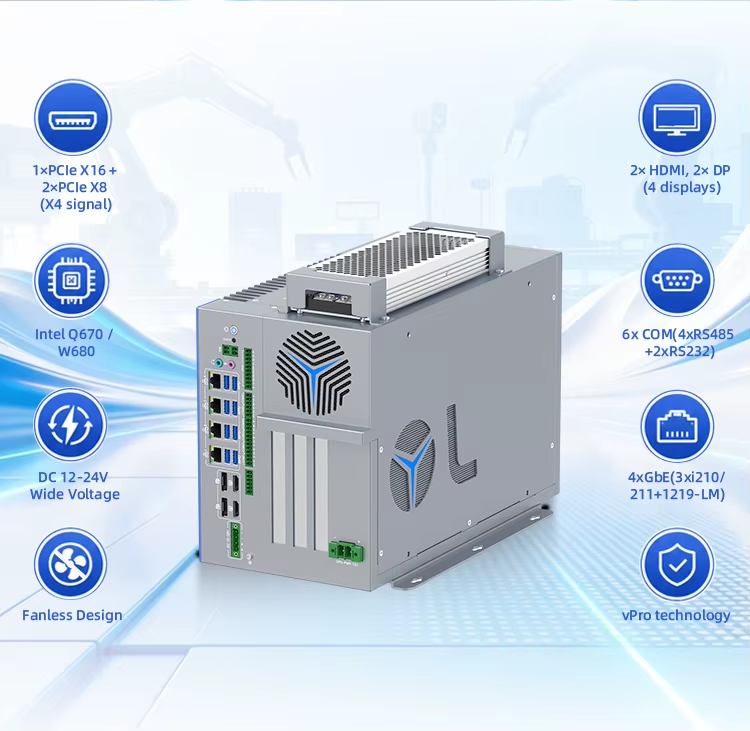

The I36-A/B features 1× PCIe x16 + 2× PCIe x8 (x4) slots, supporting NVIDIA RTX 30/40/50 GPUs, frame grabbers, and motion control cards – with up to 500W GPU power. Onboard 4× M.2 (5G, NVMe, WiFi 6) + Mini PCIe enable flexible connectivity for autonomous driving and edge AI updates.
4K Display & Fast Storage
2× HDMI + 2× DP drive four independent 4K displays. Dual M.2 NVMe Gen4 (RAID 0/1) + SATA bays, paired with DDR5 (50% bandwidth gain), eliminate image‑processing latency.
Industrial I/O & Fanless Reliability
-
4× Intel GbE (vPro support) for network segregation
-
6× COM (4× RS485 + 2× RS232) for PLC/LiDAR
-
8× USB3.1 + 4× USB2.0
-
Fanless aluminium heatsink, ‑20°C~+60°C, 7×24 operation
-
12‑24V DC wide input, watchdog, WoL, auto‑start
Key Applications
| Use Case | Model | Value |
|---|---|---|
| Factory automation | I36-B | Multi‑slot for PLC/motion |
| Vision inspection | I36-A | GPU + multi‑camera, quad display |
| Autonomous driving | I36-A/B | 5G + GPU inference, wide‑temp |
| Medical imaging | I36-B | Silent, high compute, multi‑modal |
| Smart roadside units | I36-B | Multi‑net, surge protection |
The I36 series delivers AI compute, multi‑display, rich I/O, and fanless durability in one compact platform – from gateway to dual‑GPU workstation. Choose it for faster, smarter, and more reliable video & AI workloads at the edge.
