NUC Mini PC 4 LAN J3160 AES-NI pfSense

Mode: Partaker C4-L4

Intel® Celeron® Processor J3160, 2M Cache, up to 2.24 GHz
1*DDR3L 1600Mhz SODIMM Ram, Max to 8G
I/O Port: 2*HD+2*USB3.0+1*RJ45 COM(support console)+1*Audio+4*LAN+Power switch
Nuc Dimension: 115*107.5*39 mm
With 4*Intel i210-AT 1000M Lan, support RTL and PXE diskless boot
12V/4A AC/DC power adapter
Support 1*Mini-PCIE(support MSATA), 1*Mini-PCIE(support WiFi/BT optional)
Applied in Home, Office, VPN, Router, Firewall, Network server etc

Share to:

Overview

The J3160 Micro Firewall Appliance is a versatile and robust network security solution:

It boasts a sturdy all-aluminum structure, making it a reliable multi-LAN fanless mini PC.
Powered by an onboard Intel Celeron J3160 quad-core processor, it delivers reliable performance for network security tasks.
It supports a maximum of 8GB DDR3L1600MHz RAM for efficient multitasking.
Equipped with 4 x Intel 1000M LAN ports, it offers extensive connectivity options for networking configurations.
Additionally, it features 2 x HD ports, 2 x USB 3.0 ports, 1 x RJ45 COM port (with console support), 1 x Mini-PCIE slot (compatible with MSATA), and 1 x Mini-PCIE slot (optional for WiFi/BT).
Its flexibility extends to mounting options, including desktop, embedded, VESA, and more, catering to various deployment scenarios.

In summary, the J3160 Micro Firewall Appliance is a dependable and adaptable network security solution, featuring a durable build, capable Intel processing, multiple connectivity options, and versatile mounting choices to meet a wide range of networking needs.

Mechanical

Material	Aluminum alloy
Colour	Black(color can be customized)
Size	115 x 107.5 x 39 mm (WDH)
Weight	1.5Kgs
Insallation Method	Desktop type/vesa mounting

Motherboard

CPU	Intel® Celeron™ Procesor J3160(2M Cache, up to 2.24 GHz)
Mainboard	100 x 100mm NUC mainboard
Network Card	4 x Intel i210AT 1000M lan, support wake on lan
Chipset	Intel Integrated Chipset
Memory	1 x DDR3L 1600Mhz So-DIMM Ram Slot, Max 8G
Storage	1 x mSATA SSD
Expand	1 x Mini-PCIE(support SMATA), 1 x Mini-PCIE(support WiFi/BT optional)

I/O Interfaces

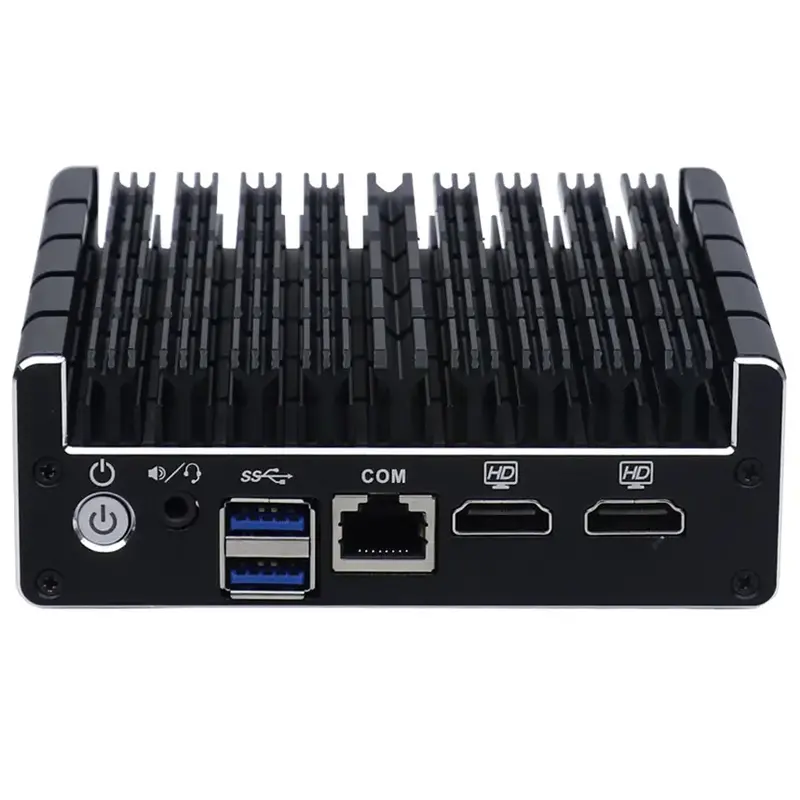

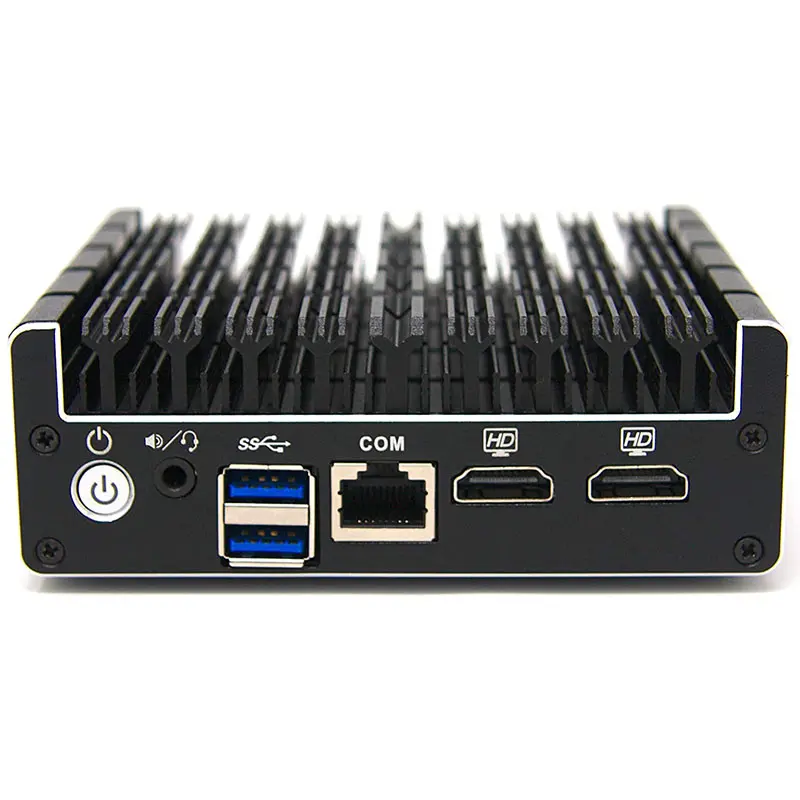

Front Panel	1 x Power button
	1 x Audio/MIC
	2 x USB3.0
	1 x RJ45 COM(support Console)
	2 x HDMI

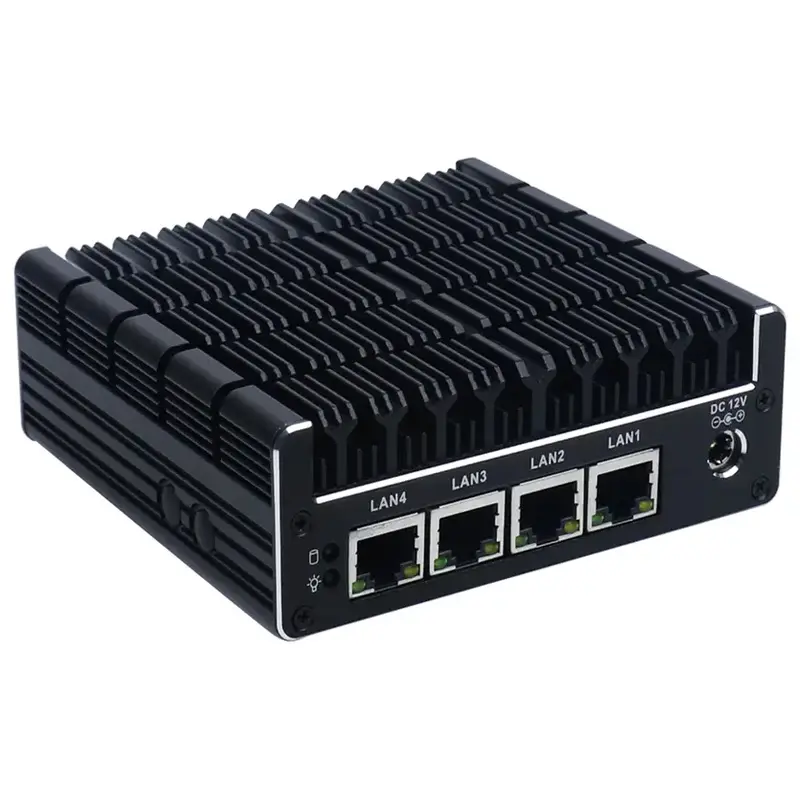

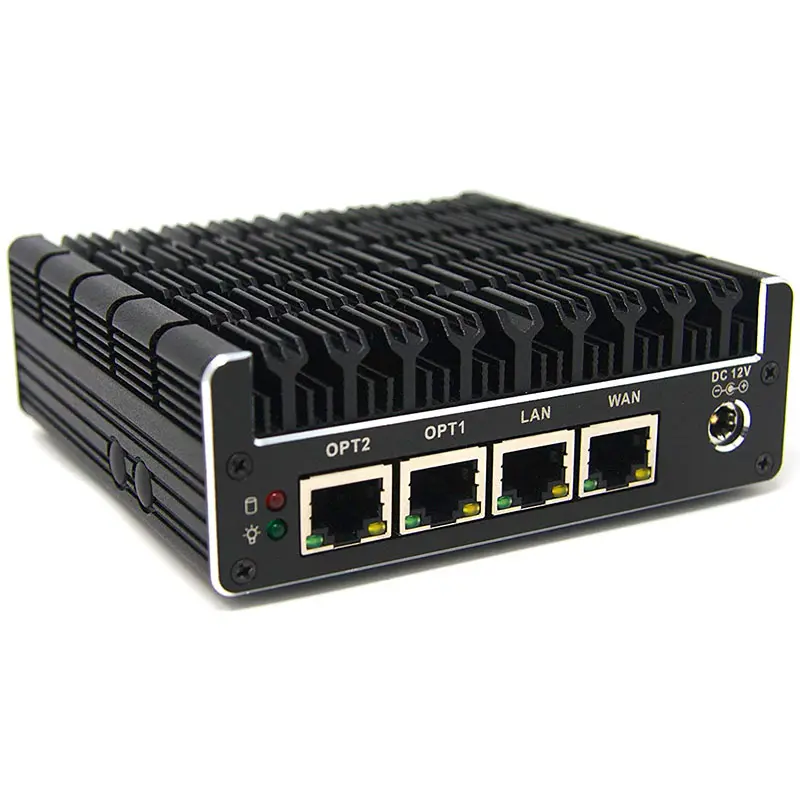

Rear Panel	4 x LAN
Rear Panel	1 x DC-IN 12V

Software Support

Bios	AMI 64Mbit Flash ROM
System Support	Windows 7/8/10, Linux, pfSense etc

General

Cooling Mode	Fanless
Power Supply	DC 12V-IN power supply and AC power adapter
Packing List	C4-L4 mini pc, power supply, power cord, vesa, warranty card

Environment

Working Temperature	-10°C – 50°C
Working Humidity	0% – 95% relative humidity, Non-condensing
Watch Dog Timer	Support
Certification	CE FCC ROHS

Model	Processor	Graphics	Frequency	Display	Memory	Storage	LAN	USB	Power
C4-L2	J3060	Intel® HD Graphics	1.6~2.48 GHz	2 x HDMI	1 x SO-DIMM DDR3L	1 x M-SATA SSD	2	6	12V/4A
C4-L4	J3160	Intel® HD Graphics	1.6~2.24 GHz	2 x HDMI	1 x SO-DIMM DDR3L	1 x M-SATA SSD	4	2	12V/4A
