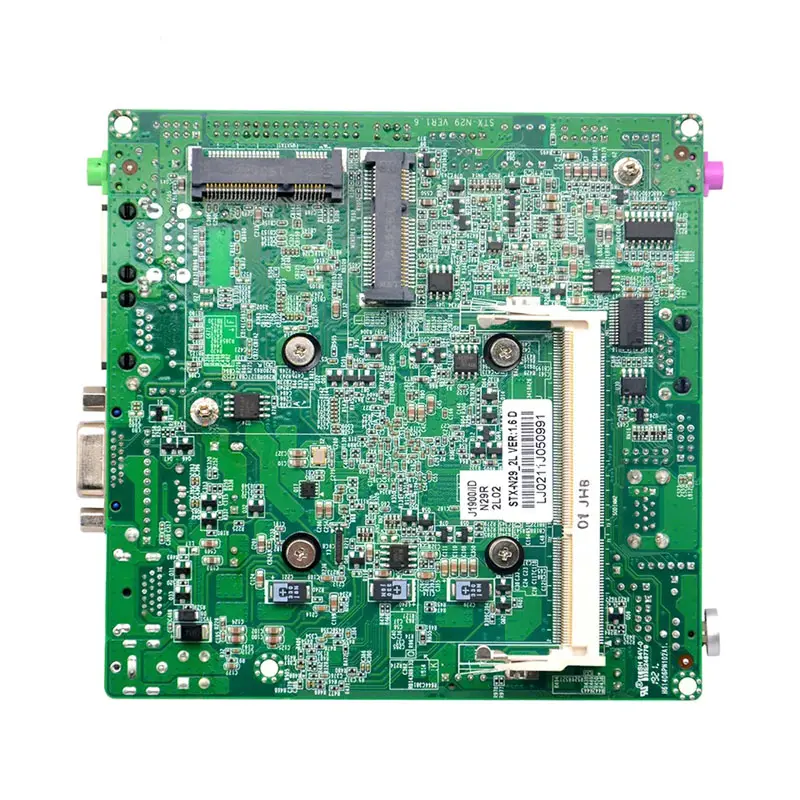

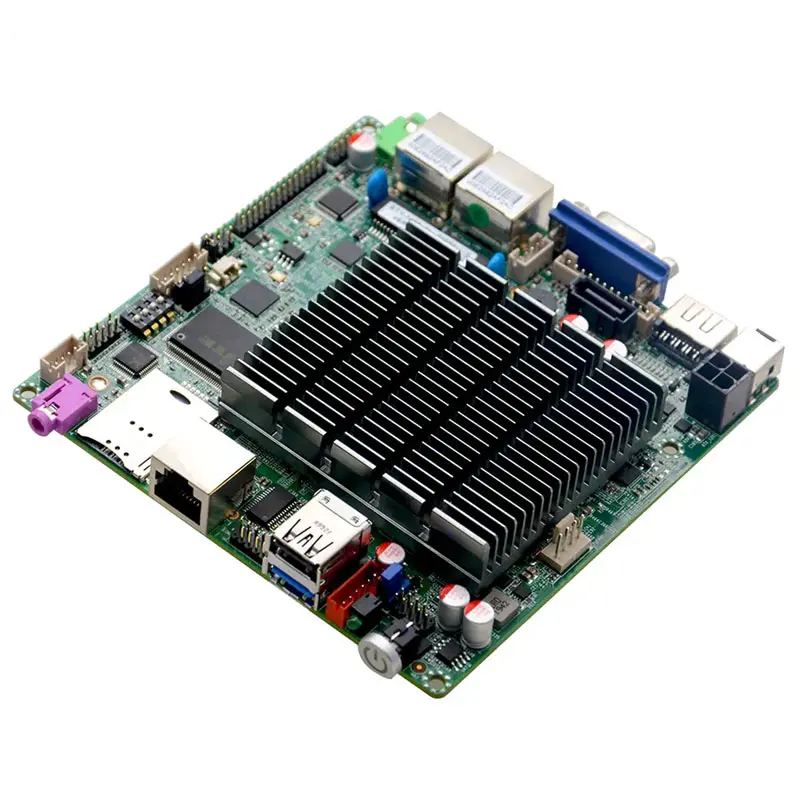

Nano ITX Motherboard J1900

Model: STX-N29_2L

Intel®J1900/2.00GHz quad-core processor
1 x DDR3L Ram, Max 8GB
2 x RTL8111F Gigabit Ethernet
AMI 64Mb Flash ROM
Windows 7/Windows 10/Linux
Support VGA, HDMI display

Share to:

Mechanical

Model	STX-N29_2L VER:1.6
Processor	Integrated Intel®J1900/2.00GHz quad-core processor, TDP power consumption 10W
Chipset	Based on Intel® Bay trail SOC platform
Memory	1*SO DDRIII slot, only supports 1600/1333MHz DDR3L/1.35V memory, maximum support 8GB
Graphic	Integrated Intel®HD Graphics core graphics
Display	1VGA, 1HD OUTPUT, 1*LVDS interface (support dual channel 24BIT) Support VGA; HD OUTPUT; LVDS synchronous/asynchronous display
Network	2* RTL8111F Gigabit Ethernet chip, support Wake on LAN/PXE function
Storage	1* SATA hard disk interface
Audio	Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out. The power amplifier recommends using 2Ω5W speakers
Expansion slot	1* Mini-PCIE slot supports WIFI/3G module 1* MSATA slot supports SSD/WIFI, SSD transmission speed up to 3Gbps

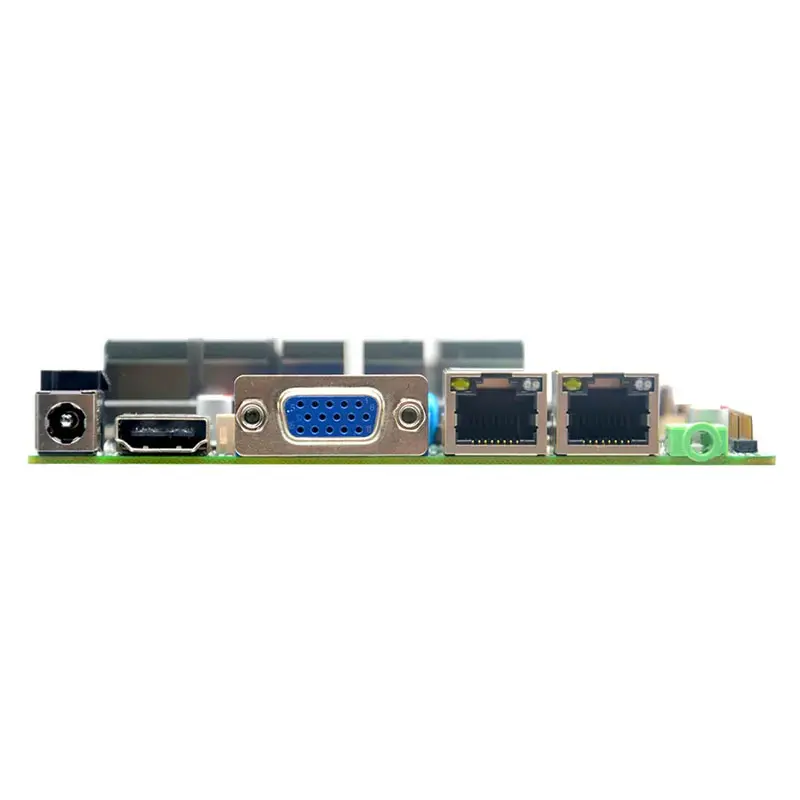

Backplane I/O interface	1USB2.0, 1USB3.0
	1* HD OUTPUT port
	1* VGA port
	2* RJ-45 network interface
	1* Line out (green), 1* MIC (purple)
	1* RJ-45 serial port
	1* Power button
	1* 12V DC_JACK input
Built-in I/O interface	1* LVDS interface (2*15pin), support dual channel 24BIT LCD display
	1* LVDS backlight interface 1*6pin)
	1* JVGA1 interface (1*12pin) same signal as DB15
	1* RS232 serial port
	2* USB2.0 interface (2*5pin)
	1* PS/2 mouse keyboard interface (1*6Pin)
	1* Front panel audio interface (2*5pin)
	1* SIM card holder
	1* Hard disk power supply interface
	1* Front panel function button and indicator light interface (2*5pin)
	1* 4pin ATX 12V input and output power interface
	1Amplifier interface (14pin)
Fan interface	1* CPU fan interface 4pin
GPIO	Support 4 input and output GPIO
BIOS	AMI 64Mb Flash ROM
Watchdog	Support hardware reset function (256 levels, 0~255 seconds)
Operating system	Windows 7/Windows 10/Linux
Power type	DC_12V single power input
Operating temperature	-10℃~60℃
Storage temperature	-20℃~70℃
Working humidity	5%-95% relative humidity, non-condensing
Size	120mm x 120mm

Model	Processor	Graphics	Frequency	Display	Memory	LVDS	LAN	USB	COM	Power
STX-N29_2L VER:1.6	J1900	Intel® HD Graphics	2.0~2.42 GHz	VGA/HDMI	1 x SO-DIMM DDR3L	2ch/24BIT	2	4	2	DC-12V
STX-N29_1L VER:1.6	J1900	Intel® HD Graphics	2.0~2.42 GHz	VGA/HDMI	1 x SO-DIMM DDR3L	2ch/24BIT	1	6	2	DC-12V
