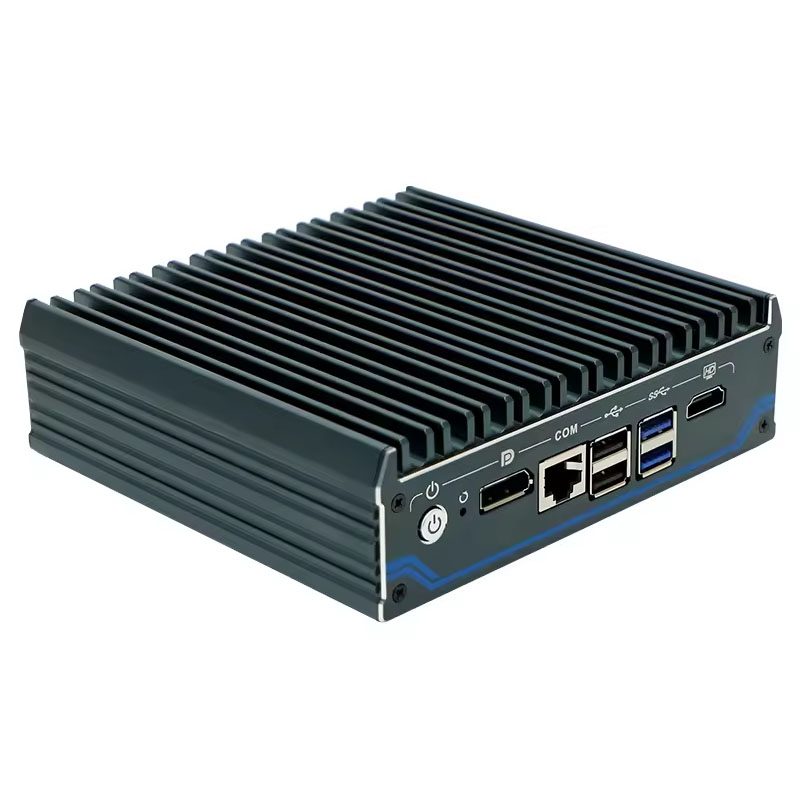

N100 Mini PC

Mode: Partaker C12

Powerful Processor: Intel N100 Quad-Core, up to 3.4 GHz.
Fast Networking: 4x 2.5G LAN ports.
Flexible Storage: 16GB DDR4 RAM, M.2 & 2.5″ HDD.
Graphics Capability: Intel UHD Graphics.
Multiple Ports: HDMI, DP, USB 2.0/3.1, COM.
Expansion Slots: 3x M.2 for WIFI, 4G/5G.
Secure Boot: PXE, watchdog, TPM2.0.
Power Options: Power-on, timed power-on, network wake-up.
Versatile Uses: Firewall, VPN, server, router.
Certified Quality: CE, CCC, FCC, ROHS compliant.

Share to:

Overview

The N100 Mini PC Firewall is a compact quad-core appliance designed for network security. It boasts 4 Intel i225-V 2.5G LAN ports, 16GB DDR4 RAM, storage options like M.2 2280 and 2.5-inch HDD, 3 M.2 slots for WiFi and 4G/5G, HDMI and DP ports, and supports OSes like iKuai, pfSense, Linux, Windows 10/11, providing robust connectivity, storage, and flexibility for small to medium networks.

Mechanical

Model	C12
Processor	Intel Processor N100 (Quad core quad threading, max turbo 3.4 GHz)
CPU Architecture	Alder Lake-N
Chipset	Intel UHD Graphics
Memory	Support 1 x DDR4 3200MHz, MAX 16GB RAM Slot
BIOS	AMI UEFI BIOS
Display Port	1 x HDMI, 1 x DP
Storage	1 x M.2 2280SSlot，1 x 2.5’’ HDD
Expansion	1 x M.2 2280 M-key Slot（Support SATA Protocol）
	1 x M.2 2230 E-key slot (support WIFI, Bluetooth)
	1 x M.2 3052 B-key slot (USB3.0 signal，support 4G/5G ), outside SIM slot

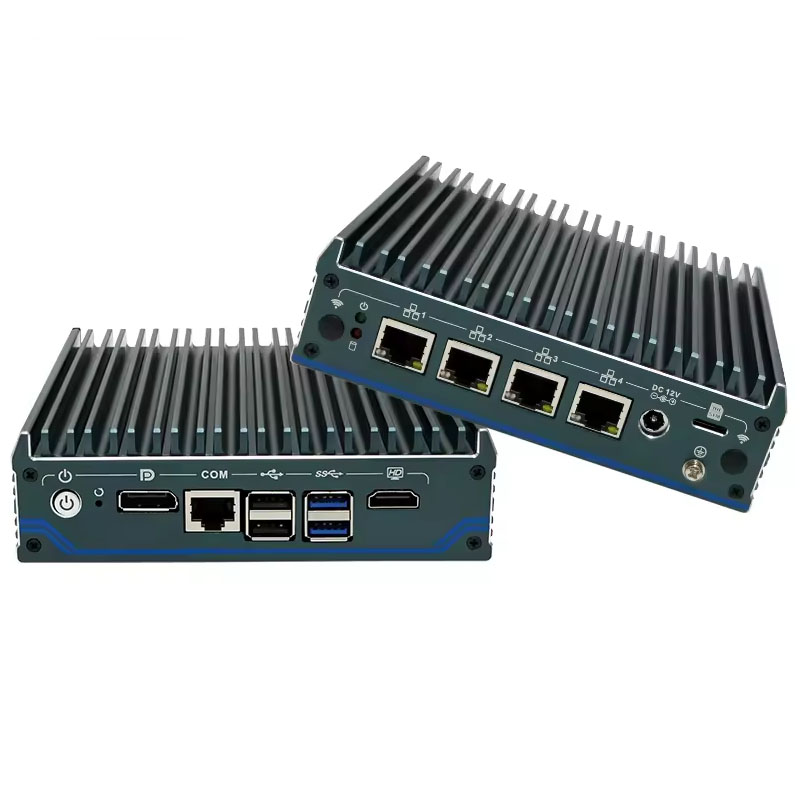

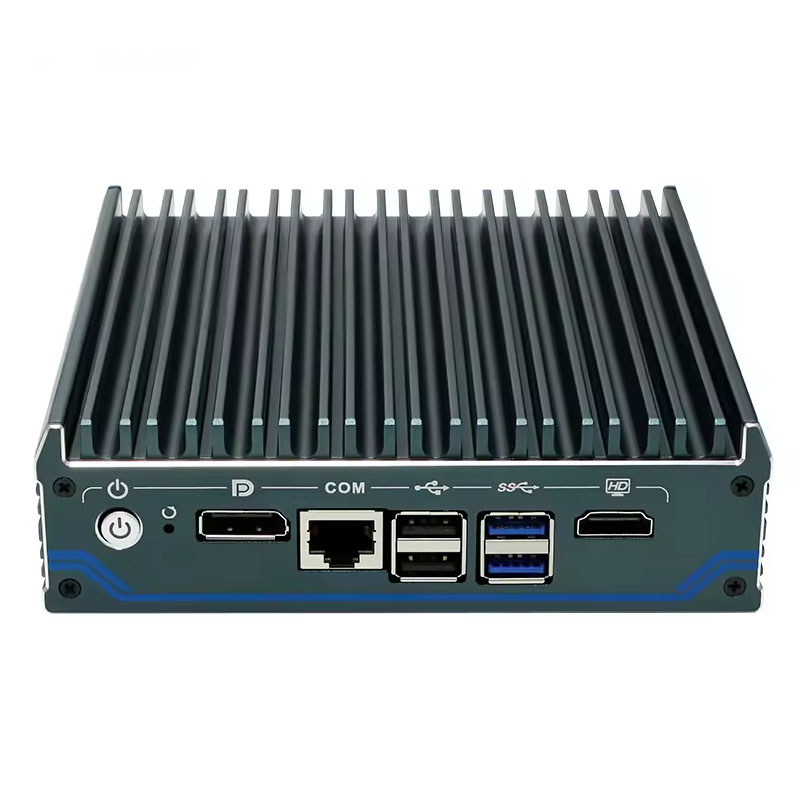

Front I/O	1 x Power switch, 1 x DP,1 x RJ45 COM(support Console function), 3 x USB2.0, 1 x USB3.1, 1 x HDMI, 1 x reset button
Rear I/O	4 x RJ45 LAN, 1 x DC IN, 1 x SIM card slot
Network	4 x Intel i225-V 2.5G LAN
Input Voltage	DC 12V；
Certificates	CE, CCC, FCC Class A, ROHS
Other Function	Power-on, timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption
Application	Firewall, VPN, Network Server, Network Security, Router and etc
Structure Parameter
Color	Metal gray
Material	High-quality all aluminum，surface anodic oxidation
Dimension	144 * 136.7 * 42 mm
Weight	0.79 kg
Environmental Parameter
Work Temp	0℃ ～ +40℃（Commercial HDD），-20℃ ～ +50℃（Industrial SSD），Surface air flow
Work Humidity	0% ～ 95% non-condensing

Model	Processor	Graphics	Frequency	Display	Memory	Storage	LAN	USB	Power
C12	N100	Intel® UHD Graphics	3.40 GHz	HDMI/DP	1 x DDR4, Max 16G	1 x M.2 2280 Slot，1 x 2.5’’ HDD	4	4	DC 12V
