Model: Partaker B25

  • Intel Core i9-12900F/i7-12700F/i5-12400F
  • GeForce RTX 3050/2060/3060 Discrete Graphics
  • 2 x SO-DIMM RAM DDR4 Slot, Max support 64GB
  • M.2 NVME SSD-NGFF/PCIE 4.0 high speed SSD, max support 2TB
  • 2 X 2.5-inch SATA HDD/SSD Slot (SATA 3.0 6.0Gb/s)
  • RTC/Wake on Lan/Auto Power on(BIOS setting)

Share to:

Overview



The B25 Gaming Mini PC is a sleek black desktop computer crafted from aluminum alloy and magnesium alloy, offering robust performance in a compact form factor. With options for Intel Core i5, i7, and i9 processors, NVIDIA RTX graphics cards, and up to 64GB of DDR4 RAM, this mini PC is ready to handle demanding gaming and multimedia tasks. Connectivity options include dual Gigabit LAN, WiFi 6, Bluetooth 5.1, and a variety of USB, HDMI, DisplayPort, and optical audio ports. Its full copper turbo cooler ensures efficient cooling, while its 19V/15A power supply keeps the system running smoothly.



Mechanical

Material Aluminum alloy plus magnesium alloy
Colour Black
Size 270 x 215 x 55mm
Weight 4Kgs
Insallation Method Desktop type
With holding vertical stand



Motherboard

CPU Intel® Core™ i5-12400F, 6 Core 6 threads, 2.5GHz up to 4.4GHz, 18MB Cache
Intel® Core™ i7-12700F, 12 Core 20 threads,  1.6GHz up to 4.9GHz, 25MB Cache
Intel® Core™ i9-12900F, 16 Core 24 threads, 1.8GHz up to 5.1GHz, 30MB Cache
Motherboard H610 all-solid state motherboard
Network Card 2 x Gigabit network interface, support RJ45 100M/1000M
WiFi and Bluetooth Build in AX200 2000M WiFi 6 ,Bluetooth 5.1
Memory 2 x So-dimm DDR4 Slot,Max support 64GB 3200MHz
Storage M.2 NGFF/NVME High Speed SSD , Support 2*2.5inch SATA
Function ALC892 HD audio chip with audio digital optical fiber interface, support auto power on, wake on lan, RTC etc

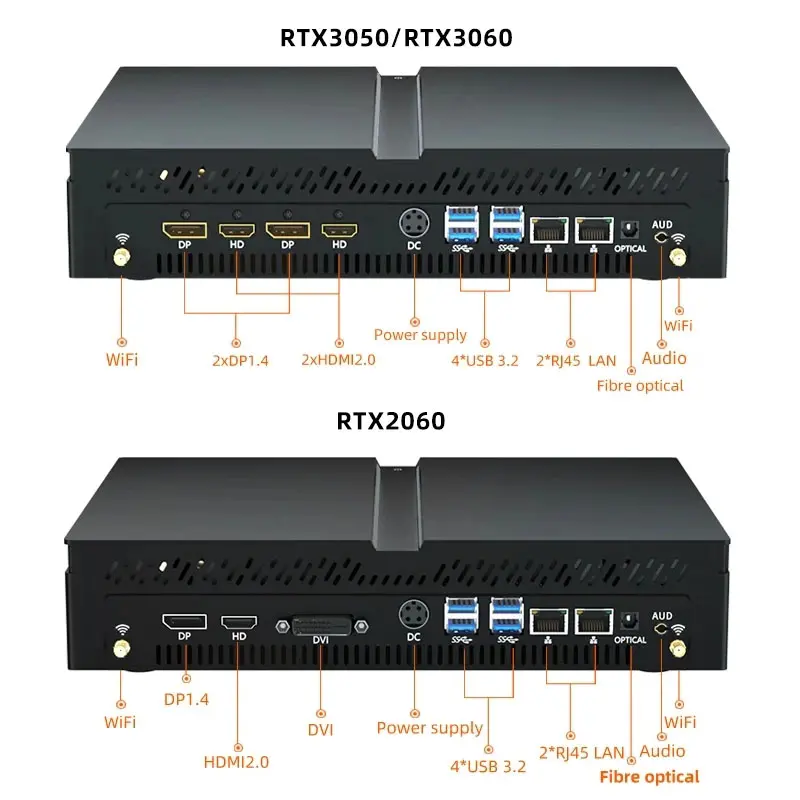

I/O Interfaces

Front Panel 4 x USB3.0
Rear Panel 2 x WIFI Antennas
2 x DP1.4
2 x HDMI2.0
1 x Power Supply
4 x USB3.2
2 x RJ45
1 x Optical
1 x Audio
RTX2060 12G 1 x HDMI2.0+1 x DP1.4+1 x DVI(3840 x 2160)
RTX3050 8G

RTX3060 12G

2 x HDMI2.0+2 x DP1.4(7680 x 4320)



Software Support

Bios AMI bios
System Support Windows 10/11/sever2012/2016/linux/centos/ubuntu



General

Cooling Mode Full cooper turbo cooler
Power Supply 19V/15A
Packing List B25 mini pc, power supply, power cord, vertical stand, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B25 I5 12400F RTX3050 8G 2.5~4.4 GHz DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 PCIE4.0x4 /PCIE3.0x4/NGFF/2 x 2.5 inch SATA 2 8 19V/15A
B25 I7 12700F RTX3050 8G 1.6~4.9 GHz DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 PCIE4.0x4 /PCIE3.0x4/NGFF/2 x 2.5 inch SATA 2 8 19V/15A
B25 I9 12900F RTX3050 8G 1.8~5.1 GHz DP/HDMI/DVI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 PCIE4.0x4 /PCIE3.0x4/NGFF/2 x 2.5 inch SATA 2 8 19V/15A
B25 I5 12400F RTX2060 12G 2.5~4.4 GHz 2 x DP/2 x HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 PCIE4.0x4 /PCIE3.0x4/NGFF/2 x 2.5 inch SATA 2 8 19V/15A
B25 I7 12700F RTX2060 12G 1.9~4.9 GHz 2 x DP/2 x HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 PCIE4.0x4 /PCIE3.0x4/NGFF/2 x 2.5 inch SATA 2 8 19V/15A
B25 I9 12900F RTX2060 12G 1.8~5.1 GHz 2 x DP/2 x HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 PCIE4.0x4 /PCIE3.0x4/NGFF/2 x 2.5 inch SATA 2 8 19V/15A
B25 I5 12400F RTX3060 12G 2.5~4.4 GHz 2 x DP/2 x HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 PCIE4.0x4 /PCIE3.0x4/NGFF/2 x 2.5 inch SATA 2 8 19V/15A
B25 I7 12700F RTX3060 12G 1.9~4.9 GHz 2 x DP/2 x HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 PCIE4.0x4 /PCIE3.0x4/NGFF/2 x 2.5 inch SATA 2 8 19V/15A
B25 I9 12900F RTX3060 12G 1.8~5.1 GHz 2 x DP/2 x HDMI 2 x SO-DIMM DDR4, up to 64GB 1 x M.2 PCIE4.0x4 /PCIE3.0x4/NGFF/2 x 2.5 inch SATA 2 8 19V/15A
