Mini PC N150 Dual 10G SFP

Model: Partaker C7

Compact all-aluminum chassis, measures 135x135x48mm, wall-mountable.
Intel N150 4-core processor, supports up to 16GB DDR5 RAM.
High-speed dual 2.5GbE & dual 10GbE SFP+ ports for networking.
Dual 4K video output via HDMI and DisplayPort.
Flexible storage with M.2 SATA/NVMe and 2.5-inch drive support.
Rich I/O: USB 3.1, USB 2.0, dual RS232/485 COM ports.
Expandable for WiFi, Bluetooth, and 4G/5G cellular connectivity.
Wide operating temperature from -20℃ to +50℃ (industrial grade).
Industrial features: watchdog, TPM 2.0, PXE boot, 12V DC input.
Certified for industrial automation, IoT, edge computing, and robotics.

Share to:

Overview

This compact industrial PC features an efficient fan-assisted cooling system within its all-aluminum chassis. Designed for critical networking tasks, it integrates an Intel processor with dual 2.5GbE and dual 10GbE SFP+ ports, making it a powerful solution for firewalls and network gateways. It offers versatile expansion with support for SSD, WiFi, 4G/5G modules, dual 4K display outputs, and industrial serial ports.

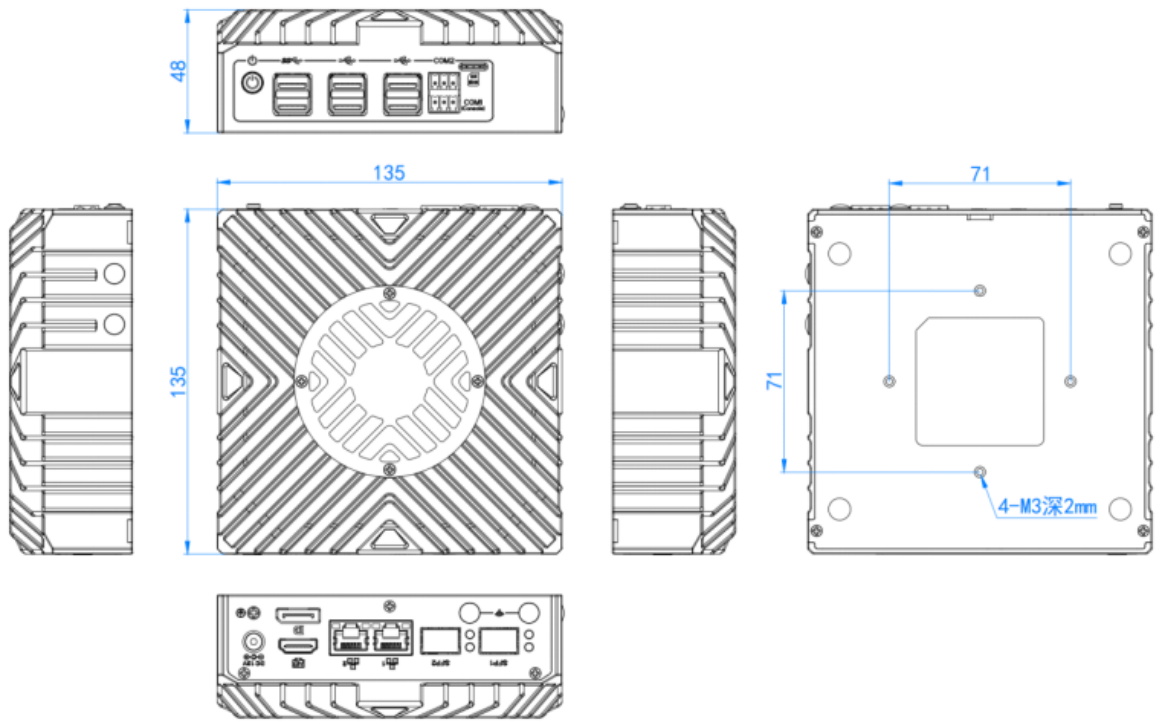

Mechanical

Specification
Model	Partaker C7
Color	Metal Gray (color can be customized)
Material	High-quality all-aluminum alloy
Processor	Intel Twin Lake N150 processor (4 cores 4 threads, Max Turbo 3.6 GHz)
Architecture	Twin Lake
RAM	1*DDR5 4800MHz SODIMM memory slot, Max 16 GB
BIOS	AMI UEFI BIOS
Display Chip	Intel® Graphics
Display Port	1HDMI, 1DP, Resolution up to 4096×2160 @ 60Hz
Front I/O	1power button, 1USB3.1, 5USB2.0, and 1Nano-SIM card slot
	2* 3-pin Phoenix terminal COM (2*RS232/485 modes, COM1 support console)
Rear I/O	1DC, 1HDMI, 1DP 2Intel 2.5G Ethernet ports, 2*10 GbE SFP+ ports
Expansion Slot	1*M.2 2280 M-key slot (compatible with SATA & PCIe 3.0 X1 NVME)
	1*M.2 2230 E-key slot (PCIe & USB / CNVIo2)
	1*M.2 3052 B-key slot (USB 3.0, 4G/5G) and an external Nano-SIM card slot
	Expandable interface (not included in standard shipment)：: 4 GPIO channels
Network	2Intel i226-V 100/1000/2500M Ethernet ports, 210 GbE SFP+ ports (Intel 82599)
Storage	1M.2 2280 slot, 12.5-inch HDD/SSD
Input Voltage	Supports DC 12V input
Other Function	Power-on, timed power-on, PXE boot, network wake-up, watchdog (0-255 levels), TPM2.0 security encryption
Work Temp	0℃ to +40℃ (for commercial HDDs), -20℃ to +50℃ (for industrial SSDs), with surface airflow
Work Humidity	0% to 95% non-condensed state
Certificates	CE、 CCC、 FCC Class A、 RoHS
Dimension	135 * 135 * 48 mm
Net Weight	0.80 kg
Application	Industrial control, industrial automation, robotics, IoT gateways, edge computing, machine vision, AGVs/AMRs, and more

Packing list
Name	Quantity		Specification
Power Adapter	1		The N150 Recommends 12V 5A
Power Cord	1		American-Standard
VESA	1		Standard
Optional information
Configuration 1	C7	Intel N150		Standard Port
Note: When using both WIFI and 5G modules, an antenna mounting hole must be added. For assistance, contact your pre-sales technician.
