Mini PC 12th Pro Intel-N100

Mini PC 12th Pro Intel-N100

Model: Partaker H11

  • The Mini PC N100 is equipped with the Intel Alder Lake-N N100 processor and Intel UHD Graphics with 24 Execution Units (EUs) running at 750MHz, offering high processing and graphics performance.
  • The Mini PC N100 features a single DDR5 4800MHz notebook memory slot, supporting up to 16GB of memory capacity. It also provides one M.2 slot (supporting NVME protocol) and one SATA3.0 interface for storage devices.
  • The Mini PC N100 comes with one HDMI and one DP (DisplayPort) interface, supporting synchronous or asynchronous display. It allows for connecting multiple displays for extended workspace or multitasking.
  • With the DDR5 4800MHz memory slot, the Mini PC N100 offers higher memory bandwidth and processing speed, contributing to improved system performance and responsiveness.
  • The Mini PC N100 provides flexible expandability, supporting the connection of M.2 NVME and SATA3.0 storage devices, catering to different storage requirements.

Share to:

Overview



Partaker H11 Mini PC N100 features the Intel Alder Lake-N series processor N100, providing powerful performance in a compact form factor. It comes with four I225/226 network cards for reliable network connectivity. The Mini PC N100 supports diskless boot and network wake-on-LAN, allowing for efficient startup and remote wake-up. With HDMI and DP ports, it offers synchronous or asynchronous display options for multiple monitors. The Mini PC N100 utilizes DDR5 memory technology for enhanced performance. With dimensions of 136 x126 x 40mm, it offers a compact size suitable for space-constrained environments. Overall, the Mini PC N100 delivers high-performance computing with its powerful processor, network connectivity, diskless boot support, flexible display options, DDR5 memory, and compact design.





Mechanical

Material Aluminum alloy
Colour Black

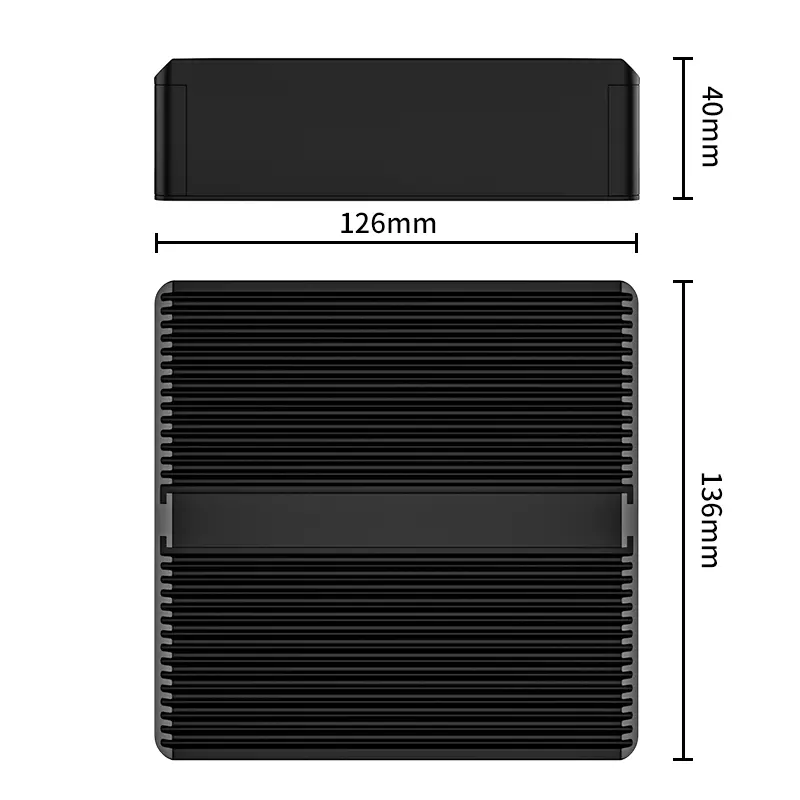

Size 136x 126 x 40mm
Weight 1.5Kgs
Insallation Method Desktop type/Vesa



Motherboard

CPU Intel® Processor N100, 4 Core 4 threads, up to 3.40GHz, 6MB Cache

Intel Celeron Processor J6412, 1.5M Cache, up to 2.60 GHz
Display Ports 1 x HDMI, 1 x DP,  support synchronous or asynchronous display
Color Black
Graphic Intel UHD Graphics
Network Card 4 x Intel i226 Gigabit LAN, support diskless boot, wake on LAN
Expand 1 full-length MINI-PCI-e (support USB signal 3G/4G communication module)
Memory 1 x DDR5 4800MHz notebook memory slot, up to 16GB, SODIMM(N100)

2*DDR4 SO-DIMM 2133~3200MHz Slot(J6412)

Storage 1 x M.2(NVME protocol), 1xSATA3.0
Other Function Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog



I/O Interfaces

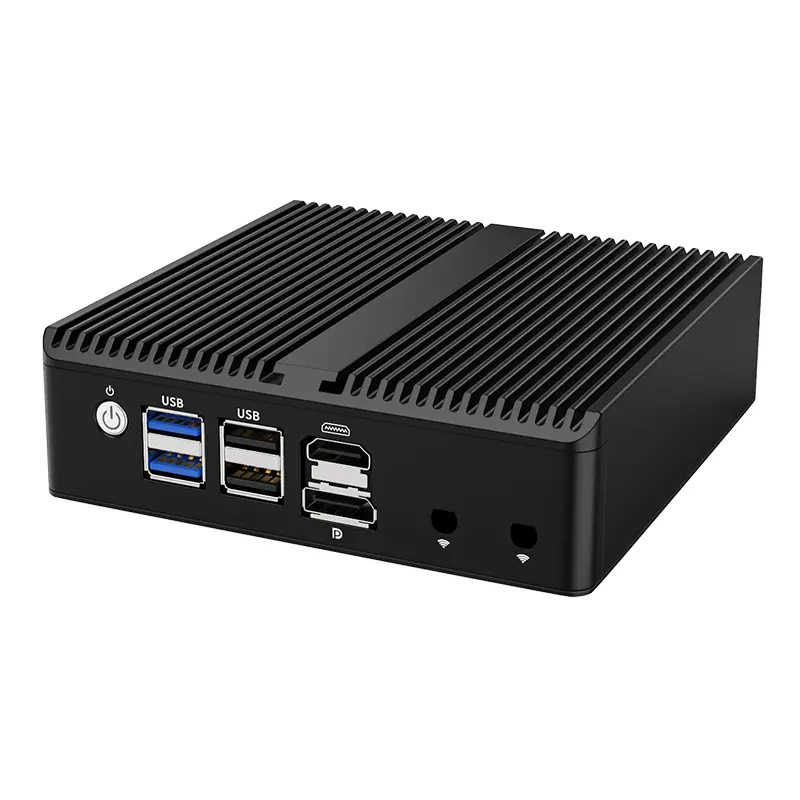

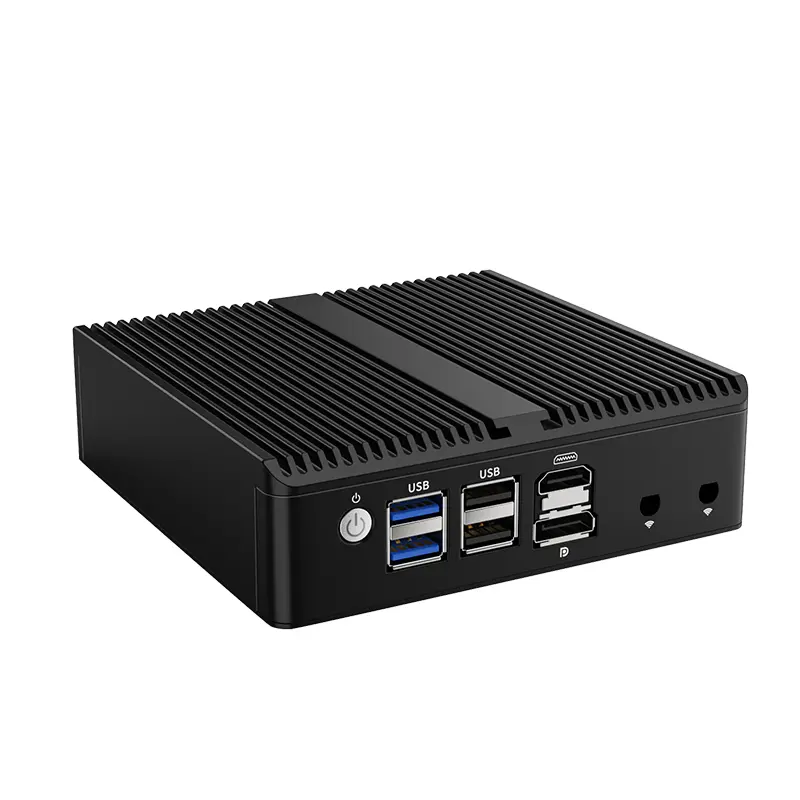

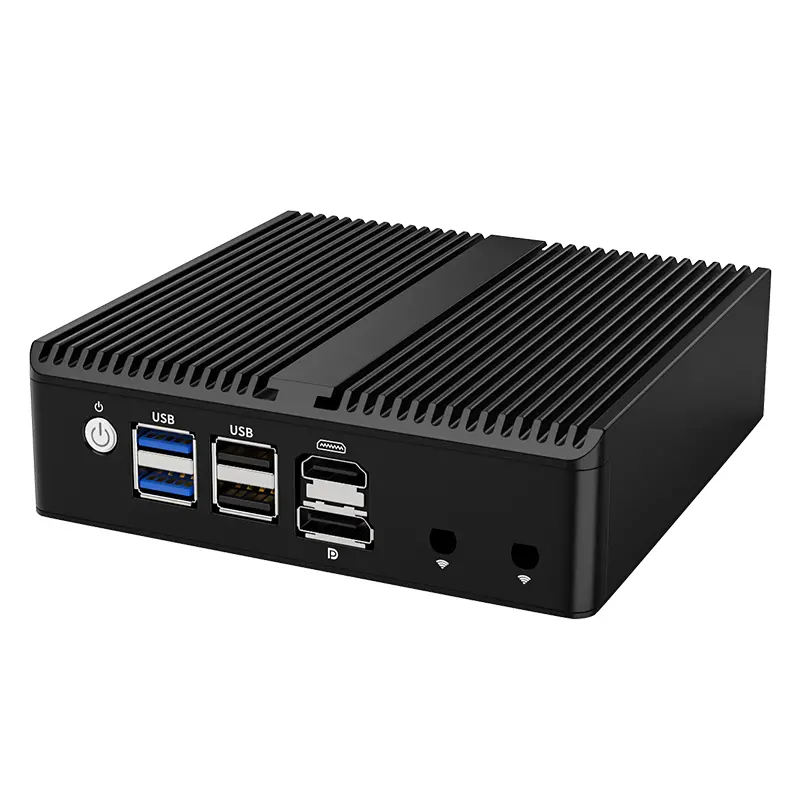

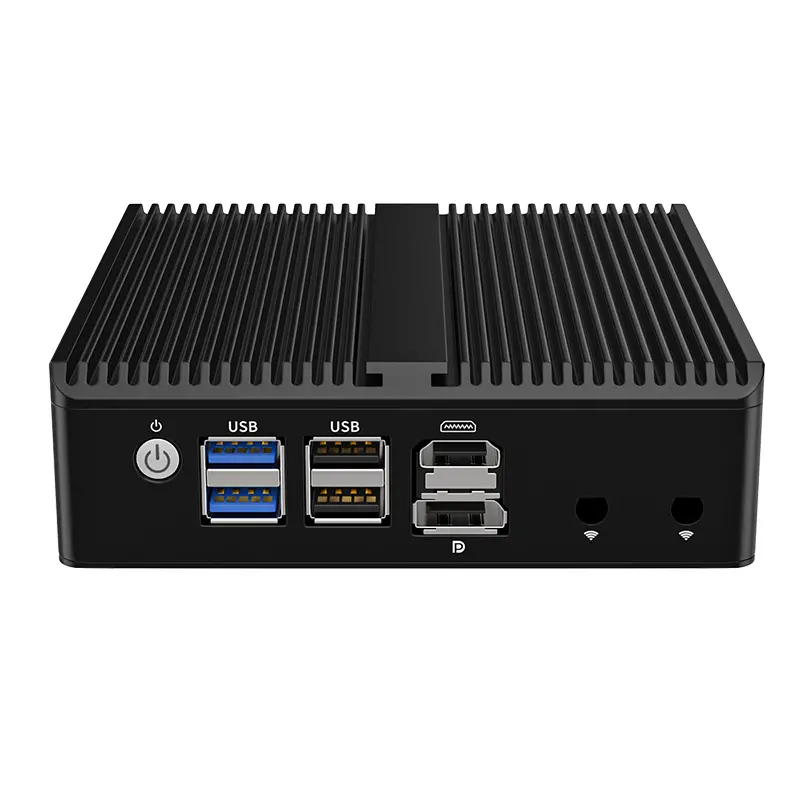

Front Panel 2 x USB3.0
2 x USB2.0
1 x Power SW
2 x WiFi Holes
1 x DP
1 x HDMI

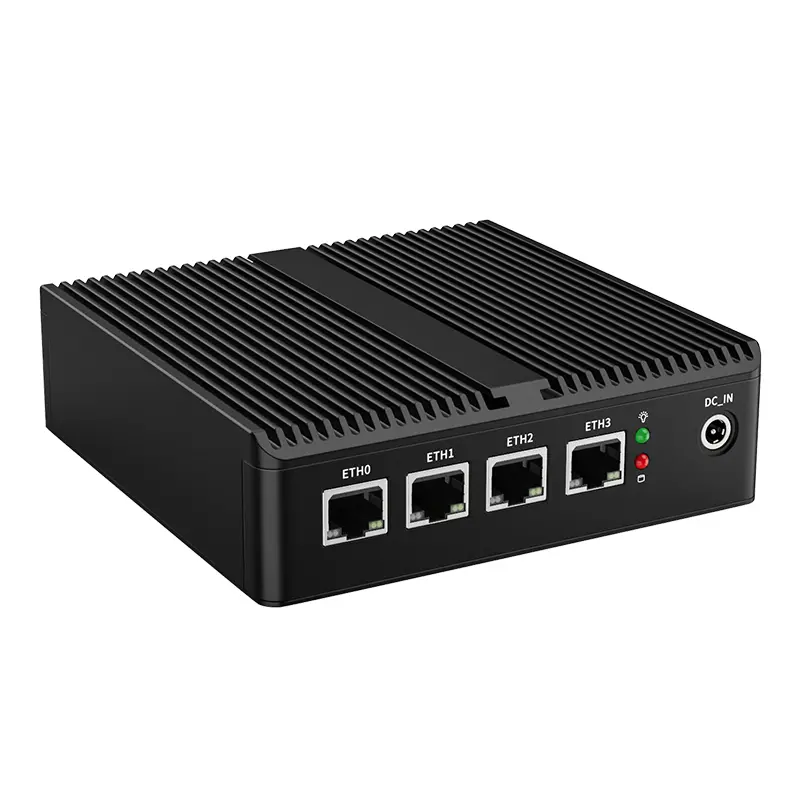

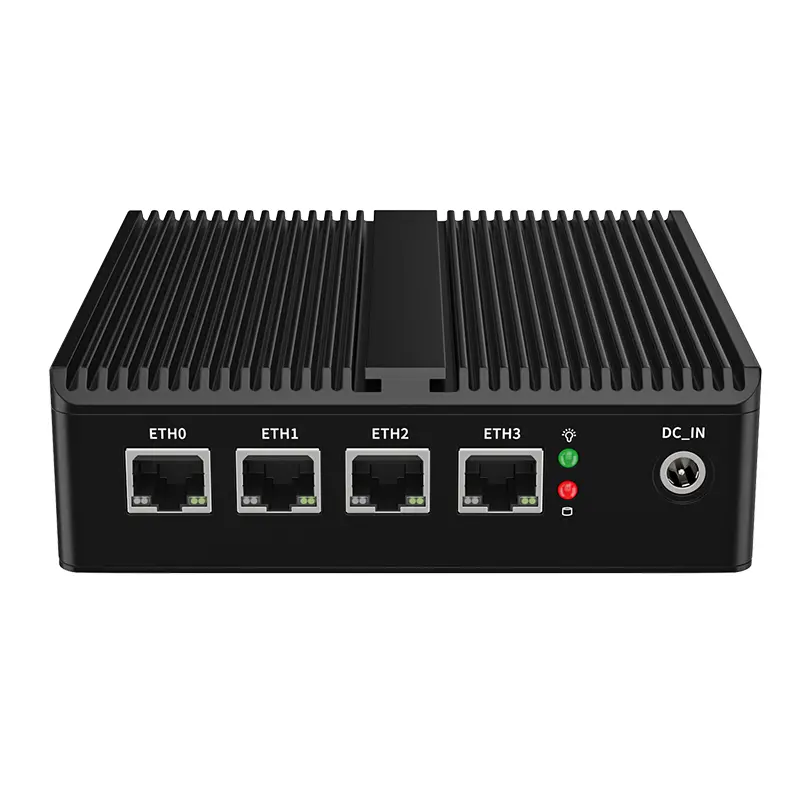

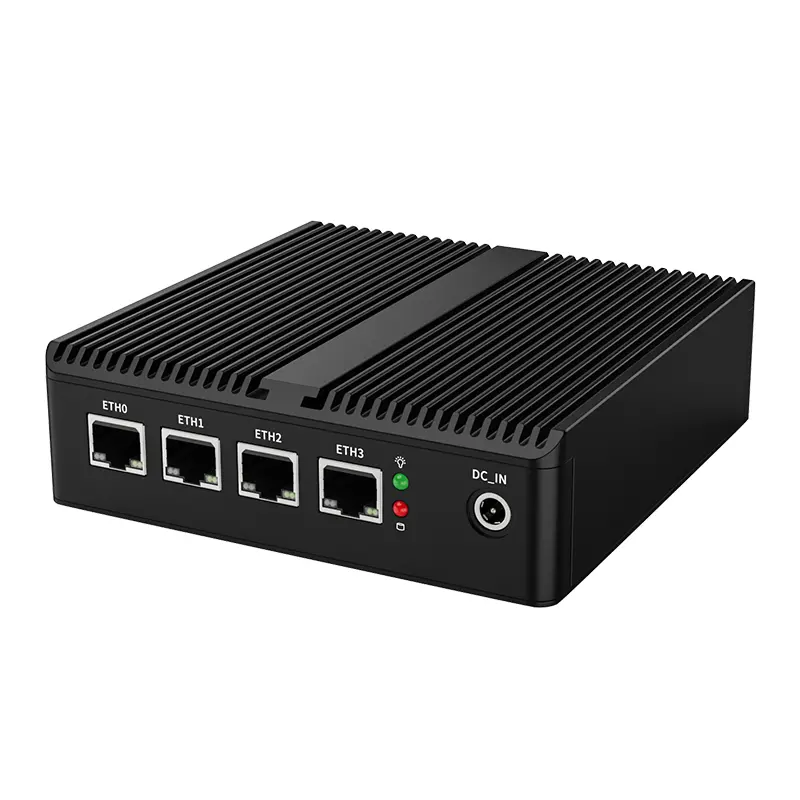

Rear Panel 4 x LAN
2 x indicator light
1 x DC-IN
1 x Type-C



Software Support

Bios AMI EFI BIOS
System Support Windows, Linux Ubuntu, pfSense, OPNsense etc



General

Cooling Mode Fanless
Power Supply DC12V-4A 5.5*2.5
Packing List H11 mini pc, power supply, power cord, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
H11 N100 Intel UHD Graphics 3.40 GHz 1 x DP/1 x HDMI 1 x SO-DIMM DDR5 1 x M.2 NVMe SSD/1 x 2.5 inch SATA 4 4 12V4A
H11 J6412 Intel UHD Graphics 2.00~2.60 GHz 1 x DP/1 x HDMI 2 x SO-DIMM DDR4 1 x M.2 NVMe SSD/1 x 2.5 inch SATA 4 4 12V4A
