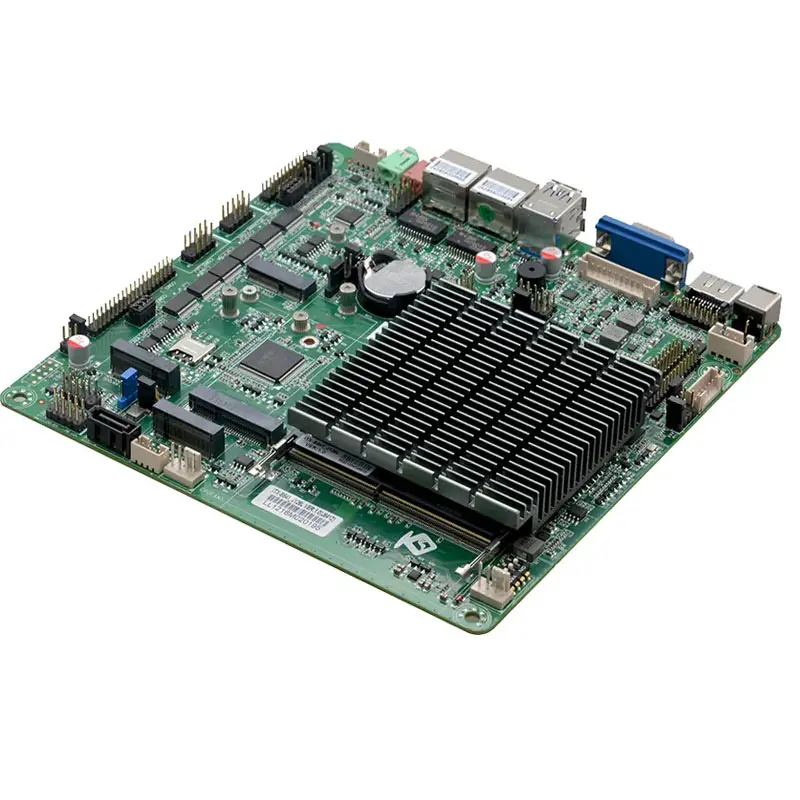

J6412 Mini Mainboard

J6412 Mini Mainboard

Model: ITX-B641_J126L

  • J6412 2.0GHz uad-core quad-thread processor,TDP 10W\
  • 1/2* RTL8111H Gigabit NIC, supports network wake up and PXE functions
  • 1* SATA3.0, 1* MSATA, 2* DDR3L SODIMM
  • 6*USB/8*USB, 2/6*RS232 serial interface
  • 1*VGA, 1*HDMI, 1*LVDS, with DC 12V

Share to:

Overview



J6412 Mini ITX motherboard is a compact mainboard that features Intel Celeron J6412 processor, 1.80 GHz, 2*8111H Gigabit Ethernet, DC 12V power input. It supports dual display output via HDMI and VGA, and has one M.2 slot for SSD or WiFi module. It is ideal for small form factor and low-power applications such as mini PCs, thin clients, and digital signage.



Product model ITX-B641_J126L VER:1.1(J6412)
processor Integrated Intel®Celeron J6412 2.0GHz quad-core quad-thread processor,TDP 10W,Compatible with the full range of Intel® Elkhart Lake cpus, customers can choose flexibly
chipset SOC
Internal memory 1* SODIMM slot for a single channel of 2400MHz DDR4 memory (up to 16GB)
display



Integrated Intel® UHD Graphics core graphics card
1* VGA,1*HD OUTPUT,1* LVDS,1* EDP, Note:LVDS and EDP interfaces are optional
network 2* RTL8111H Gigabit NIC, supports network wake up and PXE functions
deposit





1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps
1* MSATA slot, support SSD SSD,SSD transfer speed up to 6Gbps
1 x M.2 slot, supporting the M.2 Key M 2260/2280 PCIE X2 SSD
Tone frequency



Onboard ALC897 7.1+2 channel hi-fi audio controller with MIC/Line-out support. Power amplifier
The power amplifier is recommended to use a 4Ω3W speaker
Expansion slot



1 x M.2 slot, supporting the M.2 Key B 2242/2252 5G module
1* M.2 slot, supporting the M.2 Key E 2230 WIFI module

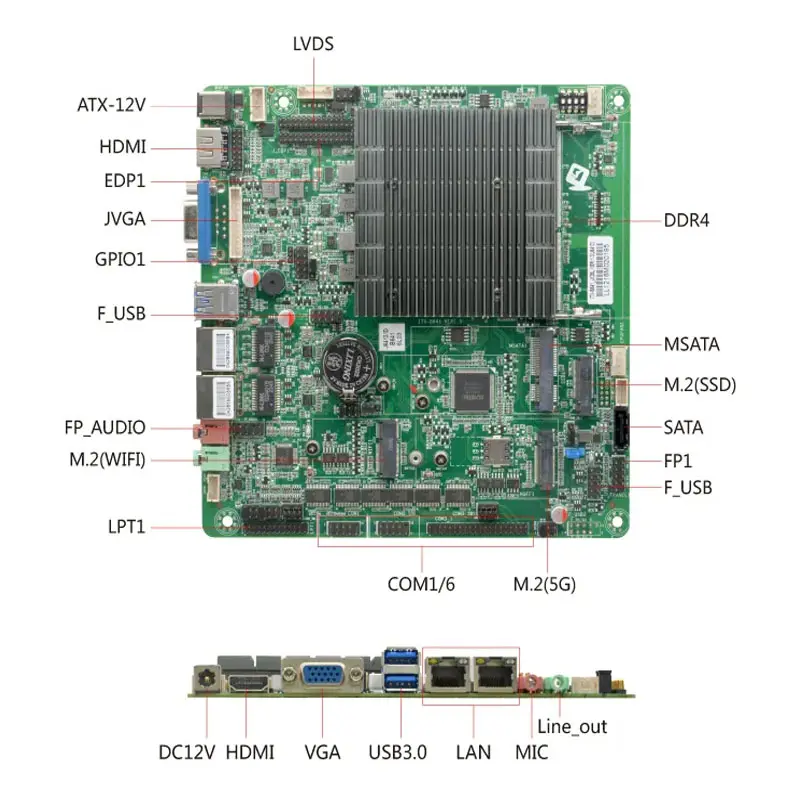

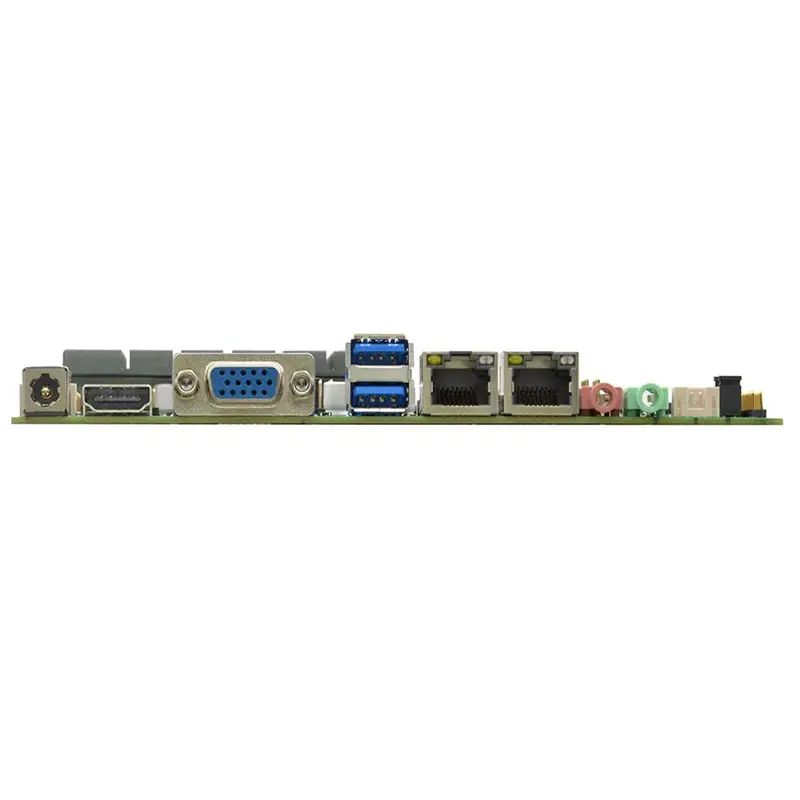

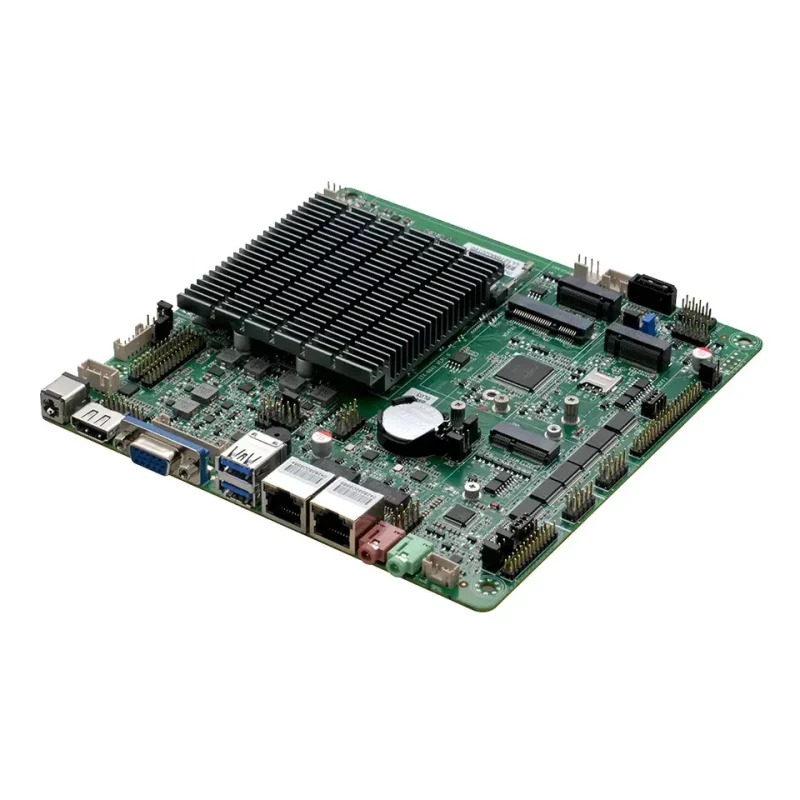

I/O ports on the backplane











1* DC 12V power input port
1 x VGA display port
1* HD OUTPUT display interface
2* USB3.0 interface,
2* RJ45 Gigabit network interface
1* Line-out (green), 1*MICK(red)
Built-in I/O interface



























1* DC power interface, 1*4pin support 12V power input and output
1* JVGA port 1*12pin, same signal as DB15
1* J_HD OUTPUT interface, 2*8pin, the same signal as HD OUTPUT
1* LVDS interface, 2*15pin, support dual channel 24BIT,
1* EDP interface, 2*15pin, and LVDS is one of two options, the default LVDS, requires EDP, need to change the hardware
1* screen backlight power supply interface 1*6pin
4* USB2.0 interface, 2*5pin
6* RS232 serial interface,COM1/2 support 9pin live function,COM2/COM3 support RS485/422 function,
1* hard drive power port 1*4pin
1* front audio interface 2*5pin
1* power amplifier interface 1*4pin
1* LPT interface 2*13pin
1* SIM card slot
1* Front panel function button and indicator port 2*5pin
Fan interface Without fan heat dissipation, a 1*4pin CPU intelligent fan port and a 1*4pin system fan port are reserved
GPIO Supports four input/output GPIO
BIOS 256Mb Flash ROM
Guard dog Support hardware reset function (256 level, 0~255 seconds)
Operating system Windows 10/Windows 11/Linux
Power supply type Adopts DC 12V power supply
Operating temperature -10℃ to 60℃
Storage temperature -20℃ to 70℃
Working humidity 5%-95% relative humidity, no condensation

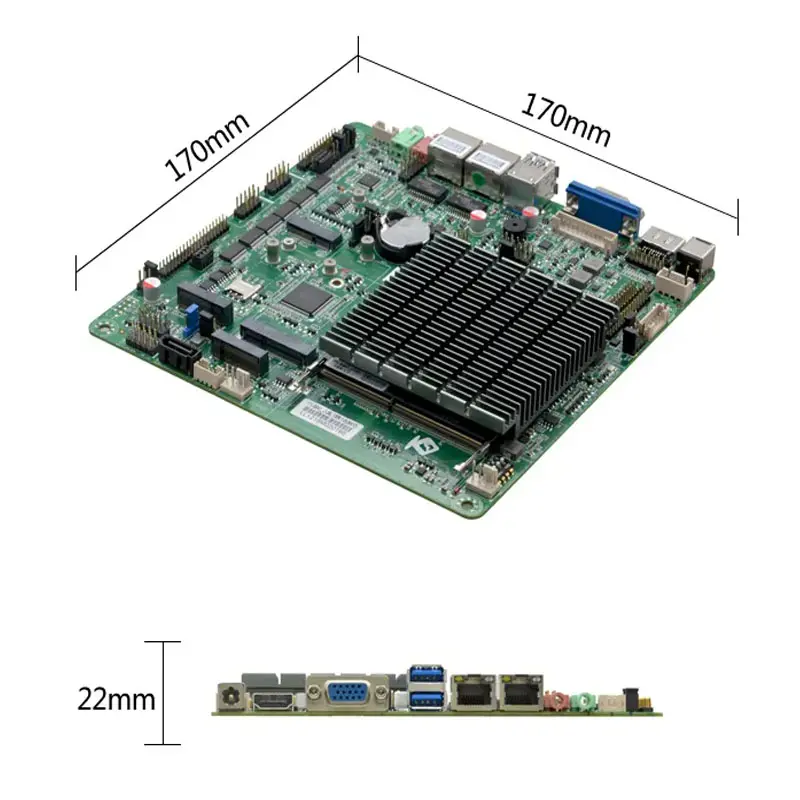

Dimension 170mm x 170mm



Model Processor Frequency Memory VGA LVDS HDMI LAN EDP USB RS485/422 COM Power
ITX-B641_J126L VER:1.0(J6412) J6412 2.0G 1*SODDR4

1

2ch*24bit

1

2*8111H 1 6 COM2/COM3 6 DC 12V
ITX-B641_J112L VER:1.0(J6412) J6412 2.0G 1*SODDR4

1

2ch*24bit

1

1*8111H 1 8 COM2 2 DC 12V
