Intel Mini PC J6412 with TPM2.0

Intel Mini PC J6412 with TPM2.0

Model: Partaker C6

  • All aluminum structure, fanless design
  • Onboard Intel Celeron J6412 Quad Core Processor
  • Support 3 x Intel i225-V 2.5G LAN
  • Support 1 x M.2 3052 B-key, 5G module Optional
  • Support 3 x M.2 Slot (WIFI+4G or WIFI+5G Optional)
  • Support 6 x USB (3*USB3.1)
  • Support synchronous and asynchronous three display
  • Support 4K full HD display

Share to:

Overview



This Mini PC is powered by an Intel Celeron J6412 quad-core processor and features Intel UHD Graphics, supporting up to 32GB DDR4 RAM. It boasts triple display capabilities with HDMI and DP ports, and offers ample storage with M.2 and 2.5″ SSD/HDD slots. With multiple expansion slots for SATA, USB3.0, 4G/5G, WIFI, and Bluetooth, it’s ideal for industrial automation, medical, logistics, and other applications. Certified with CE, CCC, FCC Class A, and ROHS, it includes advanced features like auto power-on, timing boot, Wake on LAN, PXE boot, watchdog, and TPM2.0 security encryption.



Mechanical

Material Aluminum alloy
Colour Metal gray(color can be customized)
Size 150 x 126.5 x 45 mm (W*D*H)
Weight 1.5Kgs
Insallation Method Desktop type/vesa mounting



Motherboard

CPU Adopt Intel Celeron J6412 quad core 2.0GHz
CPU Architecture Elkhart Lake
Network Card 3 x Intel i225-V 2.5G LAN
Mainboard 120*120mm mini itx mainboard
Memory 1 x DDR4 3200MHz SODIMM, Max 32 GB
Display Port 1 x HD Port, 2 x DP Port
Audio Integrated Realtek ALC662 6sound channel
Storage 1 x M.2 2280 slot, 1 x 2.5 inch HDD/SSD
Expand 1 x M.2 2280 M-key slot( support SATA protocol)

1 x M.2 3052 B-key slot(USB3.0 signal,support 4G/5G),1 x SIM slot

1 x M.2 2230 E-key slot(support WIFI, BT)



I/O Interfaces

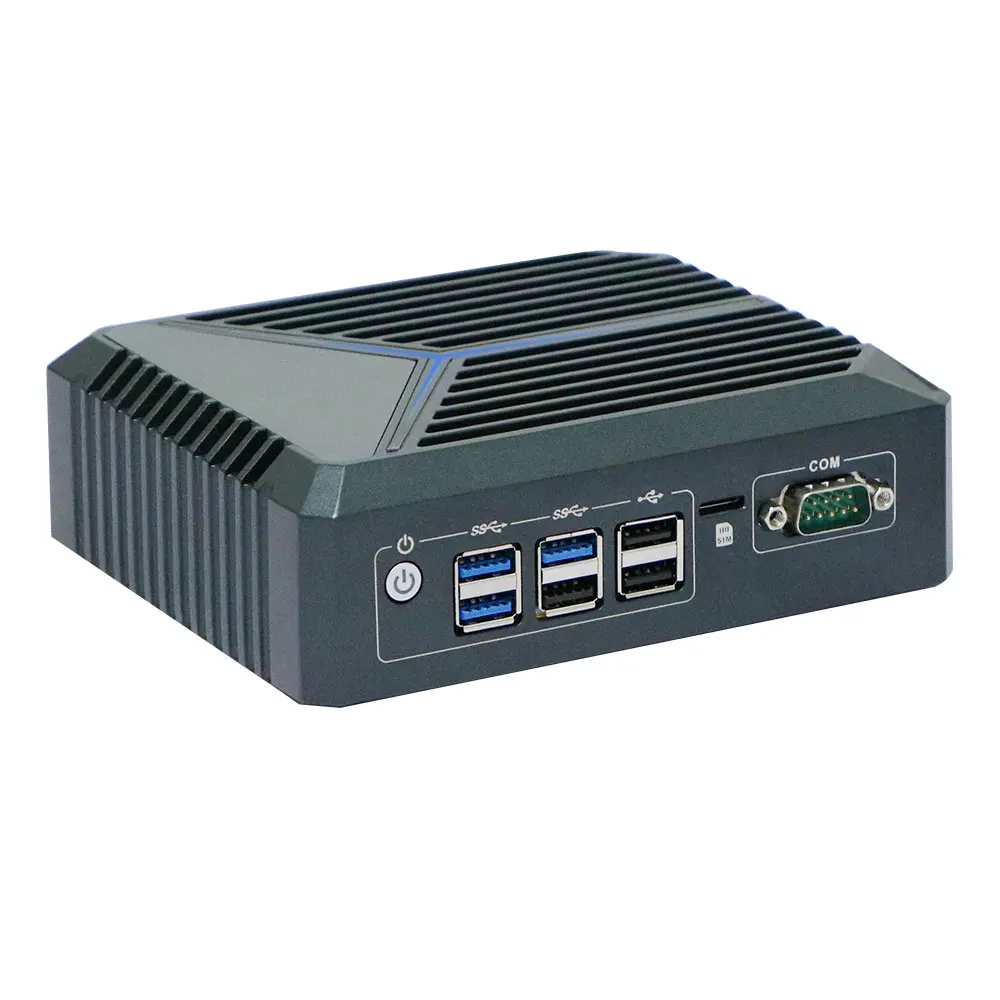

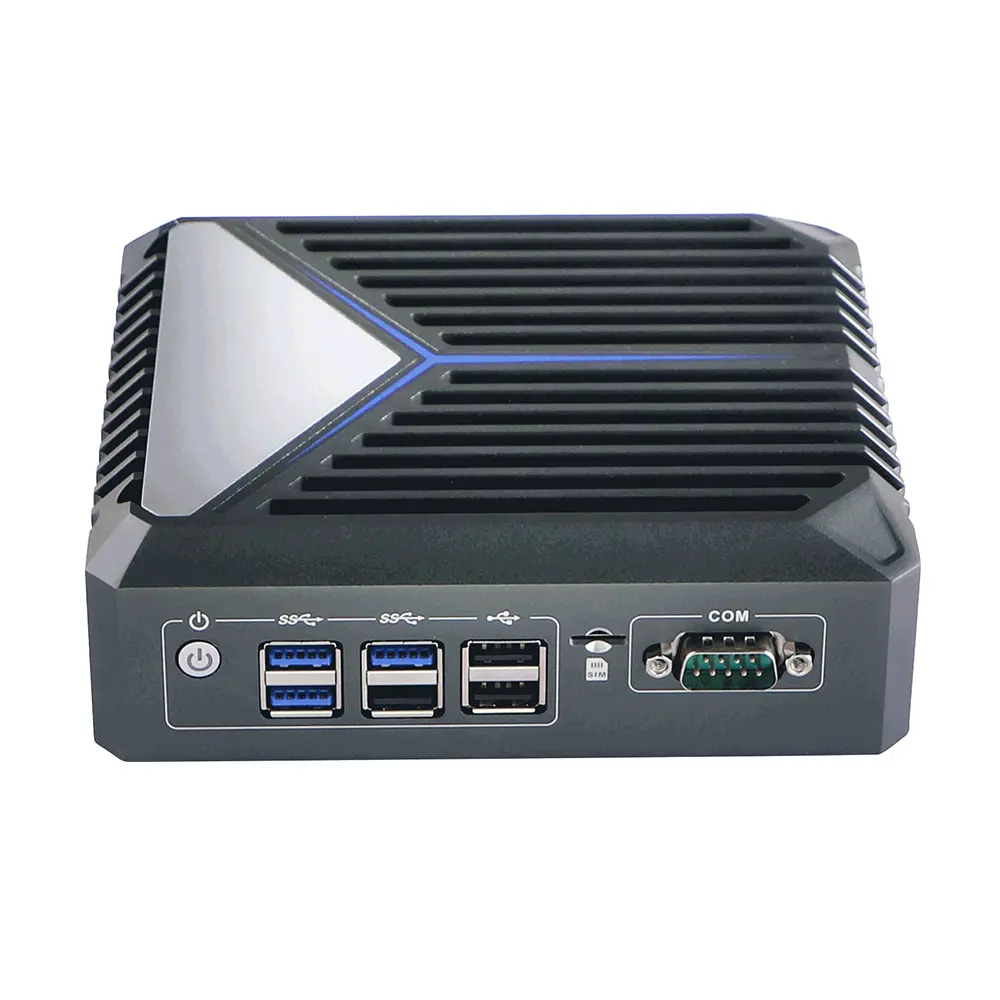

Front Panel 1 x Power button
3 x USB2.0
3 x USB3.0
1 x COM
1 x SIM Card Slot

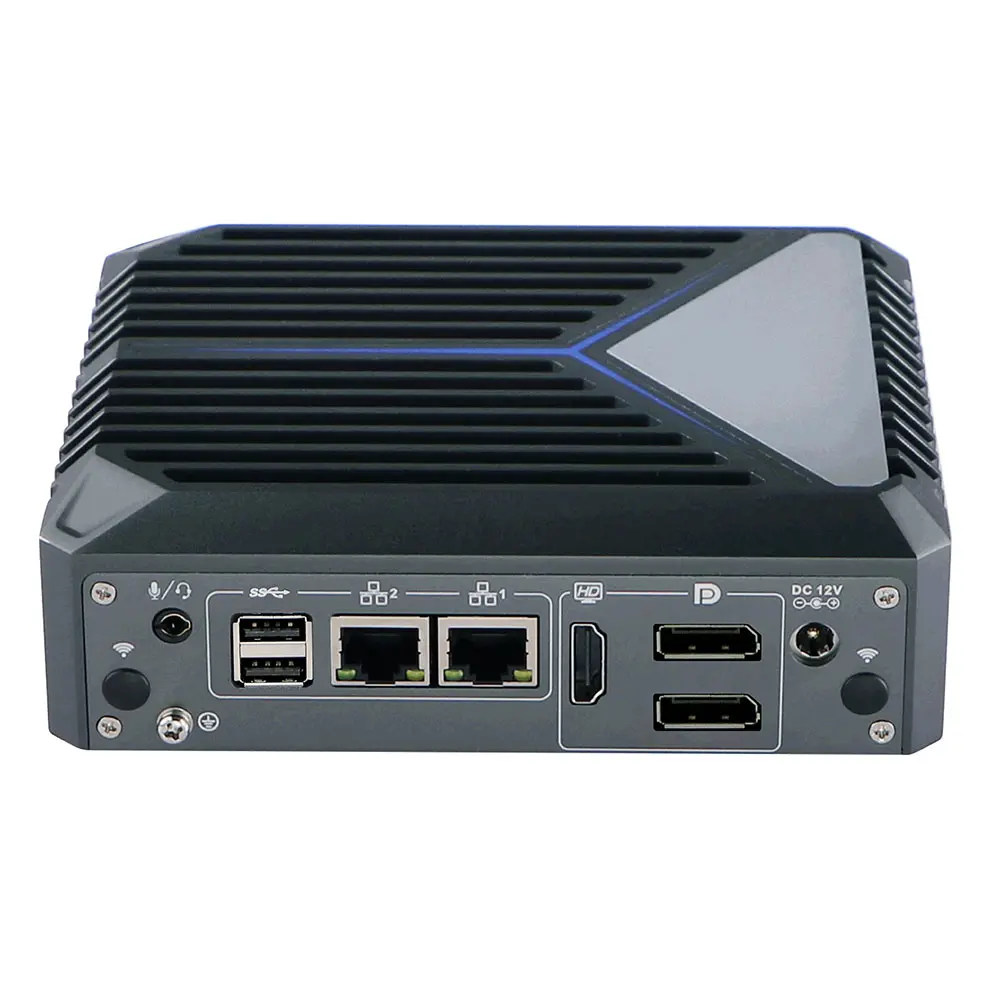

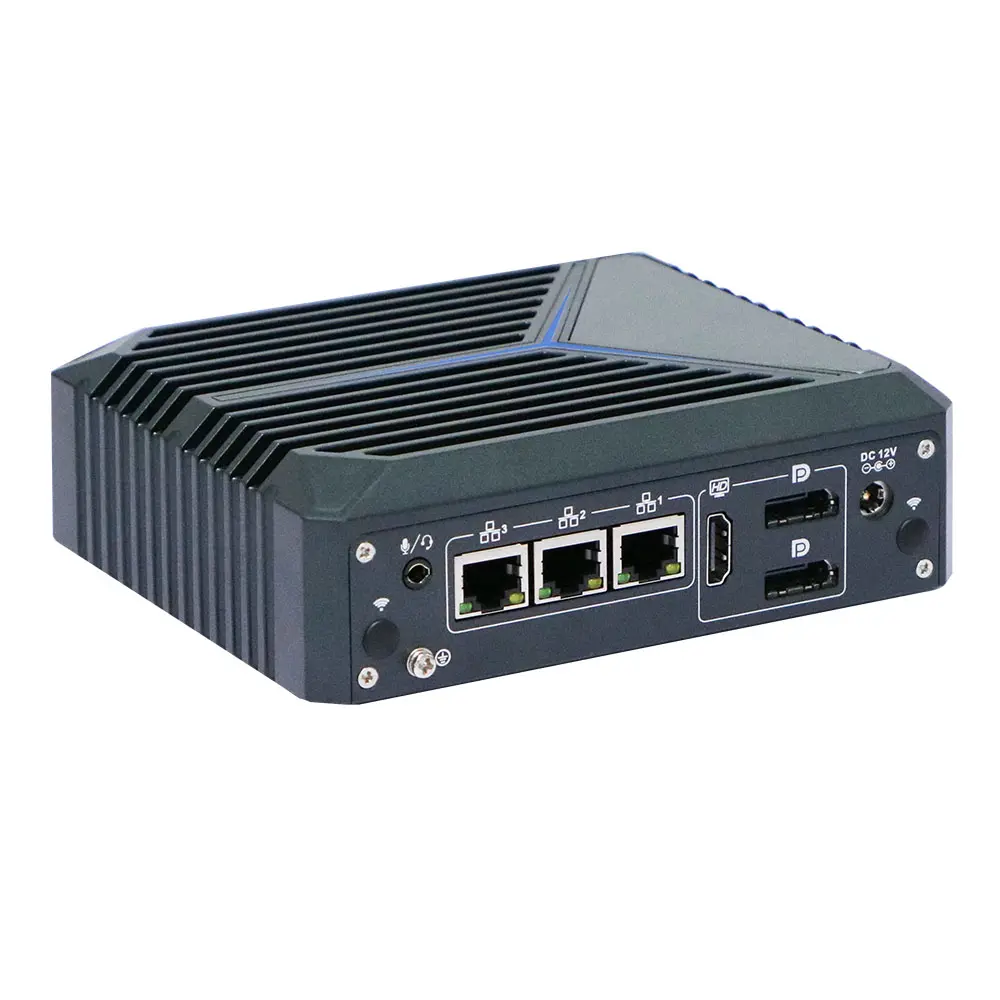

Rear Panel 3 x LAN
1 x DP(4K 60Hz)
1 x HDMI(4K 60Hz)
1 x Audio(Mic and Speaker)
1 x DC-IN 12V



Software Support

Bios AMI UEFI BIOS
System Support Windows 10/11, Linux, pfSense etc



General

Cooling Mode Fanless
Power Supply DC 12V-IN power supply and AC power adapter
Packing List C6 mini pc, power supply, power cord, vesa, warranty card
Application Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education, etc



Environment

Working Temperature 0℃ ~ +40℃(Commercial HDD),-20℃ ~ +60℃(Industrial SSD),Surface air flow
Working Humidity 0% – 95% relative humidity, Non-condensing
Other Function Support Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot, watchdog (level 0-255), TPM2.0 security encryption
Certification CE FCC ROHS



fanless mini computer

Model Processor Graphics Frequency Display Memory Storage LAN USB Power
C6 J6412 Intel® UHD Graphics 2.0~2.6 GHz 1 x HDMI/2 x DP 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch SSD/HDD 3 6 12V/5A
