Intel 12th Gen Rugged Industrial Computer

Intel 12th Gen Rugged Industrial Computer

Model: Partaker I15

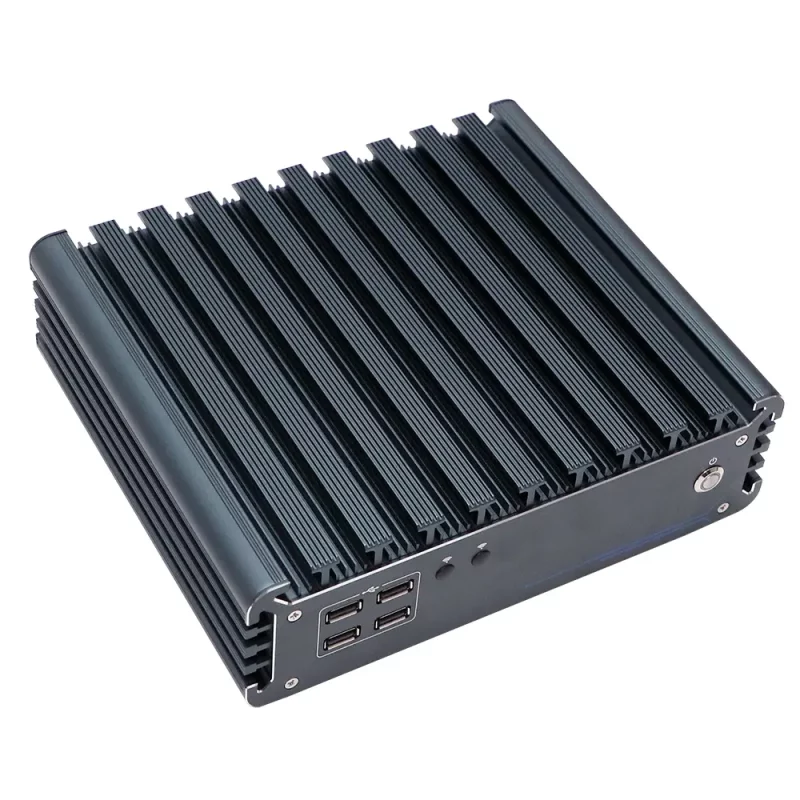

  • All-aluminum alloy structure, fanless design
  • Onboard Alder Lake processor
  • Supports 2 x DDR4 3200 SODIMM memory slots, Max. 64GB
  • Supports 3 x M.2 slot, 2 x 2.5-inch HDD
  • Support 4 x COM (COM1,2 RS232/RS485)
  • Support 4 x HDMI HD display Port
  • Applied OS with Windows 10/Windows 11/Linux

Share to:

Overview



The fanless industrial computer is a powerful and reliable device that can run on the Intel® 12th Core™ i3/i5/i7 processors. It has an all-aluminum alloy structure that ensures durability and heat dissipation. It can support up to 64GB of DDR4 3200 SODIMM memory, 3 M.2 slots, and 2 2.5-inch HDDs for storage and expansion. It also has 4 COM ports (COM1,2 RS232/RS485) and 4 HDMI ports for communication and display. It is a suitable device for various industrial applications that require high performance, low power consumption, and stable operation.





Mechanical

Material High quality aluminum alloy
Colour Dark gray (color can be customized)

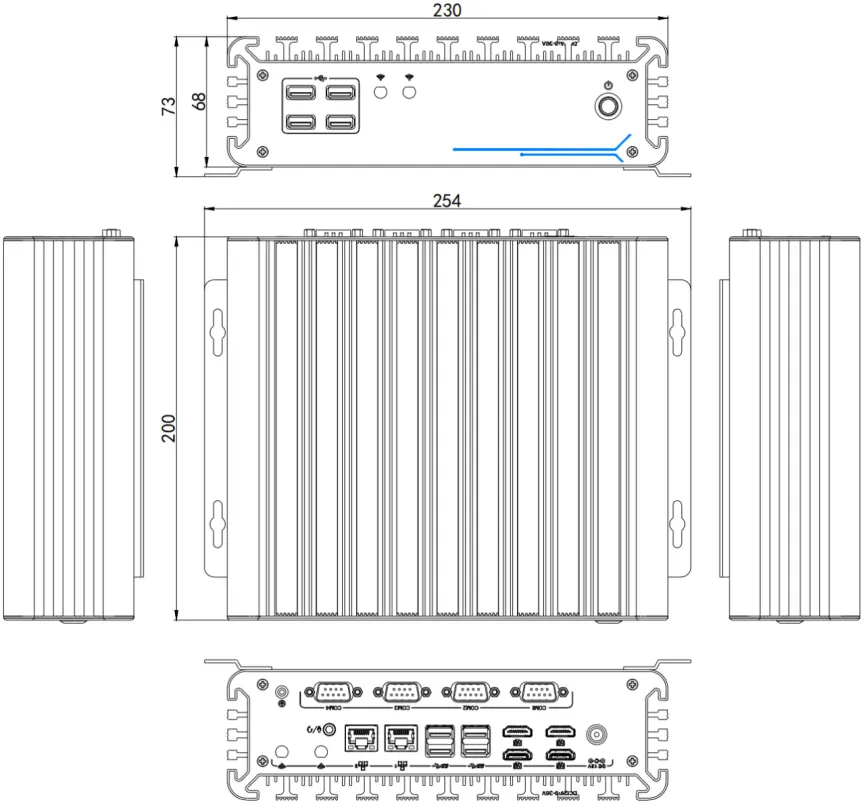

Size 230 * 200 * 68 mm
Weight 2.64kg【without wall mount】
Insallation Method Wall-mounted, Desktop



Motherboard

CPU Intel Core i3 1215U (Six Core 8 Threads, Turbo 4.4 GHz)

Intel Core i5 1235U Ten Core 12 Threads, Turbo4.4 GHz)

Intel Core i7 1255U (Ten Core 12 Threads, Turbo 4.7 GHz)

Display Ports 4 x HDMI HD Display port (supports synchronous/asynchronous multi-display)
Network Card 2 x RTL8111H 10M/100M/1000M LAN
Memory 2 x DDR4 3200 SODIMM memory slots, MAX. 64GB
Storage Supports 1 x M.2 2280 slot (supports NVME protocol), 2 x 2.5-inch HDD
Other Function Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog(0~255 level)
Expansion Supports 1 x M.2 M-Key 2280 slot (supports NVME protocol)

Supports 1 x M.2 E-Key 2230 slot (supports WIFI/Bluetooth)

Supports 1 x M.2 B-Key 3042/3052 slot (supports 4G/5G), with SIM card

Expansion slot (The standard is without it): 2 COM/1 Lan Port (please consult the pre-sales engineer for details on expanding multiple interfaces)



I/O Interfaces

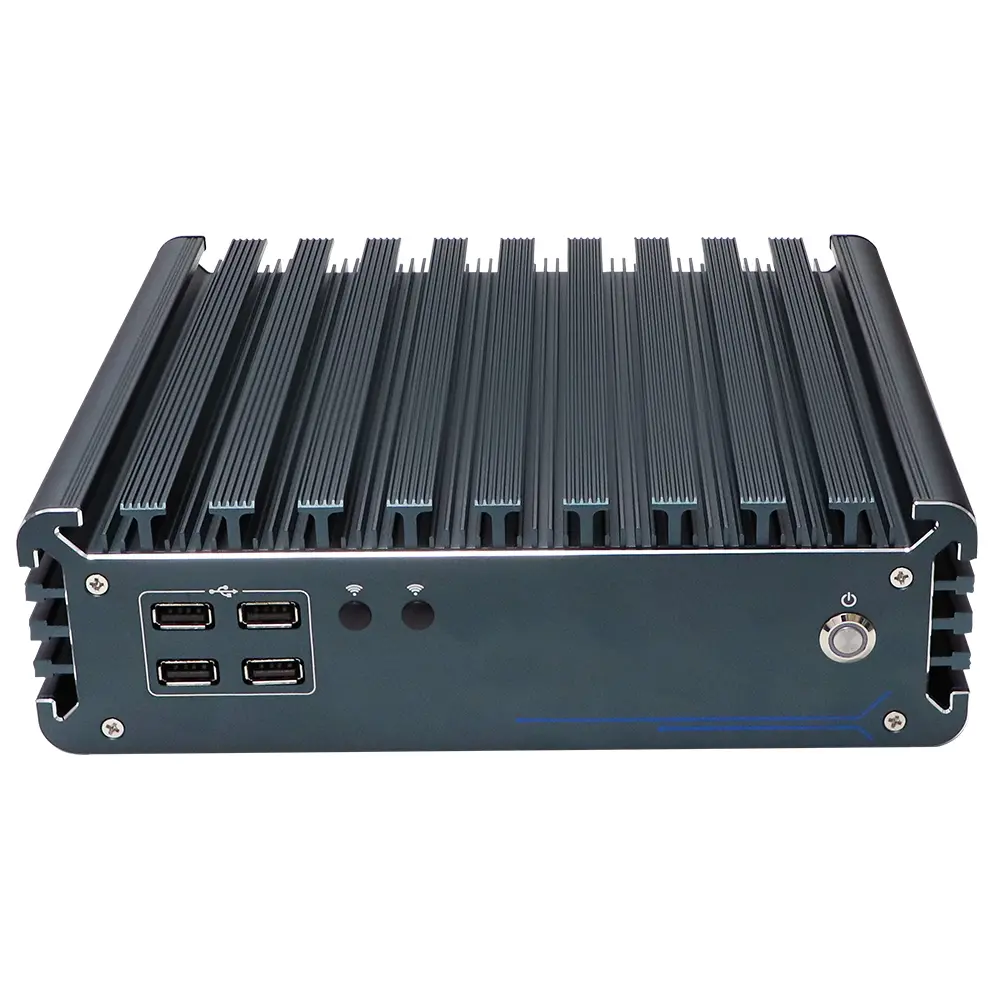

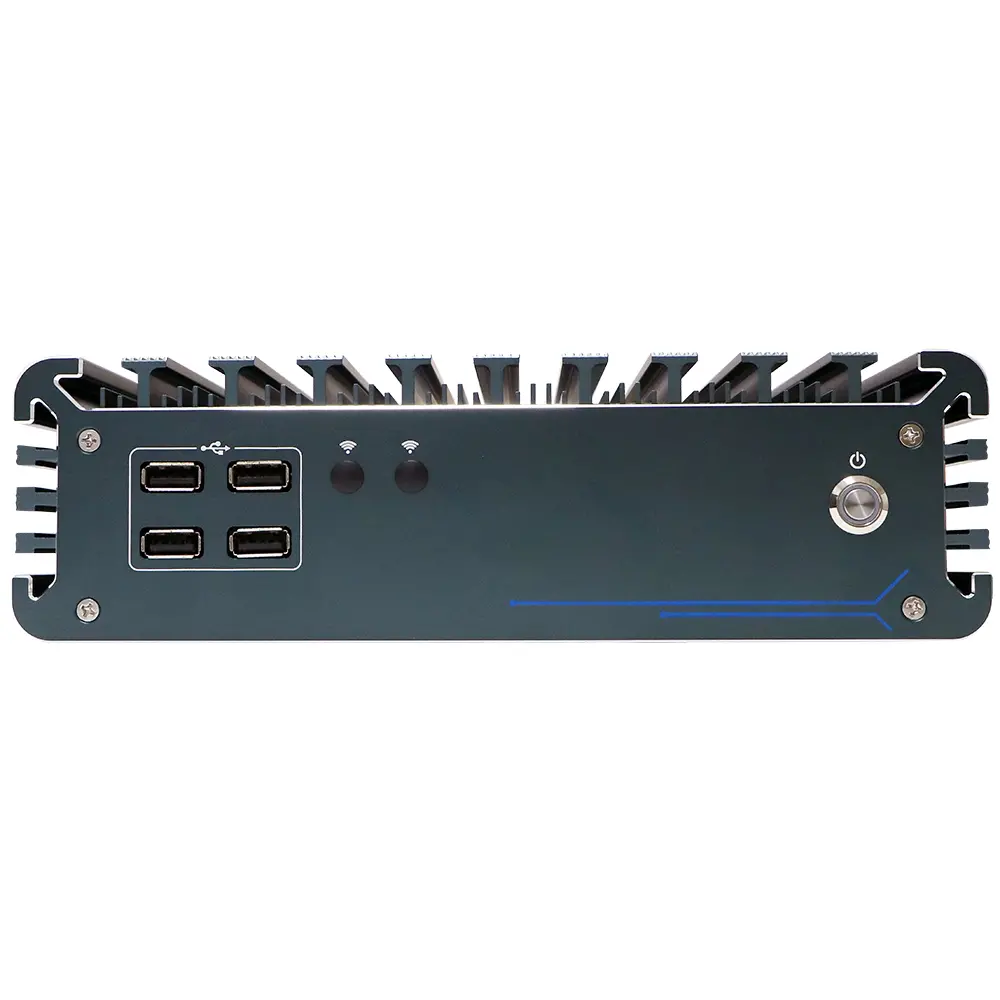

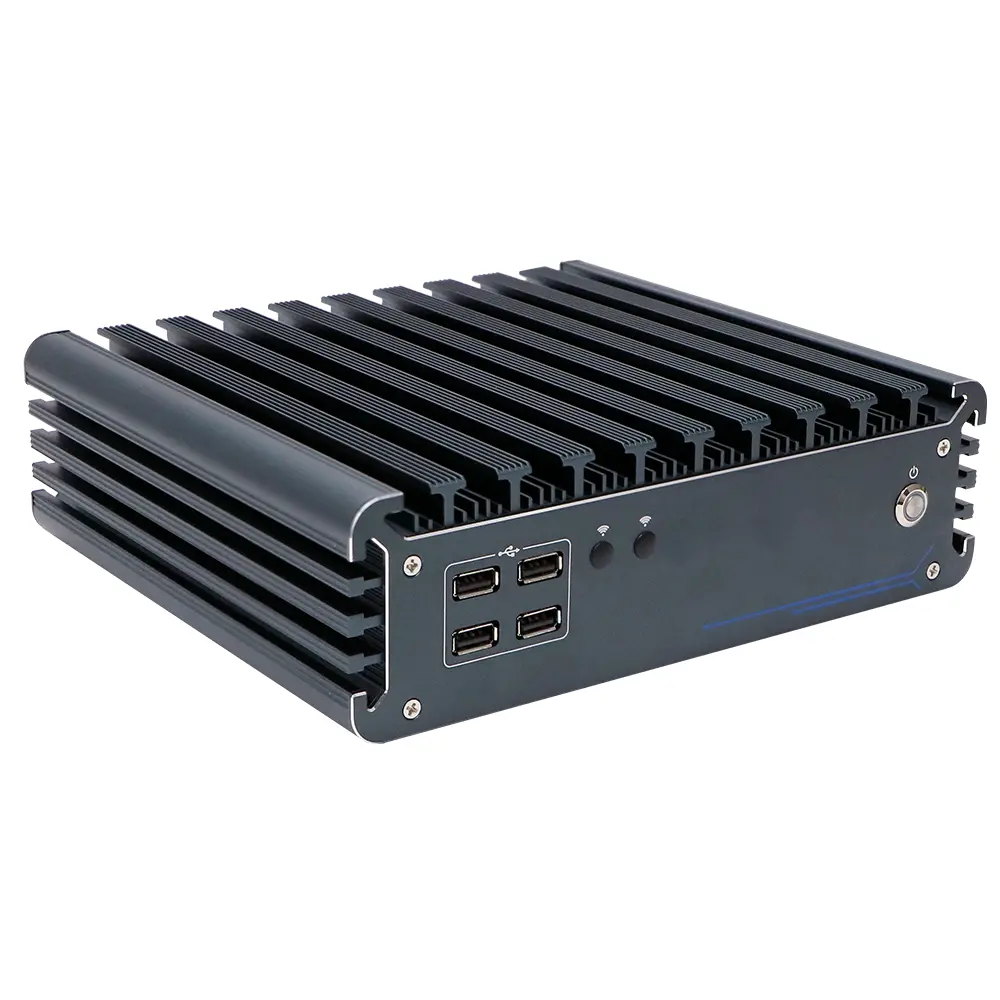

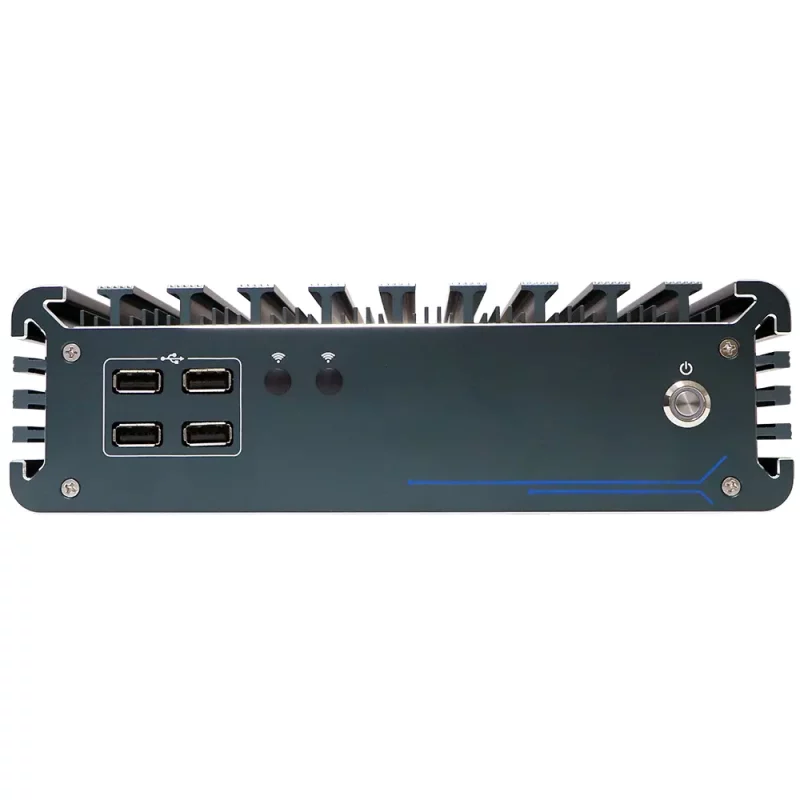

Front Panel 1 x Power Switch
4 x USB2.0

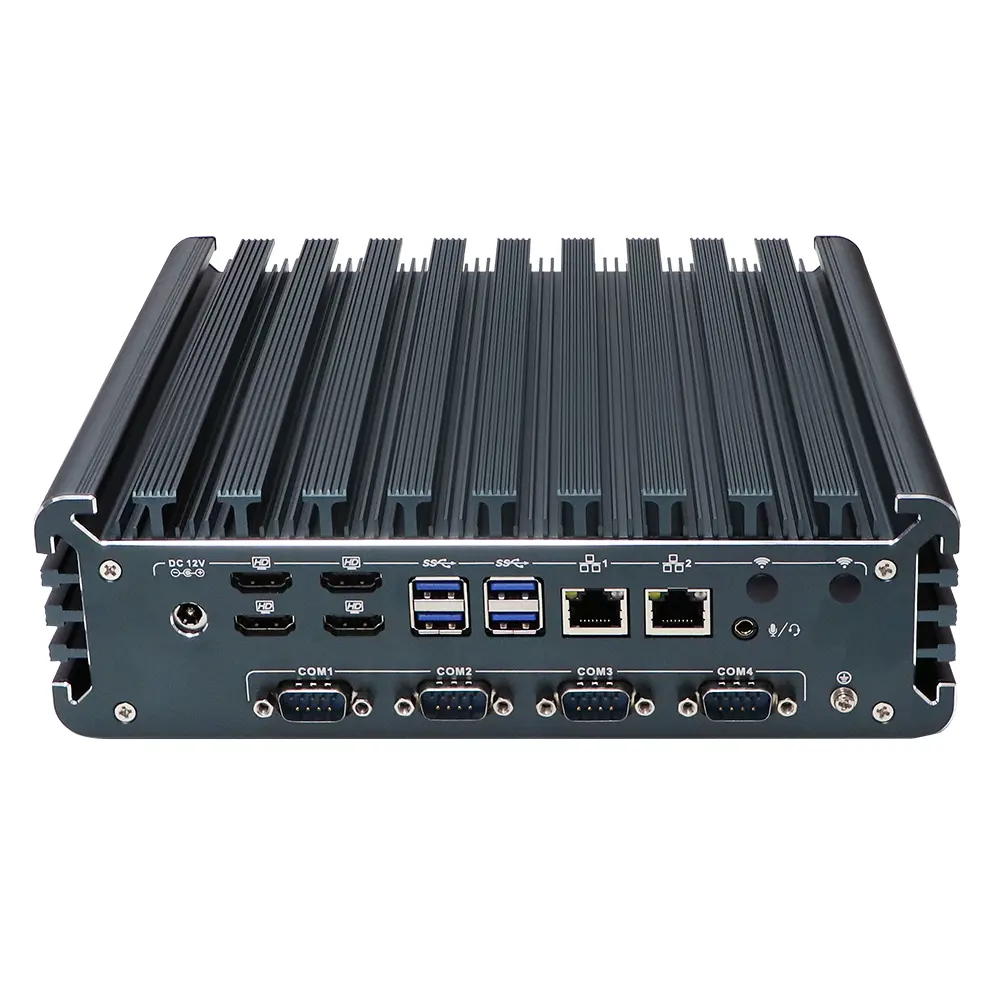

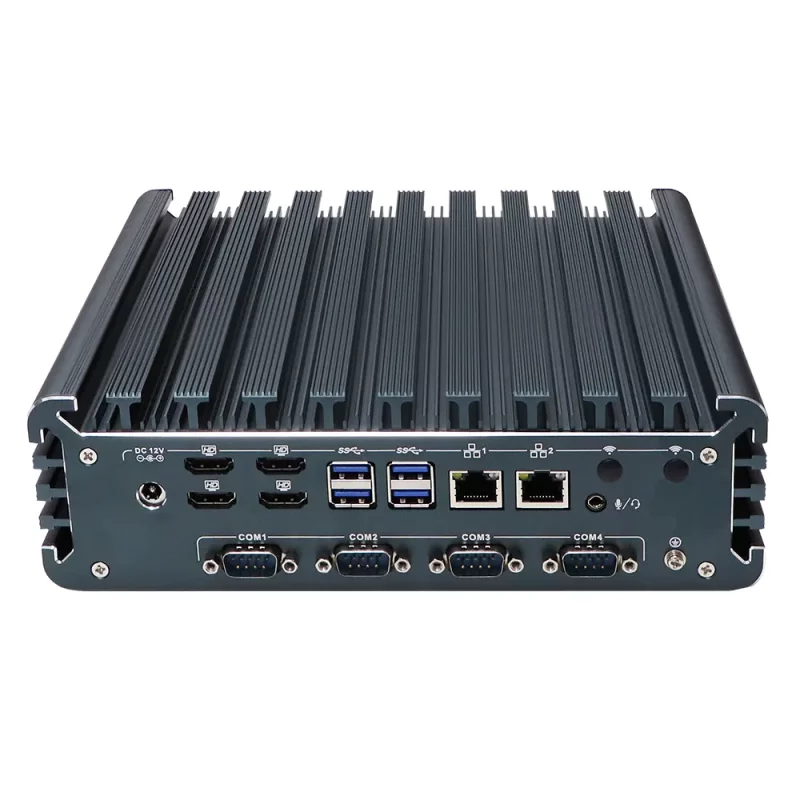

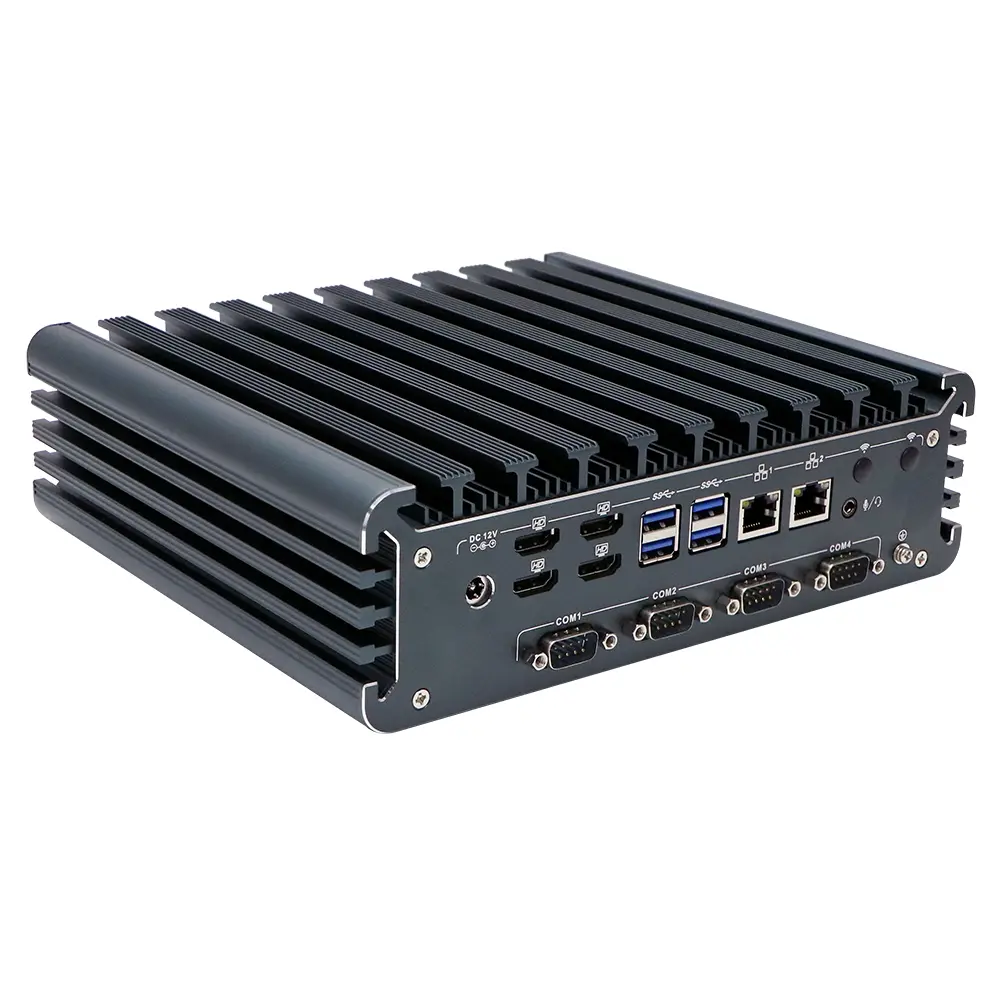

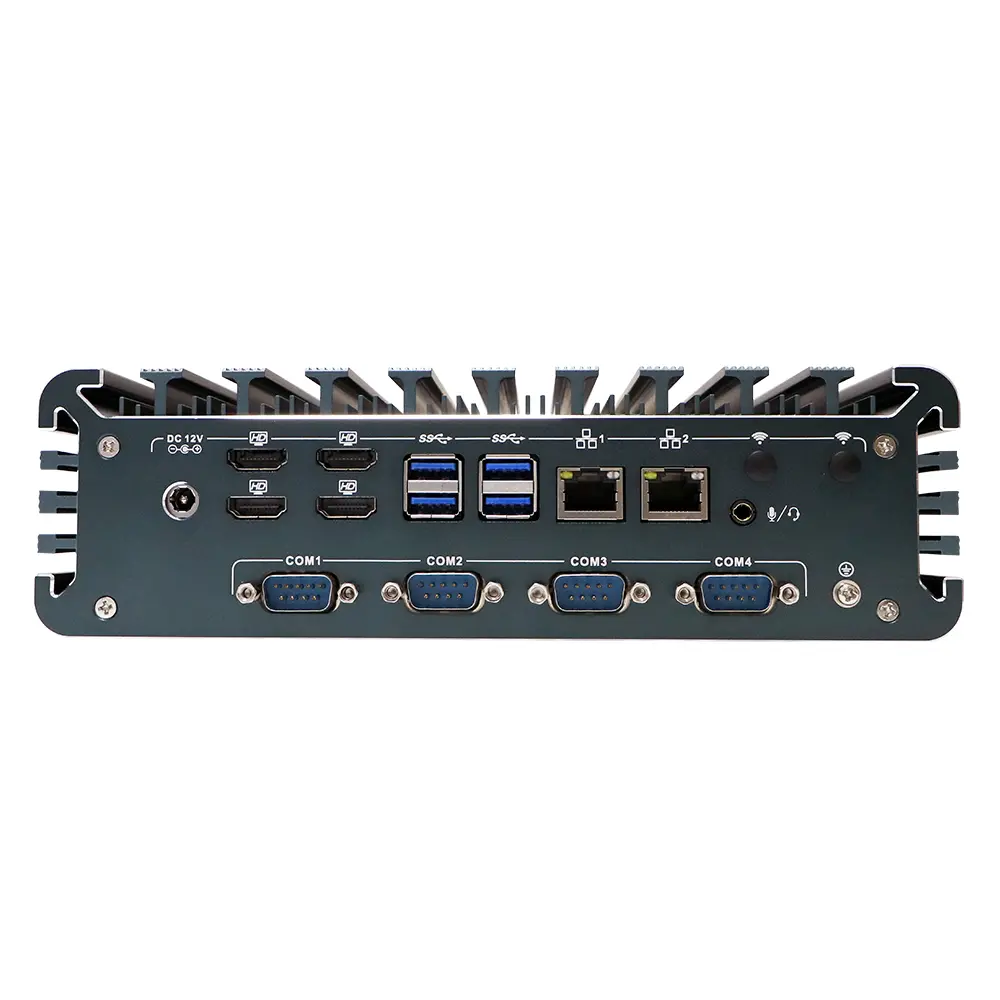

Rear Panel 1 x DC IN
4 x HDMI
3 x USB3.0
1 x USB2.0
2 x Intel LAN
1 x 2-in-1 Audio
4 x COM (COM1,2RS232/RS485 optional)



Software Support

Bios AMI EFI BIOS
System Support Windows 10/11 & Linux



General

Cooling Mode Fanless
Power Supply Support DC 12V
Packing List Industrial pc, power supply, power cord, WiFi antennas, warranty card
Application Industrial automation, medical, logistics transportation, warehouse, E-education.etc



Environment

Work Temperature 0°C ~ +50°C (commercial HDD), -20°C ~ +60°C (industrial SSD), surface air flow
Work Humidity 5% ~ 95% non-condensing state
Certification CE FCC ROHS
industrial mini pc
Model Processor Graphic Frequency Display Memory Storage COM LAN USB Power
I15 I3 1215U Intel® UHD Graphics for 12th Gen Intel Processors 3.30~4.40GHz 4 x HDMI 2 x DDR4, Max 64G 1 x M.2 2280 NVME/SATA, 2 x 2.5 inch SSD/HDD 4 2 8 DC 12V
I15 I5 1235U Intel® Iris® Xe Graphics eligible 3.30~4.40GHz 4 x HDMI 2 x DDR4, Max 64G 1 x M.2 2280 NVME/SATA, 2 x 2.5 inch SSD/HDD 4 2 8 DC 12V
I15 I7 1255U Intel® Iris® Xe Graphics eligible 3.350~4.70GHz 4 x HDMI 2 x DDR4, Max 64G 1 x M.2 2280 NVME/SATA, 2 x 2.5 inch SSD/HDD 4 2 8 DC 12V
