Intel 11th Gen Industrial PC

Intel 11th Gen Industrial PC

Model: Partaker I12

  • Aluminum construction with hard anodized finish for durability.
  • Supports Intel Core i3/i5/i7 processors.
  • HDMI and DP ports for dual displays.
  • 3x 2.5G LAN ports for fast networking.
  • Multiple COM ports for serial communication.
  • Up to 32GB DDR4 RAM for multitasking.
  • M.2 NVME and 2.5″ HDD storage options.
  • Expandable with USB 2.0 and WIFI/BT.
  • 12V DC-IN power supply.
  • Ideal for demanding industrial applications.

Share to:

Overview



The Industrial Mini Computer is a robust, all-aluminum enclosure with a hard anodized surface finish, designed for durability and reliability. It boasts multiple installation options, including wall-mounted, embedded, and desktop, making it suitable for a wide range of applications. With support for various Intel Core processors, it provides ample processing power for demanding industrial tasks. The Mini Computer features an array of I/O interfaces, including HDMI, DP, USB, and LAN ports, making it highly versatile and expandable. Its compact size and light weight ensure easy integration into any industrial environment.



Mechanical

Material High-quality all aluminum, surface hard anodized
Colour Black (color can be customized)
Size 230 x 152 x 68mm
Weight 2.5Kgs
Insallation Method With mounting ears, Wall-mounted, embedded, desktop



Motherboard



CPU

Intel Core i3 1115G4(Dual core 4 threads,3.0 GHz,Turbo 4.1GHz)

Intel Core i5 1135G7(Quad core 8 threads,2.4 GHz,Turbo 4.2 GHz,8MB cache)

Intel Core i7 1165G7(Quad core 8 threads,2.8 GHz,Turbo 4.7 GHz,12MB cache)
Display Ports 1 x HD FHD Display port,1 x DP (Support synchronous and asynchronous dual display)
Graphic Intel HD Graphics /Intel Iris(R)Xe Graphics
Network Card 3 x Intel i225-V 2.5G Lan
Memory 1 x DDR4 3200MHz SODIMM memory slot,Max. 32GB
Storage Support 1 x M.2 slot(support NVME), 1 x 2.5 inch HDD
Expansion
1 x M.2 M-Key 2280 slot(support NVME)
1 x MINI PCIE slot(support WIFI/BT)
M.2 B-key slot 3042/3052(support 4G), with SIM card slot
Can be expand(The standard is without it): 2 x USB2.0
Other Function
Auto Power-on, Timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption

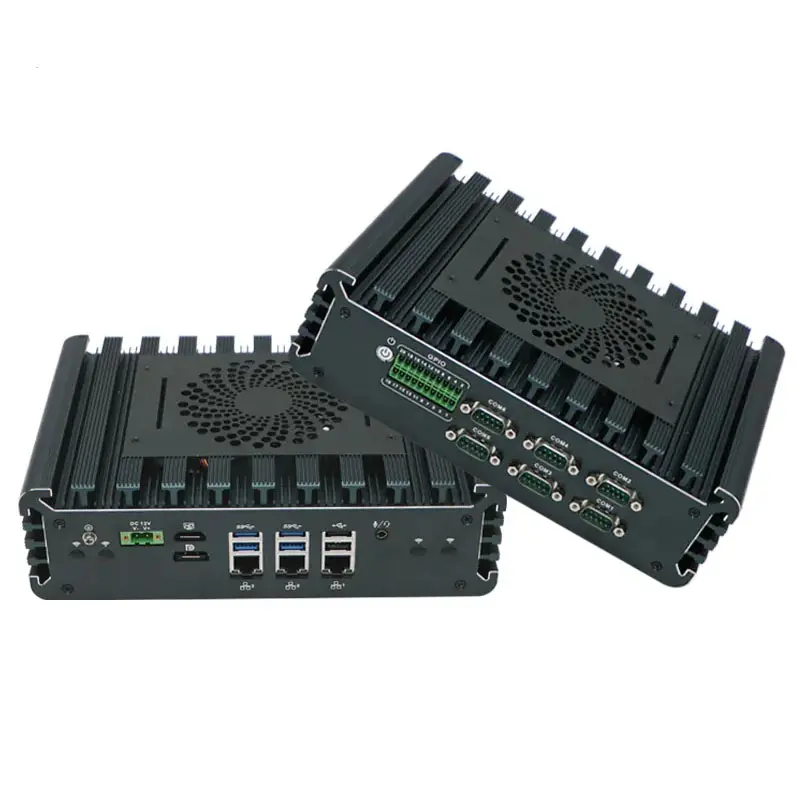

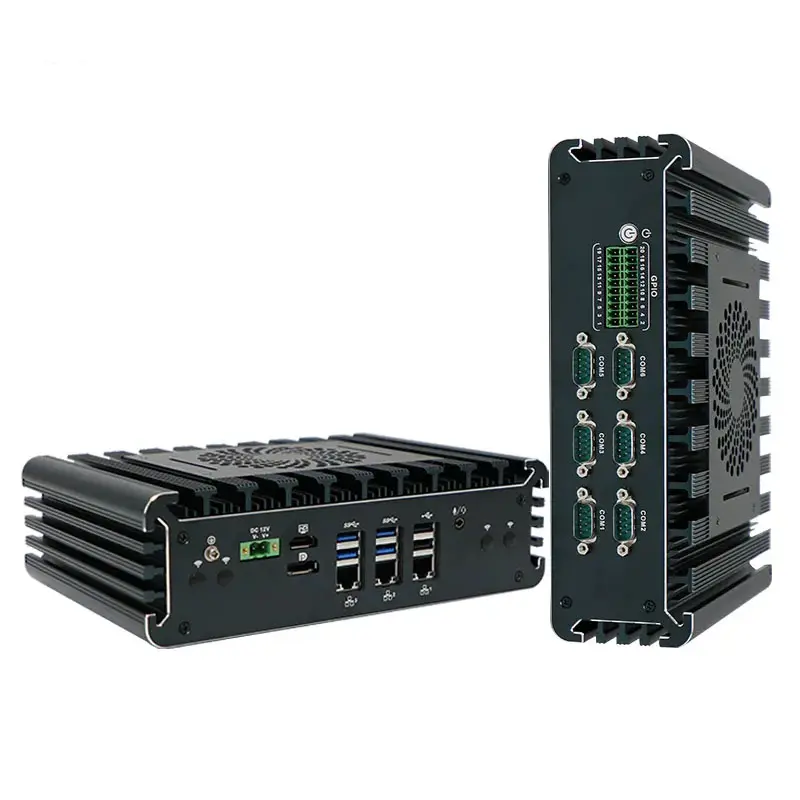

I/O Interfaces

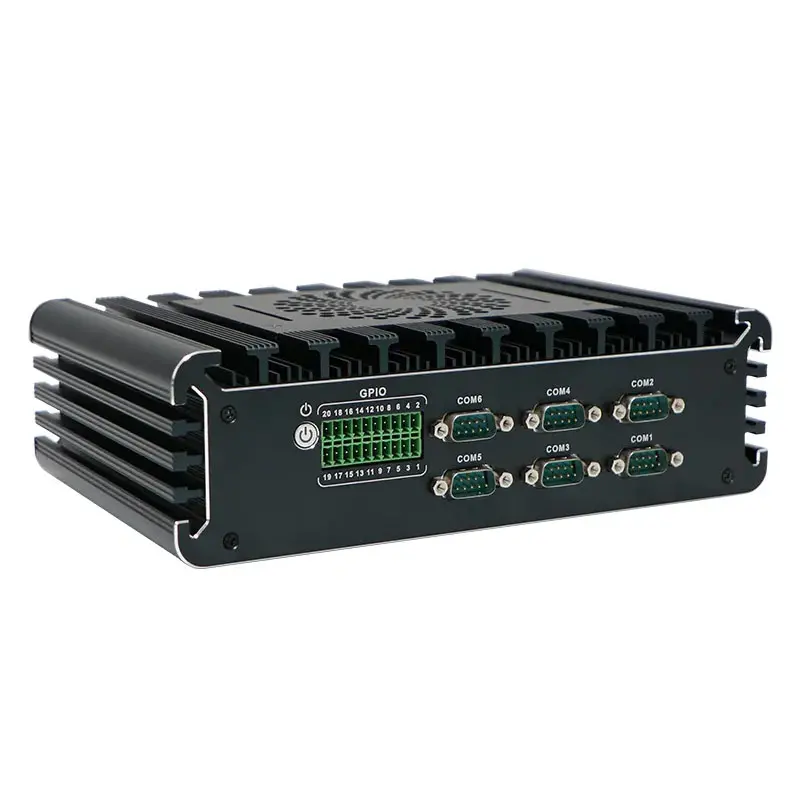

Front Panel

1 x Power button
1 x 16 pins GPIO Phoenix terminal
6 x COM ports(COM1&COM2 can be option RS232/RS485)








Rear Panel

1 x 2Pin Phoenix terminal
1 x HDMI
1 x DP
4 x USB3.0
2 x USB2.0
3 x Intel I225-v 2.5G LAN
1 x Audio&Mic



Software Support

Bios AMI EFI BIOS
System Support Windows 7/8/10/11, Linux



General

Cooling Mode Fan active cooling
Power Supply DC-IN 12V

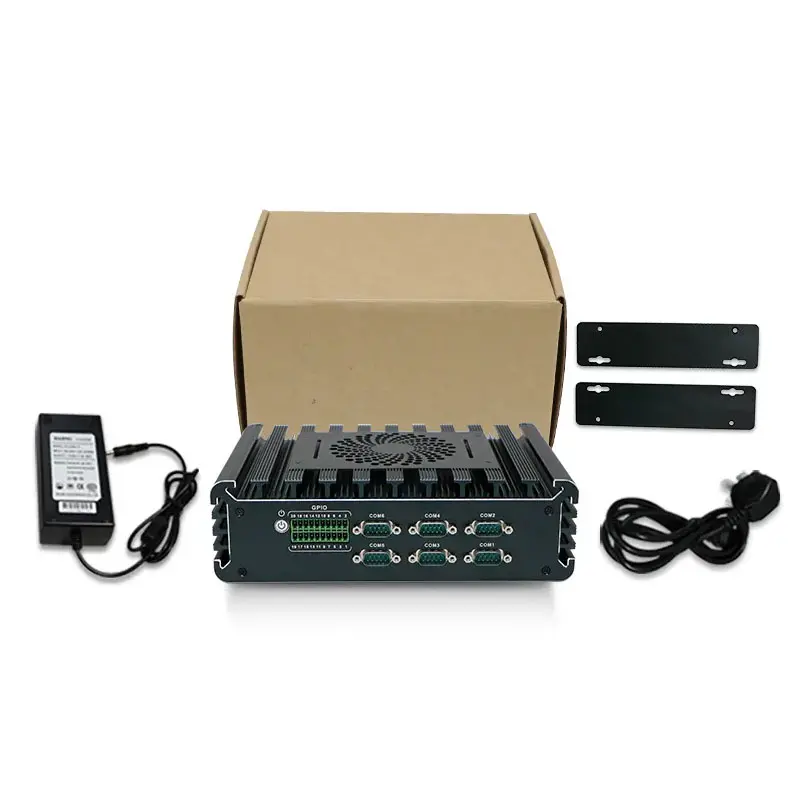

Packing List 1 x Mini PC, 1 x Power Adapter, 1 x Power Cable



Environment

Work Temperature 0℃ ~ +50℃ ( HDD),-20℃ ~ +60℃ ( SSD),Surface air flow
Relative Humidity 5 % ~ 95% non-condensing
Certification CE FCC ROHS
Application Industrial automation, medical, logistics and transportation, warehousing, electronic education and other fields



industrial mini computer

Model Processor Graphic Frequency Display Memory Storage COM GPIO LAN USB Power
I12 I3-1115G4 Intel® UHD Graphics 1.7~4.10GHz 1 x HDMI/1 x DP 1 x DDR4, Max 32G 1 x M.2/1 x 2.5 Inch HDD 6 16 Pin GPIO Phoenix Terminal 3 6 DC 12V
I12 I5-1135G7 Intel® Iris® Xe Graphics 2.4~4.20GHz 1 x HDMI/1 x DP 1 x DDR4, Max 32G 1 x M.2/1 x 2.5 Inch HDD 6 16 Pin GPIO Phoenix Terminal 3 6 DC 12V
I12 I7-1165G7 Intel® Iris® Xe Graphics 1.2~4.70GHz 1 x HDMI/1 x DP 1 x DDR4, Max 32G 1 x M.2/1 x 2.5 Inch HDD 6 16 Pin GPIO Phoenix Terminal 3 6 DC 12V
