Industrial PC N100

Industrial PC N100

Model: Partaker I8

  • All aluminum structure,fanless design
  • Onboard Alder Lake-N processor
  • Support DDR4 SODIMM memory slot,Max.16G
  • Support 2*10/100/1000M Lans
  • Support 3*M.2 slot,support the 5G function
  • Support 3*USB3.0 ports
  • Support 6*COM(COM1,2 RS232/485 optional)
  • Applied OS with Windows 10/11/ Linux etc

Share to:

Overview



This device is a fanless industrial PC that supports Intel Alder Lake-N100 processor, which is a low-power and high-performance chip. It can support two HD displays at the same time, either in sync or in async mode. It has a rich I/O port, including 3 x USB 3.0, 3 x USB 2.0, 6 x COM (RS232/485), 2 x 1000M LAN, and a power button. It has a slim dimension of 234 x 200x 54mm, and an all aluminum alloy structure. It has a low power consumption of only 6 W, which is eco-friendly and energy-saving. It can work in harsh environments, and can be used for various scenarios, such as business, office meeting, education, everyday use, home, school, digital billboard, HTPC, photo/video editing, gaming, design, etc.





Mechanical

Material High-quality all aluminum
Colour Metallic gray (any color can be customized)

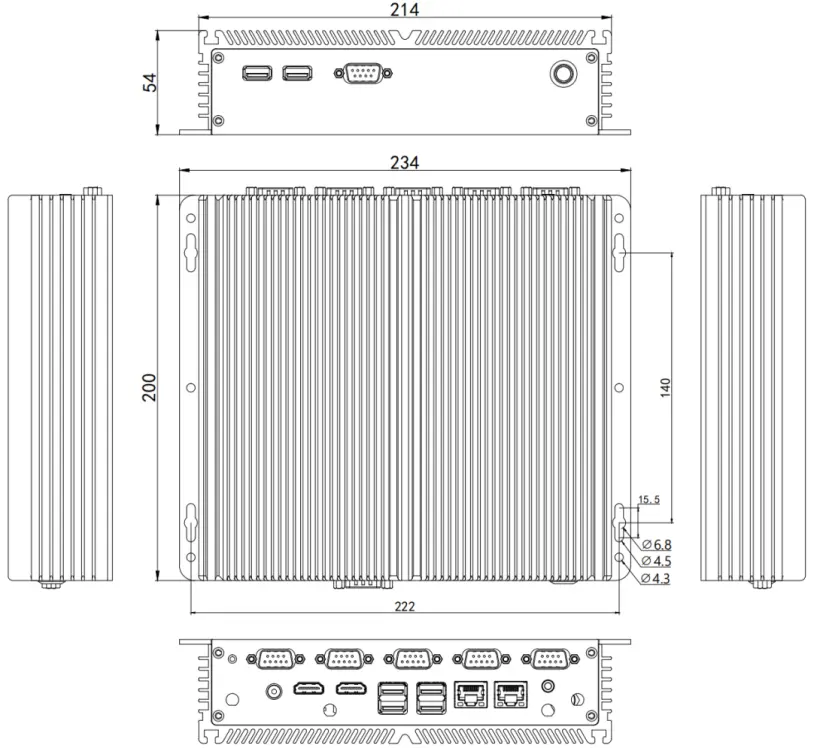

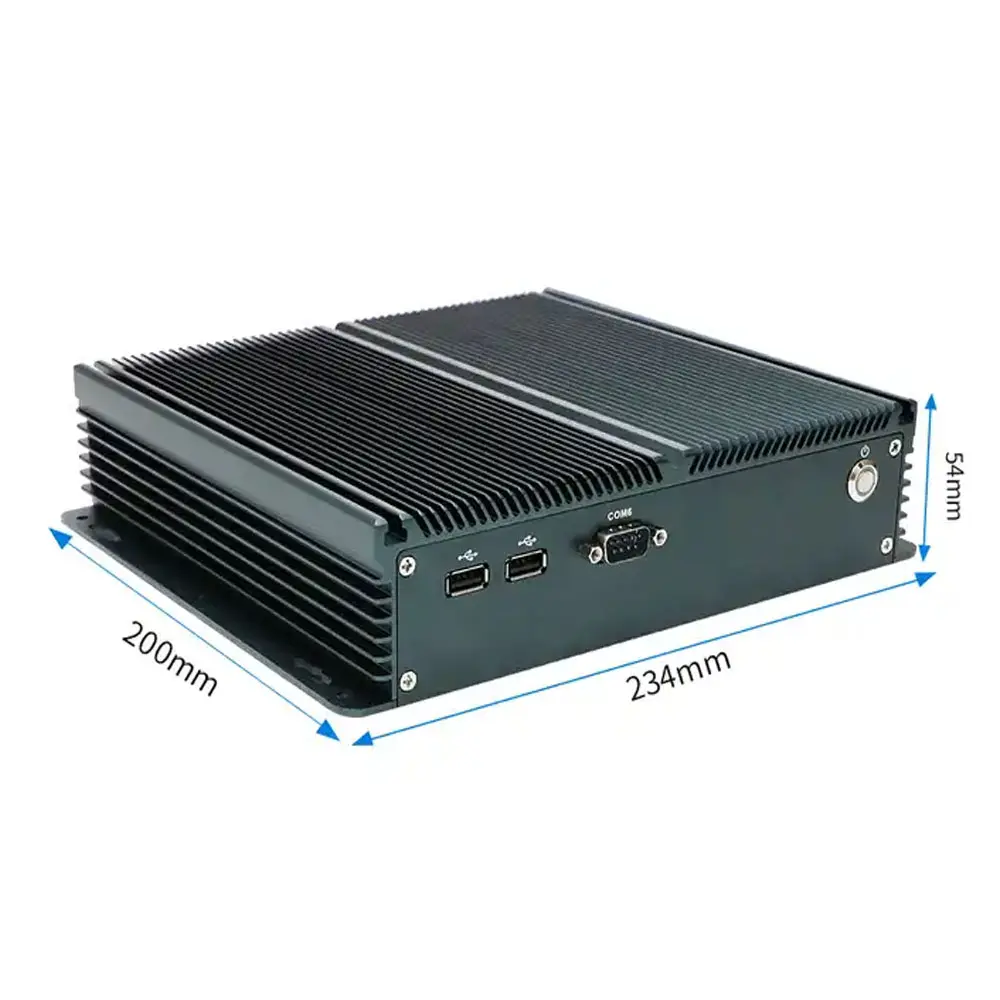

Size 234*200*54mm (L*W*H)
Weight 1.98kg (isn’t included the wall mount)
Insallation Method With mounting ears, Wall-mounted, embedded, desktop



Motherboard

CPU Intel N100 (quad cores quad threads, turbo frequency 3.4GHz, 6MB cache)
Display Ports 2 x HDMI (supports synchronous/asynchronous dual display)
Network Card 2 x RTL8111H 10/100/1000M Ethernet
Memory 1 x DDR4 3200MHz SODIMM memory slot, Max. 16GB
Storage 1 x M-Key 2280 slot (support NVME 1× or SATA protocol), 1 x 2.5-inch hard disk
Other Function Power-on boot, Timing boot, Wake on LAN,PXE boot, Watchdog (level 0-255)


Expansion

1 x M.2 2280 M-key slot (only supports NVME protocol)

1 x M.2 3052 B-key slot (USB3.0 signal, support 4G/5G), external SIM card slot

1 x M.2 2230 E-key slot (support WIFI, BT)

Scalable interface (standard shipment doesn’t include this interface): 8-way GPIO

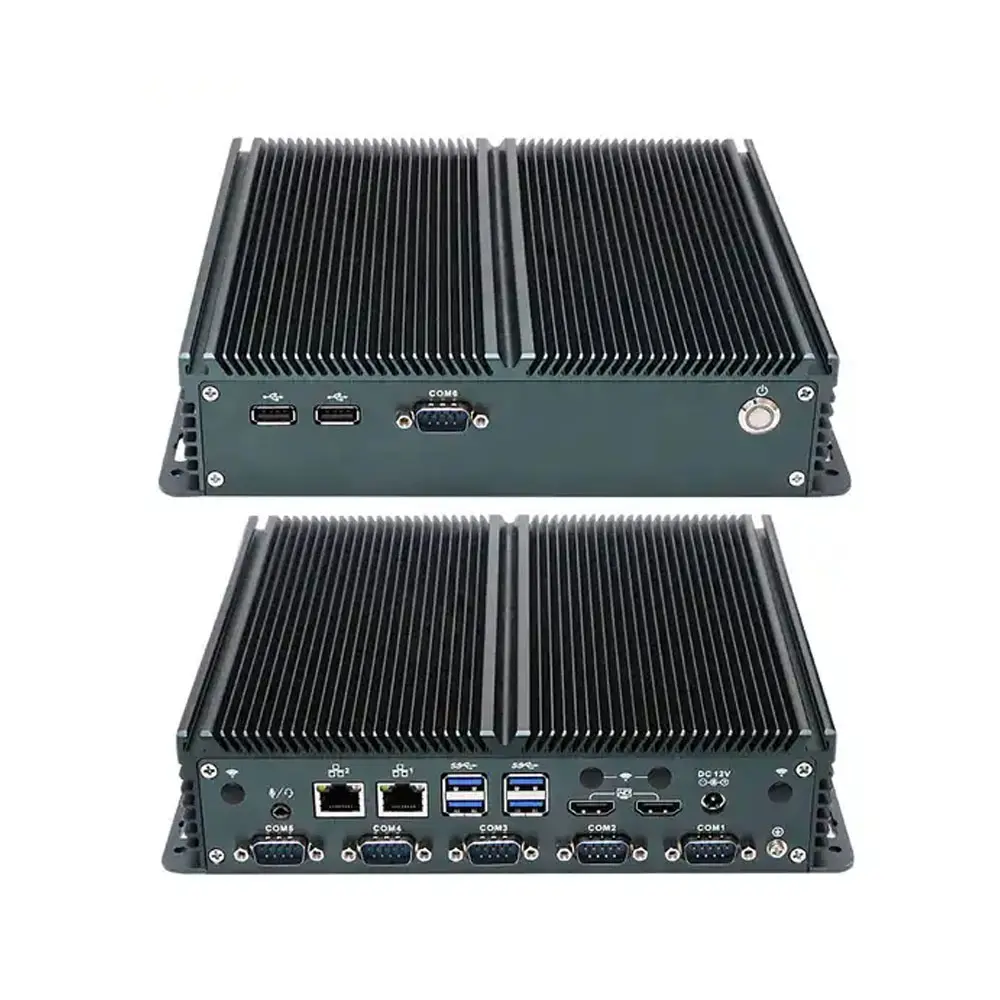

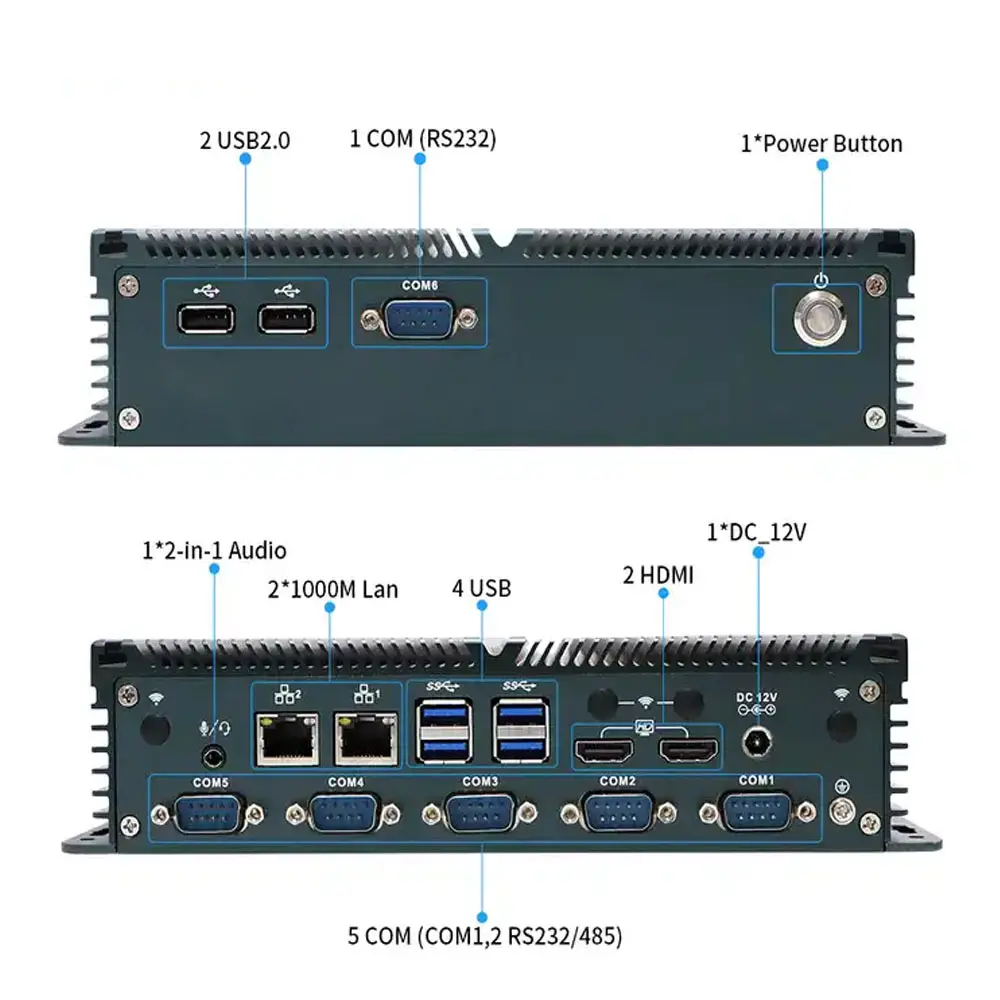

I/O Interfaces

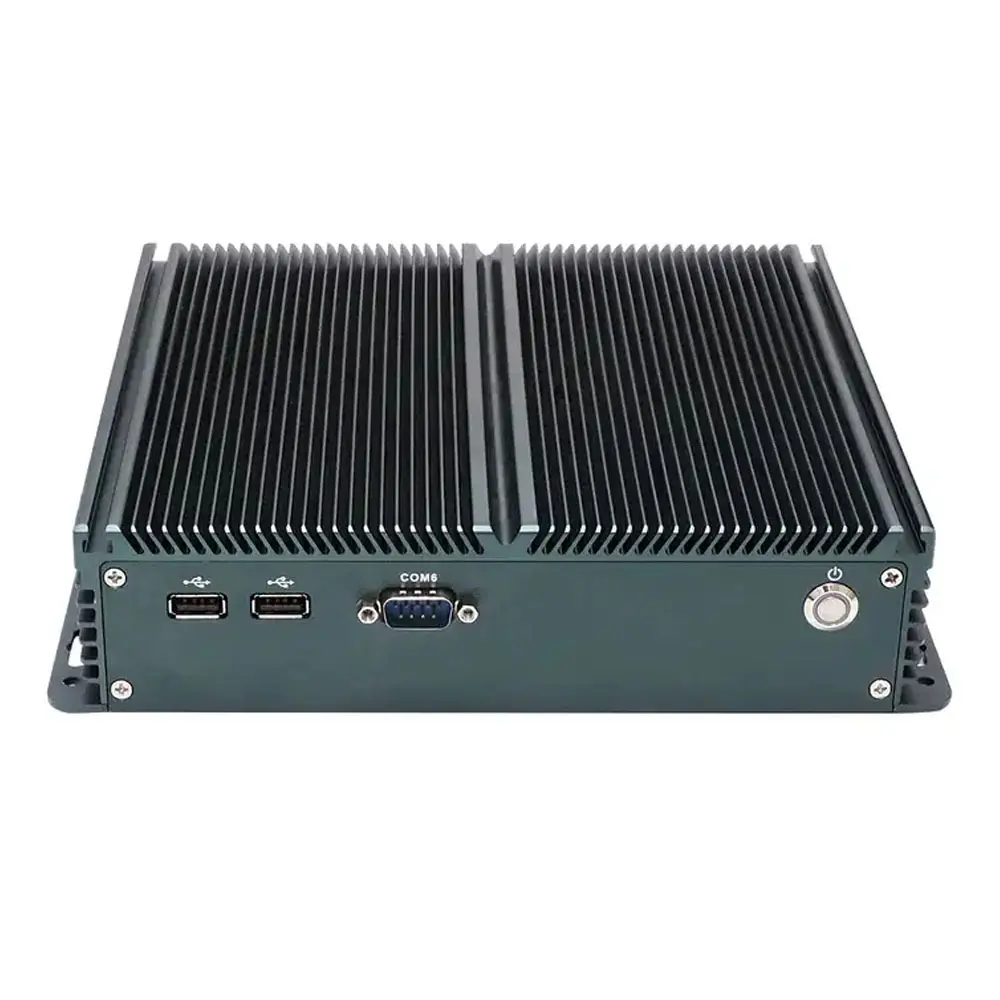

Front Panel 1 x Power Switch
2 x USB2.0
1 x COM (RS232)

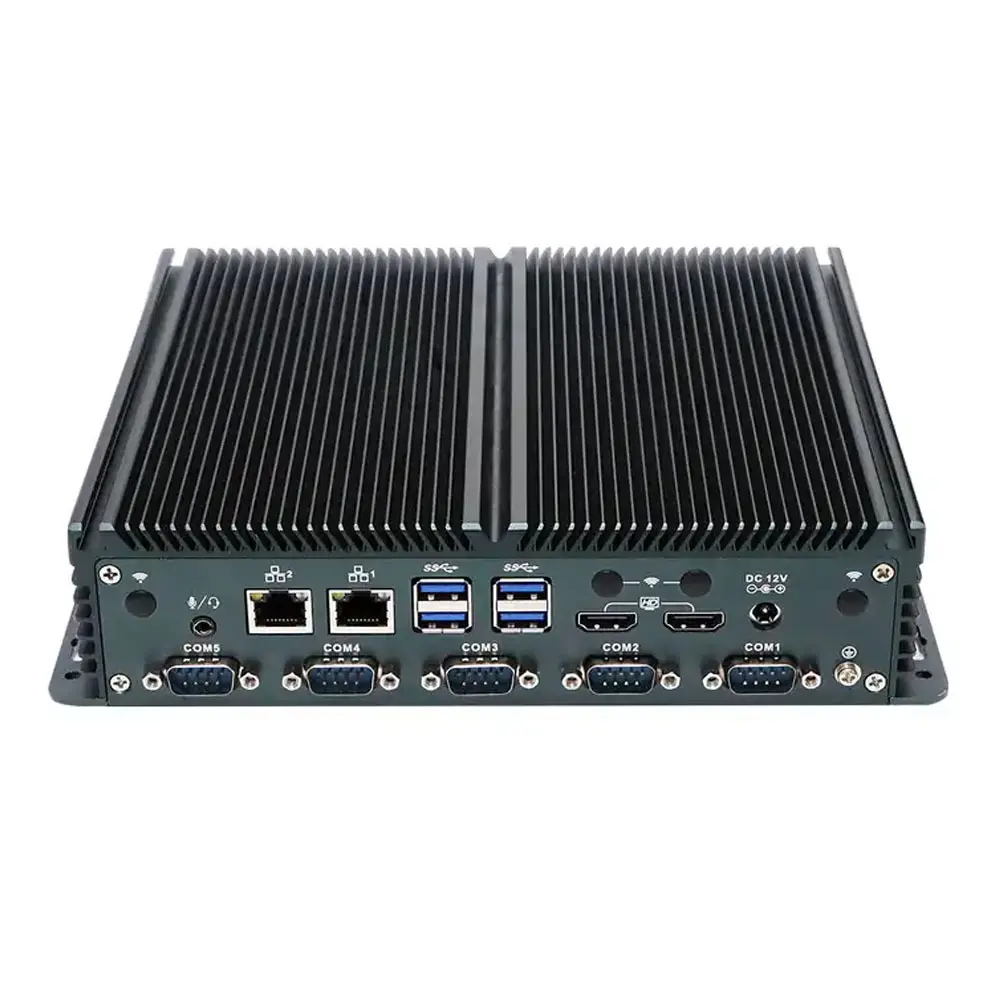

Rear Panel 1 x 2-in-1 Audio
2 x 10/100/1000M Ethernet
2 x HDMI
3 x USB3.0
1 x USB2.0



Software Support

Bios AMI EFI BIOS
System Support Windows & Linux



General

Cooling Mode Fanless
Power Supply Support DC 12V
Packing List Industrial pc, power supply, power cord, WiFi antennas, warranty card
Application Industrial Automation, Medical Care, Logistics And Transportation, Warehousing, Electronic Education etc.



Environment

Work Temperature 0°C ~ +50°C (commercial HDD), -20°C ~ +60°C (industrial SSD), surface air flow
Work Humidity 5% ~ 95% non-condensing state
Certification CE FCC ROHS
n100 mini pc
Model Processor Graphic Frequency Display Memory Storage COM LAN USB Power
I8 N100 Intel® UHD Graphics 3.40GHz 2 x HDMI 1 x DDR4, Max 16G 1 x M.2 2280 NVME/SATA, 1 x 2.5 inch SSD/HDD 6 2 6 DC 12V
