Mode: Partaker I17

  • Supports Intel 4th to 13th Gen Core i3/i5/i7 CPUs for various performance needs.
  • DDR3L/DDR4/DDR5 SODIMM support for up to 8GB/16GB/32GB/64GB RAM.
  • 2 Gigabit Ethernet ports for high-speed network connectivity.
  • MSATA storage for 4th Gen, M.2 2280 SATA/NVME for 6th to 13th Gen.
  • 1x 2.5″ HDD/SSD slot for ample storage options.
  • Supports desktop and wall-mount installations for flexible deployment.
  • Wide voltage range of 12-19V for reliable operation.
  • Ideal for industrial and commercial applications with robust design.
  • Configurable with various CPU and RAM options to suit your needs.
  • Provides multiple expansion and storage options for maximum flexibility.

Share to:

Overview

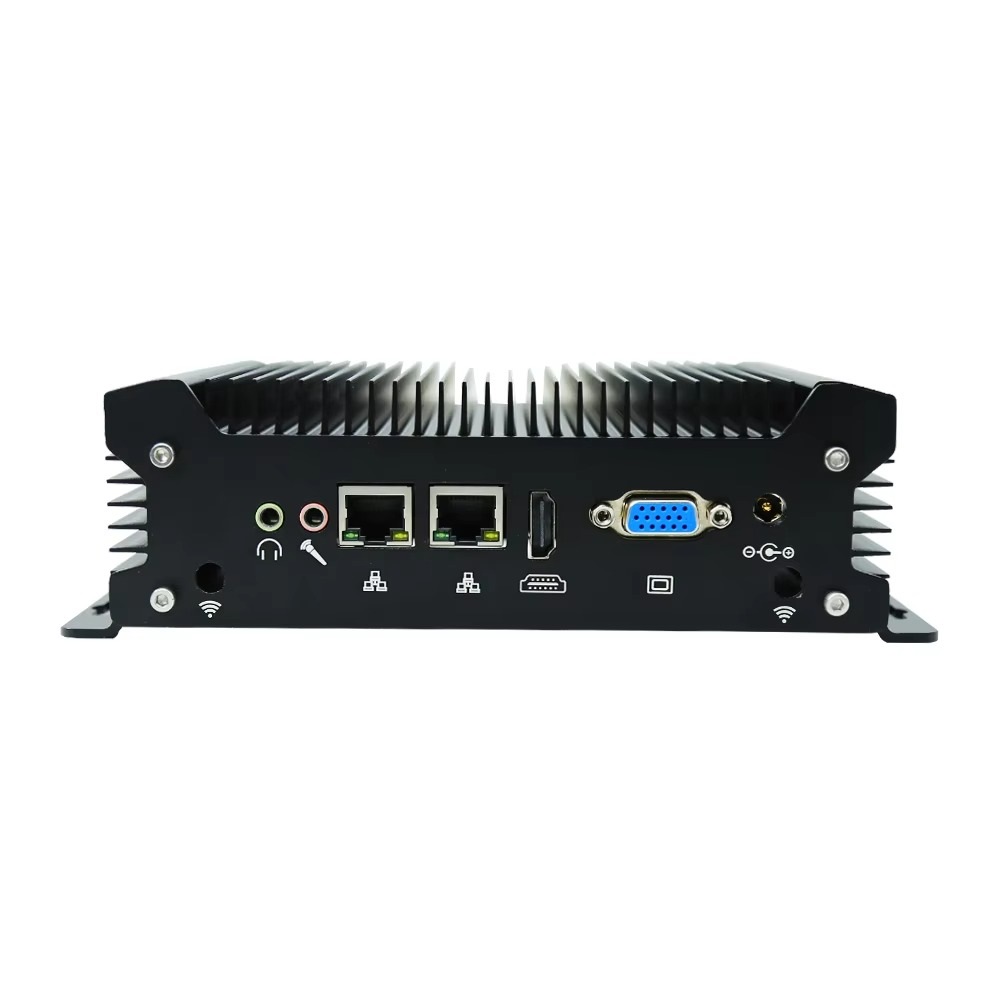

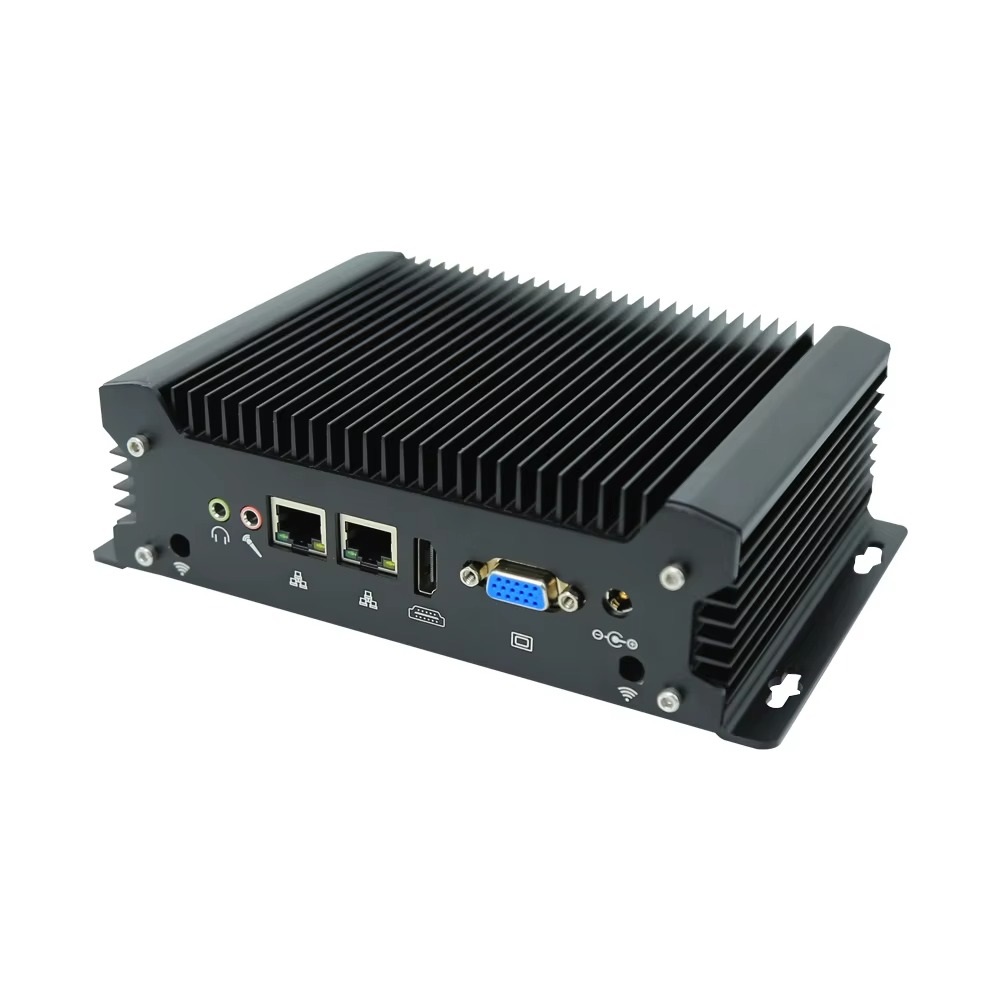

Introducing the Industrial Mini PC, a compact yet powerful device designed for industrial and commercial applications. Packed with features such as dual Intel RJ45 LAN ports, six RS232 COM ports (convertible to RS485/422), VGA and HDMI 1.4 dual-display outputs, and an embedded SIM card slot for 3G/4G Wi-Fi, this Mini PC offers unparalleled connectivity and versatility. Its full aluminum alloy black shell ensures excellent heat dissipation and durability, while the fanless design guarantees 24/7 operation in harsh environments. With a low TDP of 28W and wall-mounting capabilities, it is both energy-efficient and space-saving. Furthermore, it supports AWAL, Wake On LAN, Watchdog, and RTC functions for added flexibility and convenience. Customize your Industrial Mini PC by having your logo laser-printed on the product case.



Specification



CPU options Optional Intel 4th/6th/7th/8th/10th/12th/13th generation Core i3/i5/i7 CPU
Memory Types 4th generation: DDR3L SODIMM x1, supports up to 8GB
6th/7th/8th generation: DDR4 SODIMM x1, supports up to 16GB
8th/10th generation: DDR4 SOIMM x2, supports up to 32GB
12th/13th generation: DDR5 SOIMM x1, supports up to 64GB
Hard Drive Types 4th generation: 1 x MSATA
6th/7th/8th/10th/12th/13th generation: 1 x M.22280 (supports SATA and NVME protocols),  1 x 2.5-inch HDD/SSD
Graphics Depend on CPUs
Ethernet 2 x GbE RJ45 Realtek 8111H Nic, support Wake on LAN, PXE

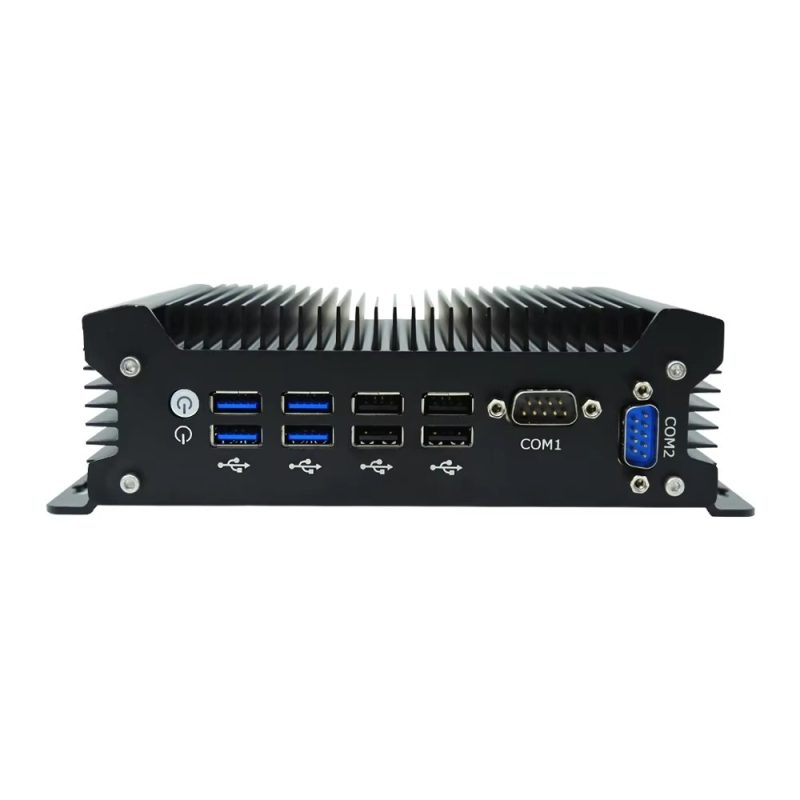

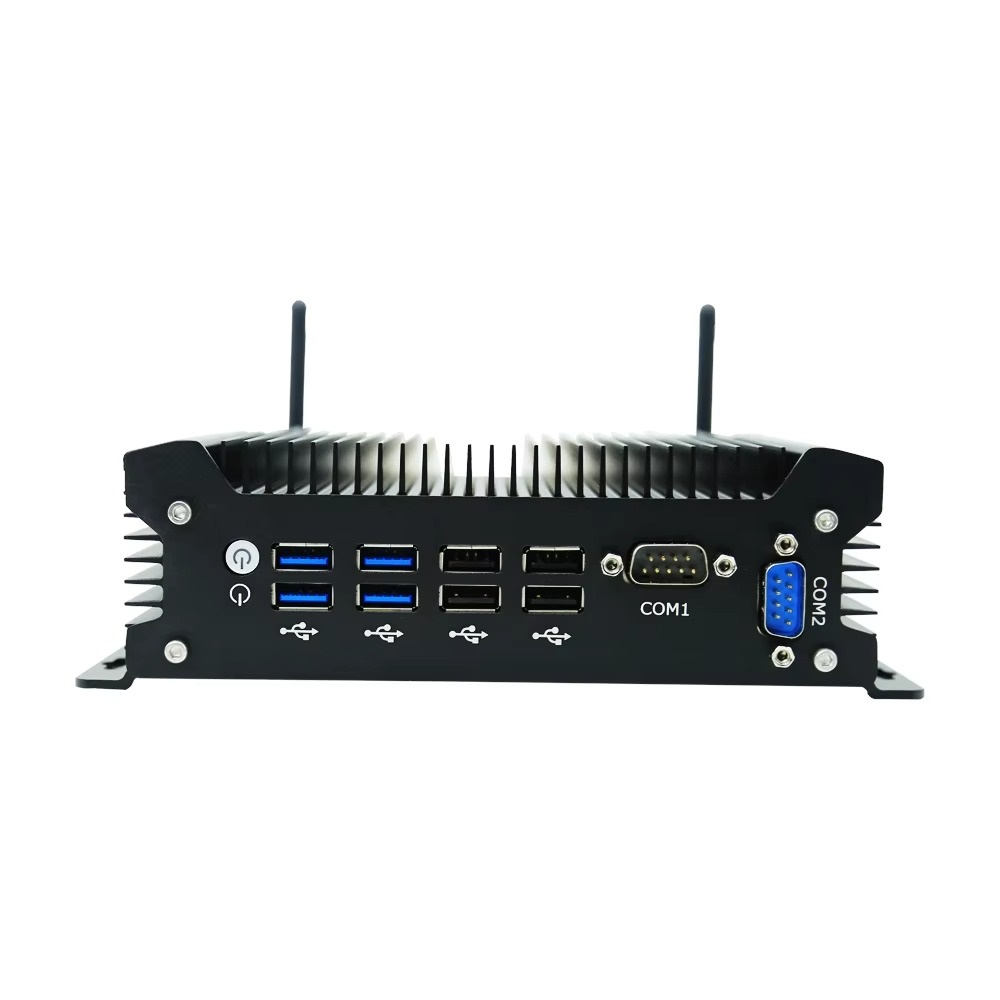

USB 4 x USB3.0,4 x USB2.0
COM 2 x DB9 RS232
Display 2 x HDMI
1 x VGA, 1 x HDMI
Optional, Both okay
Audio 1x Earphone IN,
1x Microphone

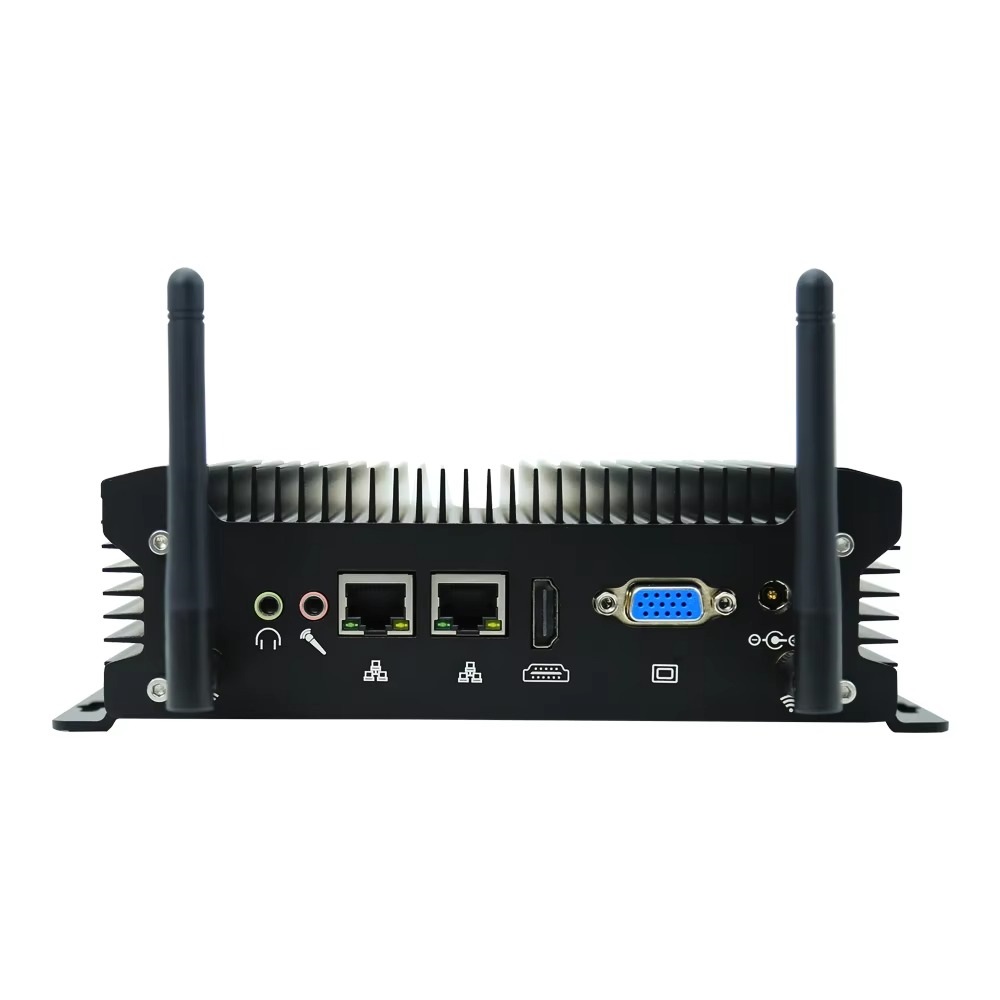

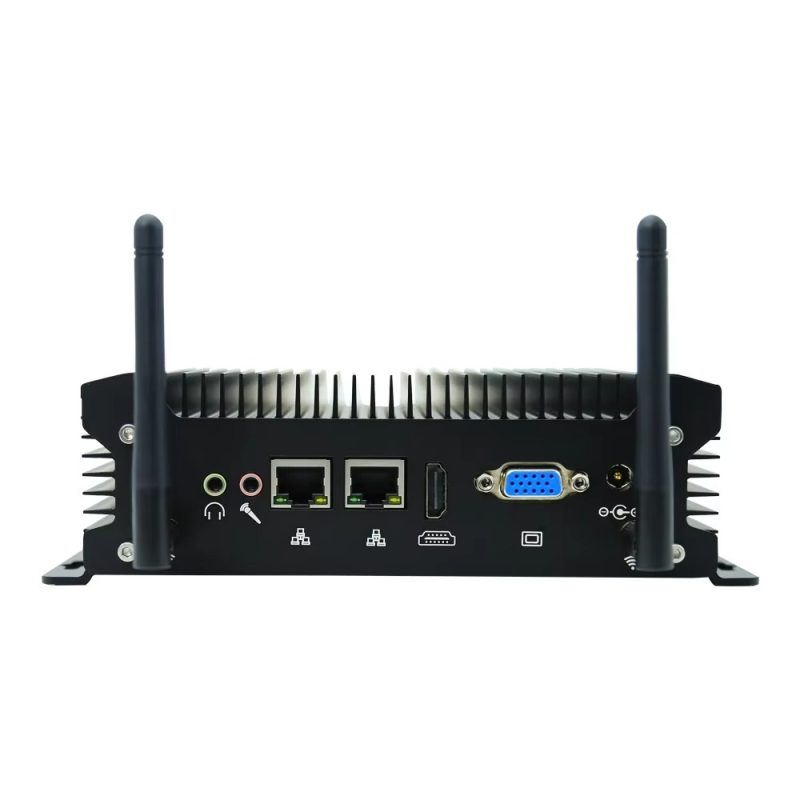

Wireless 1x Mini PCIe slot for WiFi/BT/4G LTE
OS Support Windows 10/11
WES 7/10
LINUX
Others Support Wake on LAN, PXE, Watchdog, Auto power on after power loss
Working Voltage DC12V-5A

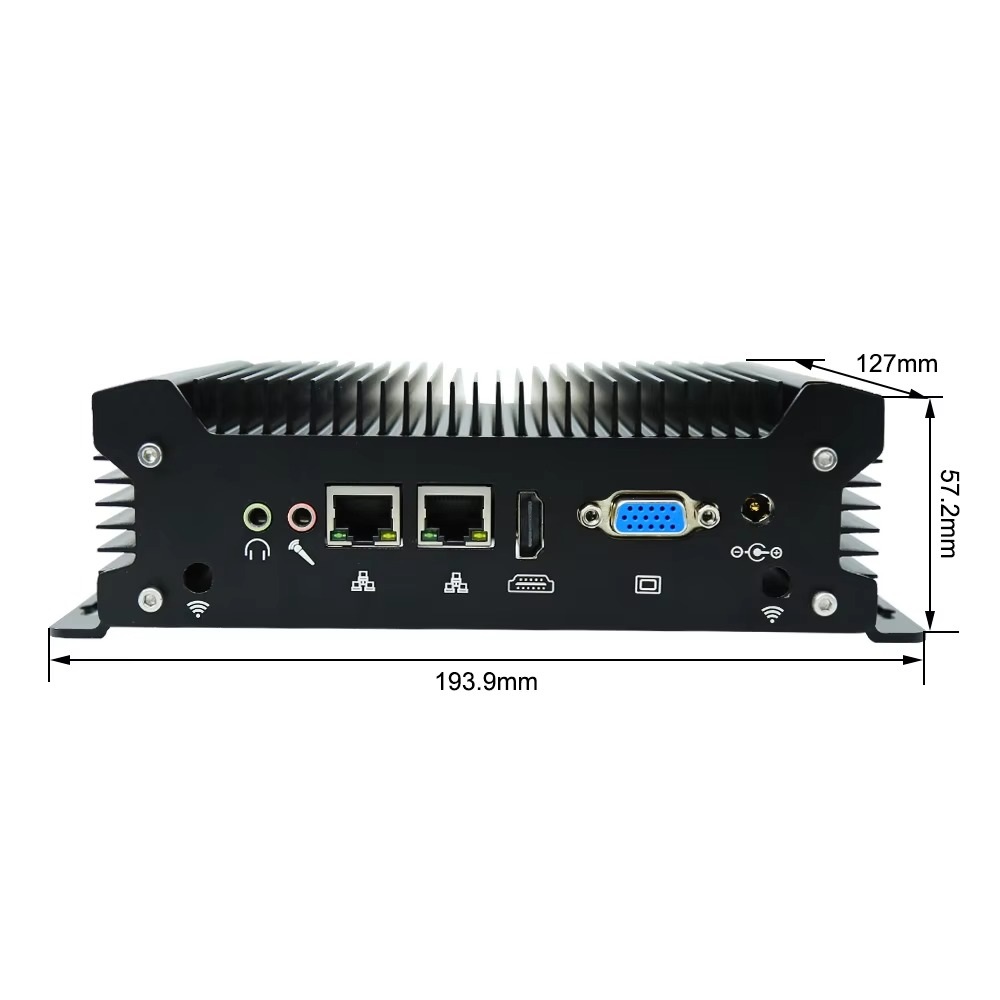

Dimension 193.9 x 127 x 57.2 mm
Netweight 1KG
Storage Temperature -30℃ to +70℃
Working Temperature -20℃ to +60℃
Relative Humidity 10%~90% @30℃,non-condensing
Cooling Fanless passive cooling
Package 1x Mini PC
1x AC Adapter
1x Power Cord
1x User guide
Please NOTE: mini PC comes with WiFi module installed, but without 4G LTE module installed, if you need add 4G LTE module, please contact us!
Part No. CPU Memory HDMI VGA or HDMI MPCIE MSATA M.2 SATA USB3.0 USB2.0 GbE RS-232
I17 I5-4278U SODIMM 1 1 1 1 0 1 4 4 2 2
I17 I7-4578U SODIMM 1 1 1 1 0 1 4 4 2 2
I17 I3-6157U SODIMM 1 1 1 0 1 1 4 4 2 2
I17 I5-7287U SODIMM 1 1 1 0 1 1 4 4 2 2
I17 I5-7360U SODIMM 1 1 1 0 1 1 4 4 2 2
I17 I5-8250U SODIMM 1 1 1 0 1 1 4 4 2 2
I17 I5-8260U SODIMM 1 1 1 0 1 1 4 4 2 2
I17 I7-8565U SODIMM 1 1 1 0 1 1 4 4 2 2
I17 I3-10110U SODIMM 1 1 1 0 1 1 4 4 2 2
I17 I5-10210U SODIMM 1 1 1 0 1 1 4 4 2 2
I17 I7-10510U SODIMM 1 1 1 0 1 1 4 4 2 2
I17 I5-1235U SODIMM 1 1 1 0 1 1 4 4 2 2
I17 I7-1255U SODIMM 1 1 1 0 1 1 4 4 2 2
