Industrial Mini PCs with Dual LAN I7 I5 I3

Industrial Mini PCs with Dual LAN I7 I5 I3

Model: Partaker I5

  • Intel 2955U i3 5005U i5 4200U i7 5500U Processor
  • 2 x DDR3-1333/1600, Support 16GB max
  • 1 x MSATA, Support 1 x 2.5 Inch SATA SSD/HDD
  • 6 x COM RS232, 2 x COM RS232 as optional
  • Support Dual display, VGA and HDMI
  • With Dual Gigabit LAN, support 4G module SIM

Share to:

Overview



Partaker I5 fanless industrial mini pc with dual gigabit ethernet, dual screen display. This machine can be used in interactive kiok, undergroud mining, military maritime affairs, laboratory, home entertainment, business office, automation equipment, and HTPC. And all walks of life require computers.





Mechanical

Material Aluminum alloy
Colour Black
Size 215 x 140 x 50mm
Weight 2.5Kgs

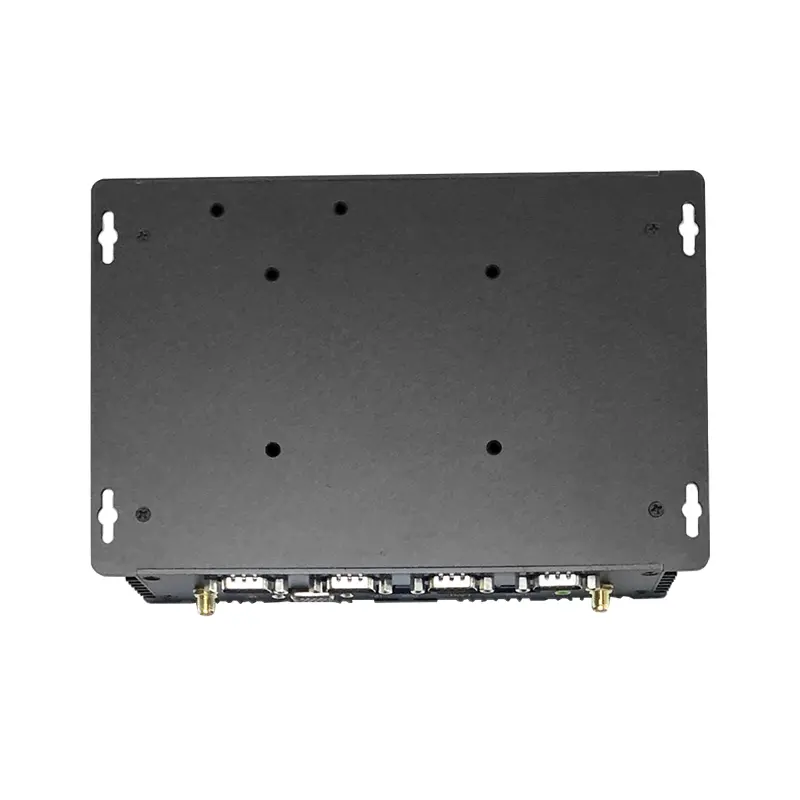

Insallation Method With mounting ears
Wall-mounted, embedded, desktop



Motherboard

CPU Intel core i3-5005U (6/2 COM), 2 Cores /4 Threads, Base Frequency: 2.0GHz, 3 MB Smart Cache
Intel core i5-4200U (6/2 COM), 2 Cores /4 Threads, Base Frequency:1.6GHz(MAX 2.6GHz), 3 MB Smart Cache
Intel core i7-5500U (6/2 COM), 2 Cores /4 Threads, Base Frequency:2.4GHz(MAX 3.0GHz), 4 MB Smart Cache
Intel Celeron 2955U(6/2 COM), 2 Cores /2 Threads, Base Frequency:1.4GHz, 2 MB Smart Cache
Chipset HasWell SOC
Network Card Dual Intel Gigabit network card, support 4G module
WiFi and Bluetooth Daul band wireless 2.4G/5G
Memory 2 x DDR3-1333/1600, Support 16GB max
Storage 1 x MSATA, Support 1 x 2.5″ SATA SSD/HDD
Audio Support computer speaker interface, MIC input interface, support 5.1 channel output

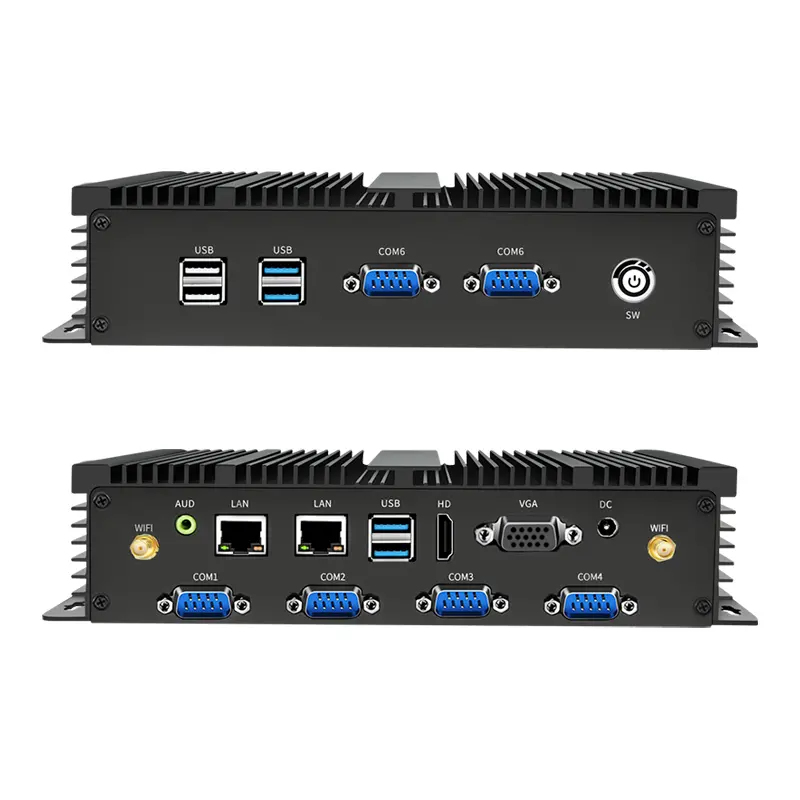

I/O Interfaces

Front Panel 2 x USB2.0
2 x USB3.0
2 x COM
1 x SW
Rear Panel 2 x WiFi Antennas
2 x LAN
4 x COM
1 x HDMI
1 x VGA
1 x DC IN
1 x Audio



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc



General

Cooling Mode Fanless
Power Supply DC in 12V/3A; 12V/5A
Packing List I5 industrial pc, power supply, power cord, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature 0°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB COM Power
I5 i3 5005U Intel® HD Graphics 5500 2.00GHz VGA/HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 6 6/2 12V5A
I5 i5 4200U Intel® HD Graphics 4400 1.6~2.6GHz VGA/HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 6 6/2 12V5A
I5 i7 5500U Intel® HD Graphics 5500 2.4~3.0GHz VGA/HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 6 6/2 12V5A
I5 2955U Intel® HD Graphics 1.40GHz VGA/HDMI 2 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 6 6/2 12V3A
