Industrial Mini PC 4th Gen Intel Core I7 I5

Industrial Mini PC 4th Gen Intel Core I7 I5

Model: Partaker I26

  • Intel 4th Gen Intel Core i5/i7 Processor
  • Single SODIMM for up to 8GB Memory
  • Support 1*mSATA SSD, 1*2.5 Inch SSD/HDD
  • 4*USB 3.0, 4*USB 2.0
  • Dual Intel Gigabit Ethernet LAN port
  • 6x RS232 Serial Ports (2x RS485/RS422 optional)
  • Support HDMI & VGA Dual Display
  • CE, FCC & RoHS Certified

Share to:

Overview



Partaker I26 is an industrial industrial computer with small size, low power consumption and fanless design. It adopts the “icicle heat dissipation” structure, which has stronger heat dissipation. Compared with similar touch all-in-one computers, it can save more than 5% of power consumption. At the same time, the heat output increases with consumption It is suitable for industrial and commercial purposes such as industrial workshop automation equipment, vending machines, and CNC machining centers. 7*24 hours of long-term stable operation, a variety of interfaces are available, and strong environmental adaptability.



Mechanical

Material Aluminum alloy
Colour Black
Size 230 x 175 x 50mm
Weight 2.5Kgs
Insallation Method With mounting ears
Wall-mounted, embedded, desktop



Motherboard

CPU Intel® Core™ i5-4200U Processor (3M Cache, up to 2.60 GHz)
Intel® Core™ i7-4500U Processor (4M Cache, up to 3.30 GHz)
Chipset SOC
Network Card 2 x Intel I211/I213 10/100/1000 gigabit ethernet nics
Memory 1 x SO-DIMM DDR3L 1333/1600, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expansion Slot 2 x Mini PCIE slot (WiFi/4G), with sim slot onboard



I/O Interfaces

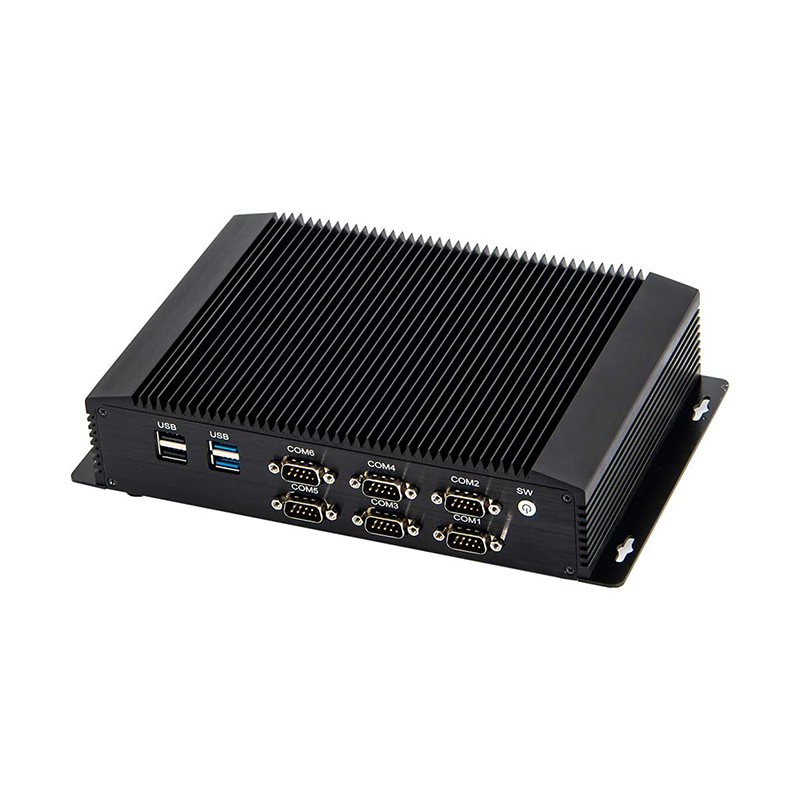

Front Panel 1 x Power button
6 x COM (COM1 COM2 for RS232 RS422 RS485)
2 x USB3.0
2 x USB2.0

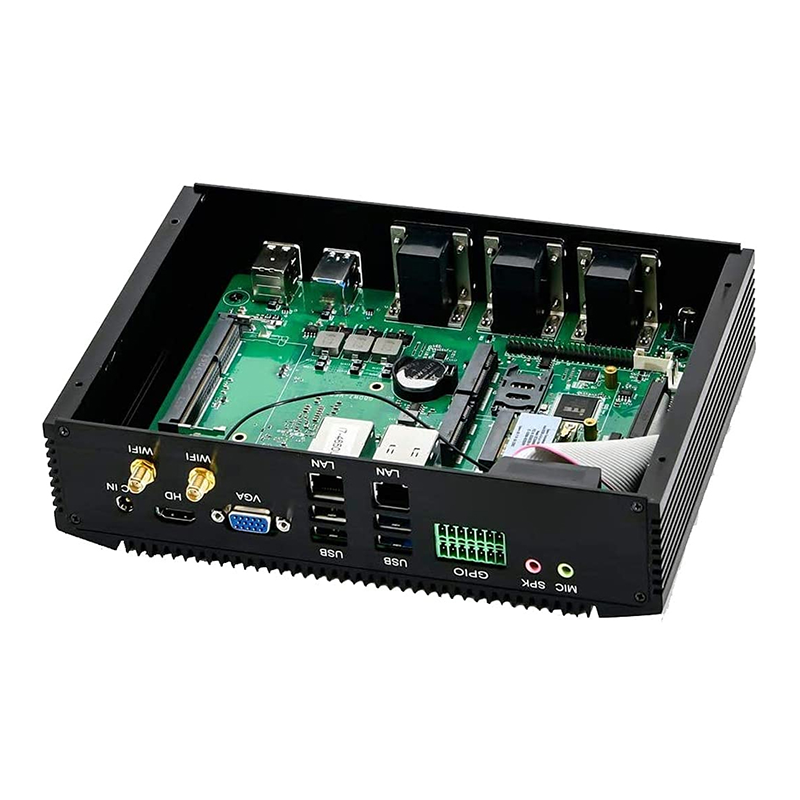

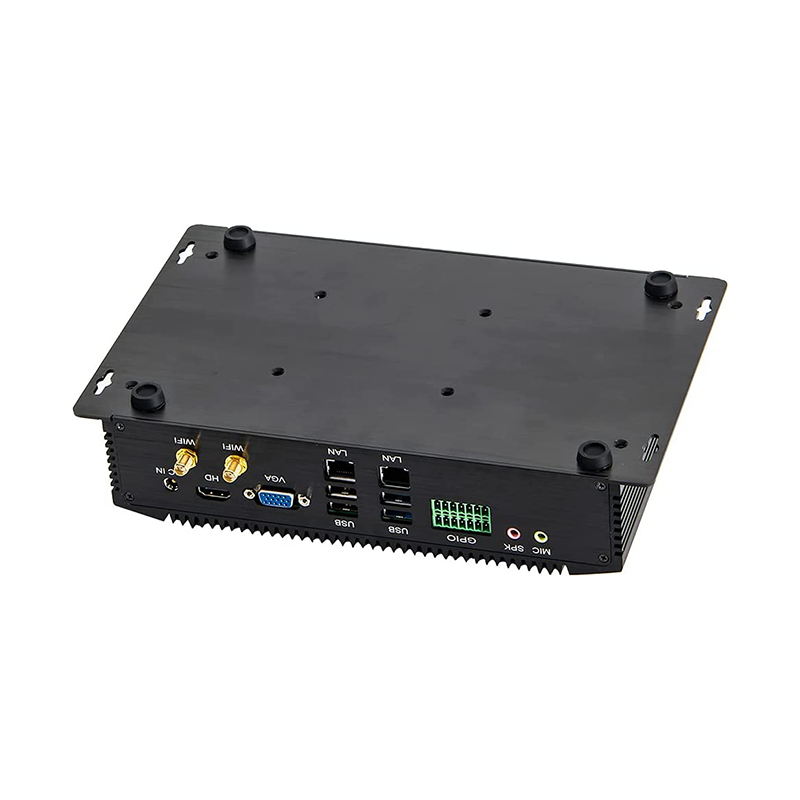

Rear Panel 1 x DC_in
1 x HDM
1 x VGA
2 x USB3.0
2 x USB2.0
2 x Lan
1 x GPIO
1 x Audio
2 x WiFi antennas



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc



General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V5A
Packing List I26 industrial pc, power supply, power cord, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature 0°C~80°C Centigrade (-68°F~176°F)
Certification 10%~90% (non-condensing)



Model Processor Graphics Frequency Display Memory Storage LAN USB COM Power
I26 i5 4200U Intel® HD Graphics 4400 1.60~2.60 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 8 6 12V5A
I26 i7 4500U Intel® HD Graphics 4400 1.7~3.3 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 2 8 6 12V5A
