Industrial Fanless Mini PC 9th-10th Gen 2 LAN

Industrial Fanless Mini PC 9th-10th Gen 2 LAN

Model: Partaker I6

  • Intel Core 9th-10th Gen Processor
  • 1 x DDR4 SO-DIMM RAM, Max 64GB
  • 1 x mSATA, 1 x 2.5” SSD/HDD, 1 x M.2 2280 SATA/NVME SSD
  • 1 x Intel I211 LAN, 1 x Intel I219 LAN
  • 6 x COM, 8-bit GPIO
  • 3 x HDMI Display
  • 7 x 24 Hours Operation

Share to:

Overview



Partaker I6 Mini Industrial Computer with 6*COM interfaces, default RS232 output, COM1,2 support RS232 422 485 switch in BIOS. It can be used on CNC machine, self-service terminal, medical equipment, access control equipment, smart city, security monitoring. Support 3*HDMI display, support 3 screen can be converted to DVI and VGA.





Mechanical

Material Aluminum alloy
Colour Black
Size 255 x 55 x 80mm
Weight 3Kgs

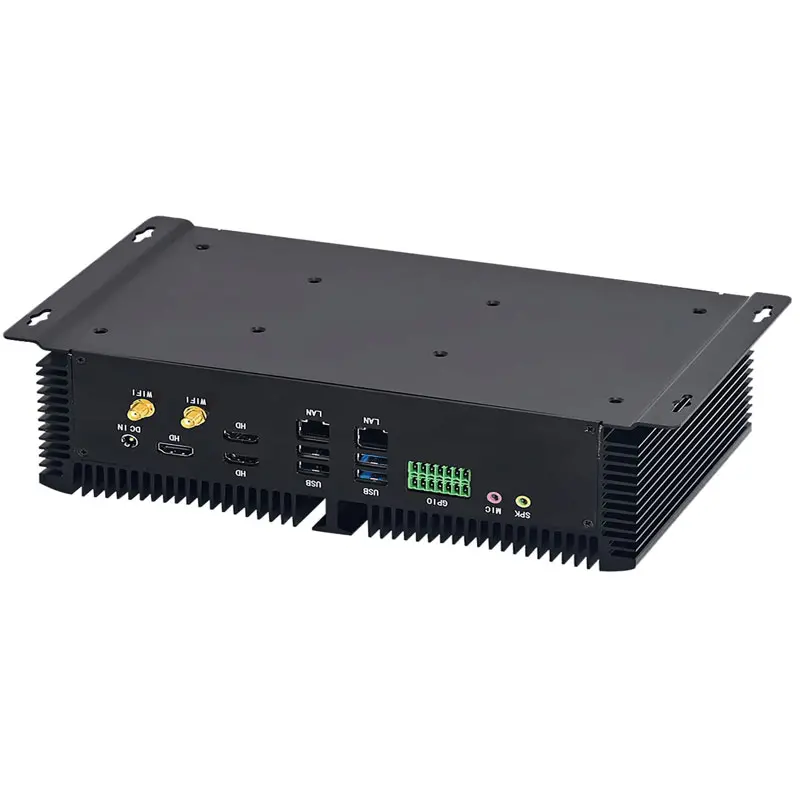

Insallation Method With mounting ears
Wall-mounted, embedded, desktop

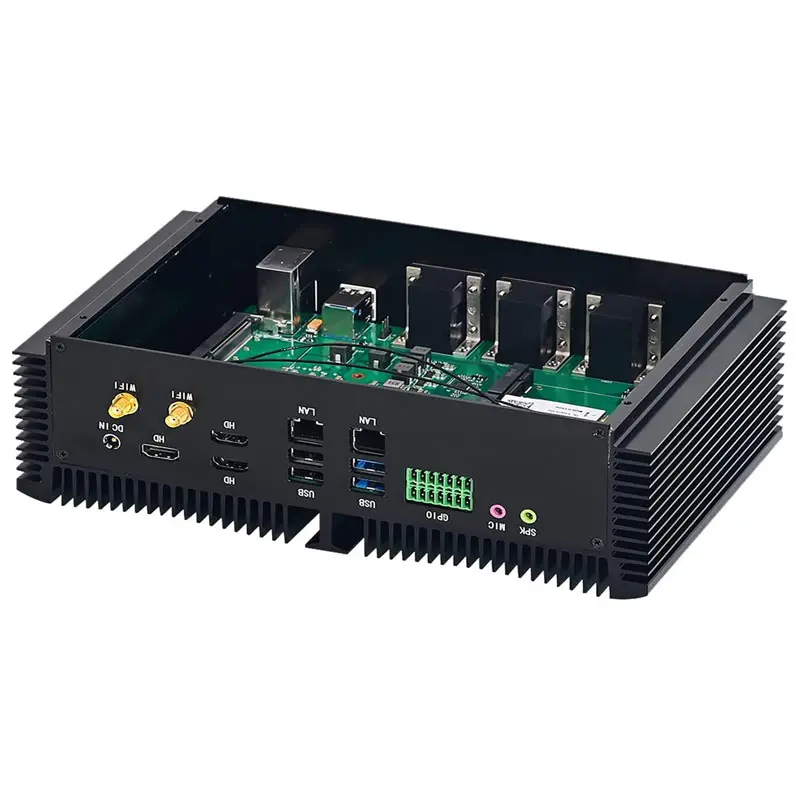

Motherboard

CPU Intel Core i5-9300H Processor (8M Cache, up to 4.10 GHz)
Intel Core i5-10200H Processor (8M Cache, up to 4.10 GHz)
Intel Core i7-10870H Processor (16M Cache, up to 5.00 GHz)
Intel Core i7-9750H Processor (12M Cache, up to 4.50 GHz)
Chipset SOC
Network Card 1 x Intel I211, 1 x Intel I219
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SO DIMM DDR4-2666 (MAX. 64G RAM)
Storage 1 x mSata SSD, 1 x 2.5 inch SATA SSD/HDD, 1 x M.2 2280 SATA/NVME SSD
Expand Mini PCIE for WiFi/4G, with sim slot

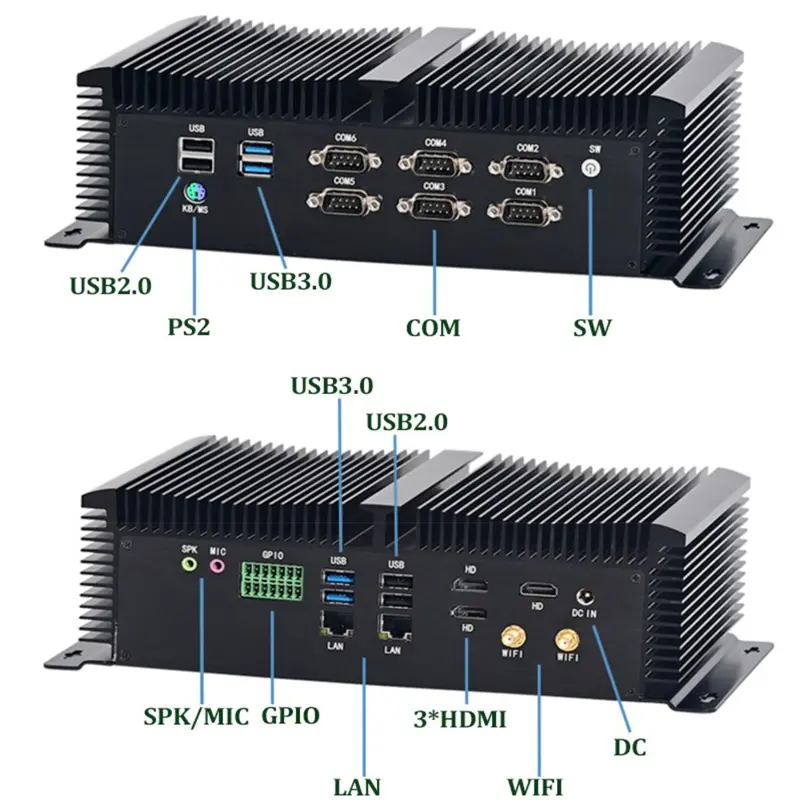

I/O Interfaces

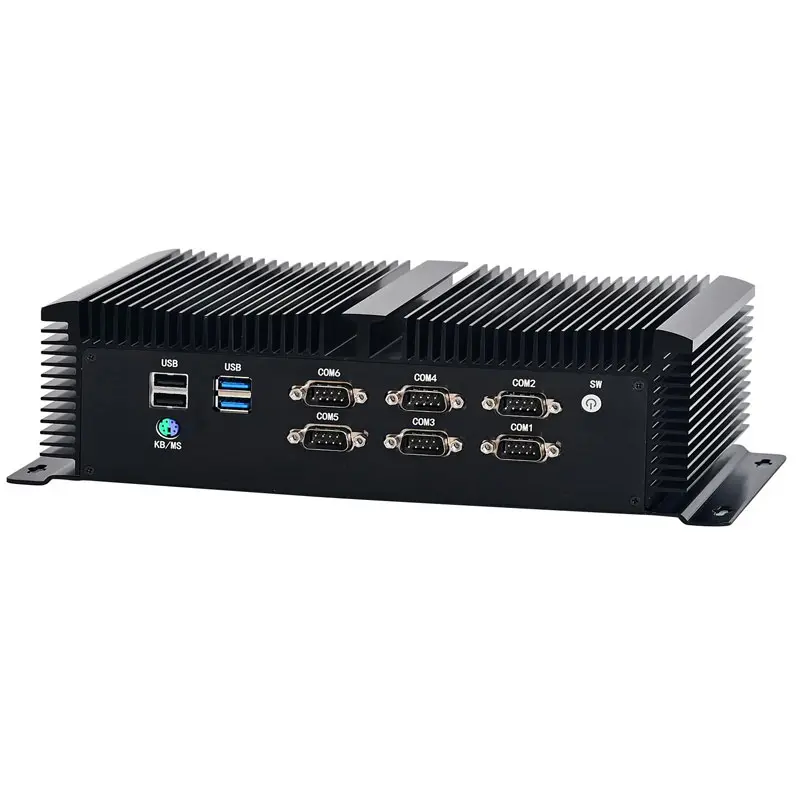

Front Panel 1 x Power button
6 x COM
2 x USB2.0
2 x USB3.0
1 x PS/2

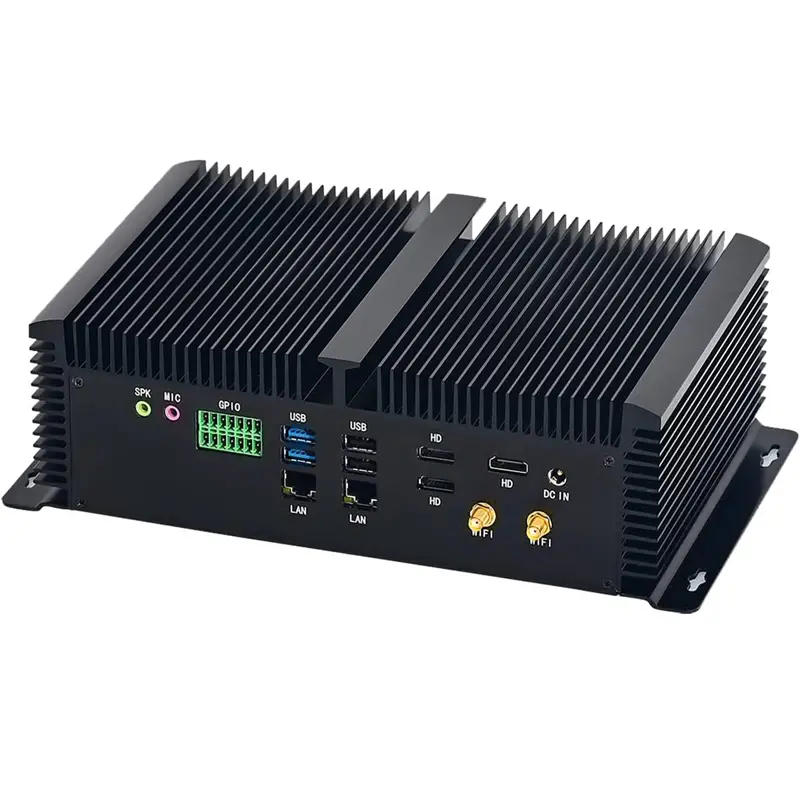

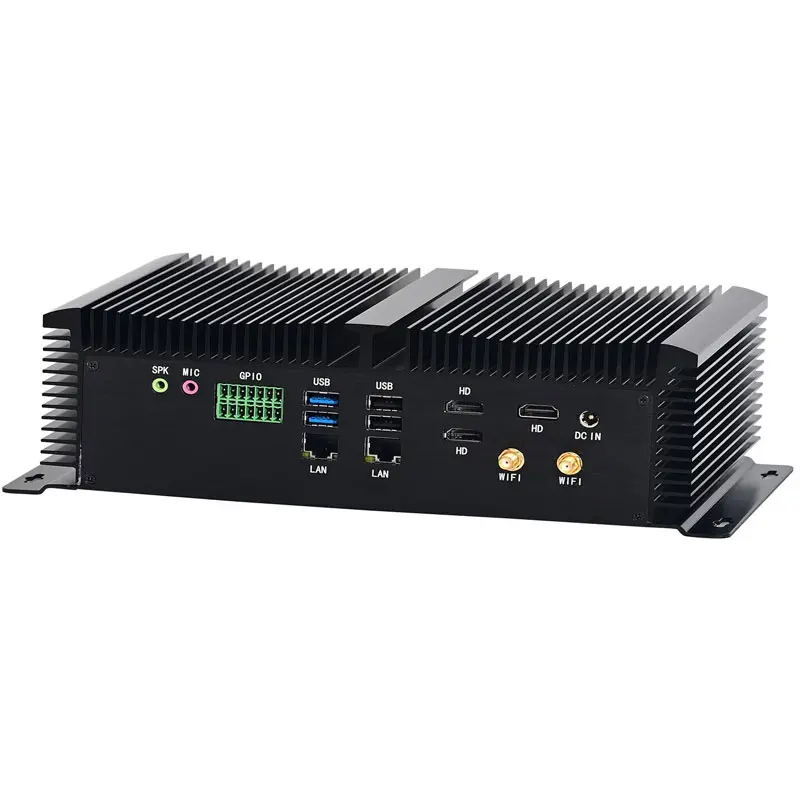

Rear Panel 1 x DC_in
2 x WiFi Antennas
3 x HDMI
2 x Lan
2 x USB3.0
2 x USB2.0
1 x GPIO
1 x SPK
1 x MIC



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc



General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V10A
Packing List Partaker I6 industrial pc, power supply, power cord, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB COM GPIO Power
I6 I5 9300H Intel® UHD Graphics 630 2.40~4.10 GHz 3 x HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 SATA/NVME SSD 2 8 6 Yes 12V/10A
I6 I7 9750H Intel® UHD Graphics 630 2.6~4.50 GHz 3 x HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 SATA/NVME SSD 2 8 6 Yes 12V/10A
I6 I5 10200H Intel® UHD Graphics 2.4~4.10 GHz 3 x HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 SATA/NVME SSD 2 8 6 Yes 12V/10A
I6 I7 10870H Intel® UHD Graphics 2.2~5.00 GHz 3 x HDMI 1 x SO-DIMM DDR4 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 SATA/NVME SSD 2 8 6 Yes 12V/10A
