Industrial Control Computer

Industrial Control Computer

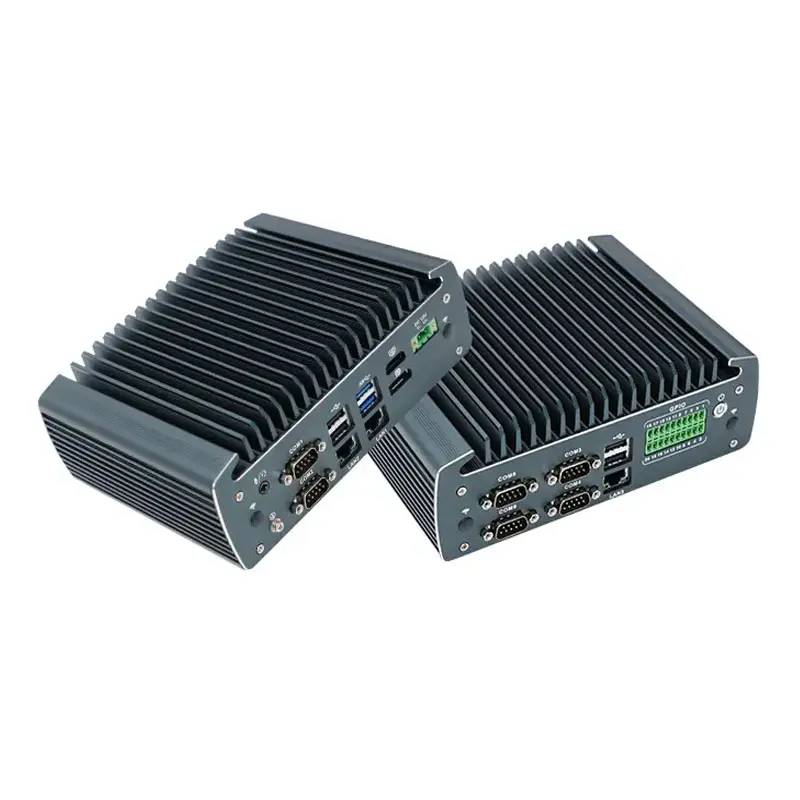

Model: Partaker PA-1226

  • Industrial control computer powered by a 2.0GHz (up to 2.6GHz) 12th Gen Intel Celeron J6412 quad-core processor
  • Mini PC with 3 Intel i226-V 2.5G LAN ports, 1 DP and 1 HD port, supporting both synchronous and asynchronous dual display
  • Supports DDR4 3200MT/s SODIMM memory (max 32 GB), M.2 storage (SATA protocol), and 2.5” SSD/HDD in 1 slot each
  • Features auto power-on, timed power-on, network wake-up, PXE boot, watchdog (0-255 levels), and TPM2.0 security encryption
  • Works well in different fields like industrial automation, medical, logistics and transportation, warehousing, and electronic education

Share to:

Overview



The J6412 Mini Industrial PC With 3 x 2.5G Lan is a mini PC that can provide you with a powerful and reliable industrial computing solution. It features:



•  A 12th Gen Intel Elkhart Lake J6412 processor, which offers high performance and low power consumption for various industrial applications

•  A support for 1 x DDR4 SODIMM slot, which can hold up to 32GB RAM for fast and smooth operation

•  A support for 3 x Intel i226-V 2.5G Lan ports, which offer high-speed and stable network connectivity

•  A support for 2 x M.2 slots, which can support 4G/5G modules for wireless communication

•  A support for 1 x Mini PCIE slot, which can accommodate other expansion cards



The J6412 Mini Industrial PC With 3 x 2.5G Lan is a great solution for applications such as network security, VPN, firewall, router, industrial control, IoT gateway, and more.





Mechanical

Material High-quality all aluminum,surface hard anodized
Colour Dark grey (color can be customized)

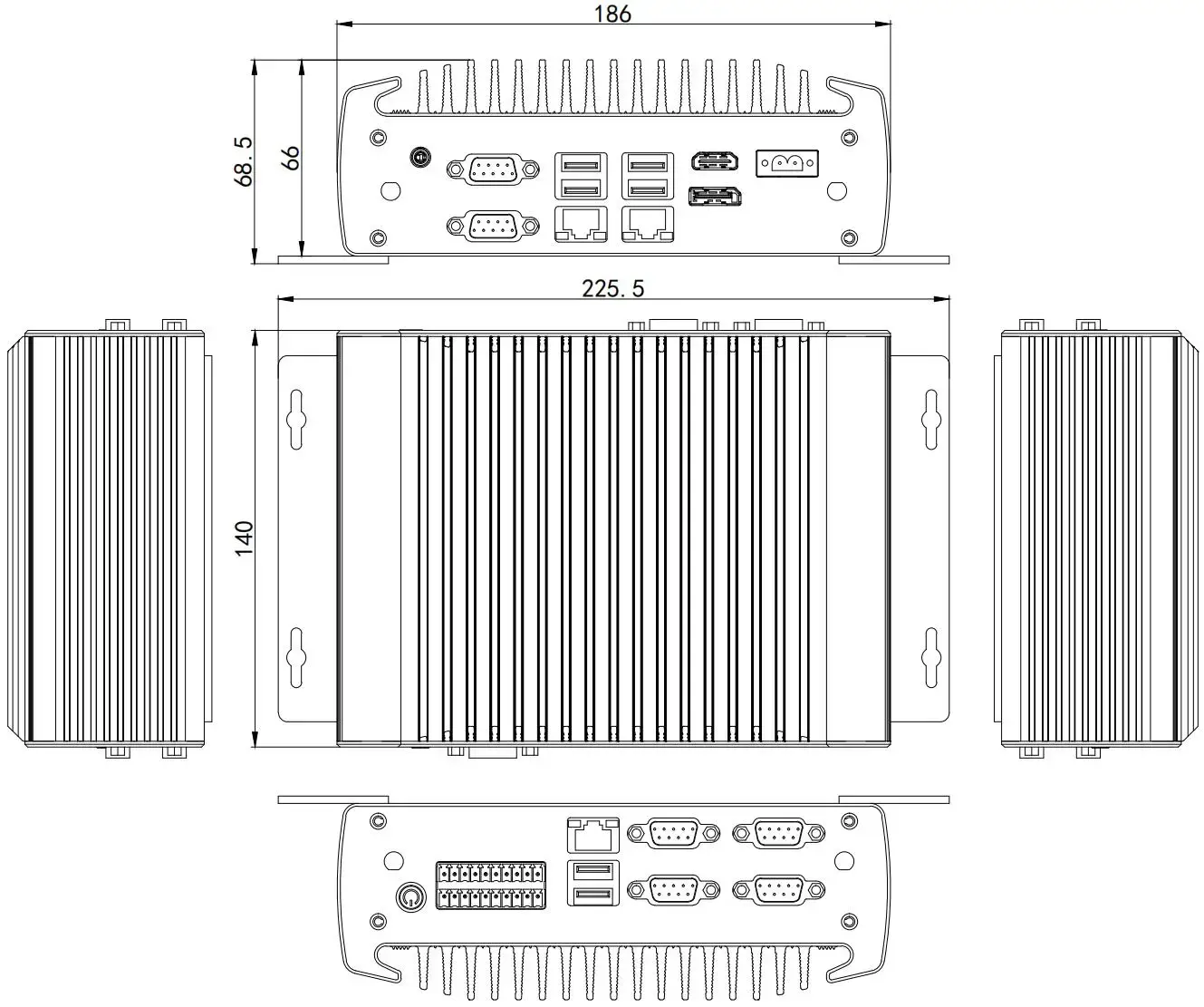

Size 186 x 140 x 66mm
Weight 2.5Kgs
Insallation Method Desktop type/Vesa



Motherboard

CPU Intel Celeron J6412 (quad core, four threads, 2.0GHz,Max to 2.6GHz)
Display Ports 1 x DP, 1 x HD(Support synchronous and asynchronous dual display)
Graphic Intel HD Graphics
Network Card 3 x Intel i226-V 2.5G Lan
Memory 1 x DDR4 3200MT/s SODIMM, Max 32 GB
Storage 1 x M.2 slot (SATA protocol) , 1 x 2.5” SSD/HDD
Expansion
1 x MINI PCIE slot (WIFI/3G/4G,choose one of them),SIM card slot
1 x M.2 M-key slot 2280, SATA protocol
1 x M.2 B-key slot 3042/3052 (for 4G/5G module) with SIM slot
Other Function
Auto Power-on, Timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption

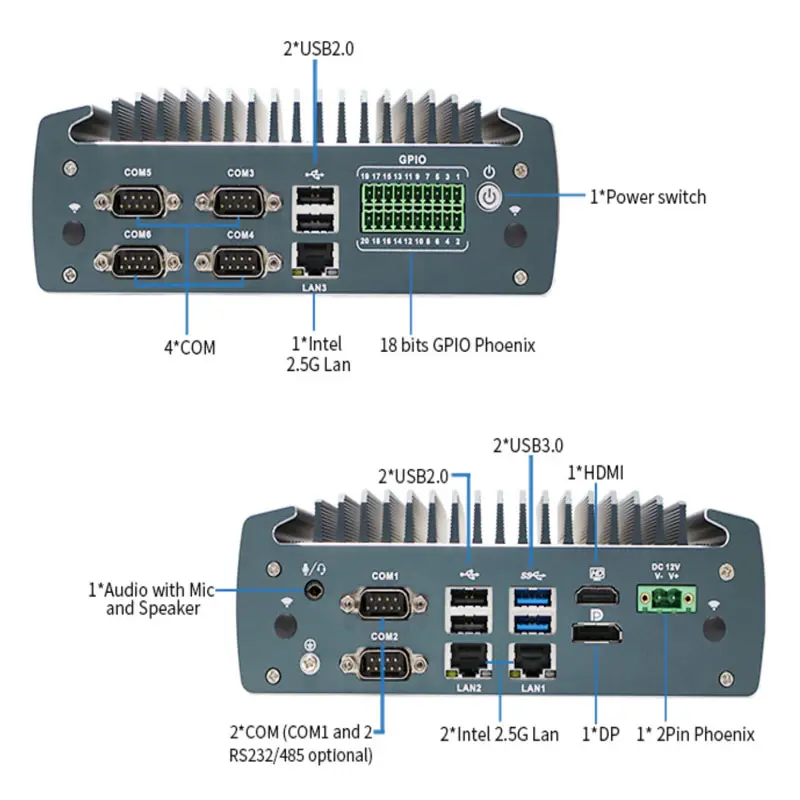

I/O Interfaces

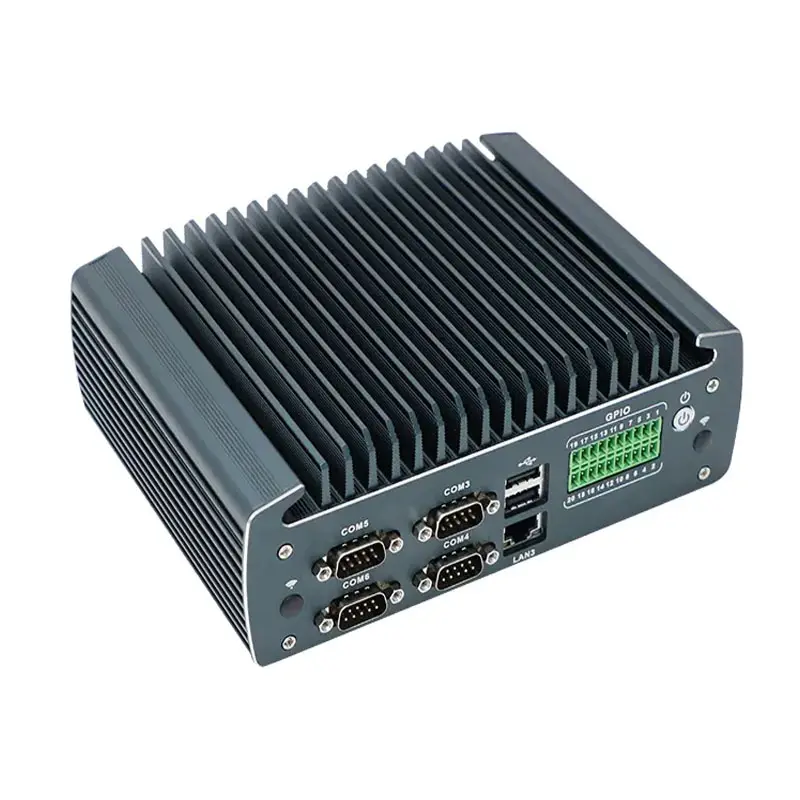

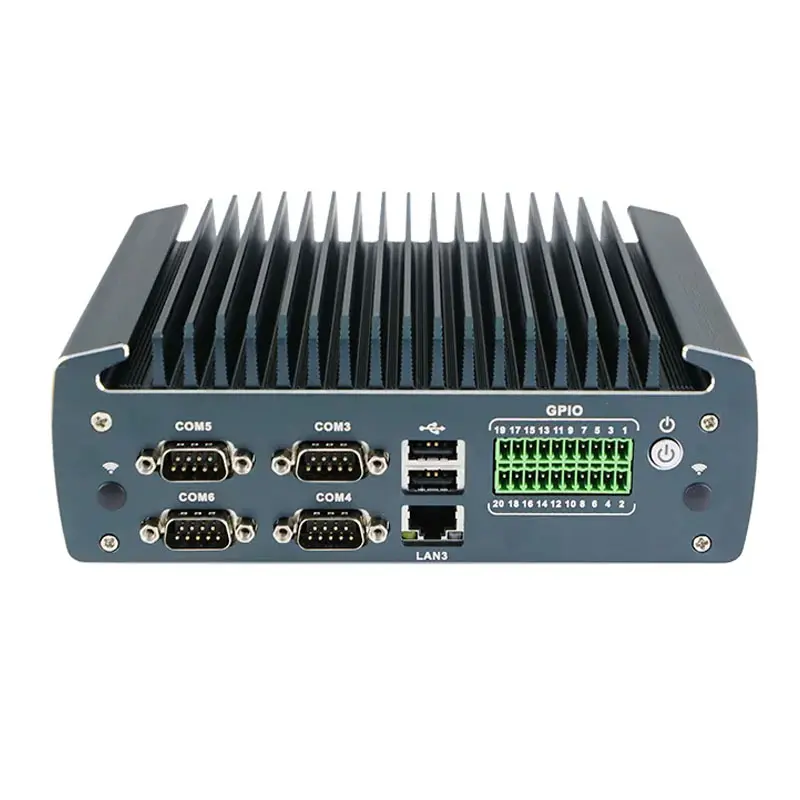

Front Panel 1 x Power Switch
2 x USB2.0
1 x 18 bits GPIO Phoenix
1 x Intel 2.5G LAN
4 x COM

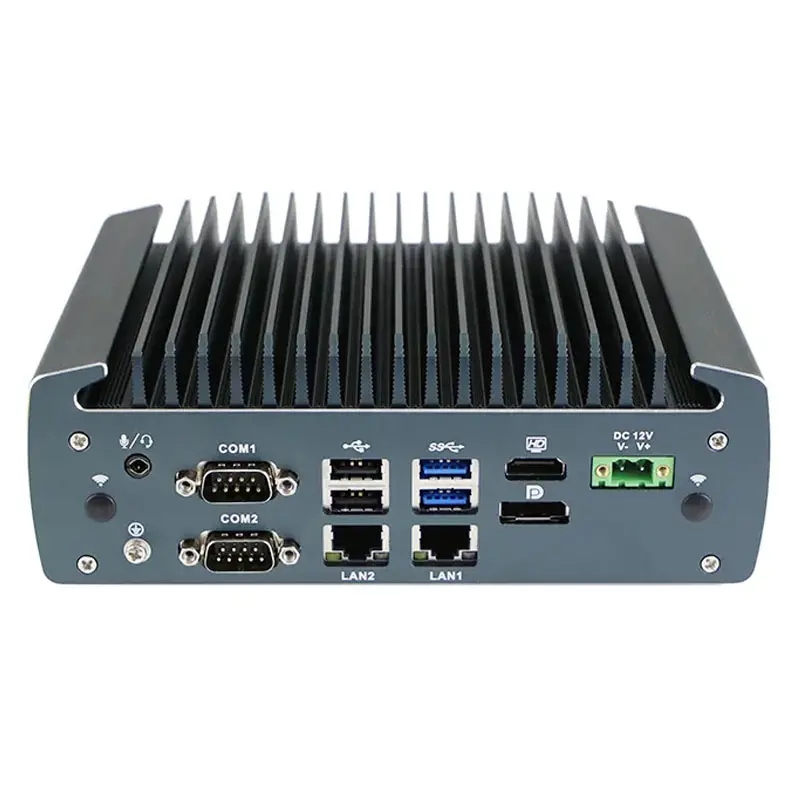

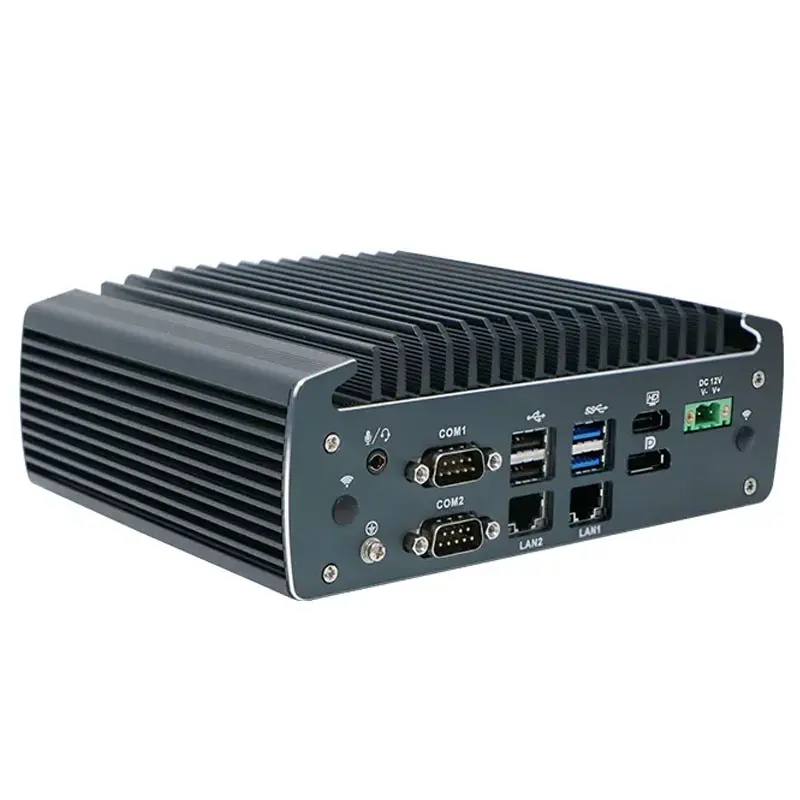

Rear Panel 1 x DC IN 2Pin Phoenix
1 x DP
1 x HDMI
2 x USB3.0
2 x USB2.0
2 x Intel 2.5G LAN
2 x COM(COM1 and 2 RS232/RS485 Optional)
1 x Audio with Mic and Speaker



Software Support

Bios AMI UEFI BIOS
System Support Windows 7/8/10, Linux



General

Cooling Mode Fanless
Power Supply DC 12V (DC 9-36V Optional )

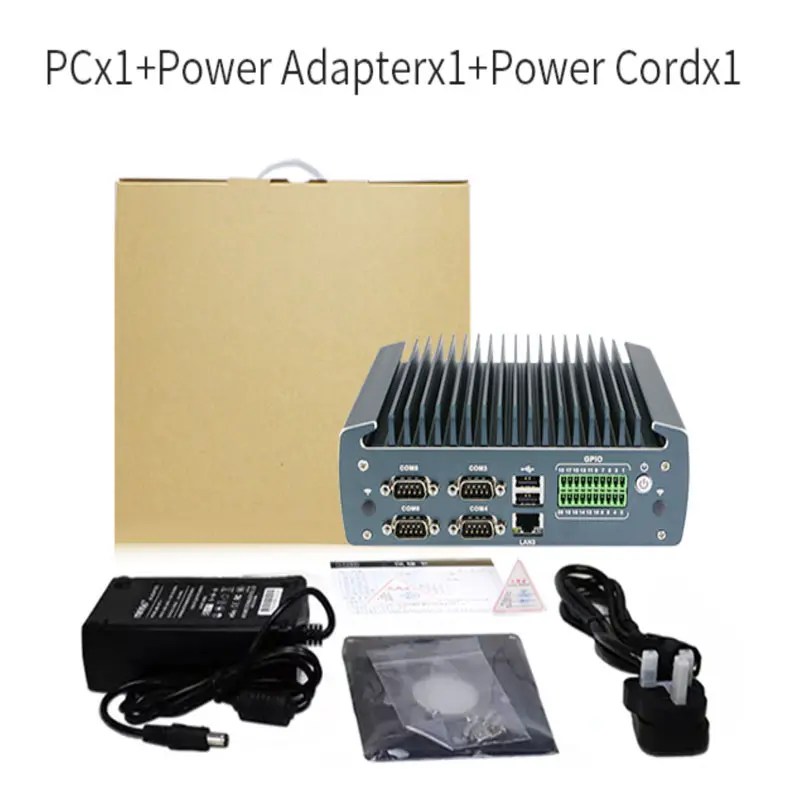

Packing List 1 x Mini PC, 1 x Power Adapter, 1 x Power Cable, 1 x VESA Mount & Screws



Environment

Work Temperature 0℃ – +50℃ (Commercial HDD), -20℃ to -60℃ (Industrial SSD), Surface air flow
Relative Humidity 5 % ~ 95% non-condensing
Certification CE FCC ROHS
Application Industrial automation, medical, logistics and transportation, warehousing, electronic education ETC,.



J6412 Mini Industrial PC With 3x2.5G Lan

Model Processor Graphic Frequency Display Memory Storage GPIO COM LAN USB Power
PA-1226 J6412 Intel® UHD Graphics 2.0~2.6GHz 1 x HDMI/1 x DP 1 x DDR4, Max 32G 1 x M.2/1 x 2.5 Inch HDD or SSD 18 bit GPIO Phoenix 6 3 6 DC 12V
