Firewall Multi Lan Mini PC Celeron J3060

Mode: Partaker C4-L2

Intel Celeron J3060 Dual Core 1.6Ghz, 2M Cache, up to 2.48 GHz
With 1*DDR3L 1600Mhz SODIMM Ram Slot, Max to 8G
I/O Port: 2*HD+2*USB3.0+4*USB2.0+1*RJ45 COM(support console)+1*Audio+2*Lan+Power switch
Nuc Dimension: 115*107.5*39 mm
With 2*Intel i211-AT 1000M LAN, support RTL and PXE diskless boot
12V/4A AC/DC power adapter
Support 1*Mini-PCIE(support MSATA), 1*Mini-PCIE(support WiFi/BT optional)
Applied in Home, Office, Firewall, VPN, Router, Network Server etc

Share to:

Overview

The J3060 NUC Mini PC is a compact and efficient computing solution:

It features a durable all-aluminum structure and operates silently as a fanless Ubuntu mini PC.
Powered by an embedded Intel Celeron J3060 dual-core CPU, it offers reliable performance.
This mini PC supports dual HDMI ports and dual 1000M LAN ports, along with AES-NI for enhanced security capabilities.
It provides a range of connectivity options, including 2 x USB 3.0 ports, 4 x USB 2.0 ports, and 1 x RJ45 COM port with console support.
For storage expansion, it offers 1 x Mini-PCIE slot (compatible with MSATA) and 1 x Mini-PCIE slot (optional for WiFi/BT).
The J3060 Mini PC can be conveniently mounted using VESA, on a desktop, embedded into various setups, or wall-mounted, ensuring flexibility in deployment.

In summary, the J3060 NUC Mini PC is a compact and versatile computing solution with a durable build, efficient Intel processing, diverse connectivity options, and adaptable mounting choices to suit a variety of applications.

Mechanical

Material	Aluminum alloy
Colour	Black(color can be customized)

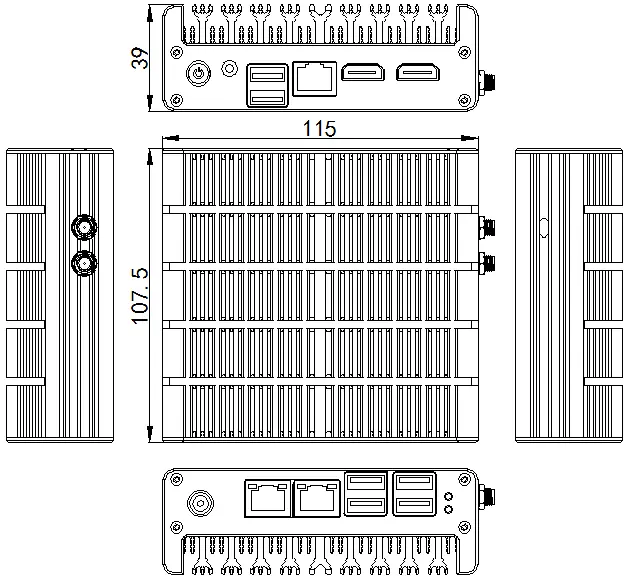

Size	115 x 107.5 x 39 mm (WDH)
Weight	1.5Kgs
Insallation Method	Desktop type/vesa mounting

Motherboard

CPU	Intel® Celeron™ Procesor J3060(2M Cache, up to 2.48 GHz)
Mainboard	100 x 100mm NUC mainboard
Network Card	2 x Intel i211AT 1000M lan, support wake on lan
Chipset	Intel Integrated Chipset
Memory	1 x DDR3L 1600Mhz So-DIMM Ram Slot, Max 8G
Storage	1 x mSATA SSD
Expand	1 x Mini-PCIE(support SMATA), 1 x Mini-PCIE(support WiFi/BT optional)

I/O Interfaces

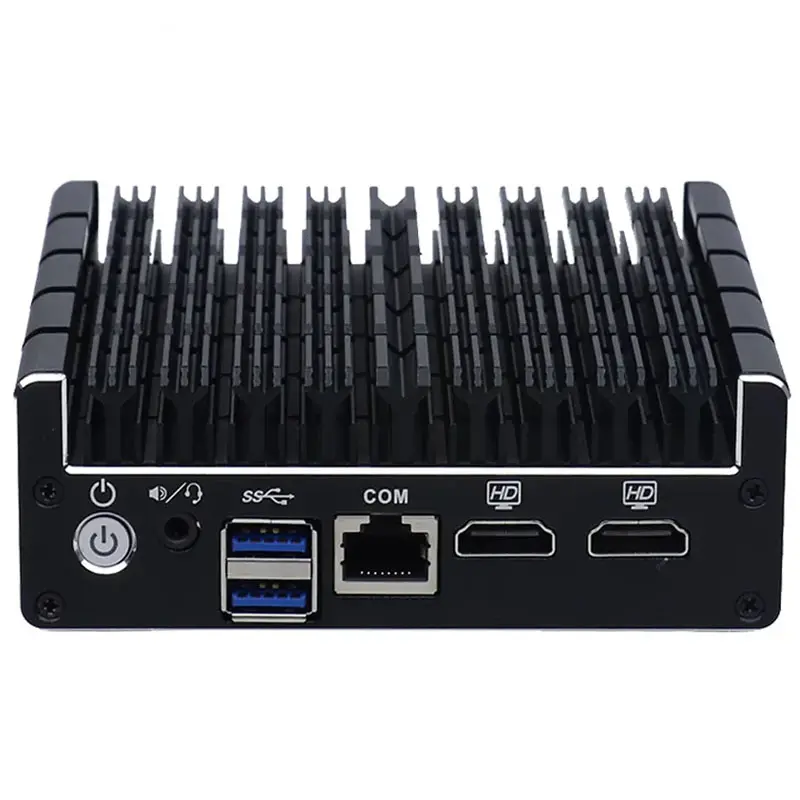

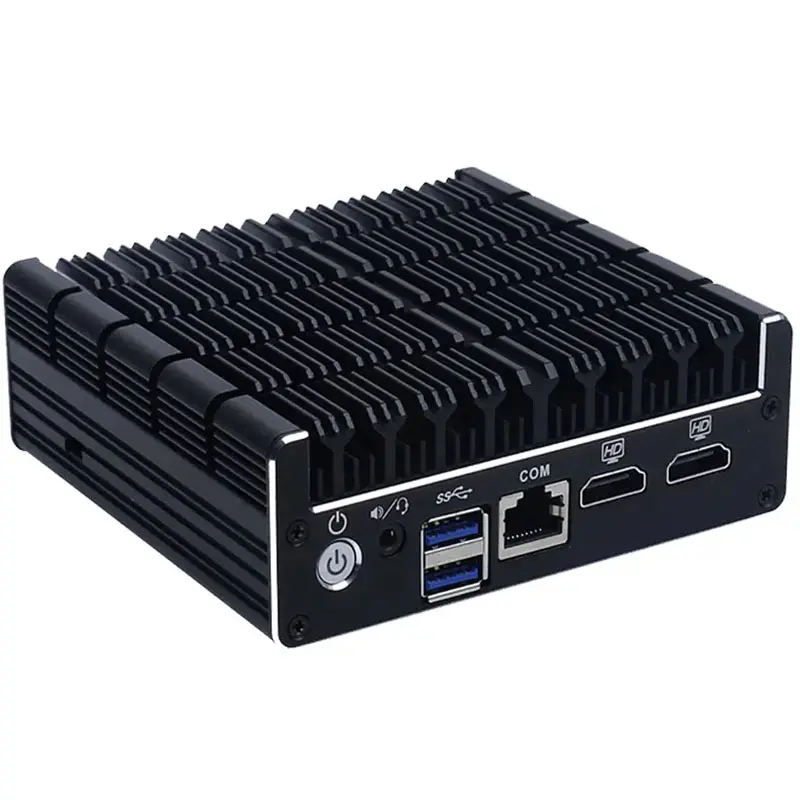

Front Panel	1 x Power button
	1 x Audio/MIC
	2 x USB3.0
	1 x RJ45 COM(support Console)
	2 x HDMI

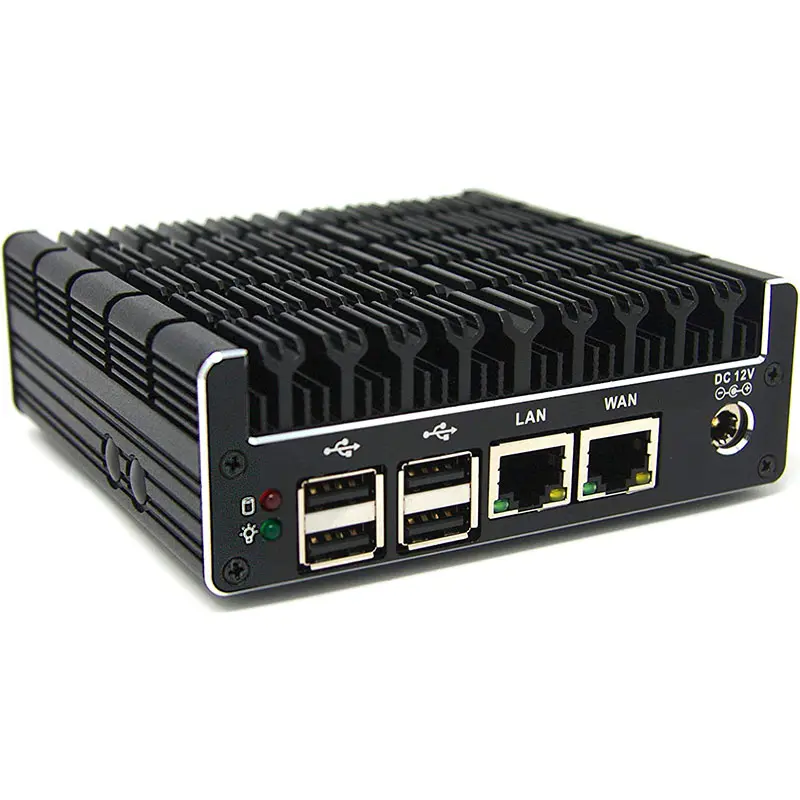

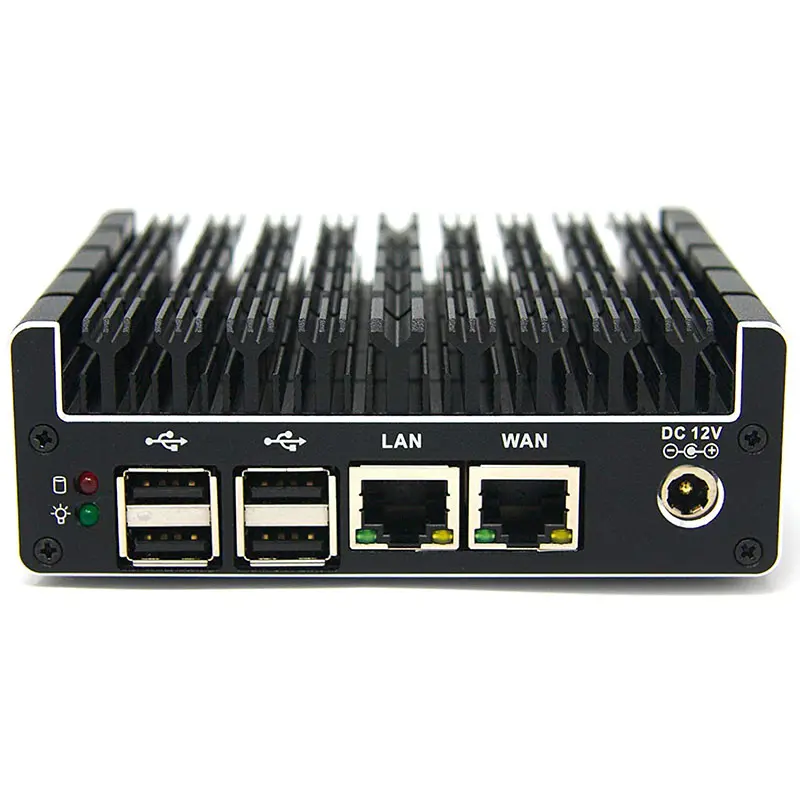

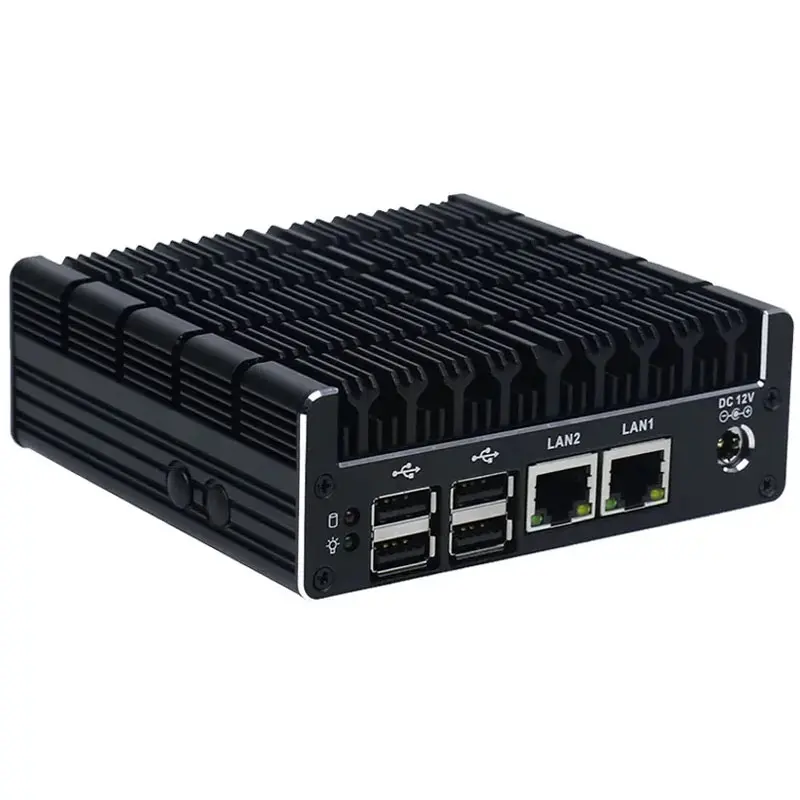

Rear Panel	4 x USB2.0
	2 x LAN
	1 x DC-IN 12V

Software Support

Bios	AMI 64Mbit Flash ROM
System Support	Windows 7/8/10, Linux, pfSense etc

General

Cooling Mode	Fanless
Power Supply	DC 12V-IN power supply and AC power adapter

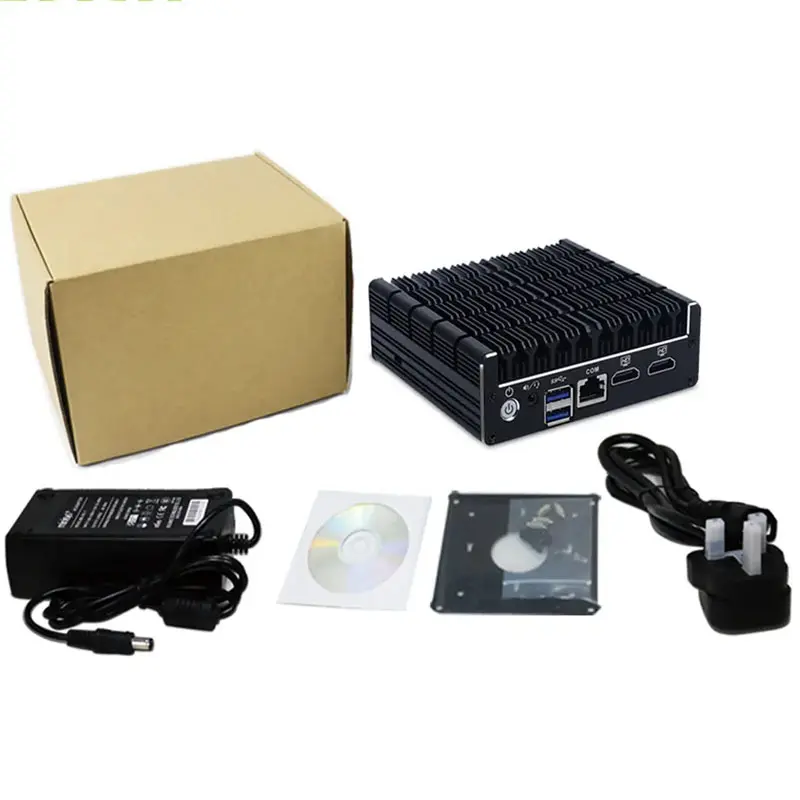

Packing List	C4-L2 mini pc, power supply, power cord, vesa, warranty card

Environment

Working Temperature	-10°C – 50°C
Working Humidity	0% – 95% relative humidity, Non-condensing
Watch Dog Timer	Support
Certification	CE FCC ROHS

Model	Processor	Graphics	Frequency	Display	Memory	Storage	LAN	USB	Power
C4-L2	J3060	Intel® HD Graphics	1.6~2.48 GHz	2 x HDMI	1 x SO-DIMM DDR3L	1 x M-SATA SSD	2	6	12V/4A
C4-L4	J3160	Intel® HD Graphics	1.6~2.24 GHz	2 x HDMI	1 x SO-DIMM DDR3L	1 x M-SATA SSD	4	2	12V/4A
