Fanless N100 Mini PC

Fanless N100 Mini PC

Model: Partaker B15

  • Powerful Intel Alder Lake N100 processor.
  • Fanless, silent operation.
  • Rich I/O ports for multiple devices.
  • Triple display support.
  • Aluminum alloy chassis.
  • Low TDP for energy efficiency.
  • Optional VESA mount.
  • Watchdog & power management features.
  • Expandable DDR4 memory.
  • Compact, space-saving design.

Share to:

Overview



The N100 Mini PC is a powerful yet compact device designed for various industry applications. With rich I/O ports like dual NIC RJ45, 8 USB ports, dual HDMI 1.4, and DisplayPort 1.2, it seamlessly connects to multiple devices. Its quad-core Intel Alder Lake N100 processor and fanless design ensure efficient, quiet operation, perfect for businesses, call centers, digital signage, education labs, kiosks, and HTPCs.



Mechanical

Material High-quality all aluminum
Colour Silver
Size 170 * 125 * 50 mm
Weight 1.5Kgs
Insallation Method With VESA, desktop

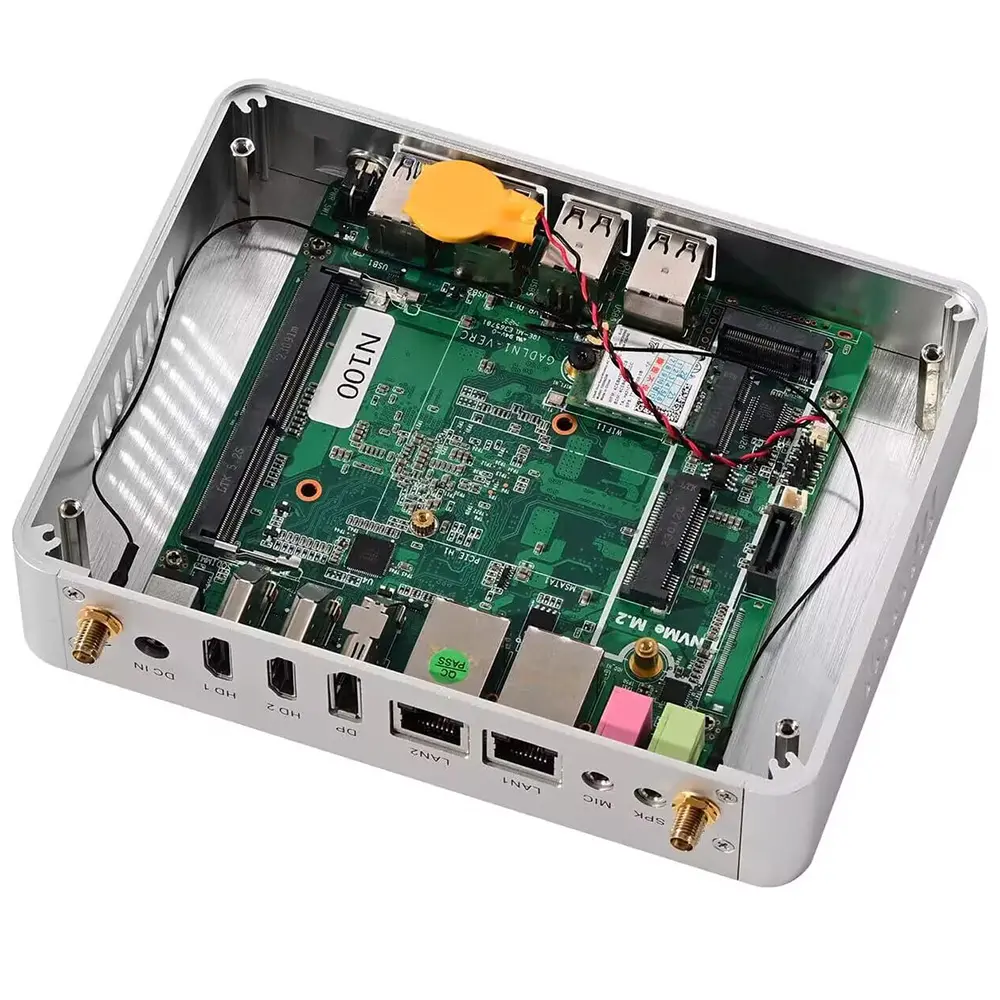

Motherboard

CPU Intel Processor N100 6M Cache, up to 3.40 GHz
Display Ports 2 x HDMI, 1 x DP
Network Card 2 x Realtek 10/100/1000 BaseT LAN
Memory 1 x SO-DIMM DDR4 3200 MT/s, max. 16GB RAM
Storage 1 x mSATA SSD, 1 x M.2 2280 NVME SSD, 1 x 2.5 Inch SATA SSD/HDD
Audio Card ALC892


Other Function

First-class temperature control ensures 24h/7 days without shutting down

12V green and environmentally friendly, only 10W power for daily use

Support restore AC power loss/WOL/LAN PXE boot

Support dual screen for simultaneous display or synchronous different display



I/O Interfaces

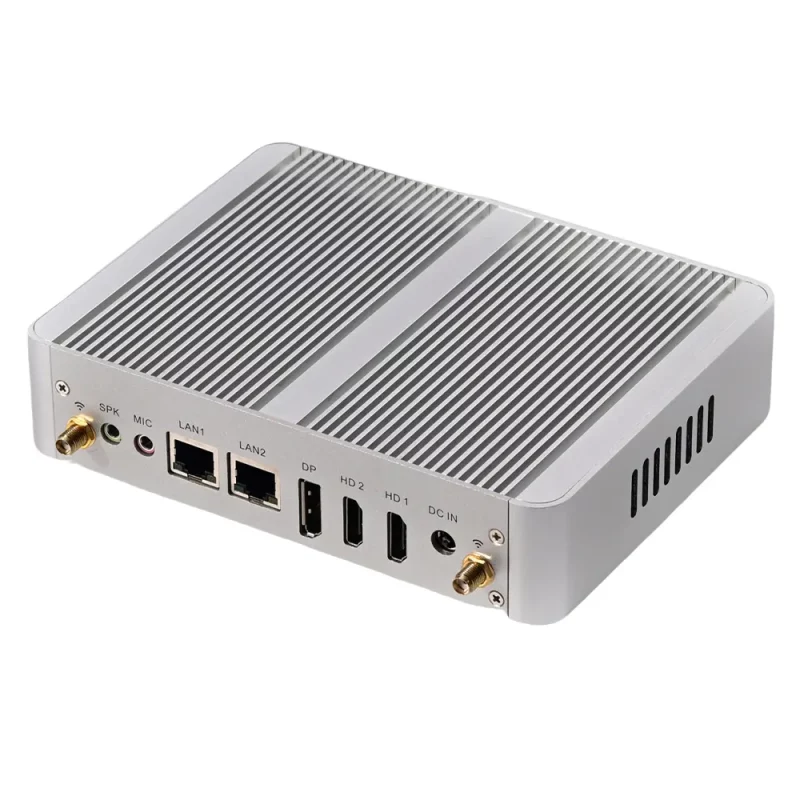

Front Panel

2 x WiFi Holes
1 x SPK
1 x MIC
2 x LAN
1 x DP
2 x HDMI
1 x DC IN

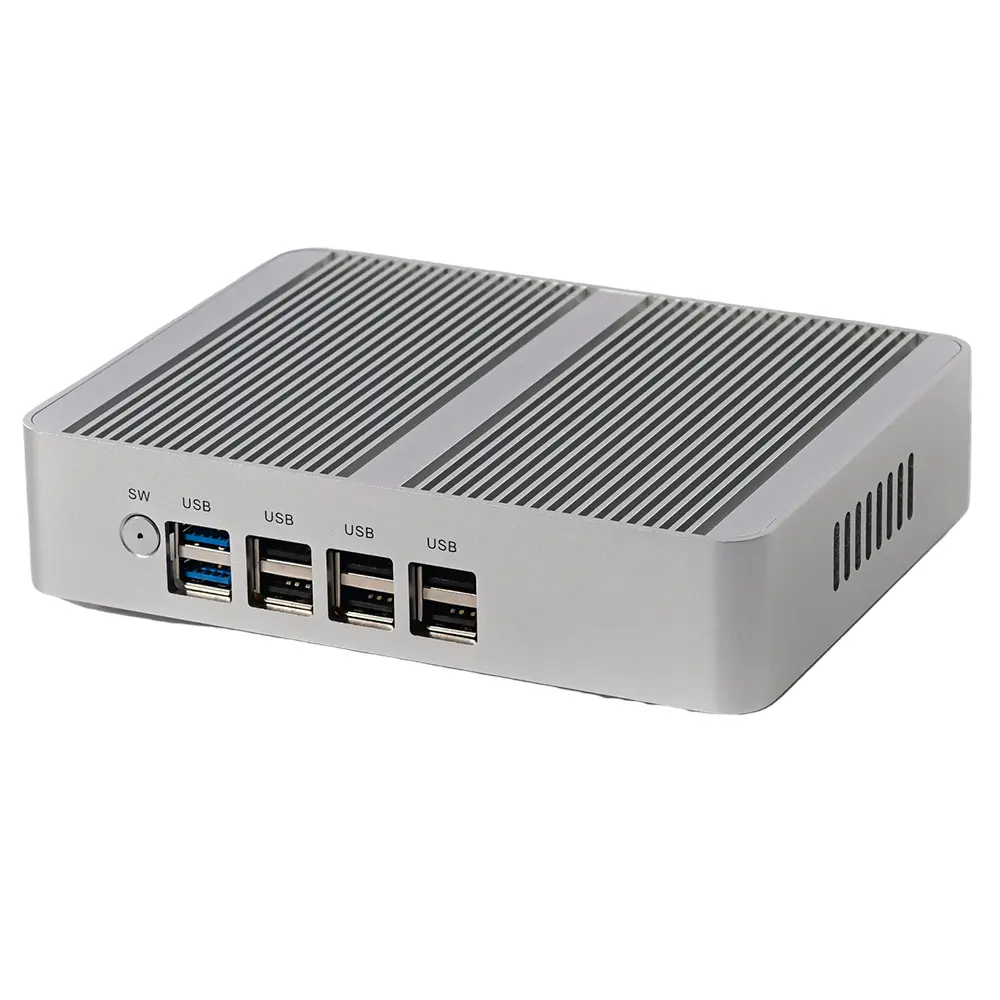

Rear Panel

1 x SW
2 x USB3.0
6 x USB2.0



Software Support

Bios AMI EFI BIOS
System Support Windows 10/11, Linux



General

Cooling Mode Fanless
Power Supply DC-IN 12V
Packing List Mini pc, power supply, power cord, vertical stand, WiFi antennas, warranty card



Environment

Operating Temperature -10°C~60°C
Storage Temperature -20°C~80°C
Relative Humidity 10%~90% non-condensing
Certification CE FCC ROHS
Model Processor Graphic Frequency Display Memory Storage LAN USB Power
B15 N100 Intel® UHD Graphics 3.40GHz 2 x HDMI/1 x DP 1 x DDR4, Max 16G 1 x M.2 2280 NVME, 1 x mSATA, 1 x 2.5 inch SSD/HDD 2 8 DC 12V
