Fanless Mini PC Intel N3520 N2920

Fanless Mini PC Intel N3520 N2920

Model: Partaker P6

  • Intel® Celeron® Quad Core N3520/N2920 Processor
  • 2 x COM, 1 x VGA, 1 x HDMI, USB 3.0,4* USB 2.0, LAN, SPK, MIC
  • Support 1 x SODIMM DDR3L RAM
  • Support 1 x mSATA SSD, 1 x 2.5 Inch SSD/HDD
  • Support diskless boot
  • Support Restore AC Power Loss
  • Support VGA & HDMI Dual Display

Share to:

Overview



Partaker P6 is a fanless mini computer, application fields: living room computer, download machine, hotel, hotel room computer, digital signage, advertising machine, self-service terminal, office industry computer, split karaoke machine



Mechanical

Material Aluminum alloy
Colour Black

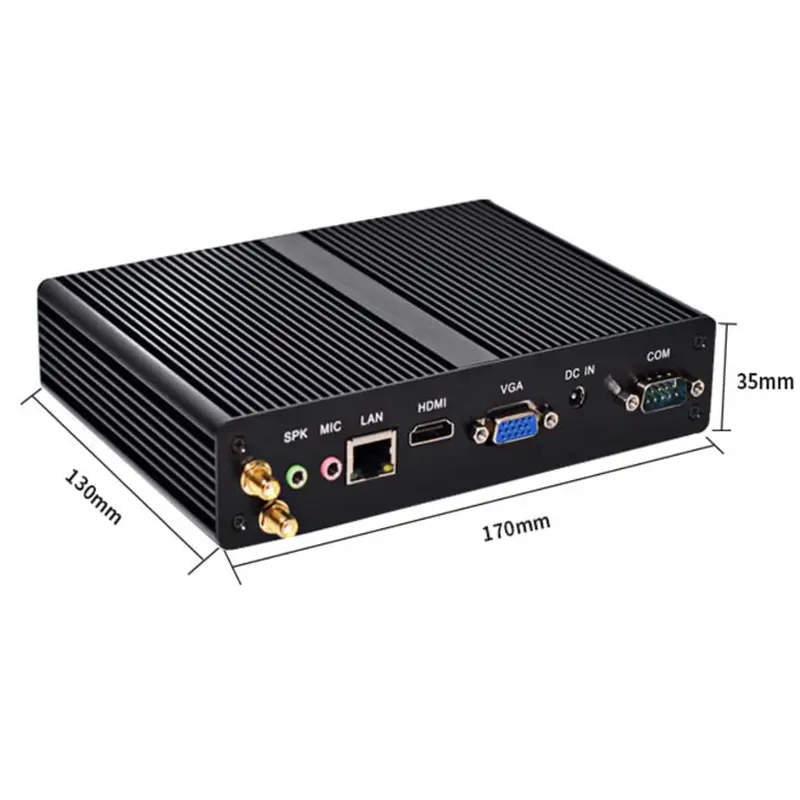

Size 170 x 120 x 36mm
Weight 1.5Kgs
Insallation Method Desktop type/vesa mounting
With holding vertical stand, vesa mount as the optional



Motherboard

CPU Intel® Celeron® Processor N2920 (2M Cache, up to 2.00 GHz)
Intel® Pentium® Processor N3520 (2M Cache, up to 2.42 GHz)
Chipset SOC
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SO-DIMM DDR3L 1333, up to 8GB RAM
Storage 1 x 2.5 inch hard disk bay/1 x mSATA
Expand 1 x Mini PCIE WiFi slot



I/O Interfaces

Front Panel 1 x Power button
1 x COM RS232
1 x USB3.0
4 x USB2.0
Rear Panel 1 x DC_in
1 x COM RS232
1 x VGA
1 x HDMI
1 x Lan
1 x Audio
2 x WiFi antennas



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc



General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V/3A
Packing List P6 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB COM Power
P6 Celeron N2920 Intel® HD Graphics 1.86~2.0 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 5 2 12V/3A
P6 Celeron N2920 Intel® HD Graphics 1.86~2.0 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 5 NO 12V/3A
P6 Pentium N3520 Intel® HD Graphics 2.17~2.42 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 5 2 12V/3A
P6  Pentium N3520 Intel® HD Graphics 2.17~2.42 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 5 NO 12V/3A



This model have 2 Version, 2COM Version & Without COM Version.
