Fanless Mini PC J6412

Fanless Mini PC J6412

Model: Partaker C8

  • Powerful quad-core processor for seamless performance.
  • Supports up to 32GB DDR4 RAM for faster multitasking.
  • Intel UHD Graphics for crisp and clear visuals.
  • Triple display support via HDMI ports.
  • Expandable with M.2 and Mini PCIE slots.
  • Versatile connectivity with USB 3.1, USB 2.0, and COM ports.
  • Dual Gigabit LAN for reliable networking.
  • Auto power-on and timing boot for convenient usage.
  • TPM 2.0 security encryption for enhanced data protection.
  • Ideal for industrial automation, medical, and logistics applications.

Share to:

Overview



The Mini PC powered by the Intel Celeron J6412 quad-core processor, offers robust performance with its DDR4 RAM support up to 32GB. Equipped with Intel UHD Graphics, it delivers smooth visuals. Featuring multiple HDMI ports, it supports triple display. With a range of expansion slots and connectivity options, it’s suitable for various applications like industrial automation, medical, and logistics.



Mechanical

Material High-quality all aluminum, surface hard anodized
Colour Metal gray(Any color can be)

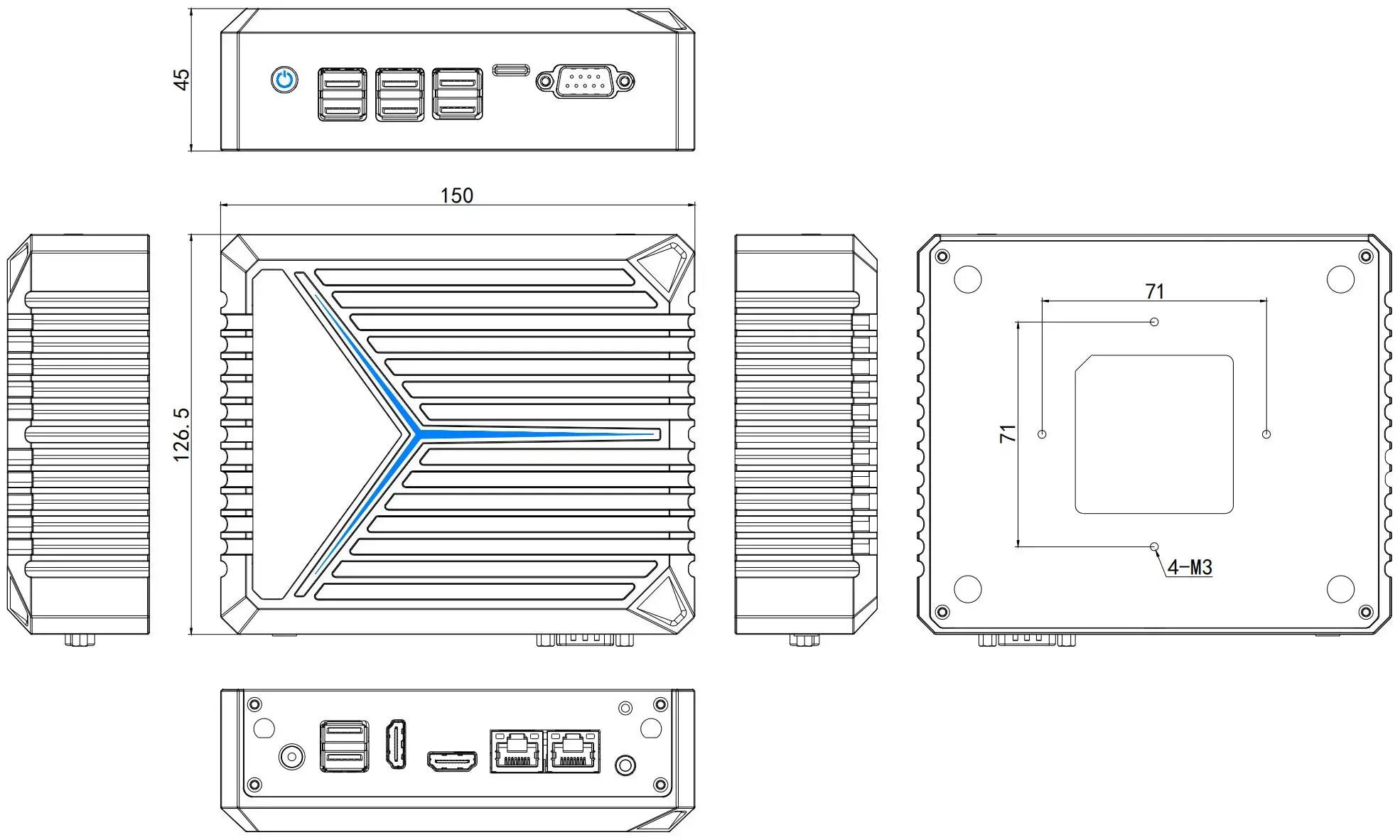

Size 150 x 126.5 x 45mm
Weight 1.5Kgs
Insallation Method Desktop type/Vesa



Motherboard

CPU Intel Celeron J6412 (Quad core quad threads, 2.0GHz, Max turbo 2.6GHz)
Display Ports 2 x HDMI (Support synchronous and asynchronous dual display, Max resolution support 4096×2160 @ 60Hz)
Graphic Intel(R) UHD Graphics
Network Card 2 x Realtek 8111H 1000M LAN
Memory 1 x DDR4 3200MHz SODIMM RAM Slot, Max Support 32GB
Storage 1 x M.2 2280 Slot,1 x 2.5 Inch HDD or SSD
Other Function Auto power on when there is electricity, Timing boot, Wake On LAN, PXE boot, Watchdog (0~255 Level),TPM2.0 security encryption
Expansion
1 x M.2 2280 M-key Slot(Support SATA Protocol)
1 x Mini PCIE Slot,WiFi or 4G

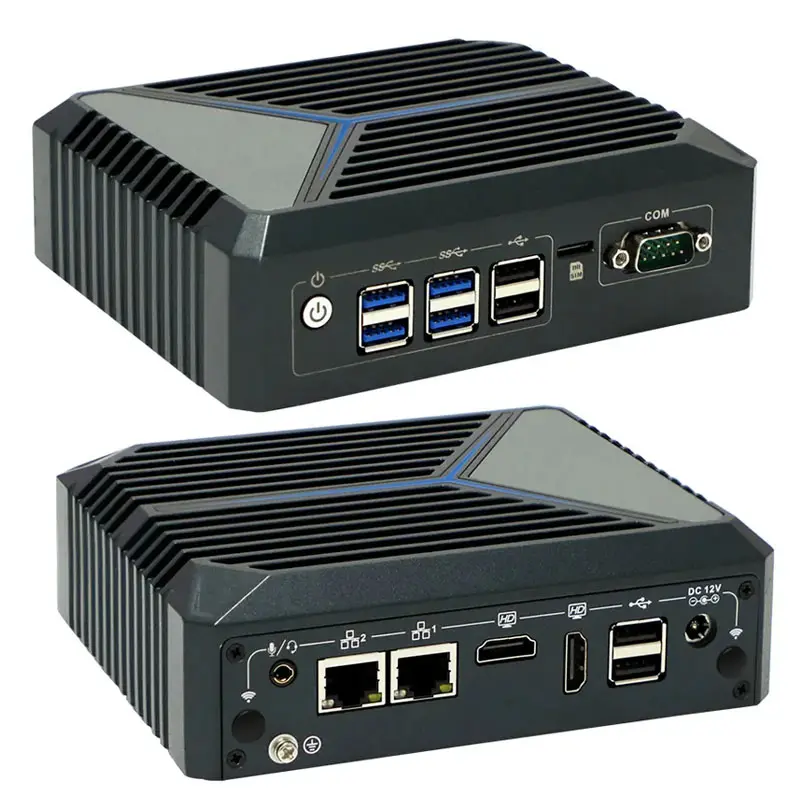

I/O Interfaces

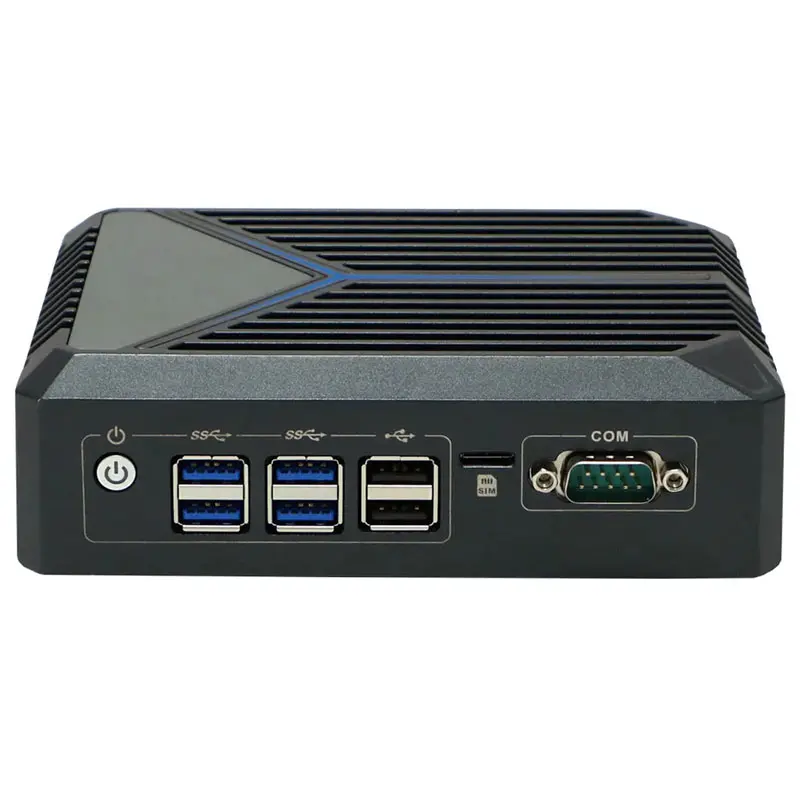

Front Panel 1 x Power Switch
4 x USB3.1
2 x USB2.0
1 x DB9 COM, 1 x SIM slot
Rear Panel 1 x DC
2 x USB2.0
2 x HDMI
2 x RJ45 LAN
1 x Audio ( Support Mic and Speaker at the same time)



Software Support

Bios AMI EFI BIOS
System Support Pre-install Windows 11 Pro 64 Bit, Also support Windows 10 pro, Linux



General

Cooling Mode Fanless
Power Supply DC 12V

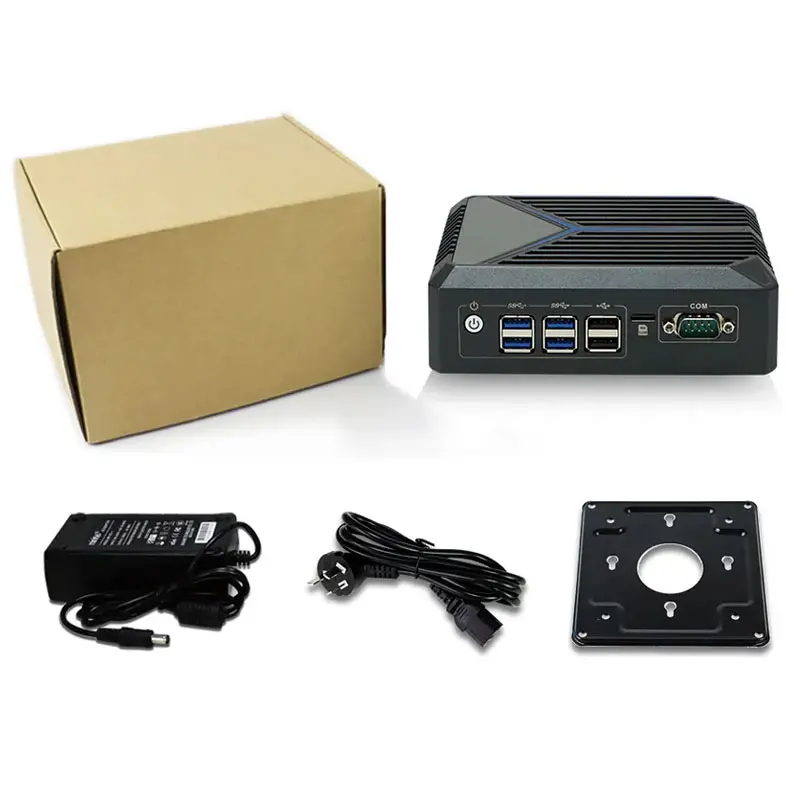

Packing List 1 x Mini PC, 1 x Power Adapter, 1 x VESA Mount & Screws



Environment

Work Temperature 0℃ ~ +40℃(Commercial HDD), -20℃ ~ +60℃(Industrial SSD), Surface air flow
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS
Application Industrial automation, medical, logistics and transportation, warehousing, electronic education etc.



fanless mini pc with 2 lan

Model Processor Graphics Frequency Display Memory Storage LAN USB Power
C8 J6412 Intel® UHD Graphics 2.0~2.6GHz 2 x HDMI 1 x SO-DIMM DDR4 1 x M.2 2280 Slot/1 x 2.5 Inch HDD or SSD 2 8 DC 12V
