Fanless Mini PC 10th Gen Core I5 I3 Processor

Fanless Mini PC 10th Gen Core I5 I3 Processor

Model: Partaker I28

  • Powerful dual/quad-core processing for seamless performance.
  • Packed with Intel UHD Graphics for immersive visuals.
  • Supports up to 32GB DDR4 RAM for smooth multitasking.
  • AMI UEFI BIOS for user-friendly system management.
  • Display connectivity with DP and HDMI ports.
  • Expandable storage with M.2 and 2.5” HDD slots.
  • Mini PCIE slot for WIFI/3G/4G connectivity options.
  • Rich I/O ports including USB 3.0, COM, and Gigabit LAN.
  • Energy-efficient with 12V DC input support.
  • Ideal for business, education, and industrial automation applications.

Share to:

Overview



This compact yet powerful device features dual/quad-core processors, Intel UHD Graphics, and support for up to 32GB DDR4 RAM, delivering seamless performance for multitasking and graphics-intensive tasks. With DP and HDMI display ports, expandable storage options, and rich I/O connectivity, it’s an ideal choice for business, education, and industrial automation applications.



Mechanical

Material Aluminum alloy
Colour Black(color can be customized)

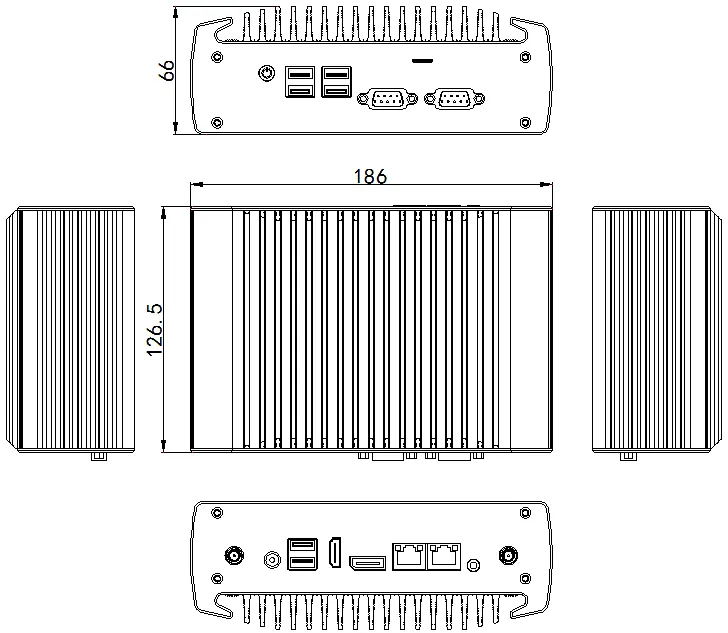

Size 186* x 26.5 x 66 mm (L x W x H)
Weight 2.5Kgs
Insallation Method Desktop type



Motherboard

CPU Intel Core i3 10110U (Dual core 4 threads, 2.1G, Max. Turbo 4.1G, 4MB Cache)

Intel Core i5 10210U (Dual core 4 threads, 2.1G, Max. Turbo 4.1G, 4MB Cache)

Intel Core i5 8260U (Quad core 8 threads, 1.6G, Max. Turbo 3.9G, 6MB Cache)

Intel Core i5 8260U (Quad core 8 threads, 1.6G, Max. Turbo 3.9G, 6MB Cache)(2.5G LAN)

Intel Core i7 10810U (Hexa core 12 threads, 1.1G, Max. Turbo 4.9G, 12MB Cache)(2.5G LAN)

Display 1 x DP, 1 x HD, (Support synchronous and asynchronous dual display)
Network Card 2 x Intel i211-AT 10/100/1000M lan
Chipset Intel UHD Graphics for 10th Gen Intel Processors
Memory Support 1 x DDR4 2666/2933MHz SODIMM ram slot, support max 32G
Storage Support 1 x M.2 2280 slot, 1*2.5”HDD, support RAID 0/1
Expand Support 1 x M.2 2280 slot (Support M.2 PCIE X4 and M.2 SATA SSD);

Support 1*MINI PCIE slot (WIFI/3G/4G choose one from three),embedded SIM socket;



I/O Interfaces

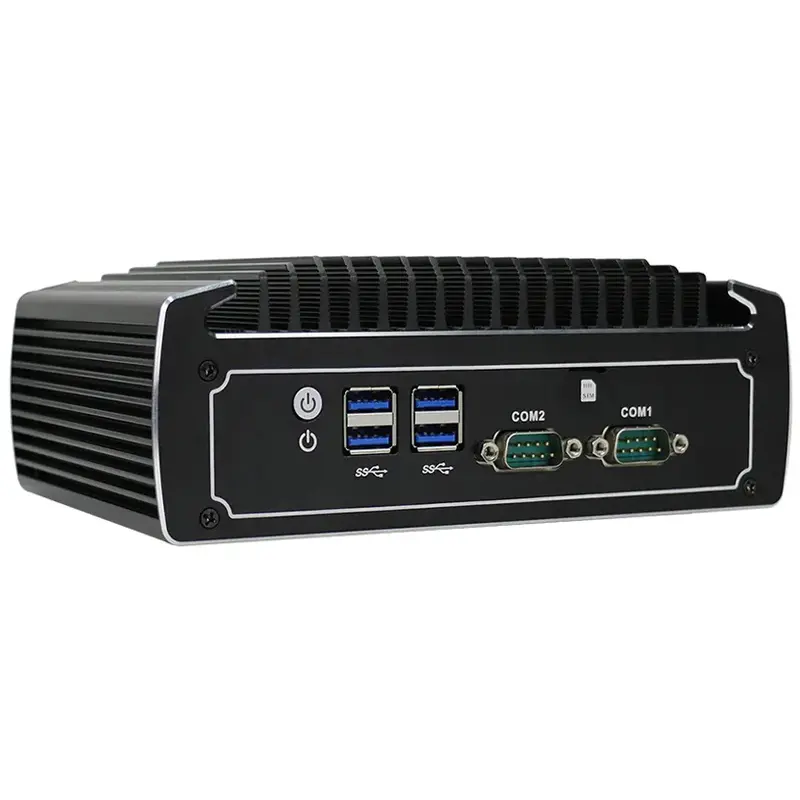

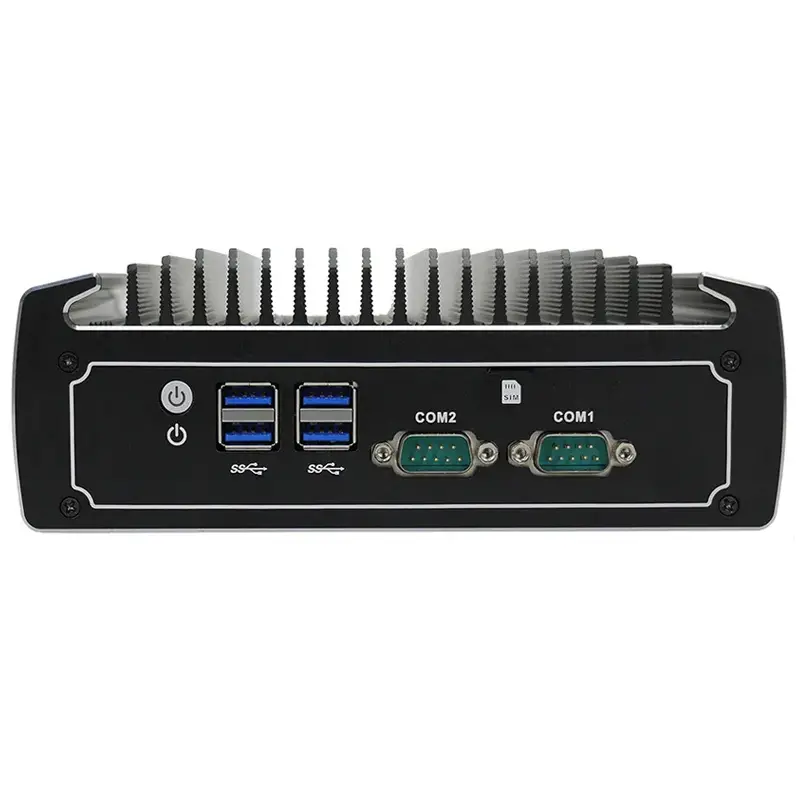

Front Panel 2 x COM optional (support RS232/485 optional)
4 x USB3.0
1 x Power Switch
1 x SIM Card Slot

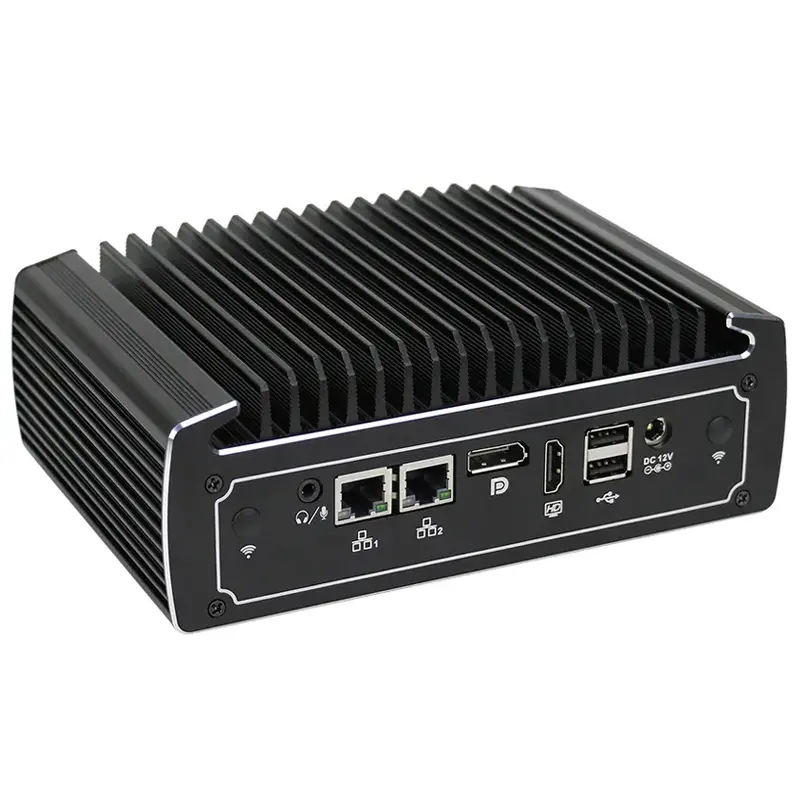

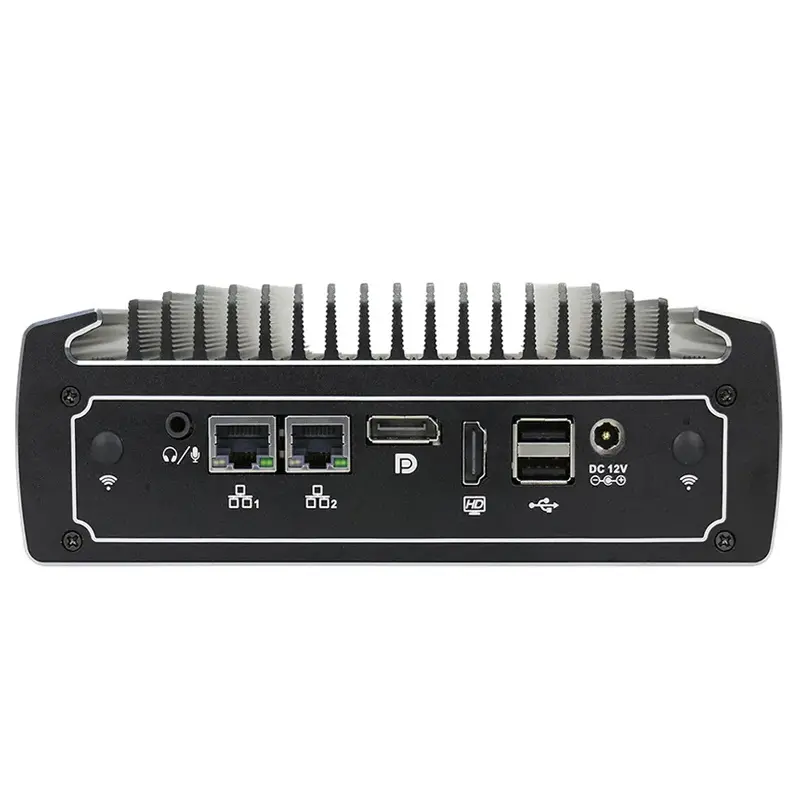

Rear Panel 1 x DC-IN 12V
2 x USB2.0
1 x HDMI
1 x DP
2 x Intel 1000M Lan
1 x Audio (support audio and mic input)



Software Support

Bios AMI EFI BIOS
System Support Windows & Linux



General

Cooling Mode Fanless
Power Supply Support DC 12 Input

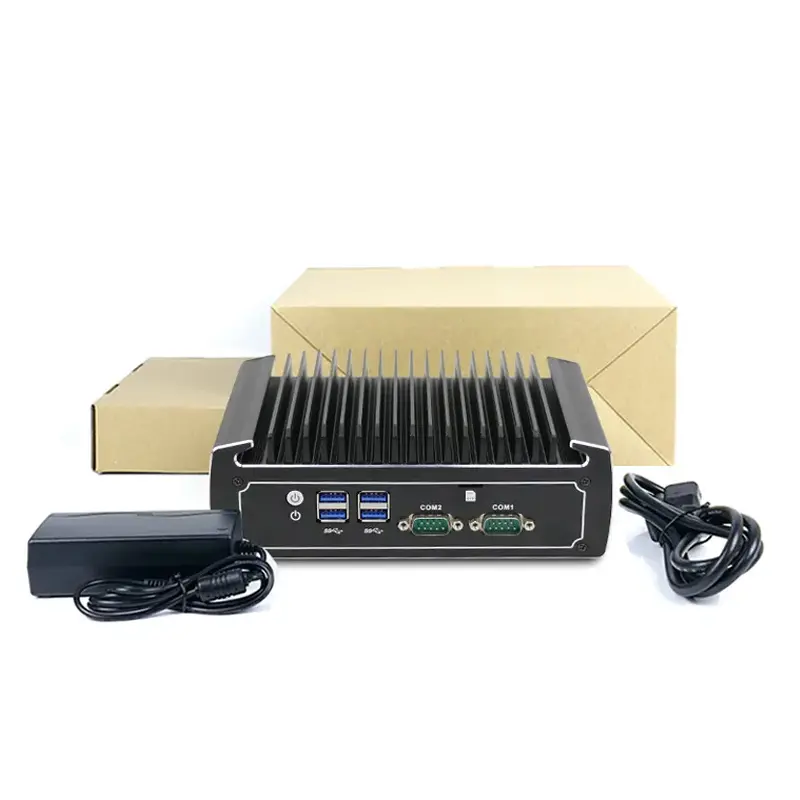

Packing List I28 mini pc, power supply, power cord, warranty card



Environment

Working Temperature 0℃ ~ +40℃(Commercial HDD),-20℃ ~ +50℃(Industrial SSD),Surface air flow
Working Humidity 0% – 95% relative humidity, Non-condensing
Certification CE, RCC, ROHS
Application Business Office, HD Video Playback, Electronic Education, Industrial Automation etc.



8th gen core i5 i7 Fanless Mini PC

Model Processor Graphics Frequency Display Memory Storage LAN USB Power
I28 I3 10110U Intel® UHD Graphics 2.1~4.1GHz DP/HDMI 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch HDD 2 x I210/I211 6 12V/5A
I28 I5 10210U Intel® UHD Graphics 1.1~4.9 GHz DP/HDMI 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch HDD 2 x I211 6 12V/5A
I28 I5 8260U Intel® UHD Graphics 620 1.6~3.9 GHz DP/HDMI 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch HDD 2 x I211 6 12V/5A
I28 I5 8260U 2.5G Intel® UHD Graphics 620 1.6~3.9 GHz DP/HDMI 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch HDD 2 x 2.5G 6 12V/5A
I28 I7-10810U 2.5G Intel® UHD Graphics 1.1~4.9 GHz DP/HDMI 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch HDD 2 x 2.5G 6 12V/5A
I28 I7 8550U Intel® UHD Graphics 620 1.8~4.0 GHz DP/HDMI 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch HDD 2 x I211 6 12V/5A
